AutoCAD Add-in | Coordinate Value

Modeling Software: AutoCAD

Technologies used: .NET, C#

AutoCAD Add-In Function

To place text values of the actual location of the element with respect to the Zero coordinate value.

Why was it developed?

Coordinate value is useful while the user needs to maintain the actual location of the element with respect to the Zero coordinate value. The coordinate value actually can get by executing the command “ID”. However, the user needs to write down the data from properties or by ID. This tool can display the required coordinate value as per the current precision standard of the AutoCAD file.

Value Addition

• The tool provides the required data as per the user’s choice.

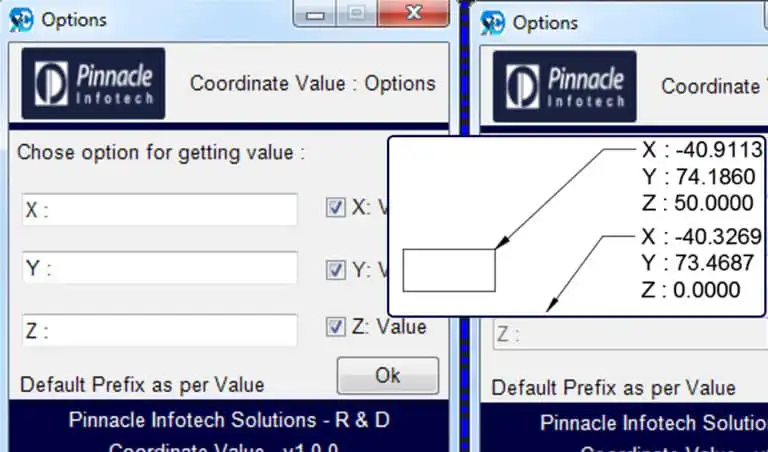

• The UI has the option to display the XYZ value as Multileader.
• The user can also provide its own prefix value as per project requirements.

Limitation

• The changed prefix value can not be saved for further use.
• The displayed value does not update by displacing the Multileader arrow point.
• The tool can not run in a Template file or non-saved drawing files.

Prerequisites for this Plugin

• Minimum system requirements for Autodesk AutoCAD between the 2016 version to 2023.
• No additional configuration is required.
