The Global Navigation Satellite System, or GNSS, is a constellation of satellites providing real-time precise point positioning data to aid in construction decision-making. GNSS enables accurate surveys and monitoring with the help of high-end tracking and visualization technology.
GNSS construction allows high-precision and cost-effective site surveys that help project teams with creating layout plans and setting up foundations. Furthermore, it helps with comprehensive structural monitoring, data collection, machine control, and site surveying with high diligence and precision.
GNSS allows construction professionals to have great control over screening and capturing site data. It can help project teams with processing and analyzing information with great efficiency and accuracy.

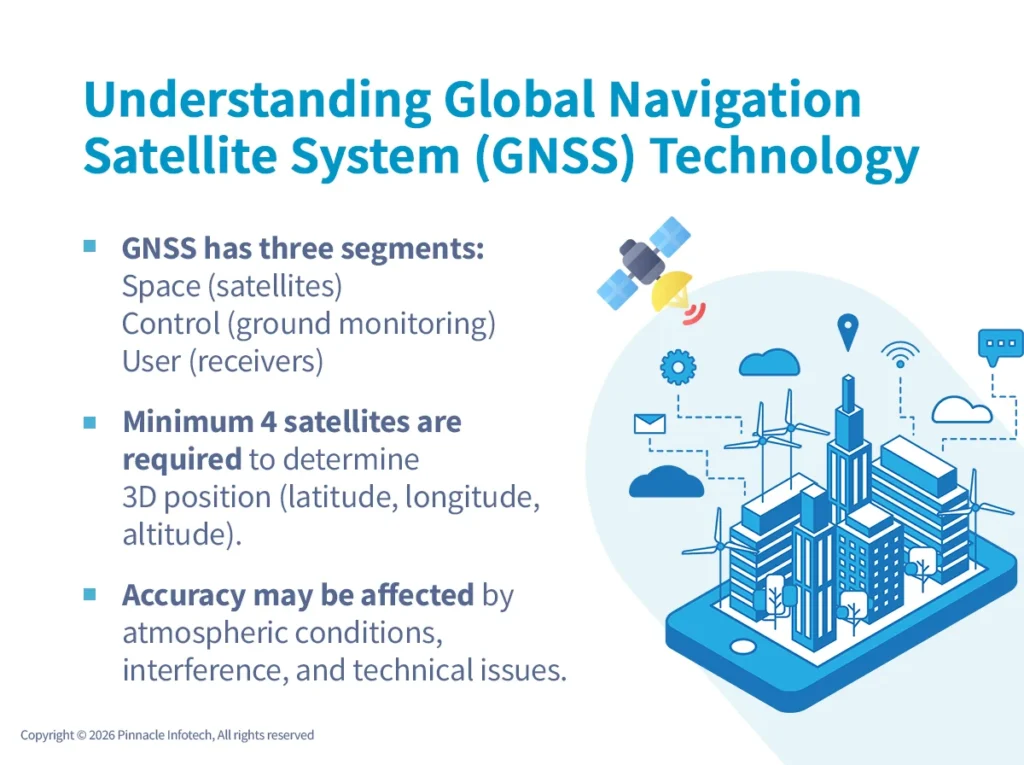

Global Navigation Satellite Systems have three main segments. The first one is the space segment. It has a wide network of satellites that orbit around the earth at a range of 20,000 to 37,000 kilometers from the surface. Another one is the control segment. This has master stations that continuously monitor the health and functioning of the orbiting satellites. The third segment is the user segment. It encompasses the equipment that receives satellite signals and processes them into positions based on the orbital location and time.
Satellite engineers configure and deploy GNSS systems using a minimum of four satellites. This is a basic standard configuration for determining a three-dimensional position, including latitude, longitude, and altitude. GNSS signals travel at a lightning-fast speed and contain high-precision time stamps. The accuracy of the GNSS positioning can be disrupted due to atmospheric conditions and signal interference. Besides, there may be different technical reasons due to which GNSS output positioning systems may deliver inconsistent and inaccurate results.
There are different GNSS constellations that consist of a host of satellites providing global positioning, navigation, and timing services. These are specifically six operational satellite constellations as of date: GPS, GLONASS, BeiDou, Galileo, NavIC, and QZSS, contributing to the global coverage of navigation.
The GPS or Global Positioning System is the first and foremost of these satellite navigation systems. It was developed by the U.S. Department of Defense and launched in 1978.
The Soviet Union developed GLONASS to compete with GPS. It has been operational since 1995. GLONASS satellites were started as a military project and are currently operated by the Russian Aerospace Forces.
BeiDou is China's GNSS system. It has been operational since 2000 and currently has 48 satellites in orbit. As of 2025, the constellation has grown to over 50 operational BeiDou satellites in orbit.
The European Union operates Galileo, a GNSS system, and launched its first satellites in 2011. The system is interoperable with GPS and GLONASS, using 30 satellites positioned in three Medium Earth Orbit planes.
NavIC, also known as IRNSS, is an Indian constellation. It is India's regional navigation satellite system with eight satellites. The constellation provides real-time positioning and timing services over India and a 1,500 km region around it.
QZSS is a regional GNSS system operated by Japan. Japan launched the system in 2018 with four satellites to enhance the U.S.-operated GPS in the Asia - Oceania region.

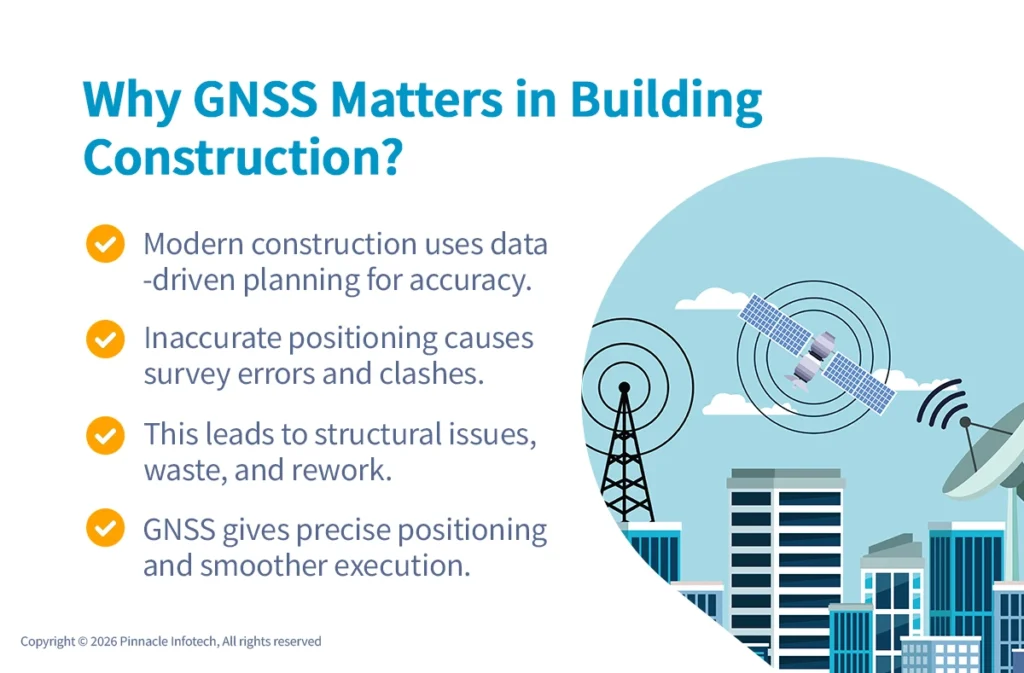

The conventional building construction process relies on technological practices driven by a data-driven approach. Today, project owners look for pre-defined execution plans that are visualized to achieve high-end accuracy and consistency in output. Surveying errors, misaligned sequences, and functional clashes may occur due to inaccurate positioning data inputs and incomplete actionable insights.
Such gaps in field measurement and process assessment may further aggravate and escalate towards serious structural anomalies and material wastage. Further in the process, this may also lead to costly labor corrections and rework. Construction teams should align their practices with GNSS in modern project planning setups.
It allows construction teams to easily evade such situations while also eliminating any chances of compliance risks and project delays. Also, with the global satellite navigation system, teams get clear data points and detailed projections on accurate positions and precise metrics. This ensures seamless construction operations and flawless project output.
Construction teams increasingly use GNSS to enhance site surveying and project management with high precision. The extensive service data and operational value offered by GNSS in organizing sites, tracking equipment, surveying, grading, and other construction works mark it as one of the leading technologies to disrupt construction processes. Mentioned below are some of the major applications of GNSS, creating significant differences in construction practices and workflows.
GNSS helps with tracking the location and usage of heavy machinery across job sites. This leads to optimizing process efficiency and preventing theft.
GNSS data allows managers to monitor site progress against digital design models. This ensures compliance with technical specifications.
Real-time monitoring of large infrastructure projects and high-rise buildings enables professionals to detect and track micro-movements and structural deformations.
GNSS receivers only need a clear sky view for surveying in areas with limited visibility or sight obstacles. This allows project engineers and system operators to conduct obstacle-free surveying and assessments.
Remote data collection capabilities of GNSS minimize the need for surveyors to be present in difficult terrains and hazardous environments.
GNSS data allows project managers to monitor site progress at scale. It is in alignment with digital design models, which ensures compliance with specifications.
GNSS is useful in logistics and transportation for construction projects. It enables real-time access to the location of items for prompt and failsafe movement and delivery.
GNSS is critical for asset tracking and security on construction sites. The technology allows for the confirmation of moving assets and vehicle locations in case of theft.
Facilitates quick and precise topographic surveys to ensure that the construction is carried out in compliance with the design specifications and environmental guidelines. This is important to meet the green construction and sustainability compliance.
GNSS supports cut-and-fill analysis. It does it by generating accurate terrain models. This helps with optimizing material movement and cost reduction.
The advanced data extraction and processing capabilities of GNSS can significantly shorten surveying time from months to a few days.
Surveyors use GNSS rovers to locate points, stake project boundaries, and map site conditions with great control and precision.

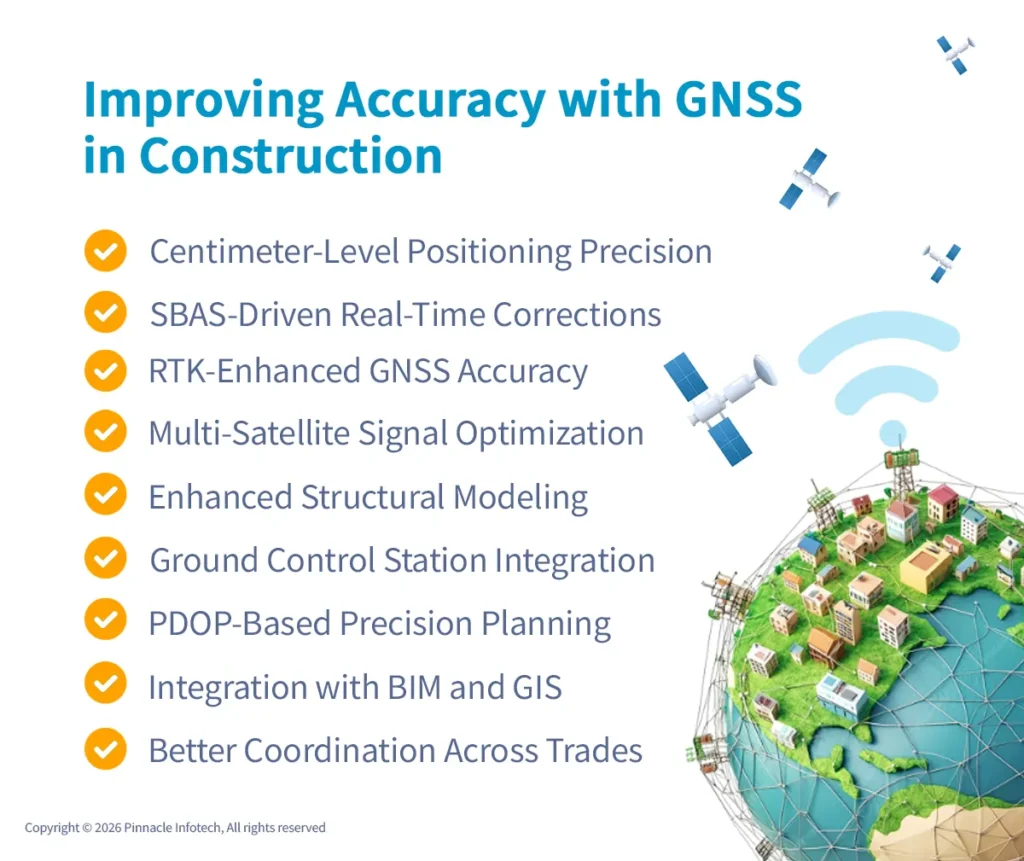

GNSS is proving its role in transforming the way construction projects are approached and executed in many ways. One of the key value definers here is accuracy. Here are the different factors that create the major differences in the process of construction through GNSS-driven accuracy:
Centimeter-level accuracy in GNSS ensures structures and earthworks are positioned as designed. This helps in reducing deviations and gaps in applications and evading costly errors. The technology provides instantaneous or near-instantaneous positioning and timing data, which eliminates guesswork and manual measurement errors.
Satellite-based augmentation systems (SBAS) enhance accuracy in GNSS-driven construction. It provides real-time corrections for atmospheric delays and orbital errors. It also provides updates for satellite clock drifts, if any. This helps in improving heavy machinery guidance and position accuracy for construction professionals to plan schedules and implementation timelines to best suit site conditions and process requirements.
GNSS receivers can improve position accuracy. This is done by providing an all-encompassing technology support for measuring the difference in signal propagation through the atmosphere. Frequently used in combination with Real-Time Kinematic (RTK) technology, GNSS proves highly advantageous for construction processes as it helps execute projects with high precision. This helps with reducing human error, lowering labor costs, and minimizing the need for rework.
The more satellites supporting GNSS connections through different source points, the easier it is to resolve position with enhanced precision. This helps with improving satellite geometry and signal reliability and provides seamless connectivity for tracking construction logistics and resource mobility.
The application of GNSS is not limited to the initial stages of the construction project. Rather, it is also beneficial for the project professionals who are concerned with structural integrity and coherence. GNSS is also beneficial during the process of monitoring the structural displacements while also gaining insights into the gaps or inconsistencies during the construction on a site with difficult soil conditions.
Construction teams install ground-based control stations as on-Earth references to further enhance GNSS positioning accuracy. This helps construction professionals to plan every action with high precision and accuracy. This allows teams to get the latest updates on site operations. Also, GNSS construction allows functional coherence over processes like machine control, land surveying, and safety monitoring at scale.
Monitoring PDOP or Position Dilution of Precision Values through GNSS before site measurements allows for better project planning. Here, optimal satellite geometry and signal information provided by precision-driven geostationary satellites are highly contributive towards optimizing field time for survey and navigation projects.
GNSS can be seamlessly integrated with Building Information Modeling and Geographic Information Systems. This offers accurate geospatial alignment and improved clash detection. GNSS provides complete support frameworks for accurate point positioning and operational control for projects to be managed through digital twins. BIM-GIS integration powered by GNSS allows teams to perform better lifecycle management across project functions and phases.
Global Navigation Satellite System GNSS allows for seamless coordination between different construction trades like MEP, architectural, and structural. GNSS ensures that all trades and disciplines work under the same geospatial reference system. This improves functional gaps and misalignments between trades and improves multidisciplinary coordination. This plays a significant role in improving the functional compliance and process accuracy in vast and complex construction projects.
Also Read: What is PropTech & How It's Reshape Commercial Real Estate Acquisition
To enable project teams to achieve precision in construction practices, GNSS systems make use of different methods of accuracy enhancements.
RTK uses a fixed base station to send correction data to mobile receivers. This is highly contributory in allowing project professionals to achieve centimeter-level accuracy in construction designs and workflow compliance.
Surveyors use Ground Control Points (GCPs) as verified reference points to align GNSS data with known site coordinates. These act as crucial reference points that anchor photogrammetric reconstructions like construction drawings and 3D models with real-world coordinate systems.
Monitoring Position Dilution of Precision or PDOP monitoring helps with generating values that indicate the optimal satellite geometry for construction teams to take accurate measurements.
Satellite-Based Augmentation Systems (SBAS) correct atmospheric delays, satellite position errors, and satellite clock drifts. They also ensure functional integrity throughout the positioning process.

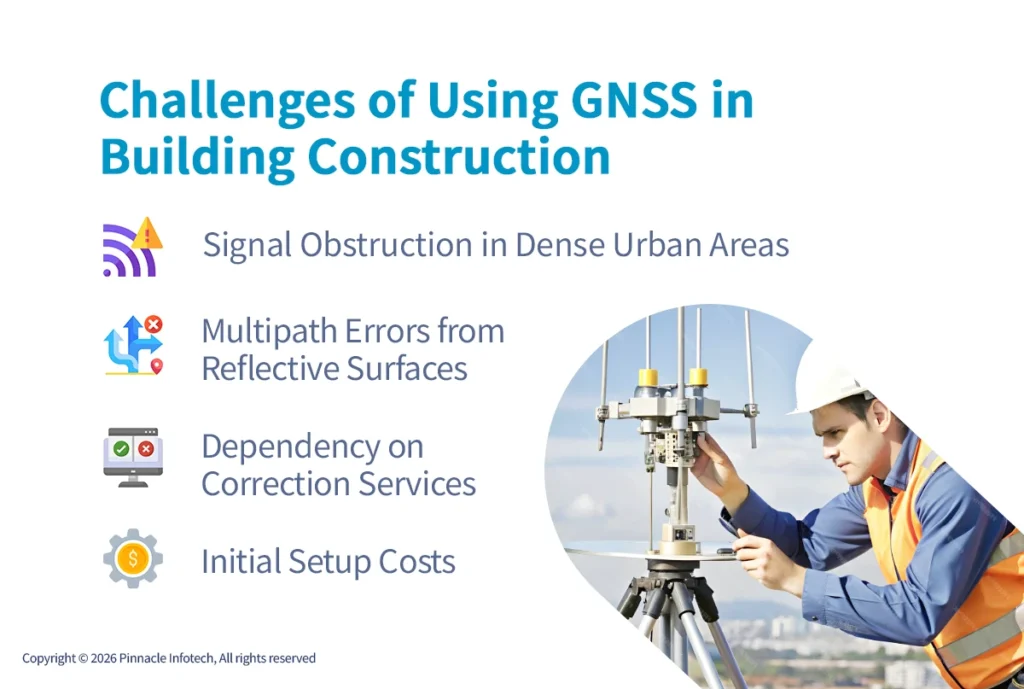

Despite various advantages, there are certain challenges faced by construction professionals while implementing or using GNSS in building projects.
Heavy construction machinery and carrier vehicles can partly or completely block the satellite signals in dense urban areas. GNSS requires a clear line of sight for multiple systems and satellites. Hindrances reduce signal availability and affect positioning accuracy. This issue is common in the case of high-rise construction sites and narrow city corridors. Reduced satellite visibility and inconsistent radio frequencies can impact connectivity and control precision, further leading to delayed construction.
Multipath errors take place when GNSS signals reflect off glass facades, metal panels, or steel structures to restrict signals to reach the receiver. These reflected signals have to travel a long path which causes connection weakening and transmission delays. This further causes inaccuracy in position calculation. Multiple signal interferences can cause deviations and lead to inaccuracy. Advanced receivers and signal filtering technologies aligned with targeted correction services can help avoid such errors. It also allows to receive signals at different frequencies.
Construction-grade or as-built accuracy requires correction services like RTK or network-based augmentation systems. This dependency requires specialized skills and professional interference which may add to the process cost. Besides, this also requires investment in stable communication links, base stations, or subscription-based correction networks. Also, disruption in signals due to weak connectivity may affect positioning accuracy. Such situations demand the system's ability to provide strong backup and require service infrastructure to ensure transmission precision and consistency.
Implementing GNSS in construction involves upfront establishment and training costs. High-precision service equipment and correction service subscriptions can attract a significant capital expense. This is a substantial cost for small contractors. However, this investment may seem hefty and draining initially; in the long run, it proves beneficial. GNSS-powered processes offer benefits such as enhanced productivity, reduced rework, greater precision, and optimum resource enablement. With time, this setup cost is covered to eventually unfold great investment value, delivering measurable returns.

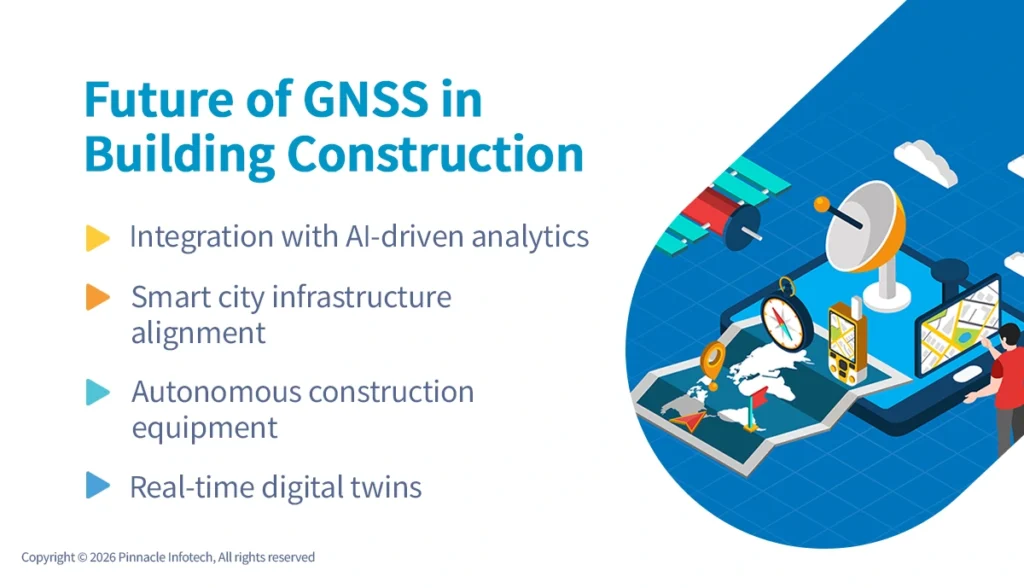

With the rising need in the construction sector to adopt digital transformation and automation across different facets of implementation and execution, GNSS is going to play a highly crucial and intrinsic role in building projects. The most probable and highly anticipated future trends of GNSS in building construction include:
Integration with AI-driven analytics to track and depict construction site insights based on GNSS-driven location positioning and site detailing.
Smart city infrastructure alignment will be a leading tech-led city infrastructure development program. This will be aligned with high-end civil navigation data powered by GNSS transmissions.
Autonomous construction equipment will get the smart positioning uploads and real-time navigation intelligence through IoT-enabled systems powered by high-end AI, robotics, and GNSS devices.
Real-time digital twins of built facilities to get their functional feeds through radio signals transmitted through GNSS satellite broadcasts.
GNSS or Global Navigation Satellite System is turning out to be the mainframe technology in the modern building construction landscape. It has far-reaching implications for the way construction projects are planned and executed. GNSS allows construction professionals to achieve higher control, accuracy, and efficiency. It has a cohesive role to play in minimizing the scope of errors and deviations. This helps in ensuring seamless compliance with construction and environmental standards.
Though there are certain limitations of GNSS as a technology, the benefits far outweigh its capabilities and offerings. GNSS is known for offering greater functional efficiency and cost-effectiveness in the process. It is the face of modern construction across project types and geographies, as it ensures safer, smarter, and precision-driven construction practices. As with time construction industry evolves to embrace newer concepts and practices, GNSS will continue to play an ever-influential role in redefining standards with a digital construction environment and AI-powered automated processes.
