Location Arlington, USA
Year 2022
Project Area:123,368 Sq Ft
Architect:N/A
Engineer:N/A
Contractor(S):N/A
Owner:Linbeck Group
Trades Covered:Concrete, Embed & Reinforcement 3D Model
LOD:300
Software:Revit 2020 for Concrete Model & Tekla 2020 for Reinforcement Model
Verticals: Rebar/Reinforcement Contractors, Concrete Contractors
The National Medal of Honor Museum is a museum that honors United States Armed Forces Medal of Honor recipients, founded and funded by the National Medal of Honor Museum Foundation. The museum is planned to open in 2024 in Arlington, Texas, with groundbreaking beginning in March 2022.
The location was announced on October 4, 2019, concluding a 5-year, nationwide competition that included Denver, New York City, San Diego, and Washington, D.C. It is projected to cost $150 million and open in 2024.
Contractor(s):N/A
Full Name* Email* Designation*
Download Project Detail
Project Detail will be sent over the provided Email address as well.
Δ

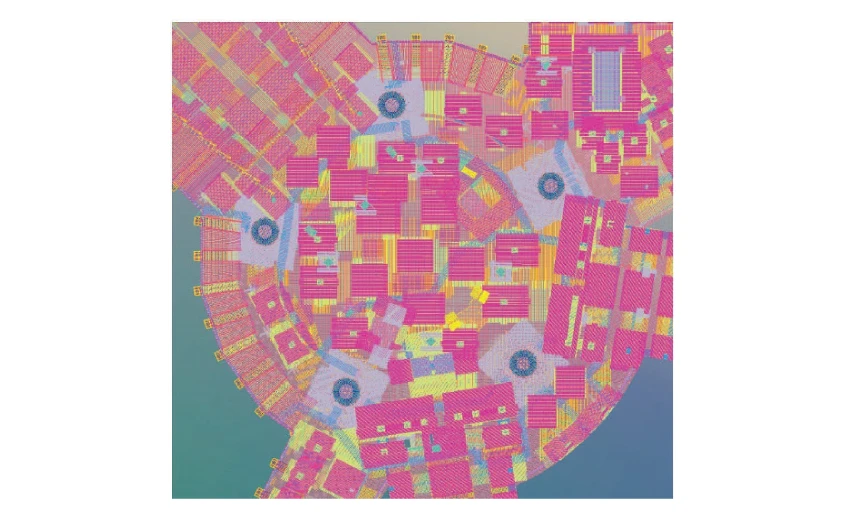

Challenge : It was very difficult to model the slab reinforcement due to the circular shape of the slab on grade.

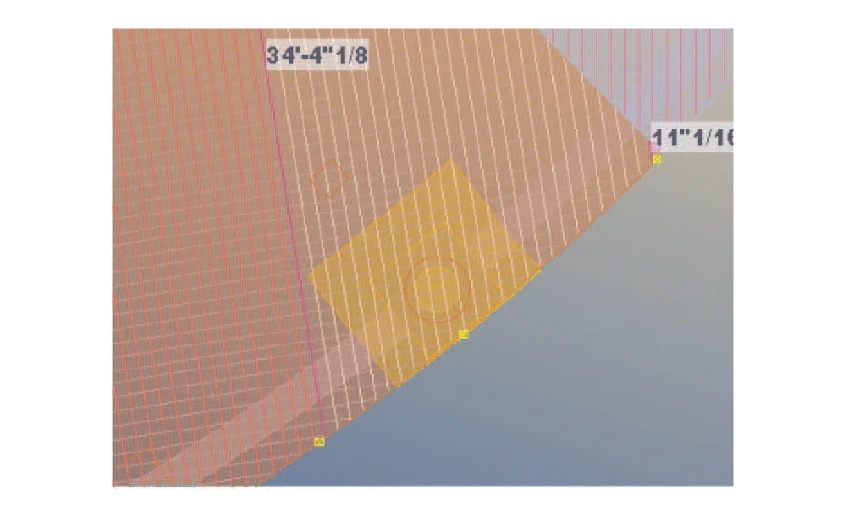

Solution : Pinnacle split the slab concrete model as per pour sequences and modeled the slab reinforcement by using Tekla’s circular bar group feature.

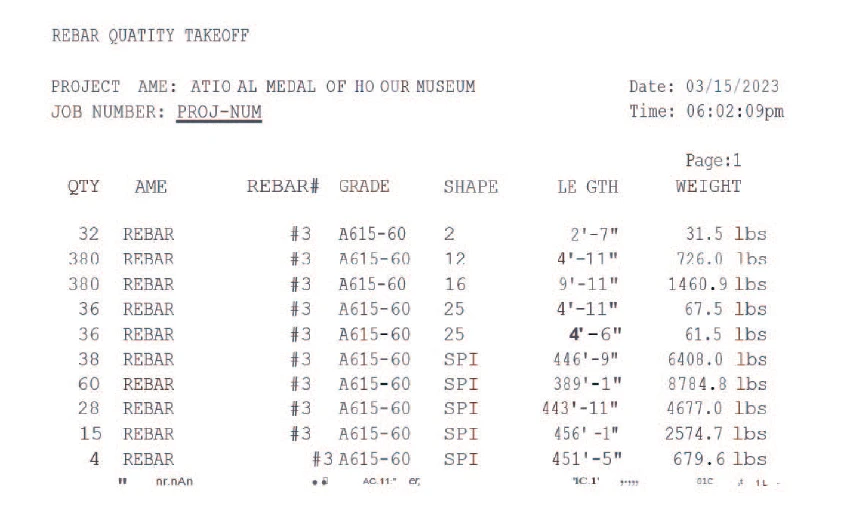

Pinnacle extracted reports from Tekla structures for size, quantity, and other information on reinforcements.

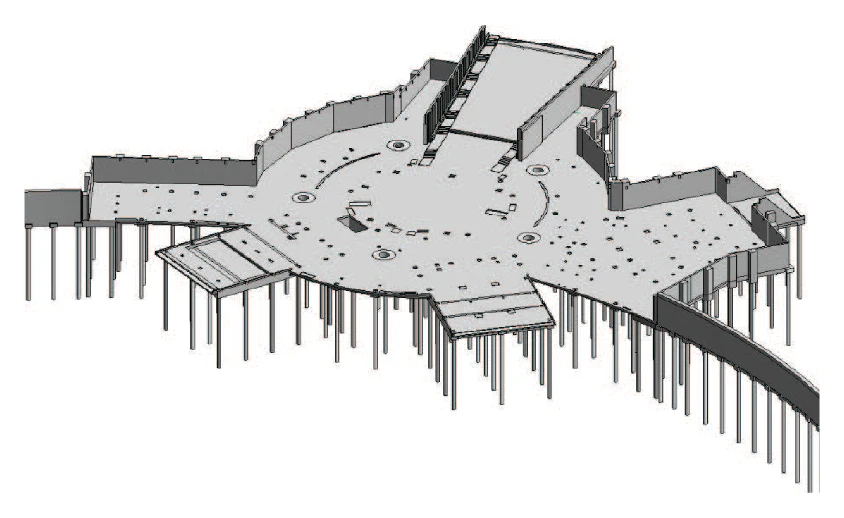

1. Concrete 3D Model

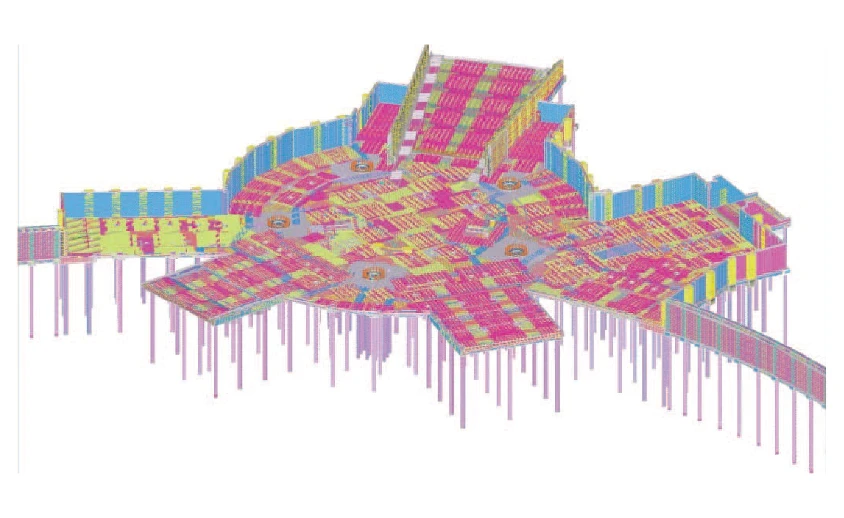

2. Reinforcement 3D Model

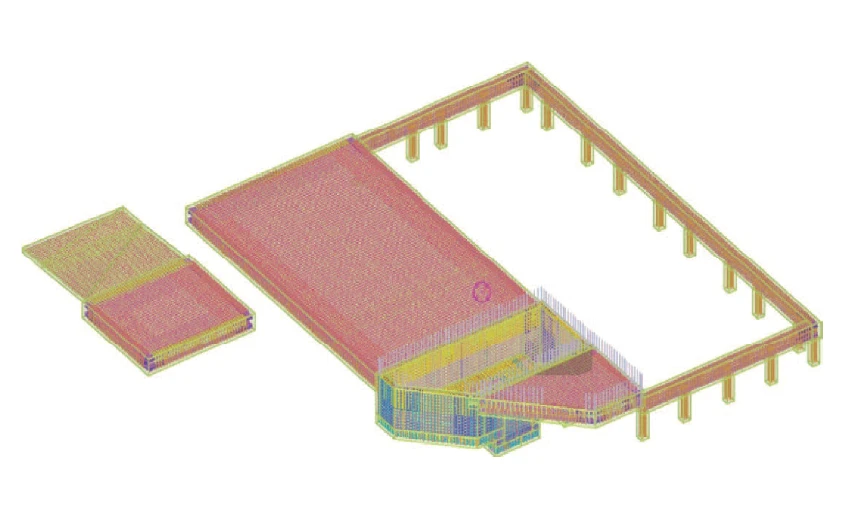

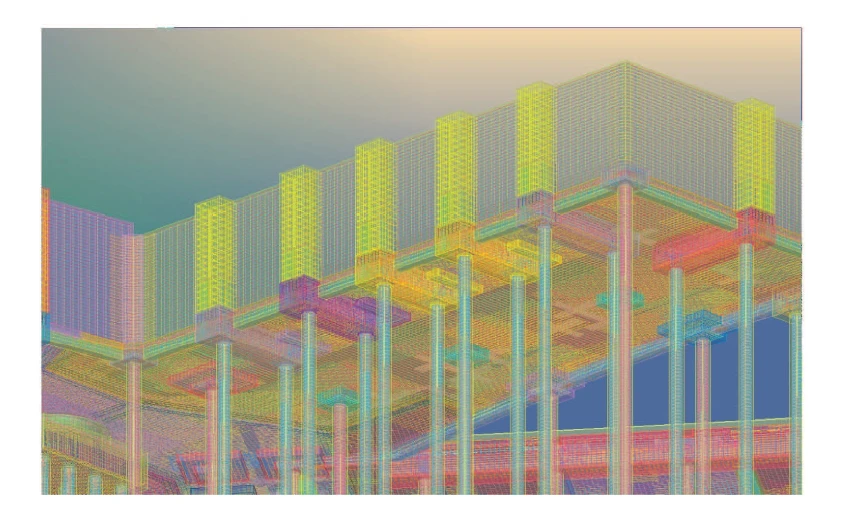

3. The Tekla Reinforcement model coordinated with the Revit concrete model

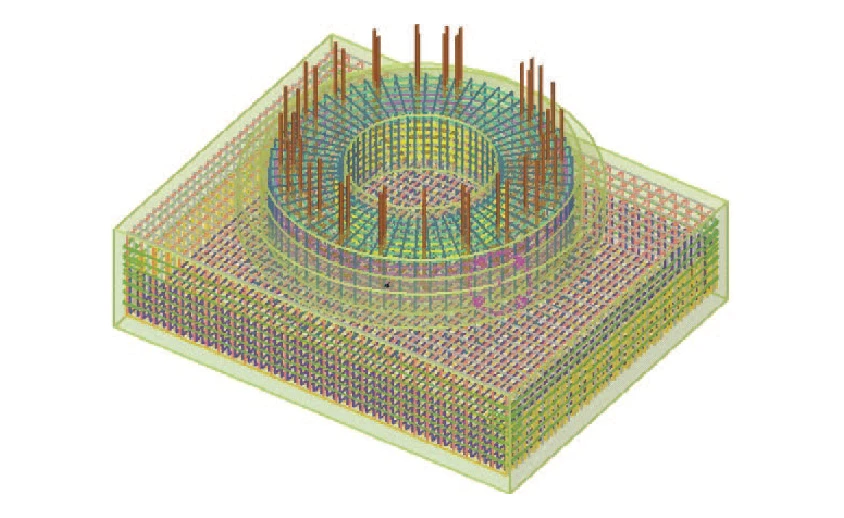

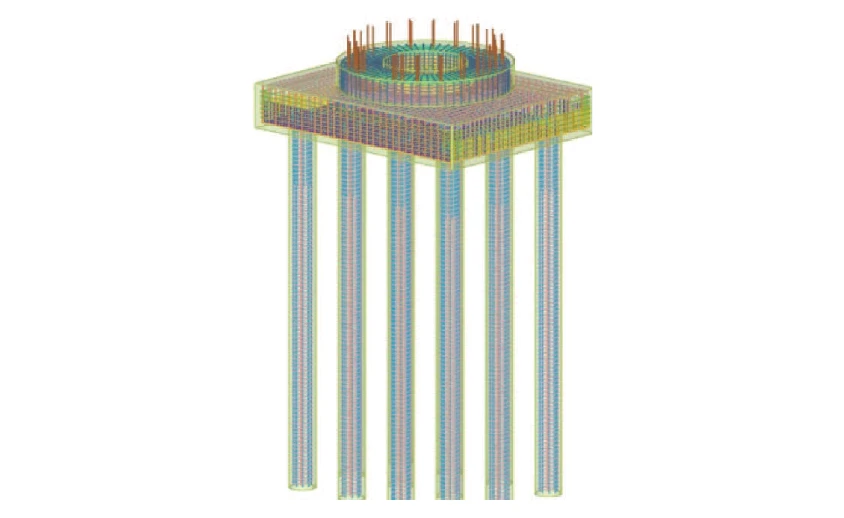

4. Mega column foundation

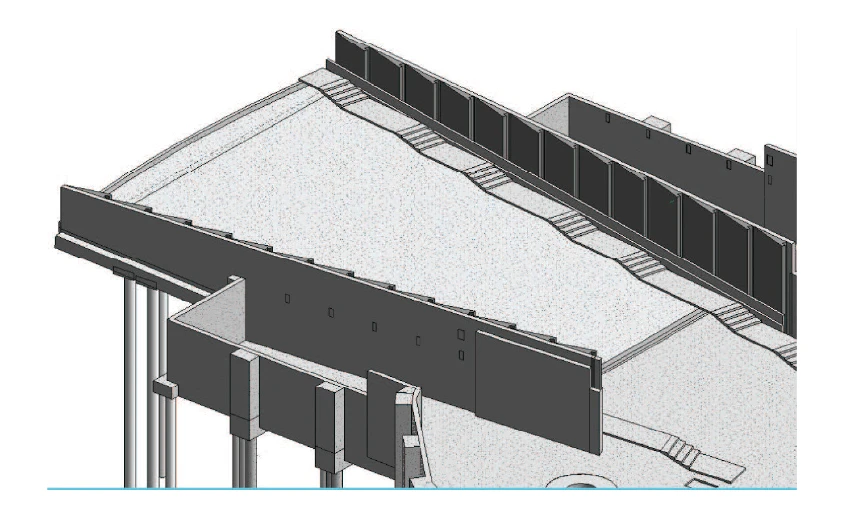

5. Entry ramp at Rotunda level

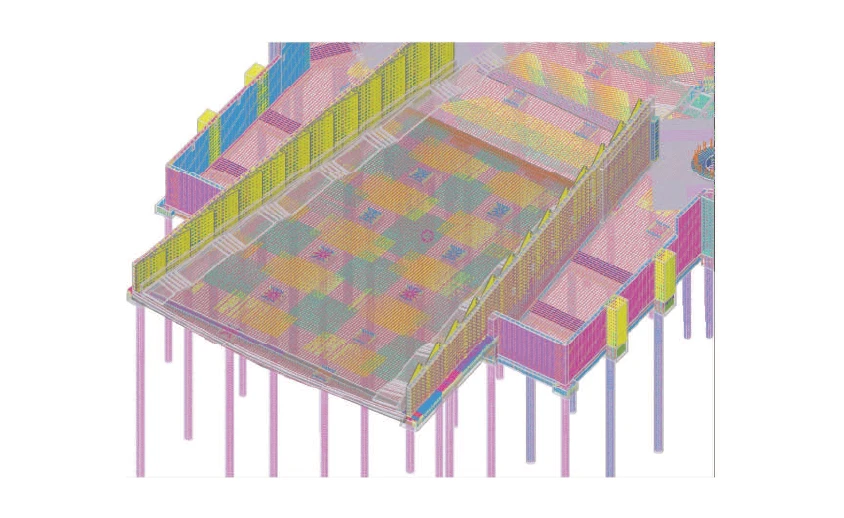

6. Utility pad
