RCP to Revit conversion sounds like a complex subject for professionals.
But once you know what lies behind this complexity mask, everything becomes familiar.
RCP is a type of file for any type of output generated from Autodesk ReCap software.
So, the whole conversation revolves around the Point Cloud or laser scanning technology. The ReCap software processes point cloud data collected through site surveys and sensors.
So, let’s understand this from the basics.
Table of Contents
The term RCP stands for “Reality Capture Photography”, and point cloud forms the basis of this tech.
There are several point cloud file formats with a project base point; if a firm is using the Autodesk software suite, they need to acquire RCP and a shared coordinate system.

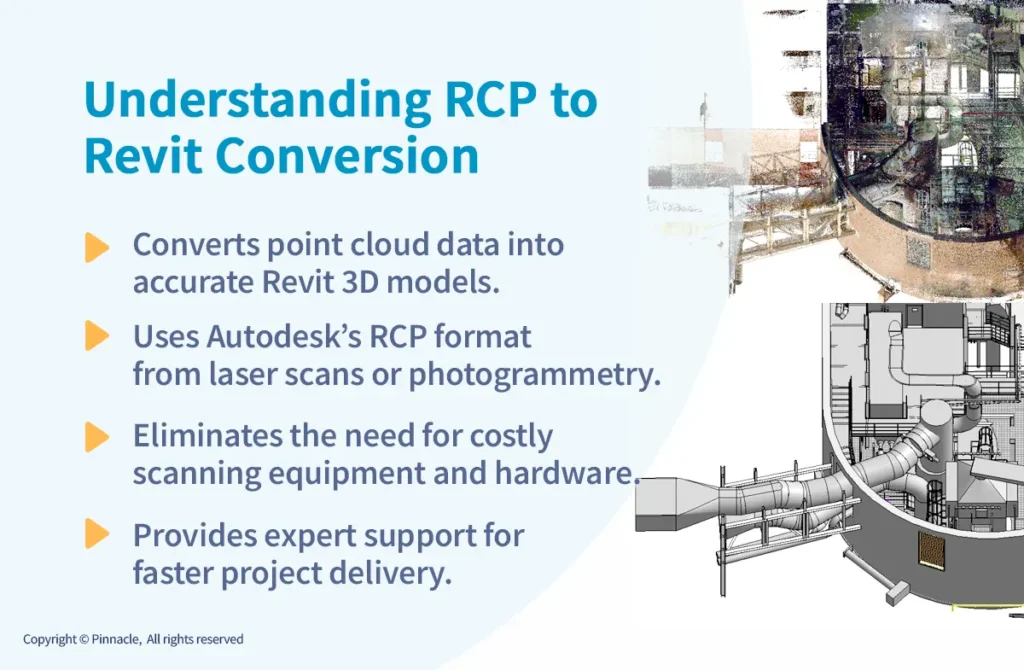

Autodesk has developed this special format that is compatible with all other Autodesk software. In this case, Revit is what engineers prefer to convert point cloud RCP data into 3D models.
Now, RCP files are not only related to point clouds, but the data from photogrammetry also generates the same point cloud format.
While there are organizations that use other software, RCP files and RCS point cloud files are often the best seamless conversions.
Usually, organizations outsource the RCP format file for some obvious reasons.
The process starts with scanning sites or structures with laser scanners, which are very expensive.
And depending on the size and complexity of the site or structure, the versions of scanners vary. High-performance laser scanners shoot and capture a greater number of laser points. This allows for capturing more details in the point cloud bounding box.
Further, the processing of previously imported point cloud data requires high-end hardware. Without that, a firm may get stuck on a single process, which will lead to workflow disruption.
Hence, instead of investing in expensive scanning equipment and in-house resources, they look towards specialized outsourcing partners. Raw scan formats must be converted into .rcp or .rcs files before use in Revit.
From a business perspective and to execute the project without process-related delays, this is a fair choice for firms.
After importing point clouds, visibility can be managed in the Visibility/Graphics dialog. Once the scanned data is converted into intelligent, data-rich models, the visualization process begins.

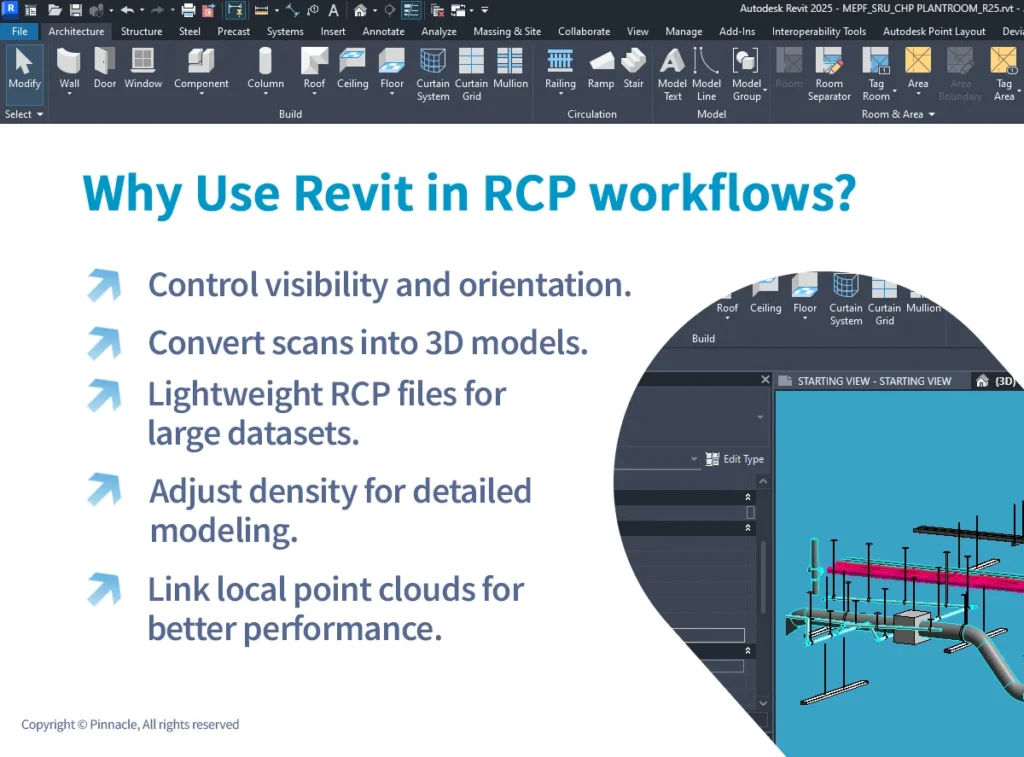

So, Autodesk Revit offers an advanced environment to professionals, where they work flawlessly without any setbacks. Within the application, they can control the visibility, density, and orientation of the point cloud model. Further, the .rcp format is designed to be lightweight for large scans. As the RCP files group multiple RCS scan files together.
Since they develop the 3D model in phases, those features are their prime resources. They can reduce or increase the density of specific areas of the point cloud origin to create detailed models. Also, Revit can link point clouds from local locations for performance.
The highly advanced algorithm of Revit also flags the inconsistencies that are there between as-built conditions and design intent.
Let’s understand this workflow in detail so you can also decide whether to go for it.

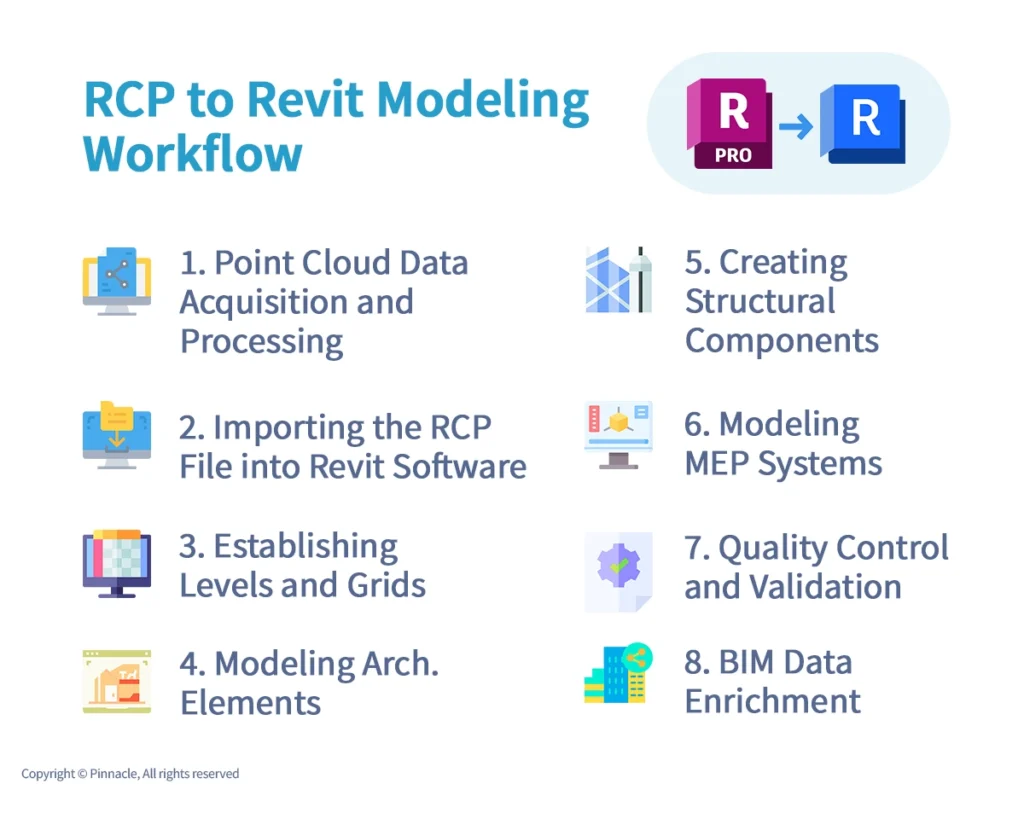

The purpose of every RCP to Revit modeling workflow is to represent exact site conditions. RCP files are optimized for high-performance visualization in Revit. This reduces further design uncertainties and supports informed decision-making at every stage.
So it starts with:
In the construction industry, there is a group of professionals who specialize in laser scanning. 3D laser scanners capture data in 360° horizontal and 270° vertical.
These individuals are responsible for calculating the exact capture points for the imported point cloud consistently.
They aim to navigate to the location from where the data with maximum details can be captured in the RCS files. Professionals with special laser-capturing skills ensure that minimum capture activity gives the maximum results.
They feed the data to Autodesk ReCap for processing and create an RCP file. The process also involves cleansing noises and aligning the point cloud data accurately to the site conditions.
After processing the point cloud data, the next step engineers follow is importing it to Revit. Now, they do not need to interpret complex legacy 2D drawings to understand the existing site conditions. The dense point cloud here, becomes the best source for visualizing building geometry within a BIM (Building Information Modeling) environment.
It is during this phase that designers align coordinates with the point cloud’s north direction to ensure the final model reflects real-world conditions. Point clouds represent X, Y, and Z coordinates of surfaces.
Now, many might assume that the modeling process has begun with the same coordinate system. But it is yet to begin, after the project levels are created, based on the building’s and as-built documentation.
This is a reference framework that engineers create for the later modeling phase. It helps them accurately place architectural, structural, and MEP components. RCP files support efficient editing in BIM environments.
BIM professionals then use the point cloud to create different building elements; they start with the architectural elements, such as walls, floors, ceilings, roofs, doors, and windows.
Without the raw format file of point cloud data, they had to interpret everything from legacy as-built drawings. However, this high level of accuracy helps them identify the exact dimensions, locations, and configurations of elements.
After completing the architectural part, construction professionals gradually include structural components. They model elements such as columns, beams, foundations, and slabs throughout the indexing process.
The process is very simple, as they have to just trace the scanned data in the RCS scan files. So, the model reflects actual built conditions, which is usually not the outcome when engineers use 2D drawings.
Professionals delicate one phase of the scanning process for the MEP systems. These form the operational heart of the building in the current version. And this is the reason they start it after the architectural and structural components are aligned with the survey base point.
With today’s high-definition laser scanners, complex MEP layouts are captured with extraordinary detail. Components such as ducts, pipes, cable trays, electrical equipment, and HVAC systems are clearly visible.Engineers use this to coordinate MEP services with structural elements on the same site. This is usually the hardest part, where the model goes through several quality checks.
The reason is that this step defines the accuracy and effectiveness of the project execution downstream.
Once the model development is complete, quality specialists run it through multiple quality checks.
They analyze the model against the point cloud data to verify the accuracy of the Revit project origin. This is why, after importing the point cloud data, it is aligned with the design intent and industry standards.This step ensures that any discrepancies in the dimensions, alignment, and component placements are identified and fixed.
Modern BIM models can hold a lot of data, including every component, assets, and building materials, using the point cloud’s world origin.
Engineers follow a structured process to add asset data, material specifications, and equipment details. As digital twins, which are based on BIM, also facilitate facility management, maintenance data is also available in this model.
Now, if it is a renovation project, then design development starts from selecting multiple files. This federated model, which came from the scanned data, is where clash detection and construction planning will happen.
The above workflow is a standard one that most firms across the globe use with an indexed point cloud file. However, aligning with the project requirements, this structure can undergo several tweaks.
The benefits are great, but the challenges are also hard to ignore assumes that the coordinates. Here are some of the most common ones that firms face when implementing RCP to Revit conversion.

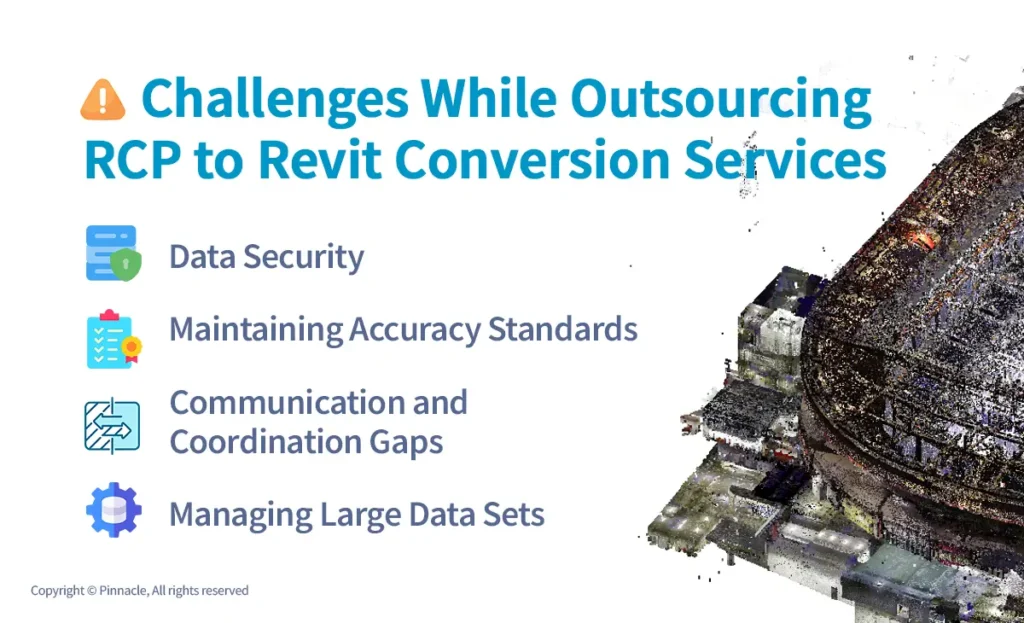

Outsourcing has always been the top choice for firms to get access to specialized services. The process has proven to be cost-effective, but comes with a few challenges. These are:
The meaning of sharing point cloud data with a third-party service provider can be risky. Since the data contains information about the building, its operations, and infrastructure. In the case of renovations of high-security buildings, the data cannot be simply compromised. The only good scenario is when the external service provider can point visible their data security measures.
This challenge arises if an organization does not select the right firms to convert scan file data into new point clouds.
The mistake happens during the initial stages of hiring an outsourcing partner and the next imported point cloud. The actual industry scenario reveals that different partners do not follow the same modeling standards. And there is not one, but numerous standards, and each of them needs to be followed in the shift key.
Hence, even after outsourcing to a recognized company, the center point model may not meet project expectations.
Hence, before signing a deal with any company, there should be enough clarity at both ends regarding model standards.
Modern construction projects tend to have multiple contractors working on them. And all of these do not necessarily need to be from the same time zone. Because of cloud-based collaboration, this is possible, but to some extent, communication gaps still remain.
Several firms do not have structured communication channels with a known point for clients. Hence, it is always a long-term better choice to choose a firm that has project coordinators for different time zones.
This gives firms the assurance that they can communicate changes and receive deliverables with certainty.
One Point cloud data and RCP files are usually large in size, along with the support files. In certain cases, depending on the site complexity, they can be extremely heavy. And, sharing such files and managing versions can be troublesome if there are no established protocols. Further, an external service provider might not use similar file sharing and version control protocols. However, experienced engineers know that cleaning and segmenting data in Autodesk ReCap can help manage file sizes.
So, these were some of the common challenges that are to come. However, a firm can overcome this through proper analysis of the communication channels and protocols before hiring any partner.
The industry is already using RCP to Revit conversion as a standard in point cloud projects for renovation and expansion projects. And this will gradually become mainstream as well, because of the rising use of digital twins. The firms that are running this process in-house already know the huge potential it holds. And those who outsource RCP to Revit conversion need to choose a firm that prioritizes data security, communication, and file sharing.
