A steel fabricator in Houston once received a working drawing set stamped “final” and cut forty tons of structural steel before a structural engineering team member caught a two-inch mismatch between the beam depths on paper and the beam depths in the field.
Consequently, the crew tore out three connections, re-welded them, and lost eleven days on a schedule that had no slack left to give.
That single gap between what a working drawing states and what a shop drawing verifies costs far more than a delay; it costs the trust between the design table and the job site.
For architects, engineers, and construction consultants across the AECO industry, therefore, knowing exactly what a working drawing is and where it hands off to a shop drawing is not an academic exercise.
It is the line between a building that rises on schedule and one that stalls under a pile of RFIs.
This in-depth guide walks through that line in plain terms.
It defines the working drawing, places it next to the other drawing types a project generates, and then contrasts it directly with the shop drawing so that every stakeholder, from a junior architect to a seasoned construction consultant, can point to exactly where one document ends and the next begins.
Simply speaking, a working drawing is the technical document set that turns a design concept into buildable instructions. Unlike a rendering or a concept sketch, it carries dimensions, materials, structural grids, and code-driven annotations that a contractor can actually price, permit, and build from. In practice, most design teams treat the working drawing set as the backbone of the construction documents, since every other trade-specific drawing eventually references it.
Building drawings, as a category, span the entire visual record of a project, from an early massing sketch to a final as-built survey. Working drawings occupy the middle of that span, arriving after design development and before construction actually starts on site. For example, on a hospital project, the design drawings first establish room layouts and adjacencies, while the working drawings that follow add wall types, door schedules, and structural grid lines that the general contractor then uses to build a bid.
A technical working drawing is simply a working drawing pushed to a higher level of precision, one where every dimension, material callout, and cross-reference is spelled out rather than implied. For instance, a technical working drawing for a curtain wall system specifies mullion spacing, glazing type, and anchor bolt sizes down to the millimeter, because a field crew cannot safely guess these values while thirty stories up. As a result, this level of precision protects both the design intent and the installer’s schedule.
Within architecture, a working drawing set serves three overlapping purposes at once: it secures a building permit, it forms the basis of a construction bid, and it gives the contractor a legally binding reference during construction. A municipal building department, for example, will not issue a permit until it sees a coordinated working drawing set that shows egress widths, fire ratings, and structural loads clearly. Because of that requirement, an incomplete or uncoordinated set can stall an entire project at the permitting desk before a single shovel touches the ground.

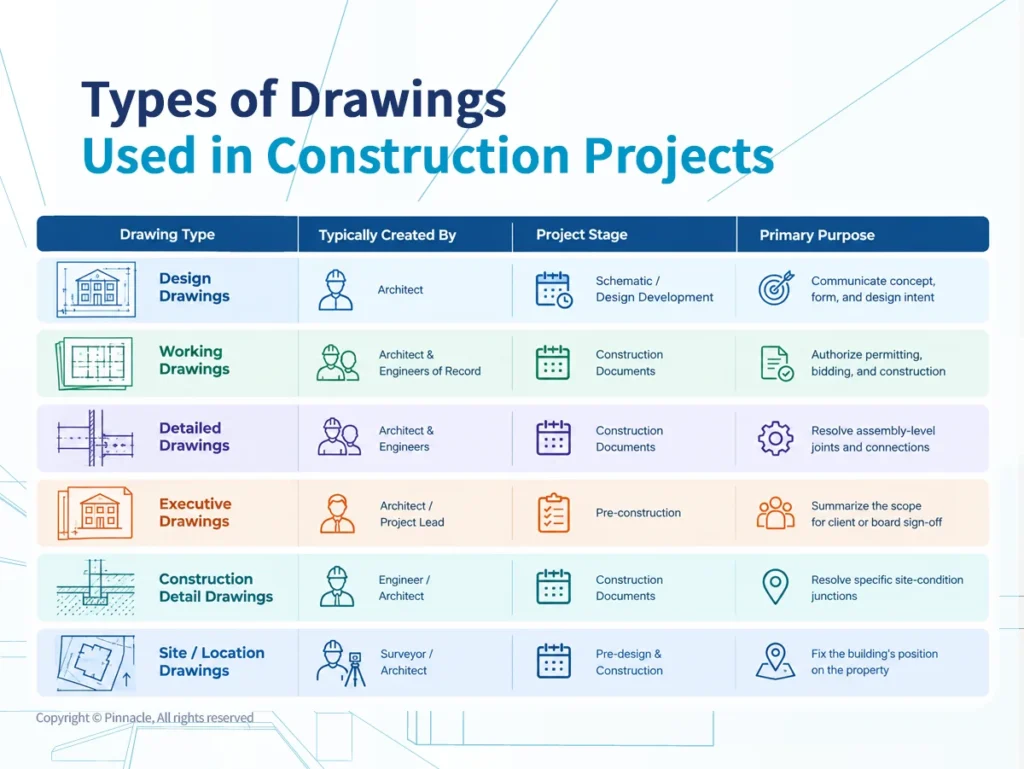

Beyond the working drawing itself, a typical AECO project generates several related drawing types, each aimed at a different audience and a different stage of the work. The table below lays out how these types compare before the sections that follow examine each one individually.
Design drawings communicate the concept before anyone locks in construction-level detail, and they typically show massing, facade language, and general spatial relationships rather than exact dimensions. A developer reviewing design drawings for a mixed-use tower, for instance, approves the overall massing and street-level facade before the design team commits to a specific structural system. Because design drawings still leave room for change, teams rely on them for decision-making rather than for construction pricing.
Detailed drawings zoom into a specific assembly and resolve exactly how its parts meet. A detailed drawing showing how parapet flashing ties into a roof membrane at a rooftop mechanical curb, for example, carries information that a general working drawing sheet simply does not have room to show at that scale. Consequently, detailed drawings prevent the kind of on-site improvisation that leads to leaks, callbacks, and warranty claims.
Executive drawings present a project in summary form for decision-makers who need to approve scope, not review construction logic. A developer’s board reviewing executive drawings of a retail plaza, for instance, evaluates the overall program and budget impact before the team even starts the construction document set. Since these drawings favor clarity over technical density, they read more like a presentation than a build set.
Construction detail drawings resolve a specific site condition where standard details will not hold up, often tied directly to a material or waterproofing method. A construction detail drawing for a below-grade parking garage wall, for example, specifies the exact membrane lap, drainage board placement, and protection board sequence needed to keep groundwater out. Because these details carry real liability, engineers typically stamp them separately from the general working drawing set.
A site or location drawing fixes the building on its property, mapping property lines, existing utilities, grading, and access points before design work goes much further. A civil engineer’s site drawing that marks an existing gas line, for instance, can shift an entire building footprint by six feet during early coordination, long before the architectural working drawings take final shape. In that sense, the site drawing acts as the foundation that every other drawing type has to respect.
While a working drawing tells a contractor what to build, a shop drawing tells a fabricator exactly how to make one specific piece of it. This distinction matters because a working drawing conveys design intent, whereas a shop drawing translates that intent into a manufacturing or installation plan.

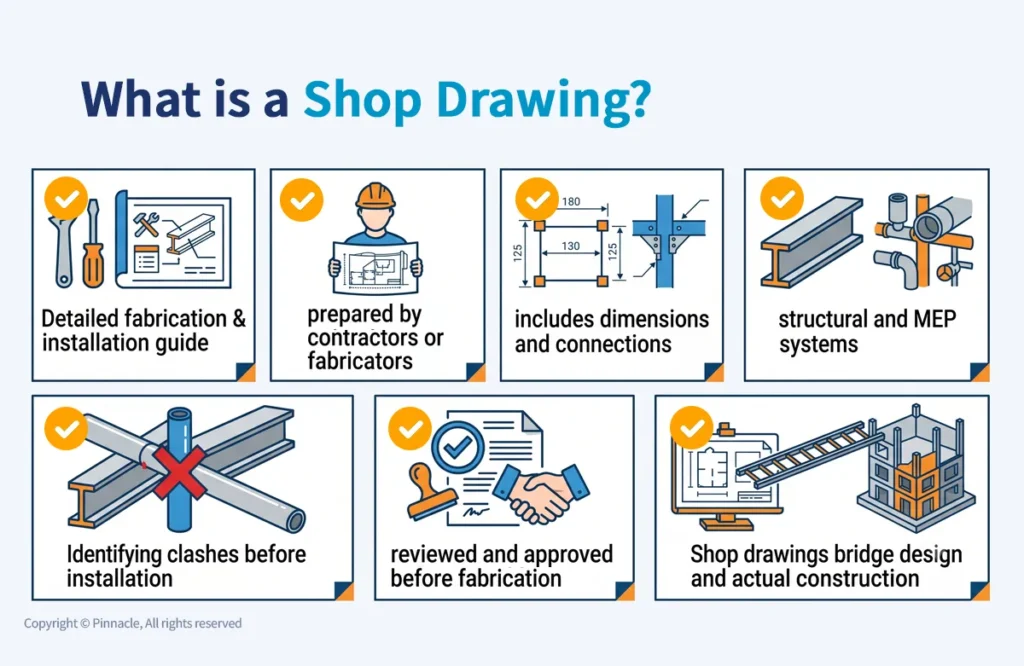

Construction shop drawings are prepared by a contractor, subcontractor, or supplier, and they show precisely how a component will be fabricated and installed, down to bolt patterns, weld symbols, and material grades. Precast concrete shop drawings, for example, show rebar cage layouts, lifting insert locations, and formwork joints that the working drawings never specify at that resolution. As a result, the architect or engineer of record reviews and stamps these drawings before fabrication starts, not after.
The scope of a shop drawing stays narrow on purpose, since it covers one component or system rather than the whole building. Its core purpose is to catch a fabrication or dimensional conflict before it turns into an expensive field problem, and HVAC ductwork shop drawings routinely catch a duct-to-beam clash this way, well before the ductwork ever leaves the shop floor.
MEP shop drawings carry this same discipline into the mechanical, electrical, and plumbing trades, and they typically arrive well after the architectural set is complete. A structural drawing might size a beam, but the support structures and structural elements that actually carry that beam only get fully resolved once a fabricator’s shop drawing works through the connection. Electrical drawings and plumbing systems follow a similar path, since a designer lays out room names and general routing early, while an installer later fills in the MEP components, drainage systems, and air conditioning ductwork that make the space function. Because so many other professionals and various stakeholders touch these drawings before installation, a shop drawing review becomes the moment where design intent and field reality finally meet.
According to a widely cited estimate from the Construction Industry Institute, 30% to 50% of RFIs on a typical project trace back to errors, omissions, or ambiguities in the construction documents, which is exactly the category of problem a careful shop drawing review is built to intercept early.
Contract documents tie every one of these drawings back to a single legal framework, and contract drawings specifically spell out what a contractor has actually agreed to build. An approval process then checks that framework against property lines, building codes, and industry standards before anyone breaks ground, since a comprehensive guide to compliance only matters if the drawings behind it hold up under review. This process can feel time-consuming, especially when a reviewer has to track down necessary information scattered across various forms and other details, but it exists precisely to ensure compliance and to surface specific details and relevant information before they turn into field problems. In the end, a project with clear key differences between its drawing types, rather than a blur of other elements competing for the same page, moves through approval far more smoothly.

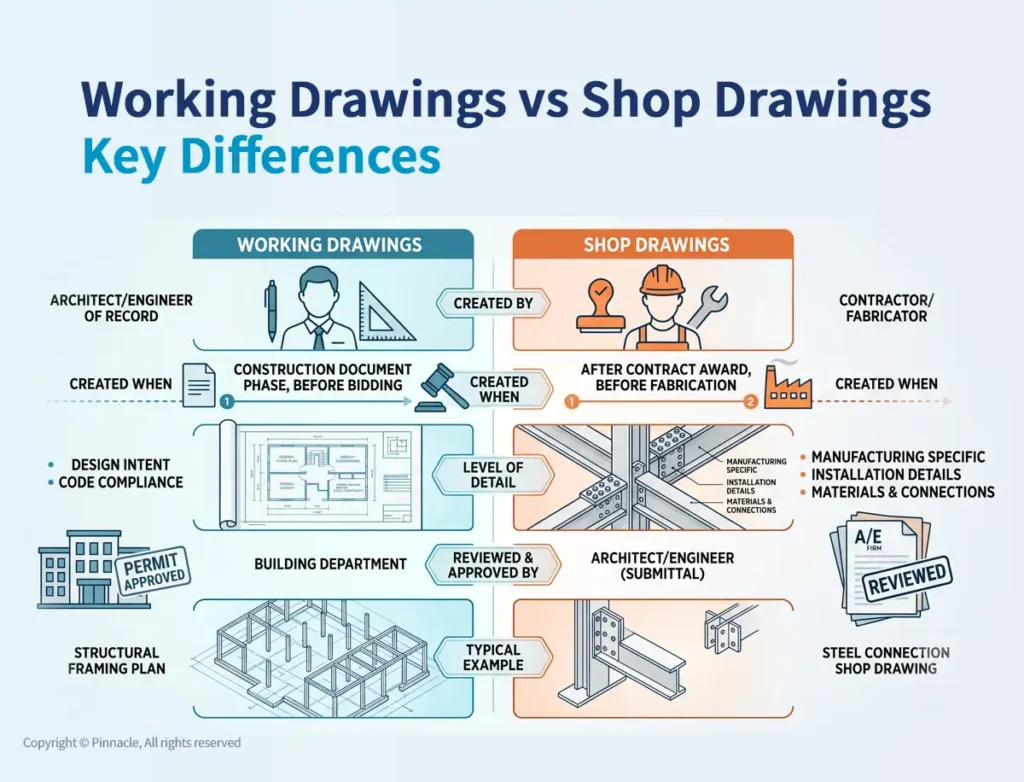

The comparison below sets the two documents side by side, since this contrast comes up constantly in coordination meetings and submittal logs alike.
The design team, meaning the architect of record along with the structural and MEP engineers, produces the working drawings, while trade contractors and manufacturers produce the shop drawings that follow. An architect, for example, issues working drawings for a curtain wall system first, and only then does the glazing subcontractor develop the shop drawings that translate that system into a buildable, orderable product. Because authorship shifts between these two stages, accountability shifts with it, from the design team’s professional liability to the fabricator’s means-and-methods responsibility.
Working drawings reach completion during the construction document phase, ahead of permit submission and competitive bidding, whereas shop drawings only start after a contractor wins the award and begins the submittal process. On a structural steel package, for instance, the working drawings go out for bid months before the steel fabricator ever begins the shop drawings that guide actual cutting and welding. This sequencing exists precisely so that pricing and permitting can move forward before fabrication-level detail locks in.
Granularity increases at each stage, moving from general intent toward exact manufacturing instruction. A working drawing shows a beam labeled W12x26, a technical working drawing adds camber and connection-type notes for that same beam, and the corresponding shop drawing then specifies the exact bolt pattern, cope dimensions, and weld symbols for the connection plate that ties it to its neighbor. In this way, each drawing type answers a more specific question than the one before it.
Many firms use “construction drawings” as an umbrella term that includes working drawings, structural drawings, and MEP drawings together, so this comparison often causes more confusion than the working-versus-shop comparison does. A shop drawing, in every case, sits downstream of the construction drawing set, since a fabricator cannot produce one until the construction drawings define what needs to be built in the first place. Recognizing this hierarchy helps a project team avoid treating a shop drawing submittal as a substitute for a properly coordinated construction drawing set.

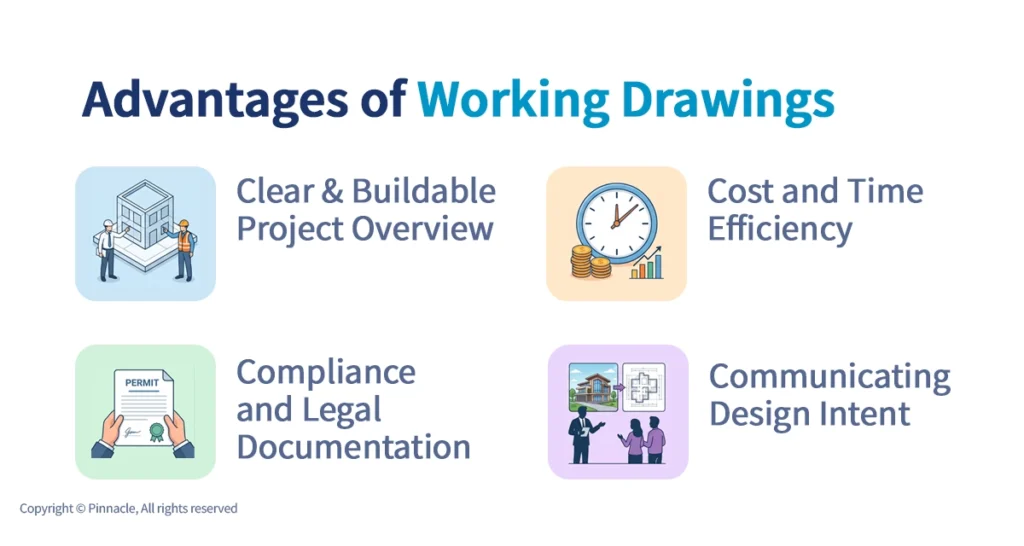

Working drawings earn their central role on a project by delivering four distinct advantages, each of which shows up clearly on a real job site.
A coordinated working drawing set gives every trade a single, buildable reference instead of a collection of disconnected sketches. On a school renovation project, for instance, the mechanical, electrical, and structural drawings all reference the same working drawing grid lines, so a plumber and an electrician can coordinate a ceiling cavity without a single phone call to the architect. Because of that shared reference, the entire team moves faster through daily coordination.
A working drawing set doubles as the legal and regulatory record a project relies on for permits, inspections, and future renovations. A fire marshal reviewing a working drawing set for a mid-rise apartment building, for example, checks egress stair widths and fire-rated assembly notes directly against that set before signing off on occupancy. Since these documents remain on file long after construction ends, they also protect the design team if a dispute or renovation question comes up years later.
Accurate working drawings reduce the guesswork that drives up both cost and schedule, since a contractor who bids from a complete set avoids the change orders that follow an incomplete one. According to a joint study by PlanGrid and FMI, miscommunication and poor project data together account for 48% of all rework on U.S. construction jobsites, split between 26% from poor communication and 22% from poor project information. That same research put the annual cost of this rework at more than 31 billion dollars industry-wide. A complete, well-coordinated working drawing set directly closes the “poor project information” gap that drives a large share of that cost.
Working drawings carry the design intent forward from concept to construction, so the finished building matches what the architect actually envisioned rather than a field improvisation. A custom stone façade pattern, for example, only survives into the finished building if the working drawings spell out the exact coursing and joint widths the mason needs to follow. In this way, the working drawing set functions as the architect’s voice on a job site; the architect cannot personally supervise every hour of the day.

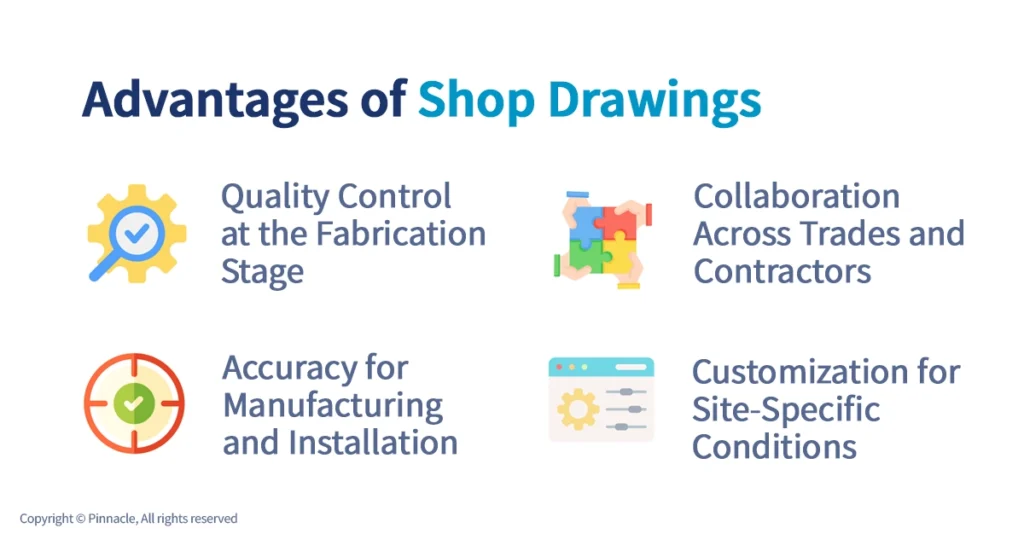

Shop drawings deliver their own distinct set of benefits, each rooted in the fabrication and installation stage rather than the design stage.
A shop drawing gives the architect or engineer one last chance to catch a fabrication problem before a part leaves the factory floor. A precast panel shop drawing, for instance, lets a structural engineer confirm reinforcement placement and lifting points before the concrete ever gets poured, rather than after the panel arrives on site with a hidden flaw. Consequently, this review step prevents costly rejections and re-fabrication cycles later in the schedule.
Because a shop drawing speaks directly to a fabricator’s shop floor, it removes the ambiguity that a general working drawing simply cannot resolve at full-building scale. A millwork shop drawing for a custom reception desk, for example, lists exact veneer grain direction, joint types, and hardware cutouts, information a general interiors working drawing would never need to carry. As a result, the fabricator builds the piece right the first time, without a site visit to guess at missing dimensions.
Shop drawing review brings multiple trades into the same conversation before conflicts reach the field, since the architect, engineer, and general contractor typically review a shop drawing together during the submittal process. On a hospital MEP coordination effort, for example, the mechanical, plumbing, and structural shop drawings all move through a shared coordination model so that a duct run and a sprinkler main never compete for the same six inches of ceiling space. This collaborative review, in turn, catches clashes on a screen instead of in a finished ceiling cavity.
A shop drawing adapts a standard product to the specific conditions of one project, something a manufacturer’s generic catalog drawing cannot do on its own. A curtain wall shop drawing, for instance, adjusts standard mullion details to fit an out-of-square existing opening on a renovation project, a condition the original working drawings could only estimate before the contractor field-verified it. Because of that adaptability, shop drawings bridge the gap between a standardized product and a one-of-a-kind building.
These three drawing types often get used interchangeably in casual conversation, yet each one serves a distinct function, and understanding how they connect prevents costly miscommunication between design and construction teams.
Design drawings communicate intent and possibility, while working drawings commit that intent to a buildable, permit-ready format. A design drawing might show a curved lobby ceiling as a rendered concept, for example, while the working drawing that follows converts that curve into a dimensioned radius, a structural framing plan, and a ceiling grid layout a contractor can actually install. Because of this progression, a project cannot skip straight from design drawings to construction without the working drawing stage in between.
A working drawing covers an entire building system at a readable scale, whereas a detailed drawing isolates one small piece of that system at a much larger scale. A working drawing might show a wall section at a quarter-inch scale, for instance, while a detailed drawing of the same wall’s window head condition might blow that same joint up to three-inch scale so a glazier can read every layer clearly. In practice, the detailed drawing exists specifically because the working drawing scale cannot show that much information legibly.
Executive drawings sit upstream of the working drawing set, aimed at approval rather than construction, while construction detail drawings sit alongside it, resolving the specific junctions a general working drawing sheet cannot fully address. A hotel renovation project, for example, might use executive drawings early to secure ownership approval for a new lobby layout, then rely on construction detail drawings later to resolve exactly how a new curtain wall ties into an existing concrete structure. Together, these two drawing types bracket the working drawing set from opposite ends of the project timeline.

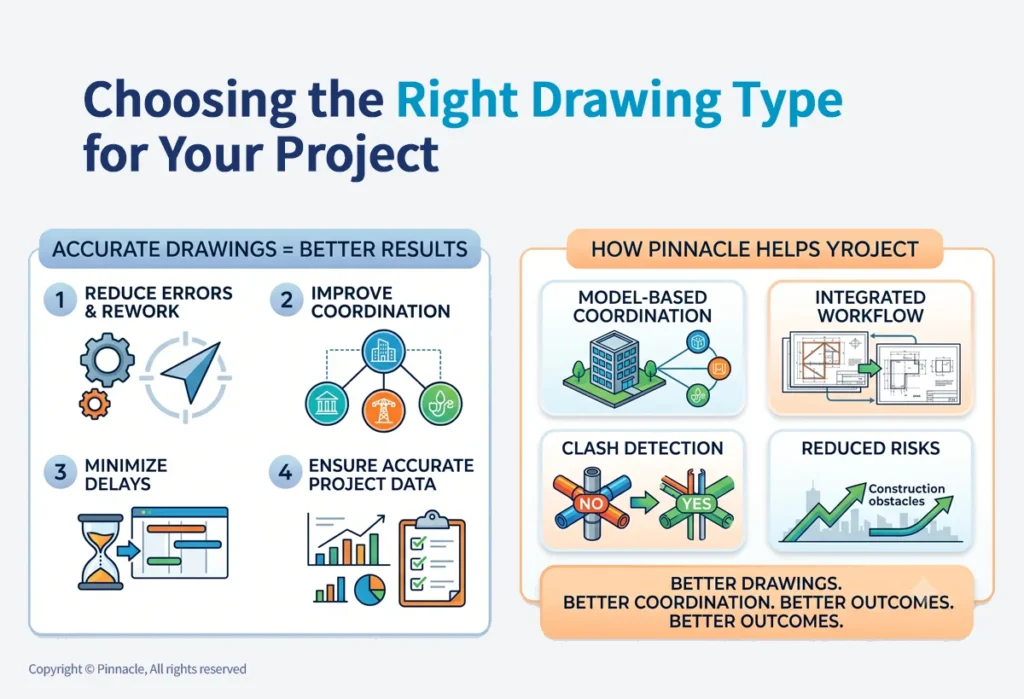

Every project ultimately needs several of these drawing types working together, so the real skill lies in sequencing and coordinating them correctly rather than picking just one.
Because so many downstream documents, from shop drawings to as-builts, trace their information back to the working drawing set, an error introduced there tends to multiply rather than stay contained. The same PlanGrid and FMI research cited earlier found that construction professionals spend roughly five and a half hours every week simply hunting down accurate project data, including revised drawings, a burden that a clean, well-managed working drawing set directly eliminates. Consequently, investing extra coordination time at the working drawing stage pays back many times over across the rest of the project.
Pinnacle brings architects, engineers, and construction consultants a coordinated approach to working drawing and shop drawing production, built around model-based clash detection and disciplined documentation standards from the outset. Rather than treating working drawings and shop drawings as separate hand-offs, our teams model both in a shared environment, so a structural connection detail and its corresponding shop drawing stay aligned throughout design development and fabrication alike. For any AECO firm that wants to reduce RFIs, reduce rework, and keep a project moving from permit to punch list, such coordinated documentation makes a measurable difference.
A working drawing is the dimensioned, code-compliant technical drawing set that a design team issues to secure a permit and guide actual construction.
A shop drawing is the fabrication- and installation-specific drawing that a contractor or manufacturer produces, and the architect or engineer then reviews, before a component gets built or installed.
No, they are not the same thing, since a working drawing conveys design intent for permitting and bidding, while a shop drawing conveys manufacturing instruction for one specific component after the contract is already underway.
