The construction industry never ceases to amaze us. Whether it’s skyscrapers or architectural masterpieces, it has always amazed us with the ability to turn dream infrastructure into reality. Among the most incredible feats of modern engineering are airport construction projects – massive structures that are gateways to the world.
Airports are more than just a transitory existence. They are keys to connectivity in the world, to economic growth, and to cultural exchange. But building airports comes with a lot of challenges that involve managing planning, complex regulatory approvals, large-scale logistics, environmental concerns, and designing to make it all work.
It is where Building Information Modeling (BIM) and digital construction solutions become necessary. These tools make planning, designing, and executing even the most complex structures simpler and more accurate.
Pinnacle has led this charge and helped create some of the world’s most iconic international airports. The company has taken the impossible and made it possible in terms of airport construction by turning challenges into successes through the integration of technology with industry knowledge.
Let’s dive into nine major international airport construction projects that Pinnacle took to new heights with its BIM prowess and digital construction solutions.
An industrial airport in Florida, USA, which is spread over an area of 100,000 sq. ft., required 4D construction phasing and walkthrough work for enhanced planning. Pinnacle took up the challenge and helped the client complete the project within the deadline.
Pinnacle’s scope of work included 4D Construction Phasing in Navisworks and walkthroughs in 3Ds Max. Our 4D simulation helped the client visualize the whole series of construction events and understand the progress of construction activities throughout the project’s lifetime. Pinnacle navigated the unique challenges of airport design and difficulties in importing and executing the client-provided files. Our team worked on individual element breakdowns within the specified timeframe and processed the files to go along with construction sequencing using Navisworks.
The BIM 3D model reduced errors and kept the project on schedule. This project shows how technology and innovation can improve the construction process in the aviation industry.
This International Airport in the UAE that Pinnacle worked upon is one of the busiest in the world for passenger traffic. The airport’s existing infrastructure needed a major expansion in 2012 due to the growing passenger load.
The expansion initiative had three primary projects:
Pinnacle undertook the expansion and renovation challenge and delivered the integrated 3D model for the airport design. Comprehensive clash coordination was conducted across all MEP trades and visualized in Navisworks. A thorough quantity take-off (QTO) was also performed in order to integrate the manufacturer’s references and generate a distinct asset ID from the clash-free coordinated model. Furthermore, shop drawings were also furnished to the client.
Integrating new infrastructure with existing structures was tricky, but BIM tools made it possible. Using clash detection and construction phasing, the team avoided delays and stayed within budget. This project is an example of how teamwork and BIM can deliver sustainable and quality results.

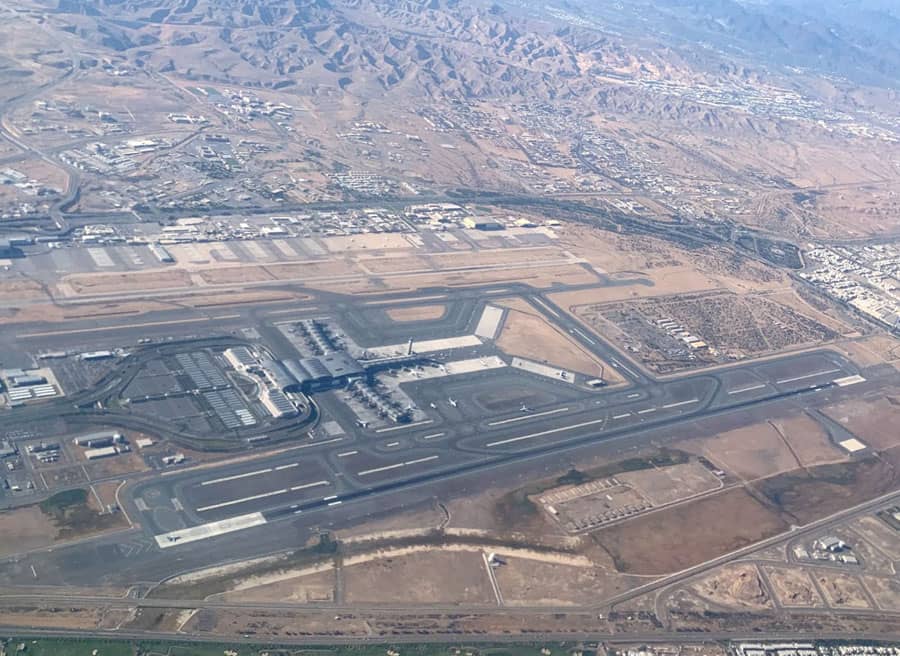

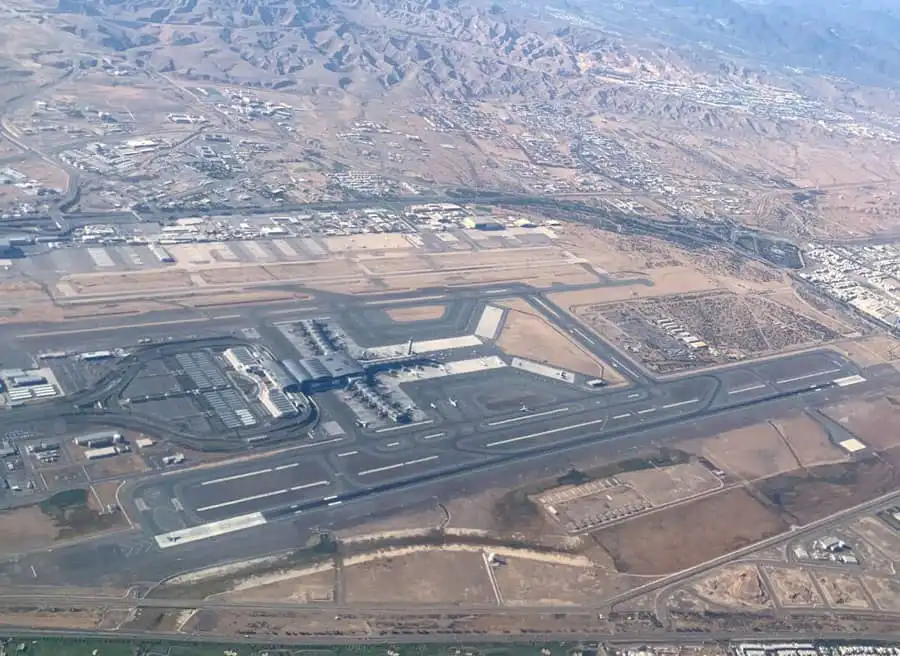

Muscat International Airport, situated 32 km away from the capital, is the largest airport in Oman. It is also the main hub of the national carrier Oman Air. A new terminal was required to be built. Their search for a seasoned, world-class AEC service provider ended with Pinnacle.
Pinnacle played a pivotal role and provided information modeling and coordination services for the Mechanical, Plumbing, Fire Protection and Electrical trades. MEP coordination for all the piers were completed which involved an area of 13,935 Sq.M. for each of the three piers. Coordination of the entire model was done in Navisworks and the final output was delivered in Revit.
With meticulous planning and BIM expertise, our engineers overcame hurdles and successfully met the client’s expectations. We kept multiple teams working on the runways and control towers in sync.
Sky Harbor Airport is Arizona’s largest and busiest airport and among the largest commercial airports in the United States. It serves as one of the largest focus cities for Southwest Airlines with 179 daily departures to 50 cities across the United States.
The airport’s building required fabrication at Level of Development 400 for its 3 Floors (Apron, Passenger & Roof) spread over 212,981 sq ft area (8 zones).
We turned challenges into wins by using BIM. This project is an example of how technology can improve airport projects. Our team created 3D BIM Model for Sheet Metal, Mechanical Piping including Hanger/Support, Equipment Modeling and Associated Fittings Sheet Metal.
The digital representation we created includes nine models for sheet metal, ten models for mechanical piping, and 210 Clashes among building systems. Newforma was used to streamline project operations. Construction phasing was planned carefully to minimize downtime and stay within budget.
The Orlando International Airport South Terminal Complex needed major expansion, which included an airfield, landside and airside buildings, a six-story parking garage, ground transportation, and utility works.
The south terminal complex and associated apron/taxiway encompass approximately 300 acres. The airside terminal has between 16 and 24 gates and can accommodate both international and domestic flights. Pinnacle undertook the challenging task of renovating this Terminal.
Our scope of work included architectural and 4D fly-through for OIA South Terminal, Further development of the exterior model, 60-90 seconds flyover/around (exterior) looped, and 4D construction phasing. Pinnacle’s team completed the task utilizing Revit and 3Ds Max software applications.
The successful completion of this project underscores our commitment to delivering efficient infrastructure solutions for the evolving needs of airport operators.
The airport spans across 2000 acres of land and is situated atop a hillock. A significant portion of the construction process involved leveling the hill’s topography and embanking it to establish a tabletop airport.

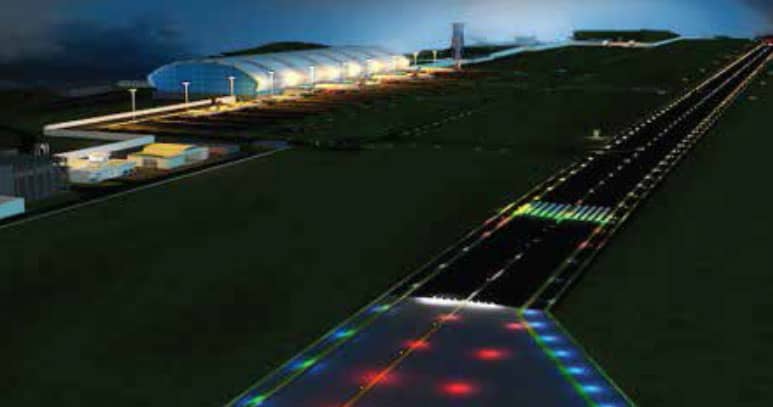

The scope of our BIM Services for the Airport was to create an animation showing the stepwise development of the airport airfield areas (hill blasting, cutting, filling, and leveling the top of the hillock and reinforced soil slope construction using geo-grid)

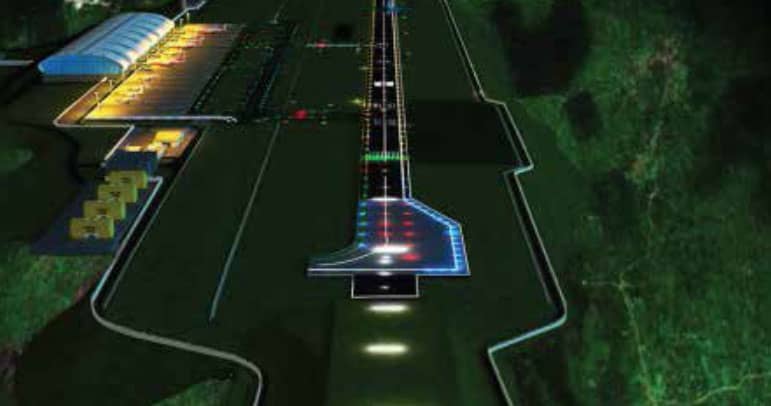

It also included Surface preparation and treatment for the runway and airfield areas. This further entailed a virtual tour of the airport from the airfield, showing airplane landings and lighting arrangements with signage placement in the runways and taxiways at night.
With our expertise in Building Information Modeling for Airports, we leveraged the most relevant tools and resources to provide the benefits of BIM in airport construction to the client. Sustainability was also a focus in the design of this airport. Our team of experts ensured all stakeholders were aligned. This project shows how BIM can drive innovation in the industry.
Pinnacle undertook the 3D modeling and marketing presentation of the George Bush Terminal D project in Miami, Florida, USA.
The project required the renovation of Terminal D for George Bush Intercontinental Airport, covering a 26,000 sq. ft. area. Pinnacle’s scope of work for the project included 3d Modeling and a walkthrough of the entire area. By modeling the existing and new structure of Terminal D, we helped the client have a clear understanding of the level of differences between the existing and new structure.
This work shows how collaboration and innovation can modernize existing airport facilities while keeping operations running.
Fort Wayne International Airport lies eight miles southwest of Fort Wayne, in Allen County, Indiana, United States. It is owned by the Fort Wayne-Allen County Airport Authority. The airport has a 600,000-square-foot (56,000 m2) air cargo center on the southwest side.
Pinnacle was responsible for providing BIM modeling and coordination services for the Mechanical and plumbing trades on the project. The entire model was coordinated in Navisworks, and the final output was delivered as Revit 3DModel & Shop Drawings.
This case study shows the benefits of using information modeling in simplifying coordination across multiple teams.
The Tampa International Airport project required working on an existing building which was expanding its Main Terminal Curbside. The approx. The project area was 79102 sq ft, including all the basic amenities. The new area consisted of 3 buildings for the Central Utility Plant (CUP), Blue Vertical Circulation Building (BVCB) & ESB.
Pinnacleʼs scope of work at this site included building the underground and above-ground plumbing & mechanical piping and ducting models. It also included clash coordination with other trades, generation of installation plans, and hanger drawings. The model of the airport facility built with LOD 400 was used to extract BOQ for material procurement and prefabrication.
By using BIM, we optimized the construction phasing to minimize disruption to existing infrastructure. The airport design is the future of airport facilities – modern architecture and operational efficiency.
The list is not exhaustive; Pinnacle has worked on numerous such projects in the aviation industry, starting from the busiest to the biggest airport in the world. These airports highlights our company’s ability to adapt and excel in diverse countries while contributing to the development of global airport facilities.
