Bar Bending Schedule in Construction: Importance and Best Practices

In today’s high-pressure construction environment, project managers cannot compromise on vital project health indicators, such as precision, cost efficiency, and accountability. A Bar Bending Schedule (BBS) is an important document that aligns these parameters perfectly. A well-prepared BBS document can streamline project execution and reduce surprises. The project may be a commercial building, a bridge, or a large-scale infrastructure.

This blog will elaborate on the basics of a Bar Bending Schedule. It will explain its significance, usage, and how it helps you master reinforcement steel planning. The guide will elucidate the concepts with real-world use cases.

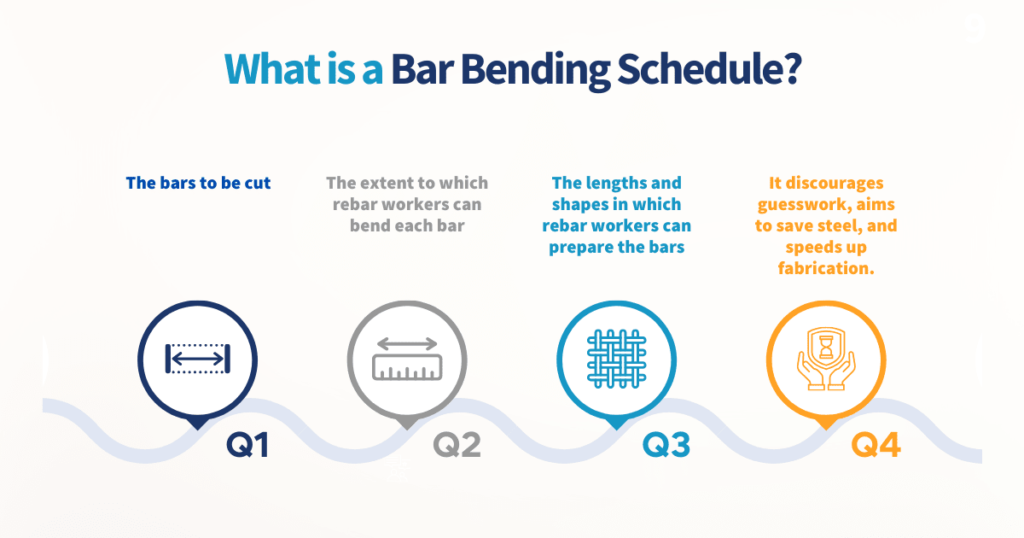

What is a Bar Bending Schedule?

A bar bending schedule is a document that includes a detailed list of steel reinforcement bars(rebars) specs. It thoroughly specifies the type, size, length, shape, number, and bending dimensions of all rebars used in a concrete structure. We may view the Bar Bending Schedule(BBS) as a "blueprint for steel bars." It ensures that each rebar fits perfectly into its designated slot.

BBS document guides engineers, site supervisors, and contractors on these aspects:

• The bars to be cut
• The extent to which rebar workers can bend each bar
• The lengths and shapes in which rebar workers can prepare the bars
• It discourages guesswork, aims to save steel, and speeds up fabrication.

Example: Imagine a column needs 4 steel reinforcing bars, each of 2 meters in length. The rebar worker needs to bend each rebar at specific angles. The BBS will furnish this information in a table format. The table will cover all the bending bars details, such as shape codes, bend angles, cutting lengths, and bar diameters.

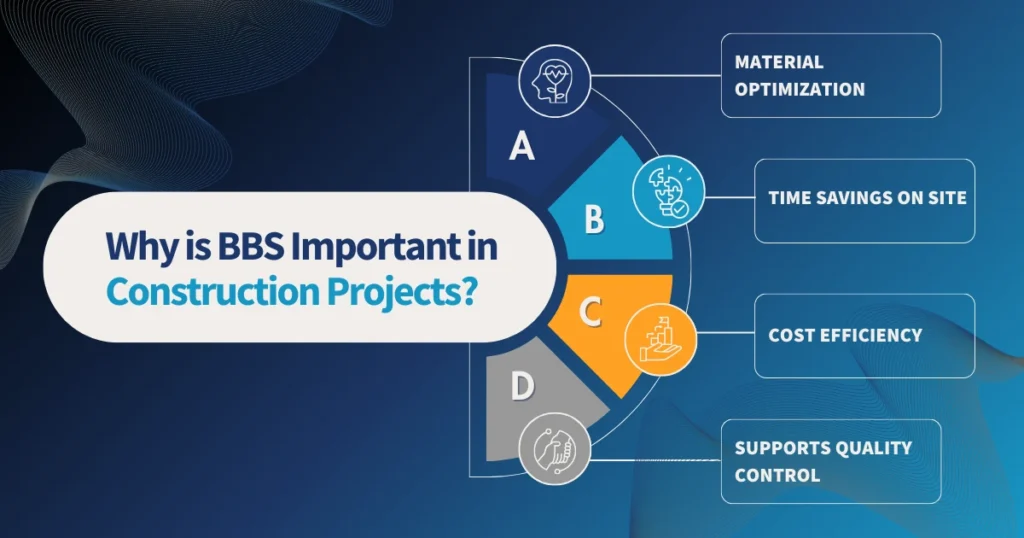

Why is BBS Important in Construction Projects?

A Bar Bending Schedule (BBS) has an indispensable role in ensuring smooth, efficient, and cost-effective reinforcement work. Without the document, the construction process tends to become chaotic and prone to material wastage, delays, and costly mistakes. Let's explore this in-depth to know how BBS document contributes to successful project execution:

1. Material Optimization

Structural Engineer / BIM Detailer should structure a BBS Document properly. This is necessary for achieving a precise estimation of steel requirements. They should specify the exact lengths, bends, and diameters of each rebar. Such a precise mention will significantly reduce the chances of ordering in surplus or under-ordering.

Thus you keep scrap to a bare minimum, contributing to sustainable construction practices. You can also estimate total steel weight and cutting lengths with confidence. Such a well-planned approach ensures optimal use of every meter of rebar.

2. Time Savings on Site

We cannot look down on BBS as just another drawing. It is rather a launchpad for smarter, tech-driven construction workflows. Without a Bar Bending Schedule, site crews waste their limited time trying to guess what to bend, cut, or fix. A clear, well-prepared BBS eliminates such ambiguities or assumptions. It significantly brings down on-site decision-making time.

This is an area where Pinnacle Infotech’s Digital Prefabrication & Spool Services can further elevate efficiency. Leveraging BIM-driven BBS, Pinnacle produces precisely detailed shop drawings and spool sheets for pre-bending and cutting operations. Before proceeding let us have a glimpse of the difference between shop drawings and spool drawings. Shop drawings provide overall fabrication and installation details for entire systems or assemblies. Spool drawings break down those systems into smaller, pre-fabricated, and manageable units. These units or spools are ready for offsite fabrication. You can read our Blog on various design and construction drawings.

The Pinnacle team first extracts coordinated shop drawings from BIM models and submits them to the client for review. Once the client confirms shop drawings, the team generates spool sheets using advanced digital prefabrication workflows.

Pinnacle’s digital prefabrication team fabricates rebar cages offsite based on approved spool drawings. This approach minimizes on-site work and sharpens dimensional accuracy. The pre-bent and pre-tagged rebars can then be delivered directly to the job site. The construction crew can readily install these rebars without any collisions. This approach saves weeks for large-scale infrastructure or high-rise projects.

Without a Bar Bending Schedule document, the fabricators and site crew would break their heads figuring out where to bend or what to cut.

3. Cost Efficiency

A well-constructed Bar Bending Schedule (BBS) contributes to significant cost savings by accurately calculating the quantity, size, and cutting lengths of rebars in advance. It eliminates the chances of over-ordering steel and minimizes waste. Contractors can also save labor costs with faster work.

4. Supports Quality Control

With strict adherence to standard shapes and building codes project managers need not worry about inspection and approval by consultants.

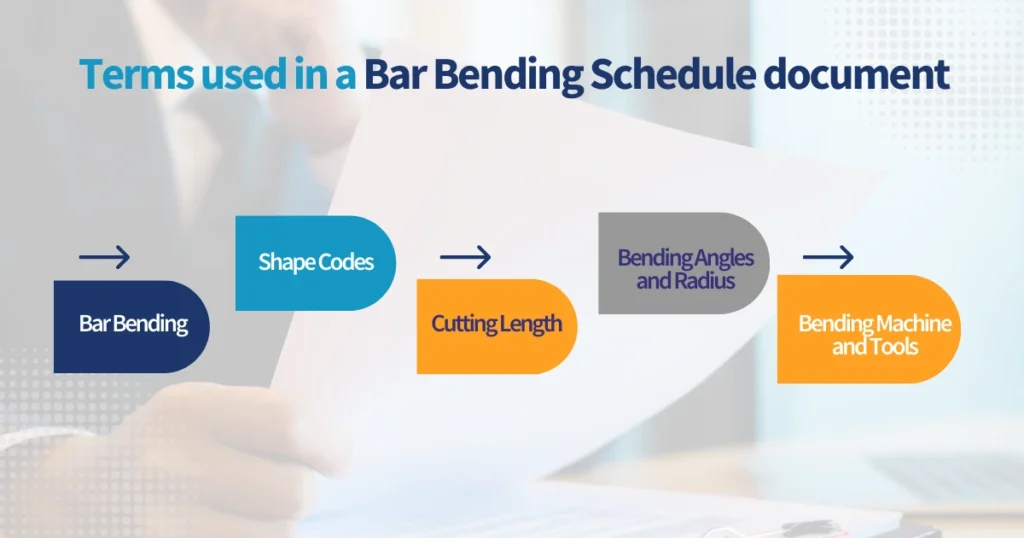

Terms used in a Bar Bending Schedule document

Bar Bending

The rodbusters need to bend bars to fit them into concrete structures such as slabs, beams, columns, etc. Bending involves setting a specific bending angle, minimum radius, and direction.

Shape Codes

Each common bar shape(like L-shape, U-shape, or stirrups) corresponds to a standard numerical code. For example, Shape Code 21 might refer to a U-bar with equal bends.

Cutting Length

It is the total straight length of a reinforcement bar before any bending is done. Prior to bending, rebar workers add extra length to account for the bends and hooks. This total straightened length gets cut from the steel stock before fabrication. Let us clarify with an example.

Imagine you need a bar shaped like an “L” with one 90° bend.

Let the Vertical leg be 1000 mm in length and the horizontal leg measure 500 mm.

While bending the rebar steel tends to elongate slightly at the bend position. So we add a standard allowance for each bend. For a 90° bend in an 8 mm diameter bar, the standard bend allowance is approximately 40 mm.

So, the cutting length would be:

Cutting Length = 1000 mm (vertical) + 500 mm (horizontal) + 40 mm (bend allowance)

Total = 1540 mm

This 1540 mm bar will then be cut and bent into an L-shape. This is the optimal length of the material to obtain the shape without shortage or waste.

Bending Angles and Radius

Bars are bent at different acute and obtuse angles. The radius must follow certain limits (usually based on bar diameter) to avoid cracking the reinforced concrete.

Bending Machine and Tools

Bars are bent using machines or hand tools, depending on the site setup. Machines offer more accuracy and efficiency.

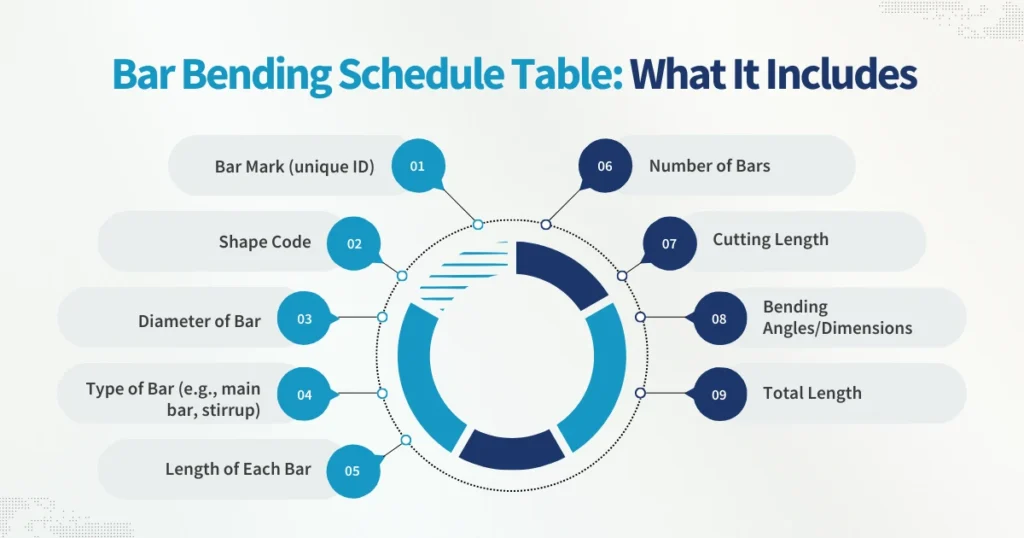

Bar Bending Schedule Table: What It Includes

A standard BBS includes the following columns:

• Bar Mark (unique ID)
• Shape Code
• Diameter of Bar
• Type of Bar (e.g., main bar, stirrup)
• Length of Each Bar
• Number of Bars
• Cutting Length
• Bending Angles/Dimensions
• Total Length

Example BBS Entry:

Mark	Shape Code	Dia (mm)	No. of Bars	Length (mm)	Bending Angle
A1	21	16	4	2000	90° U - bar

How can a BIM Detailer Prepare BBS?

1. Study of Structural Drawings
   The initial step is the scrutiny of structural drawings provided by the design or structural engineer. These drawings showcase the placement, orientation, and quantity of reinforcement bars in structural elements. The structural elements include beams, slabs, footings, columns, staircases, etc.
2. Identification of Bar Types
   After vetting the structural drawings, the engineer or drafter determines the types of bars required for each structural element. The bars may be straight bars, bent bars, cranked metal bars, U-shape bars, or ones with standard hooks. Each type serves a different structural purpose.
3. Application of Shape Codes
   Following categorization based on shape, assign each bar with a shape code(as per industry standards like IS 2502 for India or BS 8666 for the UK). Shape codes make for easy reference during fabrication and documentation and simplify stakeholder communication.
4. Determination of Cutting Lengths
   For every bar, calculate the total cutting length. The length is the sum of the main dimensions and additional allowances for each bend and hook. The allowance varies based on the diameter of the bar which is in the 6 mm to 40 mm range. The reason behind the calculations is that the bar needs to be long enough(before cutting) to accommodate the new shape without any insufficiency.
5. Prepare a Comprehensive Bar Schedule Table
   Finally, all the above information will be organized into a table. This can be automated using specialized software integrated with BIM models. The table becomes the final Bar Bending Schedule used on-site and managed by structural and execution teams.

Use of BBS in Construction Sites

Structural Engineer / BIM Detailer prepares Bar Bending Schedule(BBS) document. Quantity Surveyor, Site Engineer, Fabricator, and Quality Inspector use the document. At construction sites, the Rebar Fabricator / Contractor depends on BBS to cut, bend, and tag rebars as per project needs.

TMT Bars in BIM

The Thermo-Mechanically Treated Bars strengthen the buildings at the grass-root level. These bars are the most sought-after ones for their superior strength, corrosion resistance, and flexibility. The use of TMT rebar in a construction project adds up to construction accuracy and efficiency.

Building Information Modeling (BIM), a superior technology used in contemporary construction offers a digital representation of the physical and functional characteristics of places. The integration of TMT rebar into BIM processes is a significant advancement in construction projects. This paves the way for better project visualization, better inter-departmental coordination, reduction in errors, and efficient material management.

Challenges Without a BBS

• Difficulty in calculating bar lengths and steel bar estimation
• Risk of incorrect bend rebar operations
• Errors in reinforcement placing that impact tensile strength

BBS and BIM: A Powerful Duo

When integrated with BIM tools like Autodesk Revit, a bar bending schedule becomes dynamic. You can instantly update bar requirements as the design evolves. This improves coordination between designers and execution teams and reduces rework.

Tips for Effective Bar Bending

• Always follow standard codes and building project specifications.
• Respect the minimum radius while bending.
• Mark and tag bars on-site for traceability.
• Use a bending machine for better accuracy.

Conclusion: Why Every Project Needs a BBS

From civil engineers to site managers, a clear and accurate bar-bending schedule helps everyone speak the same language. It brings transparency, reduces material waste, and improves productivity on construction sites.

In today’s competitive environment, especially when working on time-bound construction projects, skipping the BBS is not an option—it’s a strategic document that supports both engineering integrity and business efficiency.

Need help optimizing your reinforcement planning or integrating BBS with digital tools like BIM? At Pinnacle Infotech, we specialize in accurate BBS preparation as part of our comprehensive BIM offerings. Let us help your team reduce errors, speed up execution, and boost structural reliability.
