The construction industry is undergoing a major technology disruption. During this technological shift, the industry players are undergoing numerous major changes and transformations. The most noticeable technological innovation that has emerged in the construction industry in the last few years is BIM CAVE.
The term "BIM CAVE" expands to Building Information Modeling – Computer-Aided Virtual Environment. BIM CAVE combines Building Information Modeling with Virtual Reality headsets to redefine the way teams visualize, design, and execute construction projects. This futuristic technology is taking over various approaches and practices to completely change how the industry sees virtual construction and design planning.
BIM CAVE is an immersive virtual world in which users can step inside and navigate through the building. Rather than relying on images or looking at screens, users can use the virtual reality headset or the projection-based world to walk through the building in a 3D world. The technology offers users detailed images of the building. The technology mimics the actual building elements in the real world.
BIM CAVE typically offers a setup that includes VR headsets for immersive walkthroughs and large projection screens for multi-wall displays. Here, the setup involves interactive model consoles and BIM integration modules. Real-time BIM CAVEs can synchronize data from multiple computers to render changes in real-time, allowing for remote participation in sessions. This completely transforms the static design data into an interactive and actionable, hyper-integrated spatial experience.
BIM models contain various details about a building's layout, measurements, and components. The model has various functions, like MEP and structural trade covered for different operational data and material details.

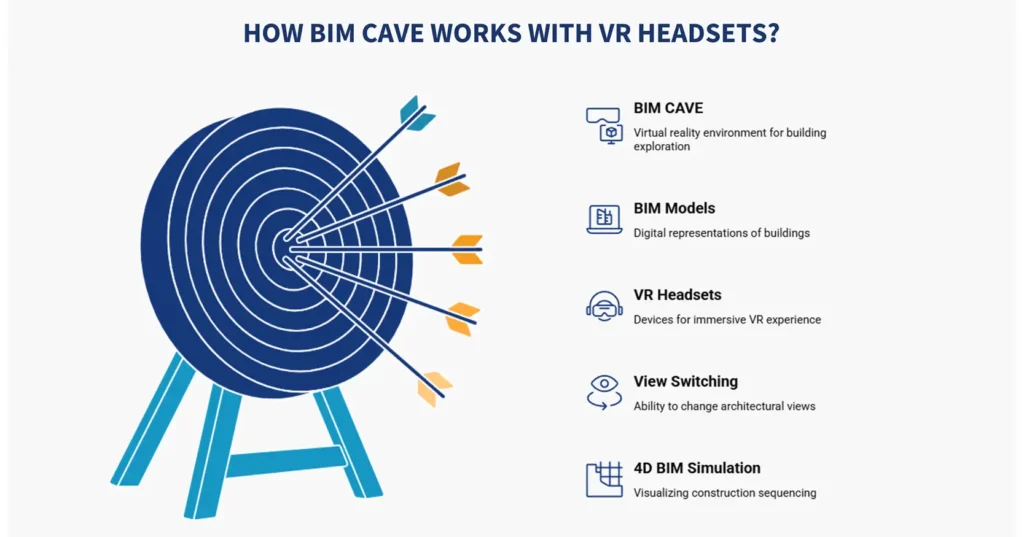

The BIM CAVE is a virtual reality environment designed to allow users to experience a building or structure before it is constructed. When BIM models are integrated with VR headsets, users can explore the entire building facility and its components at a 1:1 virtual scale. Also, the technology allows users to navigate across building spaces and explore systems and components, helping them derive real-time insights and process-critical data for informed decision-making.
The headset technology allows users to dynamically switch between MEP, architectural, and structural views. Further, with BIM CAVE-led VR projections, teams can simulate construction sequencing using 4D BIM technology.
Applying this immersive approach, users can easily comprehend and depict building scales, proportions, and spatial relationships. This goes on to redefine the existing systems and practices that are far beyond the traditional offerings of 2D drawings.
Before we can understand the way BIM CAVE is beneficial to construction practices and optimizes the outputs of construction teams, it is important that we first know the different types of construction projects and BIM applications.
Broadly, the industry classifies construction projects by size, building type, and purpose.

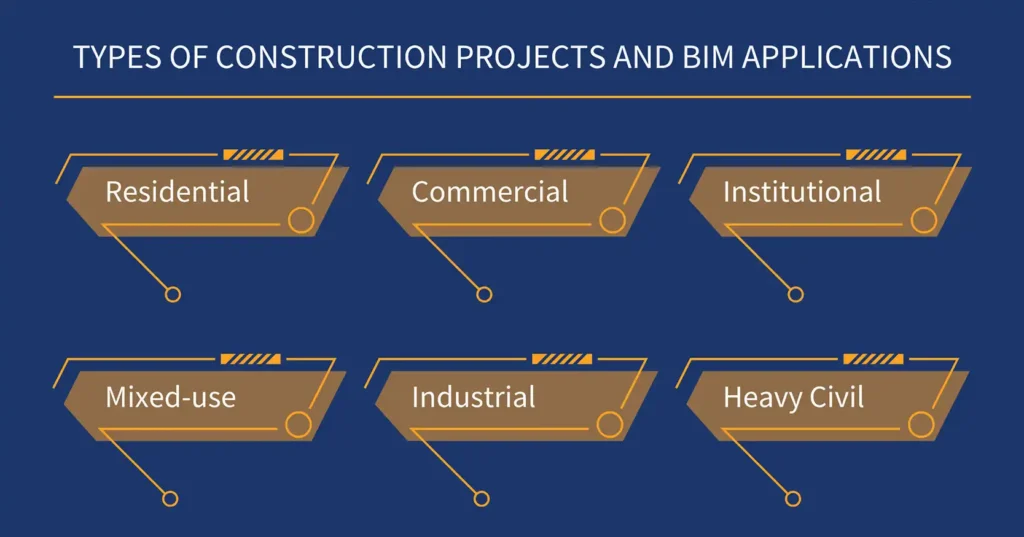

The industry generally classifies construction projects into six different types under the above criteria. They include residential, commercial, institutional, mixed-use, industrial, and heavy civil construction projects.
Residential construction refers to buildings developed by construction companies for human habitation. These can be divided into single-family and multi-family construction.
Commercial construction projects are generally more complicated compared to residential projects. They must also comply with certain commercial building codes.
Institutional construction refers to projects developed by organizations for public utility. For example, they include built facilities like schools and hospitals.
Mixed-use construction projects combine multiple types of construction and land use within a single development or area.
Industrial construction projects refer to buildings constructed for industrial purposes. Good examples are manufacturing plants and warehouses.Heavy civil construction refers to large-scale engineering typically associated with infrastructure or public works.

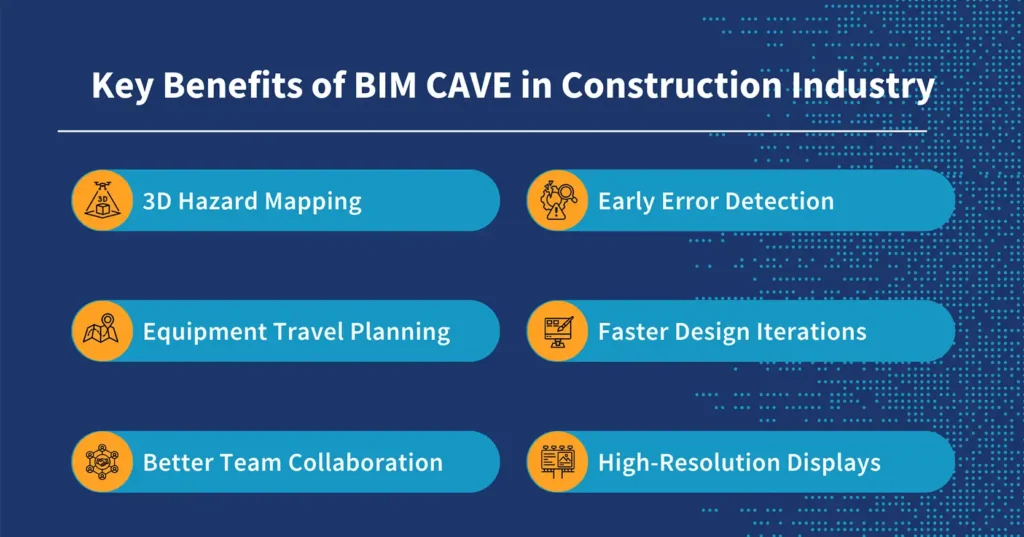

There are a number of operational advantages and value benefits offered by BIM CAVE to AECO professionals to build next-gen technological possibilities in the construction domain.
Teams can use the immersive environment of a BIM CAVE for 3D hazard mapping for allowing them to foresee potential safety risks before workers be on-site.
This way, the stakeholders are able to identify unsafe zones, develop safer workflows, and even simulate emergency situations while virtually moving around the project.
These measures improve safety planning. This helps in reducing accidents and increasing compliance, ensuring safety standards before the project is set up.
Safety managers can plan equipment travel paths to avoid collisions and train workers on heavy machinery operations in a risk-free environment within the BIM CAVE. In this immersive environment, they can also simulate real-world scenarios to train workers on the operation of heavy machinery safely and efficiently.
In this risk-free environment, the teams are able to have better awareness, coordination, and confidence, which ensures that accidents are avoided. This improves safety and the teams are better prepared before the actual operation begins.
BIM CAVE enhances collaboration among architects, engineers, and contractors, by providing a shared visual platform.
Unlike the case where each stakeholder interprets the project differently through its own drawings, BIM CAVEs allow all the members to interact with the project as a single entity, hence promoting better communication, decision-making, and an efficient project delivery process.
BIM CAVEs facilitate early detection of design errors, such as clashes between structural elements. This helps in saving costs. It makes it possible with the immersive virtual experience that is coordinated in 3D.
This is important since errors may exist that may have gone undetected through traditional methods. BIM CAVEs help teams detect and fix errors early, preventing costly mistakes.
BIM CAVEs enable design teams to iterate much faster. This allows designers to evaluate their designs almost instantly, contrary to traditional design methodologies that might take weeks. In design meetings, designers can now make design changes in real-time.
Also, the system displays results immediately. With this, stakeholders can approve designs much faster, thus increasing overall efficiency. Many design projects already show that the technology significantly reduces design time.
BIM CAVEs feature multiple high-resolution displays that create a large-scale visual representation of construction models.
These synchronized screens display 3D environments in great detail. This is similar to what can be seen in real life and allows users to experience a sense of depth, proportion, and relationships in 3D environments. Thus, it provides a clear visualization and allows users to engage in discussions and understand complex building systems together.

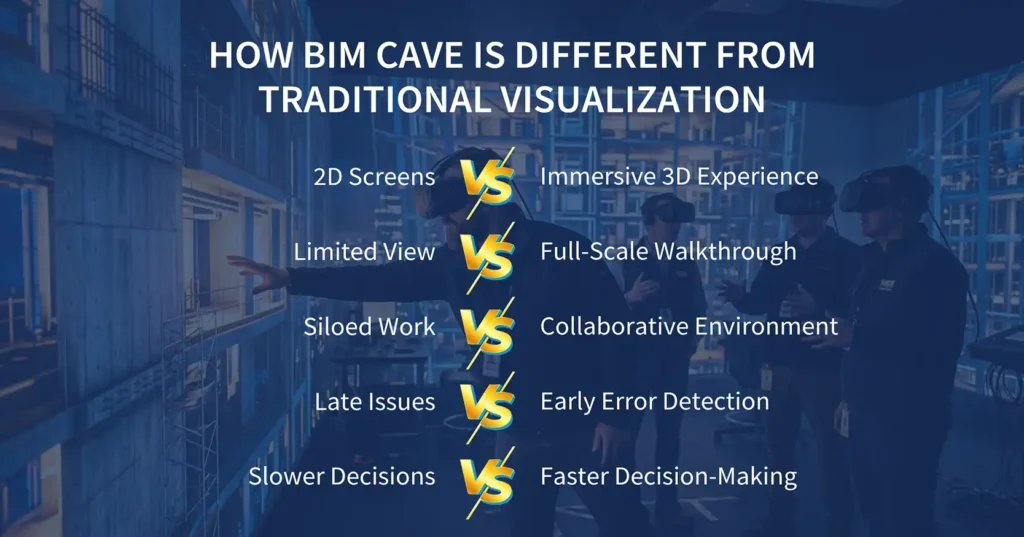

Traditionally, industry practitioners used 2D images and screens to convey plans and review designs. This used to be a limitation in understanding complex designs and plans.
BIM CAVE, with the use of advanced VR technology, provides a walkthrough of the design in 3D, which provides a full-scale experience of the project. This provides better clarity and understanding of the project.
AECO professionals and functional departments collaborate and interact with different stakeholders within a single environment.
This replaces siloed working and brings all teams together on a shared platform. This enables them to identify mistakes at the right time and avoid making them during high-stakes phases.
This way, BIM CAVE provides a sense of speed, enables better information exchange, and enables quicker decision-making.
Despite its many advantages, implementing a BIM CAVE comes with several practical challenges.
The high cost of investment in terms of equipment and setting up may also prove to be a major problem. Mainly, this is because it requires high-end technology for VR, high-resolution screens, and more space. It may not fit the budget of small organizations.
BIM CAVE technology relies heavily on high-quality and detailed BIM models. The lack of such information may compromise security and degrade the quality of the entire process. Mainly because the results obtained through such a system would be incomplete and inconsistent.
Users need training to operate BIM CAVE technology effectively. The lack of proper knowledge may hinder the potential use of BIM CAVE technology. This may result in users facing functional gaps and process inefficiencies while working on it.
The integration of BIM CAVE technology into a system may also prove to be a hurdle, as changes may be required to adapt to this new technology. This may affect resource application and process compliance at all levels.
Also Read: BIM in the Metaverse: Practical Applications for Enhanced AEC Project Visualization

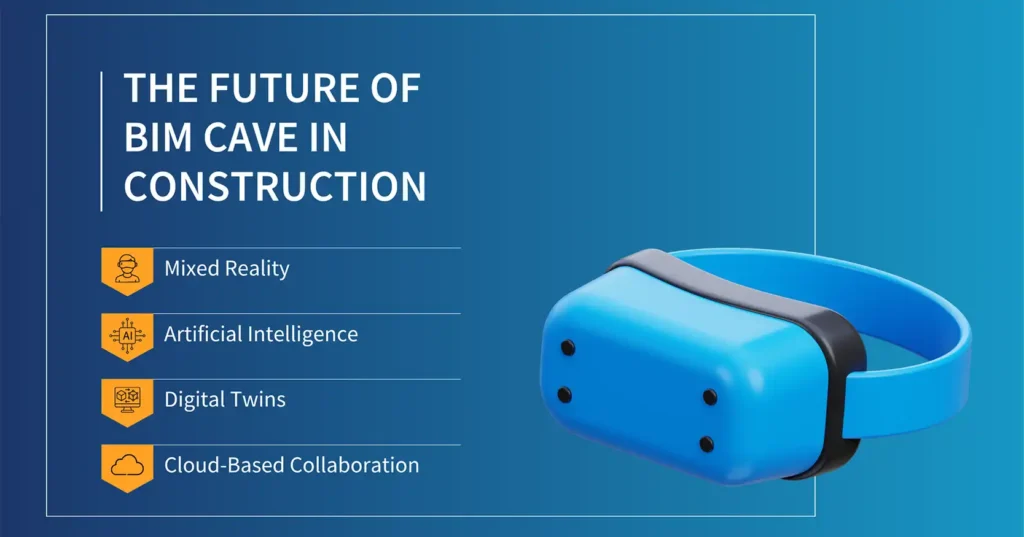

The future direction of BIM CAVE technology will be in the further integration with new technologies. This will lead to the enhancement and further growth of the technology.
Mixed Reality improves BIM CAVE technology through site visualization, where virtual information integrates with physical space. This helps construction teams make correct decisions in real-time at the construction site.
Simulations using Artificial Intelligence improve BIM CAVE technology by integrating predictive analysis. This helps construction teams predict various aspects of construction, thus making better decisions.
Digital Twins improve BIM CAVE technology through real-time virtual models of physical assets. This helps construction teams to monitor and manage construction projects with greater control and efficiency.
Cloud-based collaboration improves BIM CAVE technology through advanced BIM software and global resource integration within the BIM CAVE environment. This helps construction teams closely collaborate regardless of their physical location.
Technological advancements and expanding applications have transformed BIM CAVE into more than a visualization tool. It now acts as a decision-making platform that drives higher value and better project outcomes. BIM CAVE helps explore digital construction possibilities in a dynamic manner. It offers precise, secure, and cost-effective VDC solutions. In an era of speed and collaboration, BIM CAVE is revolutionizing construction planning in all aspects of application and execution.
