What is Data Interoperability? Challenges in BIM-GIS Integration and Solutions

The construction sector today is going through a leap of change in all aspects of practices and applications. As the processes supporting these evolved practices and requirements head towards enhanced technological possibilities through value automation, they rely more on data processing, integration, and exchange across systems and functions. This is where the practice of data interoperability makes a vital entry into the digital construction playbook.

What is Data Interoperability?

Data interoperability is the ability of different information systems to exchange, comprehend, analyze, and use data in a coordinated and compatible manner for seamless flow of data without compromising originality, quality, and integrity in the process. Data interoperability enhances efficiency, consistency, and collaboration in the process by bringing all the data together on a common sharable platform supporting a unified format and standardized system. This allows different project teams and stakeholders to exchange any type of data cohesively and freely without any supporting restriction across the process environment, encouraging uninterrupted value exchange, integrated operations, and informed decision-making.

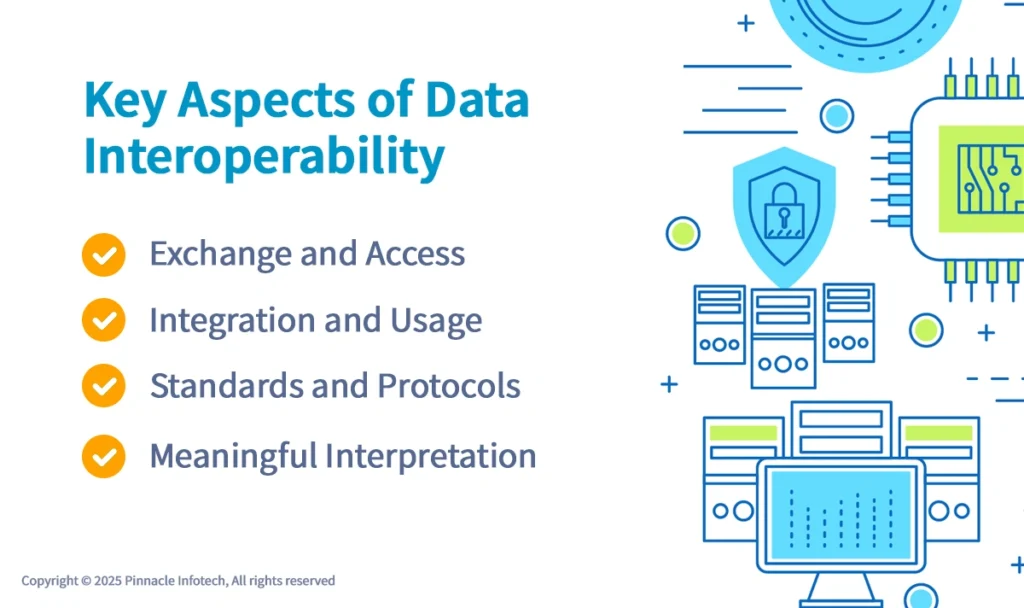

Key Aspects of Data Interoperability

Mentioned below are a few important aspects of data interoperability in the context of industrial data flow and usage:

Exchange and Access

Systems can automatically send or receive data regardless of the location or ownership of data to make it democratically available for all in a cohesive and unified manner.

Integration and Usage

Data can be meaningfully combined and dynamically used by different users and applications to help with collaborative decision-making across functions and processes in a shared work environment.

Standards and Protocols

Based on a system that dwells on data operations that rely on common formats (like XML and Unicode) and standardized rules for data exchange (APIs).

Meaningful Interpretation

Provides grounds for maintaining the highest data integrity levels to make it semantically relevant and comprehensible (and not just syntactically available) to ensure optimum value transfer.

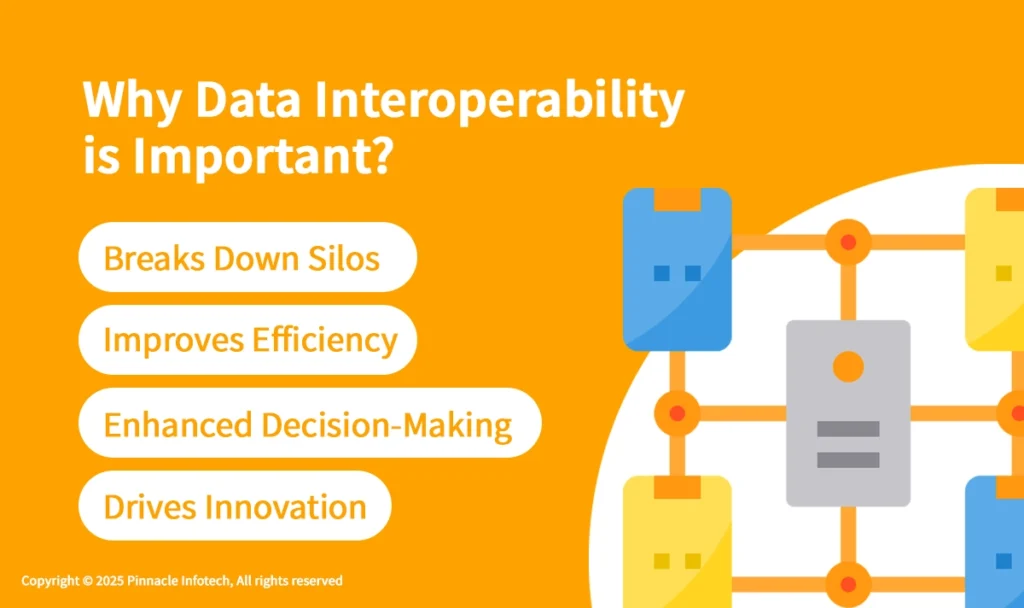

Why Data Interoperability Is Important

Data interoperability as a part of the industrial framework adds to the value dynamics of the operational process in various ways, a few of which are listed below.

Breaks Down Silos

Allows data to break free from isolated systems and seamlessly flow across the system to deploy a holistic view that supports contextual analysis at scale.

Improves Efficiency

Reduces manual inputs and cuts down the time needed for data assessments and analytical overviews, which leads to streamlined processes and improves efficiency across the system.

Enhanced Decision-Making

A top-down view of consolidated data from all points aids in faster, accurate, and informed decision-making for integrated real-time information processing.

Drives Innovation

Allows room for experiments and explorations with new services and advanced integration possibilities, leading to technology enhancement and value innovation.

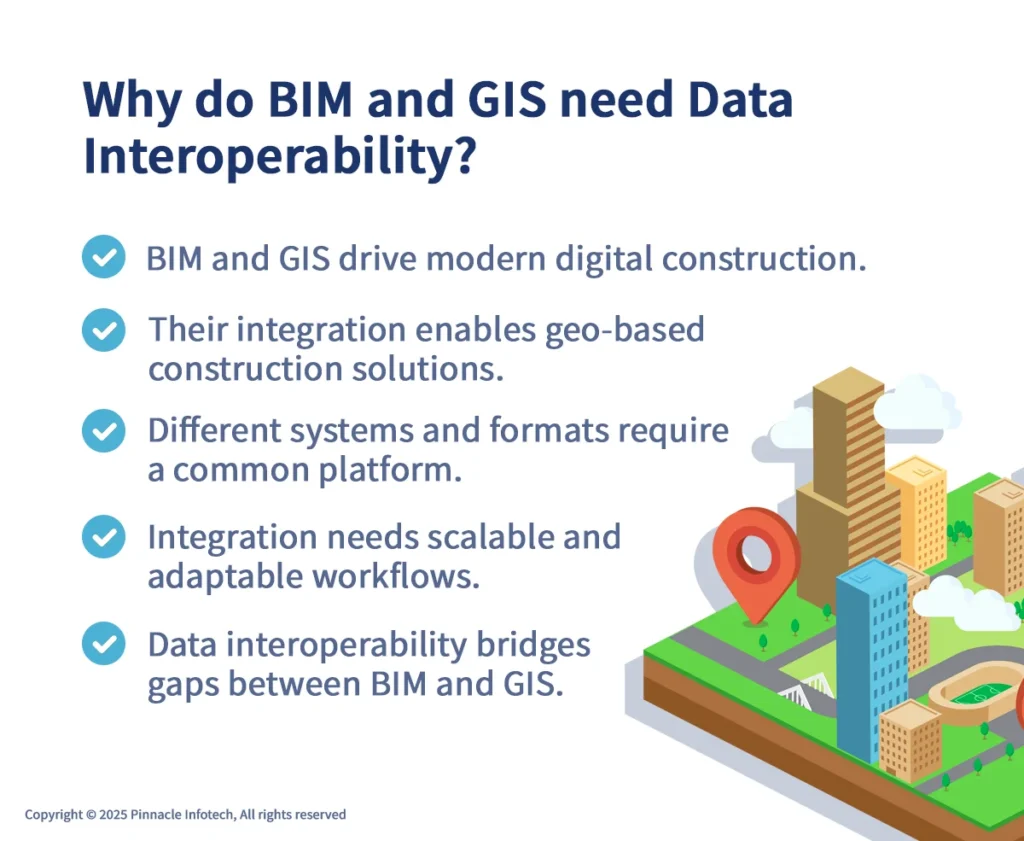

Why do BIM and GIS need Data Interoperability?

Building Information Modeling (BIM) and Geographic Information Systems (GIS) are among the most influential tools that drive most parts of the digital construction practices in the purview of new-age AECO applications.

BIM and GIS come together in a tactical digital arrangement to deliver comprehensive geo-integrated construction solutions that bring new possibilities to the industry.

Both BIM and GIS operate on different system protocols and have different types of file formats to support. This makes it important for the project teams to bring them together on a platform where they co-exist and co-align to deliver a practicable solution towards BIM-GIS integrated construction design.

This requires not only a sustainable environment for system coordination and process compliance but also a dynamic operational base that is adaptable to BIM-GIS project requirements at scale.

This is where the role of data interoperability gets big and real as it bridges existing gaps and possible conflicts between both the technologies and their respective value attributes and functional ecosystems.

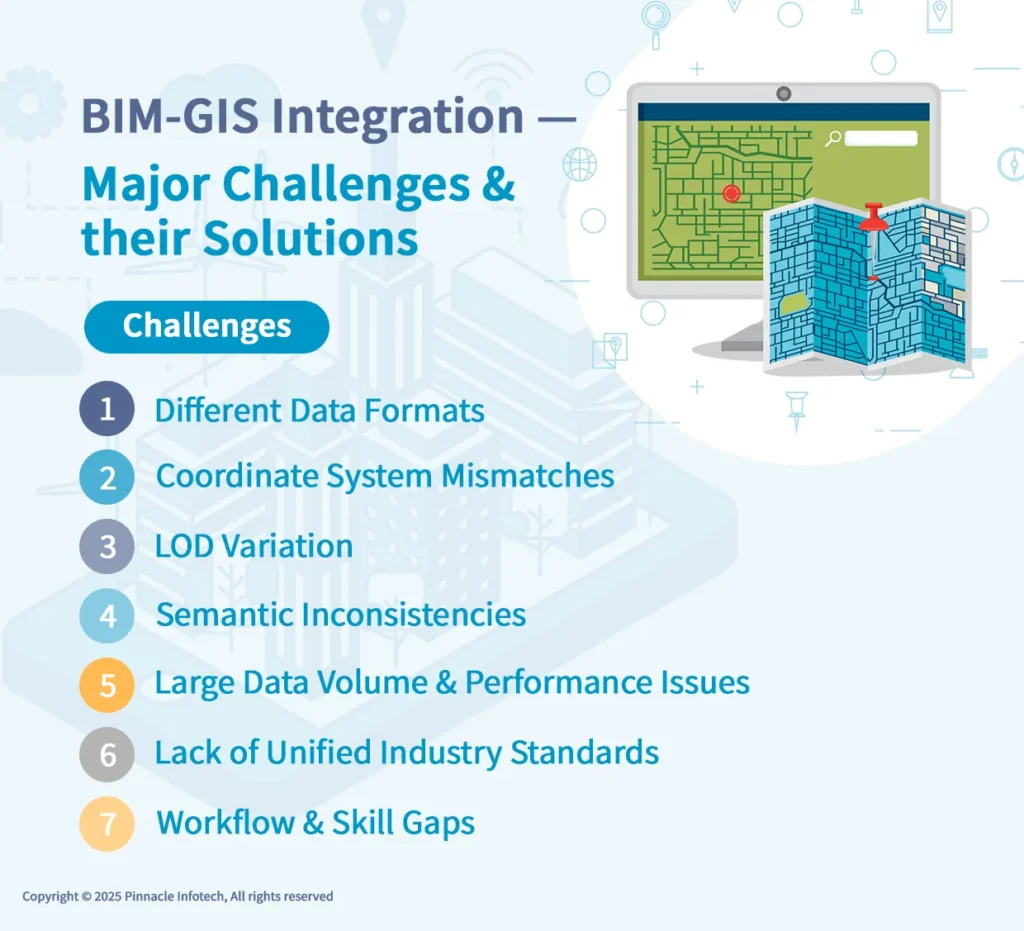

BIM-GIS Integration - Major Challenges and Their Solutions

Integrating any two different sets of technologies or systems requires ensuring compliances at different layers and levels. The same is the case for BIM and GIS integration, which have their own set of supporting file formats and schemas that run on different data processing practices and operational environments.

This is where the project teams start facing challenges of different types and intensities. To learn more about these and to know how these can be addressed, let's explore the major challenges and their solutions one by one:

Challenge 1: Different Data Formats

Both BIM and GIS ecosystems fundamentally operate on different data formats, model structures, and operational philosophies that have no similarity at any level of integration. BIM relies on data standards and formats like RVT, IFC, DWG, and COBie, which follow object-oriented construction-level detailing. However, GIS dwells on formats like Shapefiles, GeoJSON, GPKG, and GML that are designed to support spatial analysis and large-scale geospatial datasets. If these data groups and formats come in direct contact for information exchange and processing, there are high chances of data loss, geometric corruption, and attribute misalignment, making seamless integration and operation across platforms difficult.

Solution

Neutral exchange standards and middle-route formats can help bridge data interoperability gaps. Tools like IFC, CityGML, IndoorGML, and LandInfra act as a connecting ground for exchanging data across environments and support both geometric and semantic aspects. Further, with the help of ETL (Extract–Transform–Load) tools such as FME, ArcGIS Data Interoperability, or BIM360 connectors, data conversion, attribute mapping, and geometry sanitizing are automated and the process of data validation and transfer is optimized and streamlined.

Challenge 2: Coordinate System Mismatches

BIM models are created in local coordinate systems to keep it easy to coordinate. While on the other hand, GIS operations are more standardized in approach and follow global coordinate systems like WGS84, UTM, or regional projections. As the datasets from these two different systems are combined, in most of the cases they inflict rotation and scale issues. This results in varied instances of misalignments and inaccuracies around site planning, utility coordination, and geospatial analysis, leading to procedural distress and compliance gaps.

Solution

With accurate georeferencing introduced and a common base point defined early in the process, project teams can build a coordinated directional flow that ensures consistency in the process. Further, with coordination platforms for BIM-GIS integration, there are dynamic facilities available to translate, transform, and validate coordinates, which considerably minimize any alignment issues or process anomalies. With the help of Autodesk–Esri connectors and control pointers that follow global practicing benchmarks, positional accuracy and spatial symmetry are optimized to curtail coordinate system mismatches.

Challenge 3: LOD Variation

BIM models involve highly detailed depictions of different components and parts that go on to visualize and define the construction frameworks and structures at a stretch. Different Levels of Detailings are required for different types of projects to comply with the varied requirements of fabrication and construction. While in the case of GIS projects, it requires more generalized and simplified data for city-scale modeling, spatial analytics, and environmental simulations. If highly detailed BIM geometry is applied in the GIS output, it results in structural complexities and performance inconsistencies, while on the other hand, oversimplicity leads to vagueness and incompleteness.

Solution

By implementing an LOD mapping strategy that cohesively appoints applicable detail levels for various use cases, project members can align GIS and BIM resources and components for seamless data compliance. This helps teams to simplify BIM data and geometry into lightweight representations before they are exported to a GIS model or geospatial data. This transfer can be further optimized by only sending the necessary components and attributes by applying filters and using view templates. By using multi-resolution formats like Cesium 3D Tiles or Esri I3S users can get scalable visuals of the projects without experiencing any dithered or compromised view and without losing the essential semantics in geospatial context.

Challenge 4. Semantic Inconsistencies

A clear difference between BIM data and GIS data based on the granular property sets is that unlike GIS platforms, BIM environments support objects that are fundamentally rich in metadata. This includes attributes like classification codes, material specs, installation dates, and performance properties. Due to this mismatch there is a clear loss of semantic richness during data exchange. These semantic inconsistencies make it difficult to use BIM data for asset planning, facility management, or long-term operations.

Solution

To retain semantics and maintain consistency, project teams can apply ontology mapping and property standardization. This can further be enhanced by tagging building objects through common classification systems such as UniClass, OmniClass, or MasterFormat. Here, as teams choose to map IFC property sets with GIS attribute tables, it helps in ensuring continuity of attributes. Semantic consistencies can further be enhanced by applying open standards like OGC and buildingSMART frameworks, which play a highly contributive role in aligning semantics across BIM–GIS environments.

Challenge 5. Large Data Volume & Performance Issues

BIM models for large infrastructure projects like airports, stadiums, or public complexes are built on a multitude of polygons and hold large volumes of data. These datasets work well with BIM environments, but most of the time overwhelm GIS applications that are largely built to support broad-scale spatial analysis. In various practical instances this may result in rendering issues, command clashes, system crashes, and performance breakdowns.

Solution

The best approach here is to use data segmentation. It can be done by splitting BIM models into different asset groups segregating them across floors, blocks, and zones. This process may be further strengthened by simplifying high-end drawing details and complex geometries into lightweight formats or proxies that aptly support GIS visualization. With cloud platforms like Esri ArcGIS Online and Autodesk Construction Cloud facilitating distributed access and on-demand visualization without unnecessary traffic load and request clashes, the entire process can get much more fluid and smoother. To further add to the efficiency, tiling formats like 3D Tiles or I3S can boost performance without compromizing spatial definition and accuracy.

Challenge 6. Lack of Unified Industry Standards

There are no universal guidelines or unified rules in the design and construction industry for the integration of BIM and GIS. Because of which different project stakeholders go with varied operational practices and adopt varying file formats, which results in inconsistent workflows across projects. Process inefficiency and affect collaboration can be affected because of this in various ways and this may eventually result in inconsistent and substandard outcomes in the long run.

Solution

To overcome the lack of unified industry standards, project managers involved in BIM-GIS integration projects may opt for open standards developed by buildingSMART, OGC, and industry consortiums. Also, by appointing a Common Data Environment (CDE) specific to the project, naming conventions, metadata requirements, and file exchange protocol can be defined which unifies functional systems and application formats across the line of operation. With the help of API-driven integrations like Esri–Autodesk connectors, REST services, the processes get to see high efficiency workflows with reduced manual intervention.

Challenge 7. Workflow & Skill Gaps

BIM and GIS professionals generally come from different specialization areas and job domains. They work on different tools, technologies, data structures, and process workflows. All these differences and gaps lead to miscommunication, data redundancy, and integration lags. This skill gap may affect the flow of operation at different levels and affect overall project output in various ways.

Solution

The best way to address workflow and skill gaps in BIM-GIS integration solutions is by creating interdisciplinary capabilities through process-oriented targeted training and cross-functional collaboration. By bringing together BIM managers, GIS specialists, and survey engineers in a consolidated process that aims at combining workflows that focus on integrating BIM with GIS systems and tools, a framework can be created that curtails disciplinary gaps.

To Conclude

Data interoperability plays an imperative role in deciding the operative success of BIM-GIS integration. With various implementation and execution level challenges on the list, it is always important for construction project teams to create a compliance framework and process map for seamless integration of BIM platforms and GIS tools through highly detailed geospatial context. This has a far-reaching impact in allowing data to flow freely and resources to function at maximum capacity to produce optimum value turnarounds for the project.
