The construction sector is one of those pivotal sectors that shape the world around us. The sector encompasses multiple disciplines collaborating with each other, exchanging data, maintaining records, and executing on-site tasks.
A construction project is initially a vision in someone’s mind. Bringing that vision into reality entails a lot of effort. And it is not from a single team but requires the involvement of multiple domains, like contractors, architects, engineers, project managers, etc.
Hence, workflows in the construction industry have always been complex and prone to errors. However, no one can afford to make any mistakes in the final outcome as it would cost lives.
Back in the 1950s, the execution of construction projects was sluggy. Every step required multiple revisions which added more layers of complexity to an already intricate process. Hand-drawn 2D sketches were used where slight miscalculations led to huge setbacks. Further, the communication between stakeholders was unorganized, which caused poor decision-making, leading to errors and costly reworks.
Apart from these, several other challenges were there because of the lack of automation and a centralized data point.
Imagine having all the project information in a single spot, and which is accessible to all the stakeholders. Any updates or revisions required, can be done there, and every member involved in the project will remain informed about it.
All this is possible with modern construction methods that take into account the use of Building Information Modeling (BIM). The technology brings a gigantic perspective shift in the construction industry. People would have never considered simulating a building's construction process in 3D animation earlier. Further, the concept of digital twins opens up possibilities to manage a structure throughout its lifecycle.
All such advanced technologies streamline the execution of complex construction projects. Starting from the initial design phase to the execution and management of the structure; BIM transforms the workflows of all these stages making it more efficient, precise, and productive.
Let’s take a tour of the fascinating BIM world, understanding from the basics how a single technology revolutionized the workflow of an entire industry.
BIM is not a software application, but it is a concept based on which there are software applications. It is a concept where essential information of a construction project, including all technical data, design data, cost data, quality, and compliance data, are used to construct a virtual 3D model of the original building.
The 3D models are not just mere representations but are precise and intelligent interpretations of the actual building in all sizes and dimensions. Professionals can use advanced BIM software to fetch minute information about building parts within a go.
Software like Autodesk Revit and Navisworks are currently the standard software used for building such 3D models. These models help all the project stakeholders stay informed about every change a project is undergoing.
It allows owners and contractors to explore various design options for the structure and select the one that best suits and serves the purpose. However, how BIM evolved to be this advanced is a must-know as its evolution had a significant impact on the operations of the Architecture, Engineering, and Construction (AEC) industry.
While the concept of BIM existed in the 1960s as well, it was not widely addressed. At that time, Computer-aided Designs (CAD) were popularly used along with hand-drawn plans and paper blueprints.
Something that was fundamental to the evolution of BIM happened in the 1970s, when two technologies, one being the ‘interactive graphical interface’ and the other being ‘relational databases’ merged. Their combination led to the development of the first successful Building Description Systems (BDS), by Charles Eastman who was a Professor at the Georgia Tech School of Architecture. Soon, however, this platform showed its limitations regarding individual libraries and design choices.
Seeing this, Eastman introduced Graphical Language for Interactive Design (GLIDE) in 1977, which had expanded capabilities upon BDS. This platform was capable of including more building elements, project cost estimations, and structural design elements.
In the decades that followed, construction projects tended to become more complex, limiting the use of GLIDE, which was only applicable to the design stage.
In 1989, a new program was developed called Building Product Model, becoming the first platform to include information on a project’s complete lifecycle. But still, this product lacked the collaborative features required for the AEC industry.
The year was 1993 when Autodesk released the first version of its recognized AutoCAD program. Soon after that, in the year -1995, the Generic Building Model (GBD) was developed which was a multi-phase building information system. It allowed collaboration among stakeholders at multiple points, though not in a centralized manner.
Fast-forward to the 2000s, with the advent of a new millennium, Autodesk acquired Revit, announcing their first specialized 3D modeling software. The following years saw new competitors emerging with advanced software that allowed real-time updates and clash detection.
By this time, 50% of professionals across the globe have adopted the use of BIM. Standards for consistent data exchange were launched by the Industry Foundation Classes (IFC), and leading economies mandated the use of BIM for their public projects.
Recent surveys in 2020, 2023, and 2024 from notable organizations show that 74% of contractors, 67% of engineers, and 70% of architects in the USA have already adopted BIM in their workflow. Further, 39% of participants in the UK BIM survey reported their active implementation of BIM for enhanced project efficiency and productivity.
Today, BIM is an indispensable tool for modern construction projects. The technology drives the industry workflows, with its capabilities extending from the design phase to execution and facility management.
Now, if this question pops up in your mind: how does BIM contribute to facility management? We will discuss it later in this article. As we understand the origin of BIM, let’s now get into different levels of BIM.
BIM has been an ever-evolving technology since it originated. It keeps on embracing technological advances, integrating necessary additions, and evolving as a better and more refined digital construction technology.
As said earlier, modern buildings are becoming smarter and, at the same time, more complex. Hence, BIM as a technology has different levels defining its capabilities in constructing structures digitally. Let’s start with the initial levels, gradually progressing to the advanced levels of BIM.

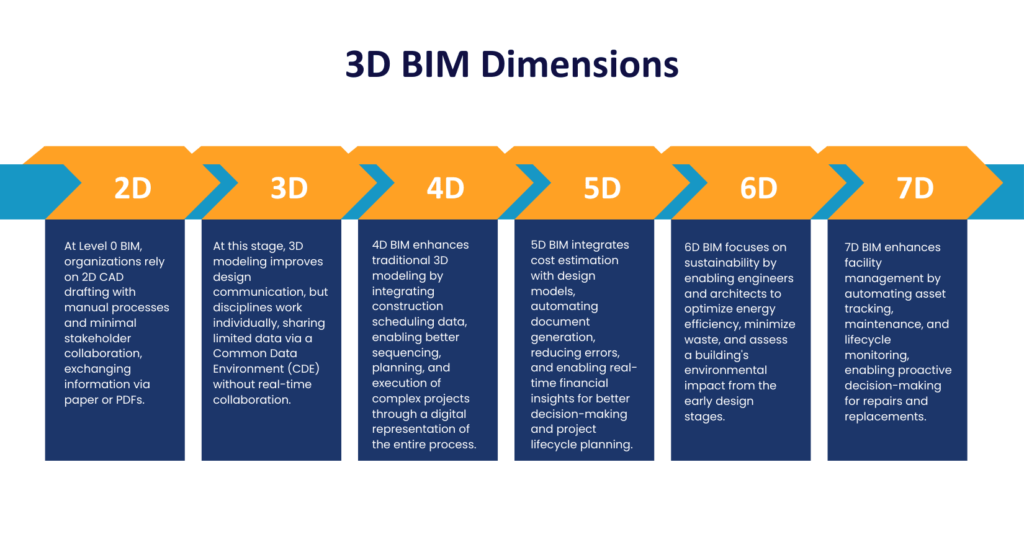

At this stage, organizations use 2D CAD draftings for construction models. The processes are manual, and there is minimal collaboration among stakeholders. This stage is also referred to as Level 0 of the BIM, where information is exchanged through paper or electronic formats like PDFs.
CAD drawings are in 2D and, therefore are limited in the case of complex and large-scale construction projects. The introduction of 3D modeling is necessary to advance the process so the design and construction intent are conveyed better. At this stage, each discipline involved in the project creates its own 3D models. However, these models still do not support real-time collaboration and only limited to exchanging files.
Each discipline manages its model by working individually, sharing, and retrieving data from a Common Data Environment (CDE).
Till now, construction professionals can refer to a highly detailed 3D model which visualizes the actual structure. However BIM is capable of doing more than representing a dynamic 3D model.
4D BIM helps to add construction scheduling BIM data to the model, helping to sequence various construction stages. Complex construction projects are done in stages, and proper sequencing of these stages beforehand is essential for smoother project execution.
An extra dimension of information gets added to the existing 3D model, which is called the scheduling data. In the current times, BIM capabilities extend far beyond only data. With 4D BIM, organizations can offer a digital representation of the entire construction process for better understanding, planning, and project execution.
At this stage, it is 4D BIM + cost estimation. This is the phase where the financial data of a construction project is integrated with design models to get real-time cost estimation, and reduced cost overruns up to 25%. Organizations that are able to deploy advanced BIM capabilities, can reap the benefits of 5D BIM.
Traditional cost estimation methods have always been tiresome. It required intensive manual effort by project teams that was prone to errors and multiple revisions. Documents prepared in the traditional cost estimation approach require updating the document manually as the design progresses.
5D BIM completely shifts this approach with the automated generation of estimation documents. This approach enhances the accuracy of estimation documents and provides the flexibility of modifying them without any manual intervention.
The fifth dimension of BIM allows the conceptualization of the complete project lifecycle beforehand, helping stakeholders make informed decisions.
The sixth dimension of BIM deals with the sustainability analysis of the structure. With 6D BIM implmentation, engineers and architects can measure the impact of a building on its surrounding environment.
Each component or system inside the building can be optimized for efficient energy usage and minimal waste generation or proper disposal of waste.
In the early design stages, 6D BIM helps in making more informed decisions on the installation of components, so there is reduced energy consumption in the long run.
Facility Management is a vital component in the smooth operation of a building post its construction. When we talk about this, it includes tracking and management of every building asset, during its entire lifecycle.
Routine checking of structural components for any repairs or replacements, along with active measuring of various MEP parts and elevators, is now possible for automation through the 7th dimension of BIM.
Organizations that leverage the capabilities of such advanced dimensions of BIM, get notifications on the status of various components, helping them make informed decisions on repairs and replacements.
While these are the various stages of BIM, defining the level of complexity increasing at each level, it is foundational to learn about the software tools used for implementing basic to advanced levels of BIM.
With the magnificent use of BIM across the globe, major organizations are on their way to constantly innovate existing tools for better and smarter functionalities. Let’s look at some of the widely used tools across the globe, starting from the most popular ones.
Revit is a tool widely used by architects, MEP engineers, and structural engineers across the globe. Modern construction projects demand complex and intelligent structures that require execution in stages. Revit, has numerous features for the efficiency of various stakeholders at different stages of the project.
Autodesk acquired this software in 2002, and since then there has been constant innovation, establishing it as a leading BIM software. Currently, Revit can work through all the design and documentation stages, all the way to creating photorealistic visualizations of structures through the use of plug-ins like V-ray and Enscape.
The software also facilitates barrierless coordination among stakeholders, establishing all the project data in a single database. This ensures that all the parties involved in the project remain well-informed about changes and updates. Companies like Pinnacle Infotech efficiently leverage Revit's full potential for excellent digital construction solutions.
Further, Autodesk also makes it certain that the software is interoperable with other Autodesk products, which results in a smoother and more efficient workflow.
Navisworks, commonly described as a 3D model reviewer, is the next software on our list by Autodesk. General contractors, BIM managers, and coordinators widely use this tool for project review and clash detection.
Navisworks, similar to Revit, has the ability to combine 3D models from multiple disciplines to perform innovative tasks like construction sequencing, automated quantity take-offs, and clash detection.
The software has three variations: Freedom, Simulate, and Manage. Each of these solutions is focused on a specific aspect of a construction project. The first variant, Navisworks Freedom, helps in visualizing a 3D model during the design stage. Clients or contractors can witness how the design progresses as they go down the project timeline.
The ‘Manage’ version offers a more comprehensive solution with advanced features like clash detection, 5D construction scheduling, and quantity take-offs. The ‘Simulate’ version has all of the features of the previous version except the clash detection feature. An important thing to note is that Navisworks is currently available on Windows.
Autodesk Construction Cloud is a cloud-based platform that facilitates seamless collaboration and project management. All the information is amalgamated in a cloud server, which is accessible to the required stakeholders.
BIM 360 is a part of this platform, providing a centralized system for all the project data. The major difference between BIM 360 and software like Revit and Navisworks is that BIM 360 is more focused on overall project management and final outcomes, while others help engineers of various disciplines craft data-rich 3D models.
BIM 360 focuses on improving the construction process through efficient document management, informed decision-making, and access to real-time data. The platform also provides specialized features for quality management.
Features like issue tracking and management, custom checklists for quality assurance, and submittal tools help keep track of the complete process in compliance with the standards and project documentation.
The product has now been set for end-of-life process by Autodesk since September 2021 by ending 3-year and 1-year renewals. The end-of-life process is still not completed, but Autodesk suggests users transfer their active project files.
FormIt is also a product of the Autodesk organization and is a commonly used 3D sketching software. The software provides resources to architects and engineers for the initial conceptualization of designs. The product comes with a free and paid version. The free version offers basic features for massing and sketching a 3D model with real-world site information.
On the other hand, its actual use is justified with the paid version, where the detailed sketch can be integrated with Revit for further detailing, collaboration, and analysis. Apart from Revit, it can integrate with other tools like Dynamo for parametric modeling and Insight for analysis and simulations.
A powerful tool from Epic Games, Twinmotion supports real-time rendering and photorealistic visualization of a 3D BIM model. With its help, construction teams can represent the outcome of a project to the client, and that too with multiple options for lighting, textures, and aesthetics.
The tool is capable of generating high-quality renders, animations, and even VR videos for an immersive end-user experience, even before the construction has started. Further, for professionals, it offers a simple user interface that accelerates employee skill acquisition for organizations that are newly acquiring it.
Infrastructure construction works are usually of massive scale, as they include building essential public systems for economic and social activities. ‘Infraworks’, as the name suggests is one of the commonly used software by civil engineers. It is capable of generating detailed 3D models of large infrastructures. It can incorporate data from XML-based encoded 3D models of cities, along with regular CAD and 3D BIM models.
Infraworks facilitates the design and planning of road layouts, drainage systems, and earthworks. Detailed elements such as cross-sections, roadside grading, and roundabouts can be easily incorporated into the design. Specially designed for infrastructure construction, professionals can simulate traffic and flood situations and even run mobility tests to check design feasibility before finalization.
3D models of construction projects these days are becoming highly complex. Modern buildings use multiple materials, advanced sensors, innovative designs, and multi-layered functionalities, which require engineers and architects to craft high-detailed 3D models.
Choosing the right software and tools to create such detailed models is of utmost importance. A construction firm needs to ask some initial questions before they start to look for software applications, as it would help them clearly define their requirements and choose a solution accordingly.
For example, will the software be useful for large-scale projects where there would be high-detailed models? Does the software support integration with other well-known industry tools/plugins? Can the software be used for digital twins and integration with IoT devices?
Before using any software applications to create BIM models, it is important to define your objectives. Once that is final, it is time to consider the factors below while choosing BIM software.
Feature assessment is important in the process of choosing BIM software for construction projects. The features that the software offers should align with the project requirements. When the project-specific requirements are met, the finalization of the design is smoother with reduced reworks.
Organizations that are still budding should always prefer choosing a scalable solution for their daily operations. Along with the increase in the complexity of construction projects, an organization will also grow and expand. Hence, it needs a software solution that is flexible enough to accommodate the expanding scope of work and complexities.
BIM software applications because of the scope of work are already complex. If the workforce is not properly trained and acquainted with the features, there will be no efficiency. Choosing BIM software with a simple user interface will help reduce the time and effort needed for employee skill acquisition. These resources can be utilized later on in other core organization activities.
Considering these factors will help organizations choose the right software for their digital construction solutions.
Until now, we have learned about the evolution of BIM, different maturity levels of BIM process, popular BIM software applications in the market, and choosing the right software. Now, it is time to dive into the world of benefits that BIM offers.

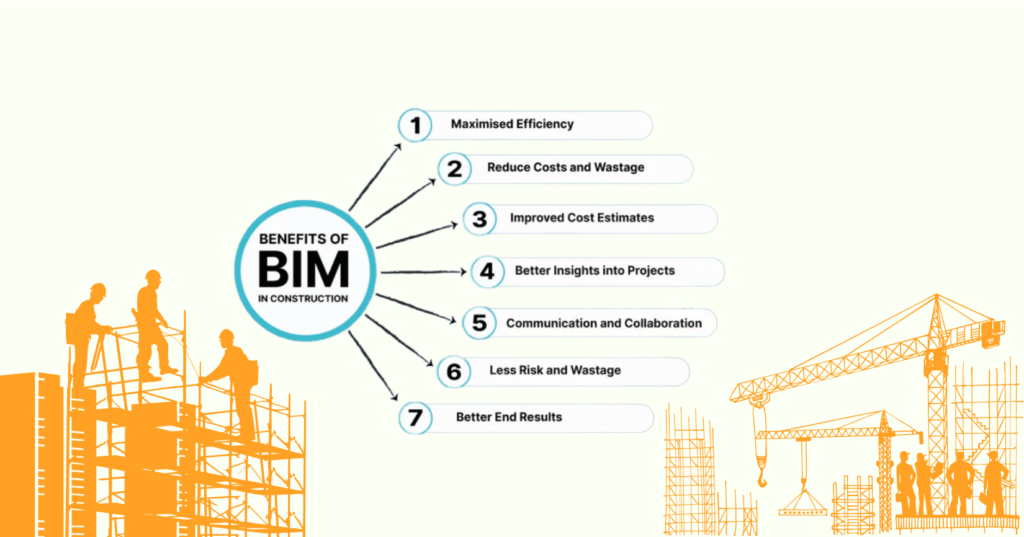

The involvement of multidisciplinary teams in a construction project makes collaboration a very vital part. The absence of seamless collaboration among teams may lead to delays in updates and reworks. However, with the use of BIM, the scenario has completely transformed.
Architects, engineers, contractors, and project managers can refer to a single point for all project requirements. Advanced BIM software applications, like Revit, are capable of integrating separate 3D models from multiple teams into one super-detailed model.
This model serves as the central communication point, where project stakeholders can inform and update any minor or major changes.
Design accuracy is an inevitable element in the process of construction. While the use of 2D CAD drawings represented the design intent, it was not hundred percent accurate. The drawings had minor to major discrepancies, which sometimes were not identified during the design process. Hence, during the construction process, there were reworks, which caused budget overruns, errors at the construction site, and delays in project delivery.
BIM helped the sector leverage the huge benefits of detailed 3D models in terms of design accuracy. Advanced BIM software applications help create data-rich 3D models that encompass the sizes, dimensions, and materials of each building component.
Whether those are structural elements or mechanical, electrical, and plumbing (MEP) components, BIM models showcase these systems in multiple layers.
And since, different systems are integrated into a single model with different layers, clash detection becomes possible. Clashes between the MEP components or with structural components are identified and resolved in the design stage. This facilitates robust and precise construction of structures.
All of the facilities that BIM processes offer contribute to reduced project costs and execution time. Modern construction projects are complex and require faster execution.
BIM allows early detection of design discrepancies, construction sequencing, automated project cost estimations, and more. As a result, using BIM helps companies cut costs and provide faster project completions.
Sustainability is a demanding aspect in every sector in the current times. The construction sector is no exception, and the need for sustainable construction is growing. The process and the final building should have a minimal impact on its surroundings.
The sixth dimension of BIM allows the integration of an energy model into the existing 3D model. This model helps analyze the energy consumption and emission of carbon.
Further, BIM implementation helps analyze the design for the use of sustainable materials during the construction process.
BIM is an ever-evolving technology, which kept on progressing since its inception. Its evolution will continue in the coming years with the integration of new technologies like artificial intelligence (AI), virtual reality (VR), etc.

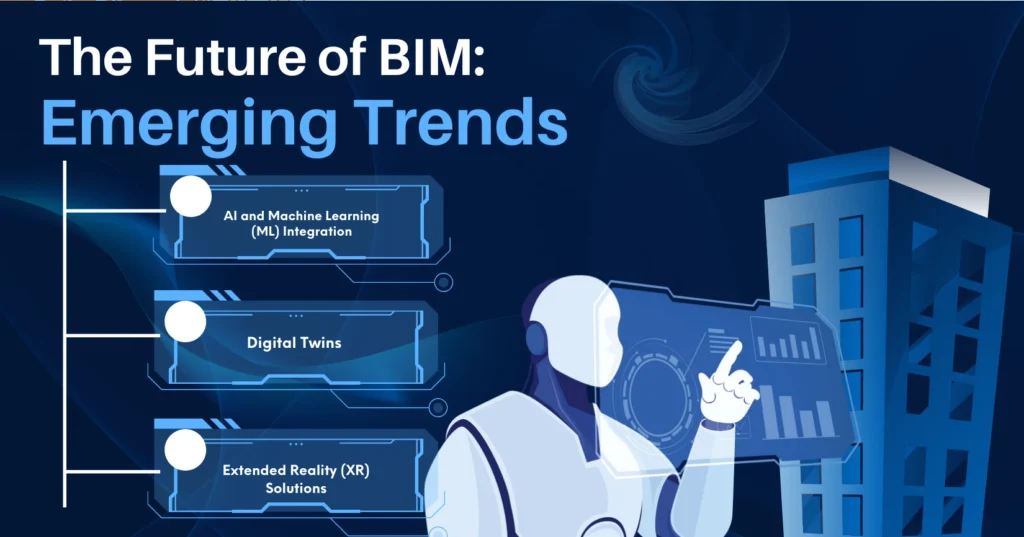

Let’s dive into the future integrations that will make BIM a more advanced, intelligent, and reliable technology shaping the future of the construction industry.
While BIM software applications already demonstrate advanced capabilities, the integration of AI and ML further gives professionals an edge.
These technologies are becoming an integral part of modern construction workflows. Construction projects encompass massive datasets that can be used to predict delays, cost overruns, etc. However, manual analysis of this data would not only disrupt the process but also might provide false analysis.
AI-powered tools handle this job seamlessly, identifying patterns to predict any risks, suggest optimizations, and automate redundant processes. Along with the ultra-efficient AI tools come machine learning algorithms. These algorithms streamline workflows by autonomous identification of clashes and suggest solutions.
The key global players in the digital construction sector, like Pinnacle Infotech, can help companies leverage the potential of these technologies to magnify their workflow efficiency.
Digital Twin is a rapidly evolving technology with a projected global market size of USD 110.1 billion by 2028 up from USD 10.1 billion as recorded in 2023, says a report from Markets and Markets.
The technology focuses on the management aspect of construction projects and is set to redefine how projects are managed with the integration of virtual replicas.
As the name suggests, it is all about creating a virtual twin of the actual structure, which is not close to but an exact copy in all physical and functional characteristics. The replica is connected to the actual structure through IoT (Internet of Things) sensors. These sensors collect real-time data on the various components of the structure, which helps facility managers make informed decisions.
From pressure, temperature, and vibrations on various MEP components to lifts, elevators, and structural components, digital twins, when coupled with AI, provide predictive analysis for maintenance and renovations.
Visualization of the construction process is a key indicator that we have advanced a lot. Traditionally, there were no means of visualizing a construction project beforehand. However, with the integration of XR, which is a mix of augmented reality (AR), virtual reality (VR), and mixed reality (MR), stakeholders can now visualize and interact in immersive environments.
The application of XR might seem futuristic, but its current market size surprisingly reveals the technology is already being widely adopted.
According to a forecast report for the period of 2024-2032 by Credence Research, the current XR market size is USD 5,213.94 million, which is expected to rise to USD 38.846.88 million by 2024.
Organizations across the globe are adopting XR, and professionals are actively discussing the transformation it is driving forward. The ability to visualize projects gives firms an executional edge, with faster design approvals, early clash detection, and better construction planning.
BIM has been an integral part of the construction industry's workflows for a sustained period. As the technology evolves further with the integration of automated and predictive technologies, BIM software applications will offer more advanced features. Using BIM gives an operation and executional edge to organizations looking to acquire world-class projects.
Additionally, the adoption of BIM is surging at an unprecedented rate, with countries of the Middle-eastern region, Europe, and North America mandating the use of BIM, in public and private projects. The Building and Construction Authority (BCA) in Singapore published a recent report mentioning a strong demand for construction in 2025, with a projected contract value ranging between $35 billion and $39 billion.
Altogether, the use of BIM will be a mandate in the construction sector to boost efficiency, improve collaboration, and induce certainty in project execution.
