BIM Execution Plan (BXP/BEP) Guide: What, Why, When, How

Introduction

BIM Execution Plans (BXP or BEP) are the backbone of the Building Information Modeling (BIM) process. These plans outline the procedures, responsibilities, and standards for collaboration and project success. It is typically the plan prepared to understand how Modeling will be executed. It ensures that accurate information is accessible at every touch point at every moment.

A BIM Execution Plan reduces errors by setting expectations and ensures that information flows smoothly so that all project participants are aligned and on the same page regarding the BIM project under consideration.

In this guide, we will dig deeper into what a good BIM execution plan is, its components, why it is needed, how it keeps project team members on track, and how it can be developed. This guide will basically equip you with the knowledge and expertise necessary to help you master BXP and deliver exceptional project results.

What is a BIM Project Execution Plan (BXP/BEP)?

A BIM Execution Plan (BEP/BXP) is a comprehensive document developed at the start of a project to outline how Building Information Modeling will be applied to meet project-specific goals.

It defines the roles, protocols, and technologies to be used across the project phases to ensure BIM is implemented consistently.

A good BIM Execution Plan includes:

• Project Information and Goals: This is the most important segment of a BEP. In this segment, details on the project, e.g., project scope, objective, project milestones, BIM requirements, design coordination, clash detection, and asset management are defined.
• Roles and Responsibilities: This portion provides information on the stakeholders, including the project manager, BIM coordinators, and subcontractors, and their roles.
• Workflows and Processes: This part of the BIM execution plan details what workflows and processes will be followed, and how data exchange, collaboration, and quality management will be done.
• BIM Uses and Deliverables: Project execution plans are incomplete without deliverables. It must have information on the BIM deliverables and how BIM will be used throughout the project.
• BIM Tools and Software: An execution plan should have details about the tools and software to be used, as well as information on the software version, licenses, and compatibility with other tools.
• Standards and Modeling Guidelines: Construction industry standards, project-specific requirements, and file naming conventions must be there in every project execution plan for successful project execution.
• Quality Control and Assurance Protocols: Data accuracy, clash resolution, and model integrity checks.
• Training and Support: BIM Training and support plan for team members, software training, data management, and technical support.
• Data Management and Collaboration Tools: A BEP for any construction project must have insights into CDE (Common Data Environment) and other collaboration tools, as well as a model exchange schedule.

The BIM Execution Plan is not a static document - it evolves with the project as new challenges and objectives arise as it progresses through different stages.

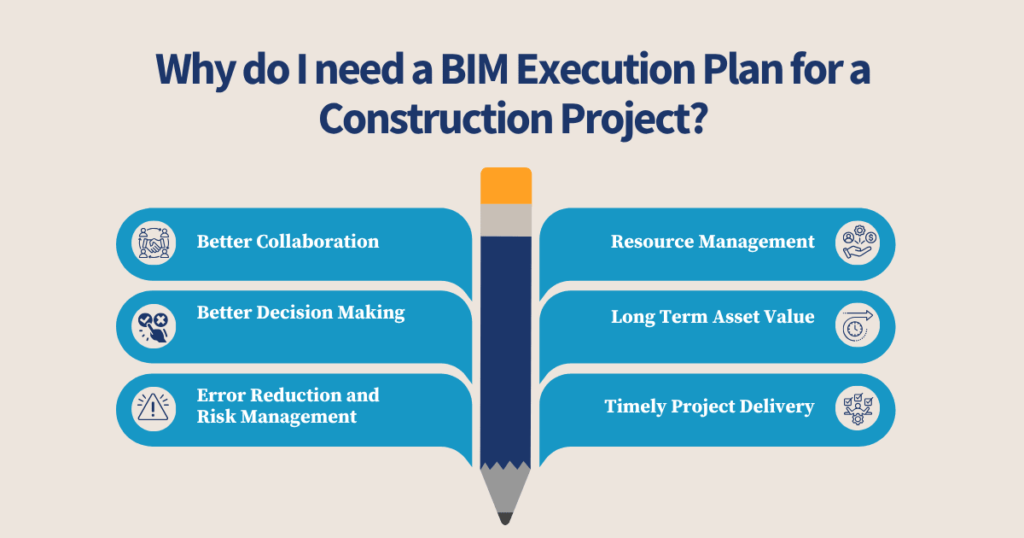

Why do I need a BIM Execution Plan for a Construction Project?

A BIM Execution Plan can be attributed as a rule book of construction with BIM as it provides a framework to avoid miscommunication, mismanagement, and inefficiencies. But if you are wondering that why should you use a project execution plan for your construction projects - here’s why:

• Better Collaboration: By defining communication channels and roles, the BXP creates a more connected project environment where everyone is aligned.
• Better Decision Making: A good BXP ensures information is available at each stage so data-driven decisions can be made.
• Error Reduction and Risk Management: With specific standards and quality checks in place BXP reduces errors, reduces rework and mitigates risks associated with data inconsistencies.
• Resource Management: BXP defines the technology and resources so teams can allocate them correctly and avoid duplication of work.
• Long Term Asset Value: By managing data consistently and accurately BXP adds to the long term value of the asset, particularly for facility management and project lifecycle planning.
• Timely Project Delivery: All stakeholders get benefit from BXP implementation as the stakeholders have clear understanding of their roles and responsibilities and project scope. As a result, the project is likely to be completed within time and budget.

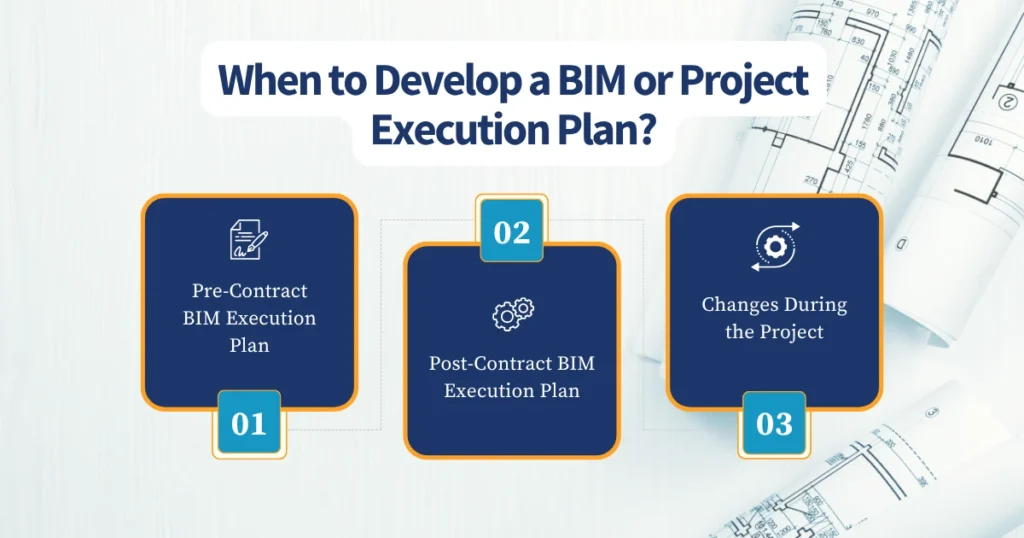

When to Develop a BIM or Project Execution Plan?

The timing of BIM execution planning can make all the difference to the project’s efficiency and data flow.

Usually, a BXP has two phases:

Pre-Contract BIM Execution Plan

It is designed during the proposal or early project planning stage and describes the high-level project objectives and strategies for BIM. It provides a baseline for defining the project deliverables and aligns project team members' expectations perfectly.

Post-Contract BIM Execution Plan

The post-contract BXP contains more detailed procedures, standards and specific requirements for the selected contractors and finalized project goals, whereby it is refined after the contract is awarded.

Changes During the Project

The project BIM execution plan should not be rigid. Rather, it should be flexible allowing updating whenever required. Change in the project or change in the technology or even change in the scope of work might require updating of the BXP to keep its relevance.

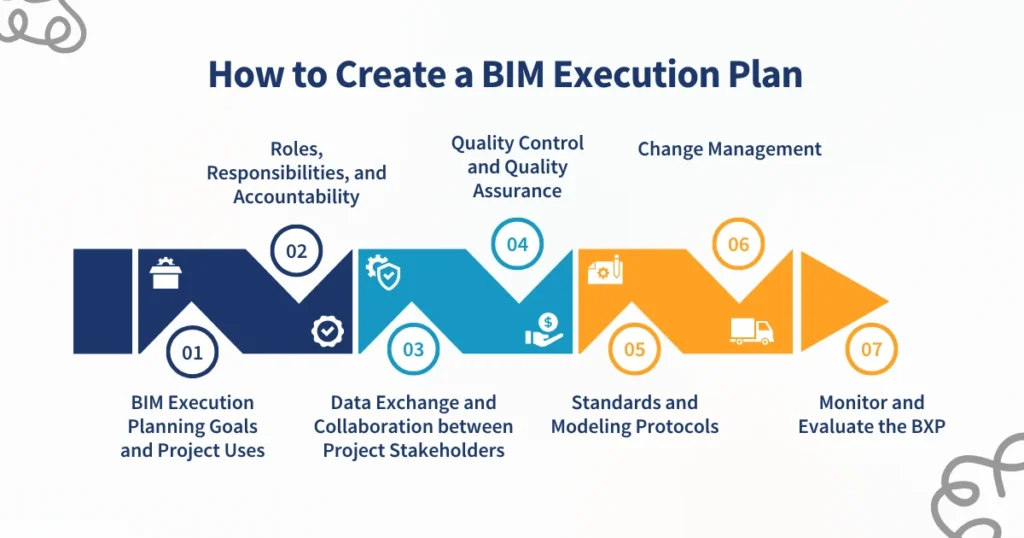

How to Create a BIM Execution Plan

A BIM Execution Plan is very clear and aligned with goals of the project and the broader industry standards

Following is a step-by-step guide to creating a BXP:

BIM Execution Planning Goals and Project Uses:

The very first question that anyone must keep in mind - "What does the project want out of BIM?" Start gathering information on the project schedule, scope of work, and budget. Further, clarify the primary goals, such as clash detection and quantity takeoff, and what are extended goals, such as facility management post-construction.

Map these goals against BIM uses, and how BIM will support design, coordination, construction, and handover phases.

Roles, Responsibilities, and Accountability:

Defining roles and responsibilities is key to a BIM project. Assign BIM-specific roles such as BIM Project Manager, BIM Coordinator, and other key team members. Outline General responsibilities for each stakeholder so everybody is clear and accountable throughout the project. Task ownership should be assigned for each phase of the project, clearly mentioning who is responsible for what deliverables.

Accountability frameworks, reporting structures, and escalation processes should be documented so the issues can be addressed quickly and the project can go on.

Data Exchange and Collaboration between Project Stakeholders

Collaboration works if all stakeholders have access to the same project data. Choose a Common Data Environment (CDE) to store and share data thereby ensuring information availability to everyone.

Define data exchange protocols, file formats, exchange frequency, and software interoperability. Create the schedule for model reviews and version updates whereby everyone is working on the same data reducing confusion and error.

Quality Control and Quality Assurance:

Quality control is key to maintaining BIM model integrity. Check for model accuracy, completeness and compliance with project standards at every stage of the project. Do regular quality reviews including automated clash detection to identify and resolve issues early.

Document and address non-conformances or data inconsistencies so they don’t disrupt the project and the project standards.

Standards and Modeling Protocols:

More focus should be put on the BIM standards to be finalized and followed in this project. The BIM Execution Plan may merge certain standards, including ISO 19650, for uniformity; this would then be modified to suit project requirements.

The Level of Detailing (LOD) for project stages should also be defined. Ensure a consistent naming convention for files, families, and assets throughout the project.

Change Management:

Changes are inevitable in every project, and the BEP must provide for that. Define a process whereby any change to the BIM model is documented and approved. How will changes in design, technology, or stakeholder requirements be absorbed into the BEP?

Notify everyone about the changes so that data gets protected and the project keeps in sync throughout the process. This will eliminate the schedule for miscommunication, so all can adjust accordingly.

Monitor and Evaluate the BXP:

Schedule regular reviews of the BXP’s effectiveness by evaluating Key Performance Indicators (KPIs) to identify areas of improvement. Make adjustments as needed to optimize project workflows.

Document lessons learned to improve future BXPs and enhance organizational knowledge.

Best Practices for Successful BEP Implementation

To implement a BIM Execution Plan (BEP) successfully you need to plan and follow best practices. Here’s how:

• Clear Communication: Communication among project team members about BEP standards and protocols needs to be frequent and transparent. This will align everyone, reduce misunderstandings and make sure everyone is on the same page through the project lifecycle.
• Training and Support: Training on BIM tools, standards and collaboration protocols will empower team members to use the BEP. Continuous support will make sure stakeholders are ready for new tools and updates.
• Technology Integration: Choose technologies that are interoperable and fit for purpose. This will ensure data exchange is smooth, reduce compatibility issues and support collaboration among different teams.
• Regular BEP Updates: BEP should be a living document, updated as the project progresses, challenges and technology evolves. Regular updates will keep the plan relevant and guide project success.
• Data Security: Strong data security protocols are important to protect project information especially in shared digital spaces. Implement access controls, encryption and secure file sharing will protect project data.

Challenges in BIM Execution Plan Implementation and How to Address Them

While BXPs are important for BIM implementation, they are not free of challenges. Here are some of the common ones:

• Resistance to Change: Organizations new to BIM will resist change. Regular training and highlighting the benefits to them can help overcome this situation.
• Interoperability: Different stakeholders will use different BIM software. To facilitate data exchange, choose a CDE that supports open file formats.
• Maintaining Data Accuracy: Another challenge that most of the teams face while preparing BEP is maintaining accuracy because the data comes from multiple sources. Regular audit, model checks and validation tools can come handy for maintaining data integrity.
• Cost and Time Constraints: Developing a BXP can be resource-intensive and time consuming. Therefore, it is important to plan early and develop it before the development of the contract to optimize both time and cost.
• Adapting to Changing Construction Project Requirements: Construction projects are bound to change and evolve as they progresses through various stages. This makes it difficult to adhere to the initial BXP. To mitigate this, stakeholders should regularly revise the BXP can ensure it aligns with the changes.

The Future of Project Execution Plans in the Construction Industry

With the continuous advancement in BIM technology, the role of BIM Execution Plans will expand. Future trends include:

• AI for Predictive Analysis: AI will analyze BXP data to predict project risks so you can make decisions in advance to optimize timelines, costs and resource allocation.
• Expanded Use in Facility Management: As projects move from construction to operation, BXPs will become increasingly valuable in managing facilities throughout their life cycle.
• Enhanced Collaboration Tools: Emerging digital collaboration tools will make data sharing even easier so you can work better across functions and get better project outcomes.
• Global BXP Standardization: Standardising BXP frameworks worldwide will mean consistency across projects, easier international collaboration and overall efficiency.
• Sustainability Metrics Integration: BIM Execution Plans will likely incorporate sustainability goals, using BIM data to optimize energy efficiency and resource use.

Conclusion

A proper BIM Execution Plan ensures that project teams are aligned, that data generated is accurate, and that project objectives are met. By providing standards, defining roles, and specifying collaborative workflows, a BXP can greatly enhance project efficiency and quality. Implementing a BXP will not only optimize the existing construction project but also ensure the success of the organization in the future by fostering a culture of data fidelity, communication, and continuous improvement of BIM practices.

Our experts have been making flawless execution plans for clients worldwide. In identifying bottlenecks, we review the existing processes, and we implement BIM methodologies to resolve them. If you would like to have a BIM execution plan for your next project, reach out to our experts.
