August 29, 2024
We spend most of our lives indoors these days, so a comfortable environment is key. This is where HVAC comes in. HVAC stands for Heating, Ventilation, and Air Conditioning. It's a fundamental part of modern buildings so we can work, live, and relax in the best conditions, regardless of the weather conditions outside.
Understanding HVAC is crucial. These systems are not just about keeping spaces warm or cool; they're about energy efficiency, indoor air quality, and overall building performance.
Let's get into the world of HVAC and explore how they work, the components and the latest developments.
At its simplest, an HVAC system is designed to control temperature, humidity, and the quality of air in a building.
But how does it do that? Let's break it down:
The main function of an HVAC system is to keep the temperature comfortable. This is done through:
Once the air is heated or cooled, it needs to be distributed throughout the building. This is where the air handler comes in. It has a blower that pushes the conditioned air through a network of air ducts to the various rooms.
HVAC systems don't just recirculate indoor air; they also bring in fresh outdoor air. This is important for good indoor air, removing stale air, odors, and pollutants.
Many modern HVAC with advanced ventilation systems also control humidity levels, which is important for comfort and preventing mold growth.
An Air cleaner in an HVAC system traps dust, pollen, pet dander, and other particles, reducing allergens and improving the quality of air.
Some advanced HVAC systems include additional air cleaning technologies like UV lights or electrostatic filters to remove even smaller particles and kill bacteria and viruses.
Now that we've covered the basics, let's get into the components that make up an HVAC system.
Not all buildings have the same type of HVAC system. It depends on the size of the building, climate, and specific needs.
Here are a few types:

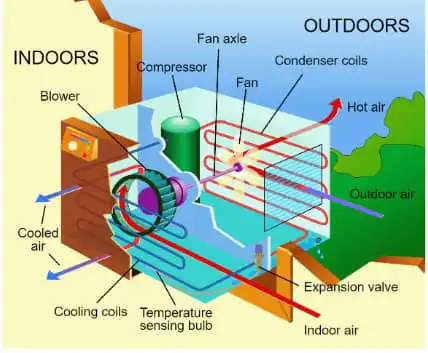

Split System: This is the most common in residential applications. It consists of an outdoor unit (condenser and compressor) and an indoor unit (evaporator and air handler). It can be configured as a furnace and air conditioner or a heat pump and air handler.
Packaged System: In a packaged HVAC, all components are in one unit. This system is usually installed on the roof or next to the building (on outer walls). This type of HVAC and air conditioning system is common in small commercial places or homes with limited indoor space.
Ductless Mini-Split System: No ductwork is required in a ductless mini-split system. This system is useful for additions, retrofits, or buildings where ducts can't be installed. The outdoor unit, which is a compressor, is connected to the indoor air handler. This system then throws cool or warm air depending on the need.
Variable Refrigerant Flow (VRF) System: This system is popular in large commercial buildings. VRFs can heat and cool different zones at the same time, and they are highly efficient and flexible.
Geothermal Systems: Geothermal systems are comparatively new kinds of HVACs that use the Earth's constant temperature to heat and cool the building. They are highly efficient but have a higher upfront cost.
HVAC system efficiency has become more important than ever because of increasing energy costs and environmental concerns. Certain aspects determine the efficiency of HVACs. Here are some of the key metrics and features that one should look at:
SEER determines the efficiency of air conditioners and heat pumps in cooling and heating, respectively. When looking for options, you should select systems with higher SEER because a higher SEER means the system is more efficient.
AFUE has been used to rate the level of heat output of furnaces and boilers. Systems rated higher in AFUE convert more of the fuel to heat and are cheaper to operate.
Search for this certification so that the equipment you buy will be energy efficient and in compliance with the U.S. Environmental Protection Agency and the Department of Energy. The more energy stars the equipment has, the higher its efficiency level. For instance, a 15 SEER Energy Star-rated system is more efficient than a 13 SEER system.
A variable-speed motor enables the HVAC to differ in its speed of operation. By controlling the motor speed relative to the system's cooling or heating requirement, the HVAC can operate more adequately and silently. This means less heat and energy use and improved relative humidity.
Contemporary HVAC systems are fitted with smart thermostats that can know your rhythm and adapt the temperatures to your taste, as well as provide the best bet for the house. These thermostats can also be set to go high or low depending on the congestion in a room or time or the outside temperatures for more efficiency.
Since ducts require to be extended to every part of the building, they can impede other systems such as the plumbing lines and or the electrical lines. This conflict with these trades can be time consuming and costly and open up additional troubles further down the line. It is, therefore, necessary to incorporate HVAC in the building model.
Using BIM eliminates several problems which may occur during the design or installation of an HVAC system. Here's how BIM helps:
BIM allows you to find clashes between HVAC components and other building elements early in the design phase. This saves you from costly and time-consuming changes on-site. It also ensures smoother installations and keeps projects on time and on budget.
Architects, engineers, and air conditioning contractors can collaborate on the same model and find and resolve conflicts early in the design process. Working on one integrated model will be much easier for all project participants. Since all design problems that should be considered during the project will be spotted at the initial stage, the risk of making a large number of mistakes will be decreased.
BIM models show how the HVAC works so you can maintain and operate it better. By linking BIM data to building automation systems, you can monitor and control the HVAC in real time for optimal performance and comfort. This means predictive maintenance, less downtime, and longer equipment life.
BIM allows you to simulate building performance so you can optimize the HVAC system for energy efficiency. Through these simulations, you can analyze different scenarios and choose the most energy-efficient solution, reducing the building's carbon footprint and operational costs.
Heating and cooling load calculations are critical to choosing the right size for the HVAC system. BIM helps with these calculations by providing exact data on building geometry, materials, and occupancy so the HVAC system is not under or oversized. This means better system performance and efficiency.
Using 3D models in BIM means clients, contractors and stakeholders can better visualise the HVAC system layout. This understanding of the system design and installation requirements means better decision making and reduces miscommunication during construction.
BIM data goes beyond the construction phase by providing information on ongoing maintenance and facility management. The detailed information in the BIM model can be used to create schedules, track system performance, and plan for future upgrades so the HVAC system remains efficient and reliable for its entire life.
BIM ensures optimal HVAC performance throughout the lifecycle. Here's how it can help with commissioning, maintenance, and retrofitting:
BIM can spot problems before they become big ones. By simulating system performance and virtual commissioning, engineers can ensure the HVAC system meets design intent and standards.
The 3D models generated with BIM provide insights into system performance and enable you to do proactive maintenance. By linking BIM to building automation systems, facility managers can monitor and control HVAC systems in real-time for optimal performance and comfort.
With the help of BIM, engineers can create a digital twin of the existing building. And with this digital twin, they can check for system upgrades, optimize ductwork, and minimize disruption to building occupants.
The HVAC industry is transforming fast with time. With new technologies, these systems are promising better efficiency, comfort, and control to the owners. The following are some HVAC equipment trends: Advanced air purification in the HVAC heating and cooling systems.
Air quality has become a major factor in the design process of HVAC systems, and the installation of advanced air purification technologies into HVAC systems can clean warm or cool air from pollutants, allergens, and pathogens.
The result of these systems is not only to benefit the indoor air quality but also the health and well-being of occupants. For this reason, it is of great value in hospitals, schools, and office buildings.
The HVAC industry is tending toward using refrigerants that have lower GWP as part of the sustainable agenda in a global context. Less environmentally hazardous alternatives are gradually out-phasing traditional refrigerants to reduce the carbon footprint of the industry. A significant step toward achieving energy efficiencies and being environmentally friendly in line with global efforts to fight climate change is the use of sustainable refrigerants in HVAC systems.
IoT-based Smart HVAC Systems: Well, they are definitely making lives easier. They are changing the way we monitor, control, and maintain them. Smart HVAC provides real-time data about the heating and air conditioning system and thus helps to have better control over the indoor temperature, humidity, and air quality.
They also provide for predictive maintenance, so as to take care of the problem before it becomes an expensive repair or system failure. More efficient use of energy and more comfort for the user.
Zoned HVAC systems are also getting needed recognition. They are gaining much attention, especially with the possibility of heating and cooling certain segments or zones of a building. It merely means that various rooms or sections of a building can be operated separately for optimum comfort and effectiveness.
Such HVAC systems work by just heating or cooling the occupied space; therefore, zoned systems save energy and costs on both in homes and businesses.
Not every HVAC can collect heat lost by an air exchanger(s). HRVs are meant to be more efficient at face value since they transfer heat from the outgoing exhaust to the incoming fresh air.
This not only reduces the load on the heating system but also requirements for energy and cost hence. HEPVs are fine for climates where heating is predominant during the year because they enhance indoor air without hampering efficiency.
With the advancements in the efficiency of solar power, it is now being used to power HVAC systems either partially or fully. Thus, solar-powered HVAC means an effective solution for the problem of energy: they reduce the costs of energy used for heating and cooling needs and the environmental load that comes with them. At the same time, while the prices for solar panels are going down and their quality is improved, solar air conditioning will develop and become an addition to the energy-efficient architecture.
IoT sensors and devices are changing the way we monitor and control our HVAC systems. We can collect and analyze real-time data to optimize performance and reduce energy consumption and comfort.
AI and ML algorithms are used to analyze HVAC system performance data, find trends, and make data-driven predictions. By linking AI and ML to BIM, we can optimize system design, efficiency, and maintenance costs.
Digital twins - virtual copies of physical assets - are appearing in the HVAC world. We can create digital twins of our HVAC systems to simulate performance, design and find problems before they happen in the real world.
Choosing the right HVAC for a building is definitely a critical decision where many considerations come into play in order to attain the best performance, comfort, and cost. Consider the following factors in selecting an HVAC:
This very much depends on the local climate, which would then determine the kind of HVAC that will serve better. In places where the climate is not very extreme, an electric heat pump would do, as it space heats and cools with sufficient efficiency. However, extreme climates at either end, hot or cold, would require much more robust systems like furnaces or big ACs for maintaining the indoor conditions comfortable throughout the year.
The size of a building, its total square footage, the number of floors it has, and the layout of the rooms are major determining factors for the HVAC. The larger the building and the more floors it has, the more powerful the systems have to be, or multiple units have to be installed to ensure proper temperature distribution. And the room layout, corridors, open spaces—all of that relates to optimizing air-conditioning and keeping the building comfortable throughout.
The level of insulation within the building will also have some impact on the heating and air conditioning. If the building is well-insulated, it can seal off air from the outside during winter months when it is cold and during summer months when it becomes hot. Less stress on the HVAC makes it possible for a smaller yet more efficient system to be picked that satisfies the building's requirements but does not use up too much energy.
Poorly insulated building: The need might be to have a more powerful HVAC system to compensate for heat loss/gain. An HVAC technician should be in a position to help people find a good insulated system.
In retrofit projects, the presence of existing ducting or the lack thereof will impact the system to be selected. Another factor is the condition of the existing structures and their impact on the installation costs and the project's complexity.
Naturally, budget is a significant issue. There is the up-front cost of obtaining the HVAC system; there is also the cost, incurred day by day, of operating it. The initial outlay for obtaining a better energy-saving system is even more; in the long term, however, it pays for itself. While choosing the cheaper system, one will be able to save tons of money initially, but later on, the system will pull you back with either low efficiency or constant maintenance needs.
The choice is more crucial for those who look at the question of choosing HVAC units from the point of view of efficiency. Higher-level systems including the latest technologies, such as variable speed compressors or programmable thermostats, are far more efficient. Moreover, multiple-cloned heating and air conditioning systems promote decreased energy use and cost of utilities, CO2 emissions, and are in line with sustainability goals.
Filtration and purification must be considered from the very outset if the indoor environment is of critical importance. A number of buildings will require HVAC with high-level technology filtration or air purification systems that provide a way of air cleaning through the removal of allergens, pollutants, and pathogens.
Sophisticated filters or even air purification systems for HVAC systems might be required by some buildings to clean the air from allergens, pollutants, and pathogens. This is particularly true where climate conditions and air quality - like in hospitals, schools, or industries - directly influence health and safety.
These are some of the main factors that would normally influence an HVAC system, and each must be weighed carefully to ensure whatever system is chosen addresses the needs of the building in every way now and for the future.
Regular maintenance is crucial for keeping HVAC systems running efficiently and extending their lifespan. Here are some key maintenance tasks:
Air filters play a very important role in trapping dust, pollen, and other astringent particles within your HVAC system. For your air conditioner and heater and all other components of an HVAC system to be efficient, filters ought to be changed every 1-3 months. Frequency depends on use and if one has pets at home or if there is a lot of pollen in the air.
The evaporator coil within the unit and the condenser coil outside must be cleaned in a timely manner to allow heat exchange to occur. Because such a coil is situated in the rooms, dust and dirt will continually collect on it, making the system less efficient. Cleaning these coils on an annual basis is advised so that your HVAC system performs optimally.
Low refrigerant levels often result from leakage that reduces the system's performance. If not corrected, this leakage can also damage the system. Therefore, it is important to keep an eye on your air conditioner. This includes proper and frequent monitoring of the refrigerant and ensuring that the conditioning chamber is kept in its appropriate state.
Proper lubrication reduces the stress on these components, extends their life, and prevents unexpected breakdowns. Add this to your maintenance list, and you'll save yourself from costly repairs later on.
By performing these tasks regularly, you can keep your HVAC system running efficiently, reduce energy consumption, and extend the life of your equipment.
Leaky ducts can significantly reduce system efficiency. You should inspect the ductwork from time to time.
Loose connections can cause system failure and pose safety risks. When troubleshooting HVAC issues, some common problems to look out for include:
- Uneven Heating or Cooling: This could indicate duct problems or an improperly sized system.
- Strange Noises: Rattling, squealing, or banging noises often indicate mechanical issues.
- Short Cycling: If the system turns on and off frequently, it might be oversized or have a faulty thermostat.
- High Energy Bills: Sudden increases in energy consumption can indicate reduced efficiency due to maintenance issues.
Heating, ventilation, and air conditioning systems offer comfort together with a habitable, comfortable climate within a structure. The benefits that people derive from HVAC as part of the building systems include better quality air, energy savings, and efficiency when undertaking the service. Technology is still improving gradually, and because of these innovations, HVAC component systems will be cheaper as well as more efficient in the future.
