What is Electrical Load Calculation? How It Influences Building Design?

Summary: Electrical load calculation is the process of calculating the total power demand that a building facility requires at peak conditions. Modern buildings need a detailed load calculation to be efficient, safe, code-compliant, and scalable toward future needs. This applies to all types and sizes of buildings and also drives how project teams plan and execute design concepts and functional coordination.

Electrical systems keep the modern buildings up and going in every sense. Whether it is for commercial, residential, industrial, or institutional buildings, everything needs electricity to be functional. Be it HVAC systems, power units, safety equipment, lighting systems, or elevators, and all modern tools work on electricity. But before project teams and building owners decide on implementation or execution lines - whether laying wires or selecting a transformer - they must first do an electrical load calculation.

Designers should not mistake electrical load calculation for a technical formality or optional practice in building design. Rather, it is a part of the foundational planning. It directly influences the building's system efficiency, utility, safety, cost, and scalability. Besides, it is highly important for establishing process compliance and coordination between different functions and components of the building. Alternatively, if a project team is unable to conduct proper load calculations, it may result in system failures, power outages, equipment oversizing, cost escalations, and even major safety hazards.

This article explores the role of electrical load calculation in influencing the concepts and driving the workflows of building design.

What is Electrical Load Calculation?

Electrical load calculation estimates how much power a facility needs at its peak. It covers everything from lights and air conditioning to kitchen appliances and heavy power equipment. Calculating the electrical load is crucial because it ensures safety and prevents teams from hazardously undersizing or wastefully over-applying panels and wiring. Further, engineers rely on load calculations to determine the requirements for system upgrades, typically in industrial settings.

The National Electrical Code sets the baseline standards that licensed electricians and engineers must follow when they calculate electrical load for any project. Skipping or rushing this step does not save time. It creates problems that are far more expensive to fix after construction wraps up.

Service Panel Sizes for Different Requirements

Every built facility has a different need for electric supply and consumption. Different system frameworks require different service panel sizes to support varying intensities and frequencies of electrical loads. Also, specific circuits are required for different items operating at different capacities and in different building systems. This is primarily because of the type of equipment or process these circuits have to cater to. Besides, this also depends on the usage category of the items.

In the case of modern homes, a 60-amp fuse box is inadequate. The NEC (National Electrical Code) requires a minimum 100-amp service panel. This is mostly because heavy-draw items like ranges and dryers require specific circuits. A 100-amp system can support up to 19,200 watts. Large homes with high demand may require a 400-amp service. Further to this, homes over 2,000 square feet typically need a 200-amp service. For a 4,000+ square feet large luxury properties, fully electrified homes, multiple EV chargers, or heavy workshop equipment, a 400-Amp service is a minimum requirement. Engineers and electricians should ensure that electrical capacity does not exceed 80% of the load.

If you are not sure about electrical capacity, you must consult a professional. An electrical load analysis and compliance measures will give you a proper direction to install or upgrade your service panels. Here, a licensed electrician ensures compliance with local regulations. Also, it's a wise choice to consult professionals for safety when adding circuits. Taking all these actions, you enhance your chances of keeping it right by selecting the service panels to avoid any supply imbalances, equipment downtimes, and safety threats.

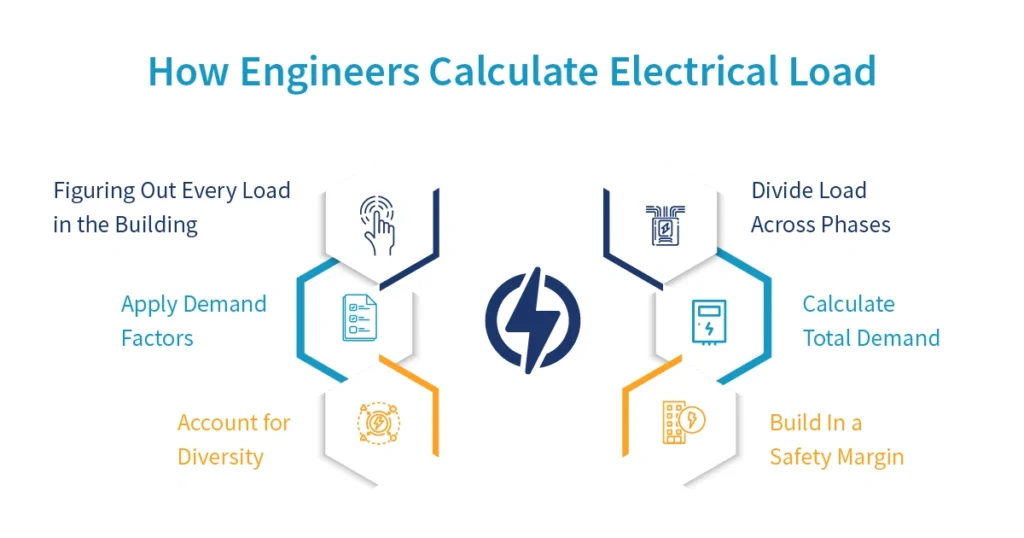

How Engineers Calculate Electrical Load

This process requires several steps:

Step 1: Figuring Out Every Load in the Building

The process starts with a complete list of every electrical appliance, system, and piece of equipment that will use power. Engineers go through the building plans and account for everything, including:

• All light fixtures, rated by watts per fixture or per square foot of floor area
• Socket outlets and the several appliances likely to run on each circuit
• Air conditioning equipment, electric heat, and full HVAC systems
• Motors, pumps, and mechanical equipment with rated wattage from the manufacturer
• IT systems, automation panels, and smart building electronics

Engineers assign each item its actual rated wattage. Engineering professionals pull these numbers from manufacturer specifications and guidelines that the National Electrical Code establishes. Engineers estimate nothing loosely at this stage.

Step 2: Apply Demand Factors

Here is where the calculation starts reflecting reality rather than just paper totals. It is notable that every electrical appliance and piece of equipment doesn't run at full load at the exact same time. A demand factor accounts for this power run-up.

Step 3: Account for Diversity

The diversity factor goes hand-in-hand with the demand factor, yet it zeroes in on usage patterns across different load types. Think about it; all kitchen burners don't run at full power at once, and AC units don't blast at the same time either. So, accounting for this diversity helps create a more realistic daily operations estimate, not just a best guess for the absolute worst case.

Step 4: Divide Load Across Phases

Engineers split loads between single-phase and three-phase circuits in larger buildings. This helps keep voltage steady, stops the neutral from getting overloaded, and safeguards gear from damage.

Step 5: Calculate Total Demand

Engineers work out the total load by adding up the connected load and estimating the peak demand. They use this number to pick the right sizes for transformers, generators, UPS systems, and main panels.

Step 6: Build In a Safety Margin

Responsible engineers always add buffer capacity on top of the calculated demand. Depending on the building type and anticipated expansion, this safety margin typically runs between 10 and 30 percent. Think of it as credit against future growth. If the building adds new equipment, installs a new circuit, upgrades its air conditioning equipment, or expands its electronics infrastructure, that margin absorbs the increased load without requiring a full system overhaul.

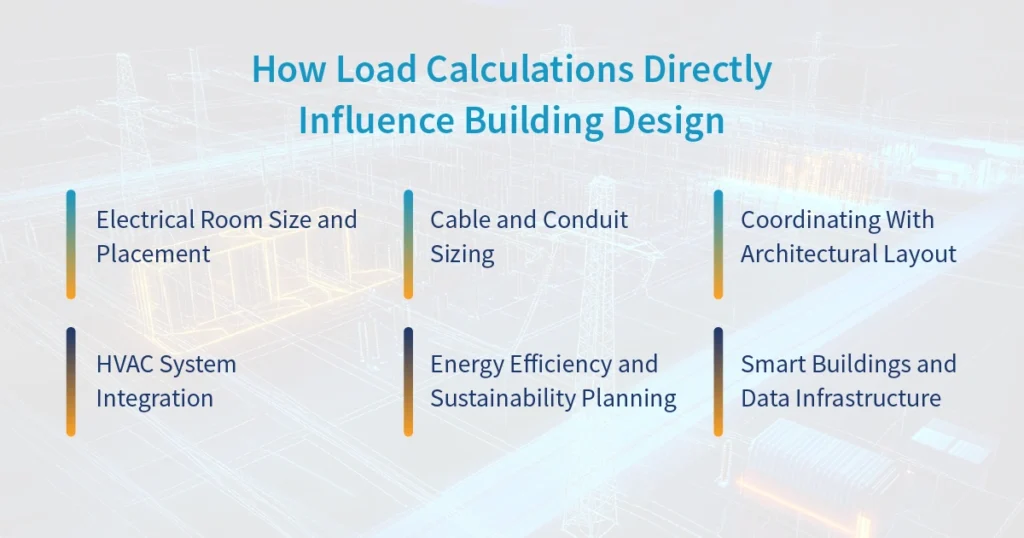

How Load Calculations Directly Influence Building Design

Many people assume load calculation is purely an electrical engineering concern. In practice, it shapes decisions across architecture, structural engineering, mechanical systems, and fire safety. Here is how each area connects.

Electrical Room Size and Placement

Higher total loads require larger equipment. More switchgear panels take up more floor space. Bigger transformers need more room and produce more heat, which means the ventilation requirements for electrical rooms increase as well. When architects design the building layout without accurate load data, electrical rooms end up undersized. Fixing that after construction means tearing out finished work, which is both costly and time-consuming.

Cable and Conduit Sizing

Every cable in an electrical installation carries current up to a specific ampacity limit. Load calculations set the voltage, amps, and wattage parameters that determine how thick each cable needs to be and what size conduit it runs through. Undersized wiring does not just underperform. It overheats under load, degrades insulation over time, and eventually becomes dangerous. This risk is especially relevant in older homes where original wiring was sized for much lower demand than modern appliances and electronics create.

Coordinating With Architectural Layout

Electrical systems need physical space to run through a building. Cable trays need ceiling clearance. Electrical shafts need to pass through floors. Panels need accessible wall space. When load calculations happen early, architects can divide floor plans and design ceiling heights with these requirements already factored in. When load calculations come late, clashes between electrical routes and architectural features force expensive redesigns or compromises in both systems.

HVAC System Integration

Air conditioning equipment and electric heat consistently account for the largest share of electrical load in most buildings. If the mechanical engineering team sizes chillers and air handling units without referencing the electrical capacity already calculated, the two systems end up out of sync. The HVAC load may exceed what the electrical infrastructure can deliver, and fixing that mismatch after both systems are specified and ordered gets very expensive very quickly. Aligning these two disciplines from the start is not optional. It is how functional buildings get built.

Energy Efficiency and Sustainability Planning

Accurate load calculation opens the door to smarter energy design. When engineers know exactly how much power the building consumes and when it consumes it, they can evaluate whether solar generation is feasible, where load-shifting strategies make sense, and how to achieve compliance with green building standards like LEED. You cannot design an energy-efficient electrical system around vague load estimates. The numbers need to be right before the efficiency strategies can work.

Smart Buildings and Data Infrastructure

Modern commercial construction increasingly involves IT loads, building automation systems, and IoT devices spread throughout the structure. Each of these systems draws power and generates heat. Load calculations that account for this infrastructure from the start ensure the electrical system can support full smart building operation without running close to capacity. Running a smart building on an electrical system that was never sized to handle it leads to constant demand management issues and equipment reliability problems.

Conclusion

Electrical load calculation sits at the foundation of every safe, well-functioning building. It determines the size of the electrical service, drives decisions about transformers and generators, shapes how architects design floor plans, and ensures that fire safety systems stay powered when they matter most.
