March 3, 2026
Fan Coil Units (FCUs) are simple heating and cooling devices working on a coil and a fan to condition air in a room. Let's understand the role of FCU in HVAC.
These are versatile and energy-efficient solutions suitable for residential, commercial, and industrial spaces. Modern spaces increasingly require year-round comfort and localized temperature control.
Coil units have the ability to perform dual functions (heating and cooling), making it a superior choice for large buildings across industries.
Fan Coil Units provide both sensible and latent cooling, along with heating at the zone level. The cooling coil in an FCU requires a drain pan to catch the water dripping off the coil, which is moisture removed from the air.
FCU units find several applications in buildings, such as a hot or cool water supply, air circulation, and thermostat control.
This blog explores the functioning of FCUs, their benefits, and why they are a superior choice.

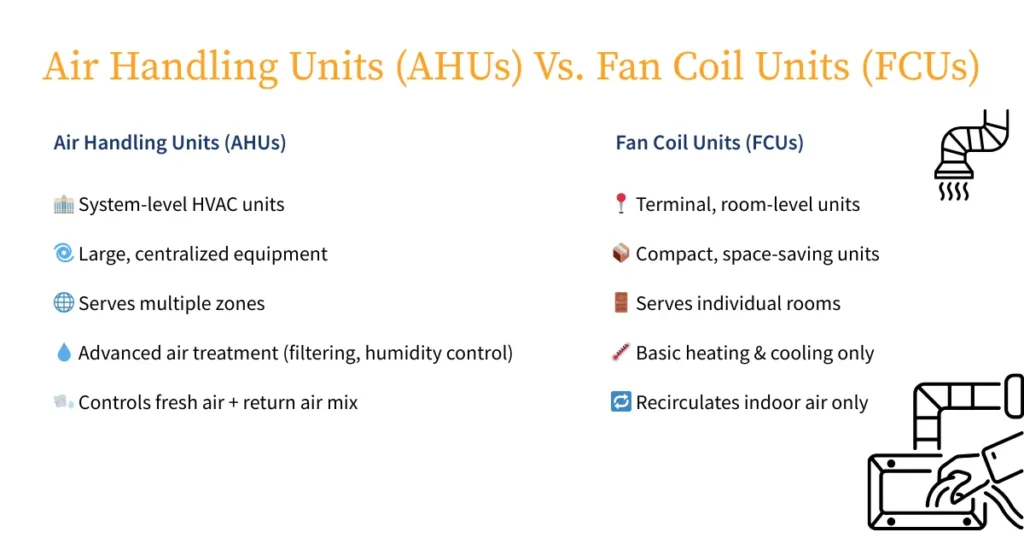

AHUs (Air Handling Units) and FCUs function distinctly, and the following key differences make them suitable only for specific heating/cooling intentions.
Now, from the above distinctions, it is clear that AHUs are far more costly than FCUs. These core system components require dedicated space for installation and need regular maintenance.
However, FCUs offer a simpler installation process and can be attached to ceilings, walls, or floors. Their maintenance also involves minimal work that includes replacing filters and inspection fans, and coils.

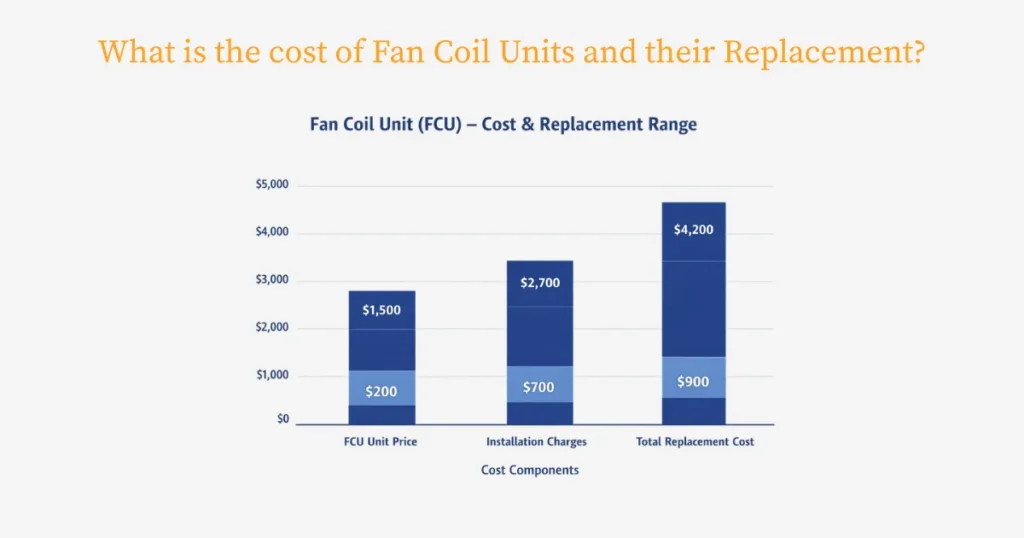

The cost of FCUs varies in three ranges, starting from budget-friendly or basic units to middle-range units to large units suitable for commercial use. A new fan coil unit may range from $200-$1500 based on the brand of your unit and the size of the equipment.
Then there are installation charges, which also vary depending on the expertise of the company.
Professional installation of a fan coil unit will range from $700-$2700, depending on your region's average pricing.
While regular inspections are not required for these units, occasional checkups are needed to ensure heat transfer is optimal.
The replacement costs sum up, including the price of the replacement item and the service charge. Fan Coil Units use a coil and a fan to heat or cool a room without ductwork.

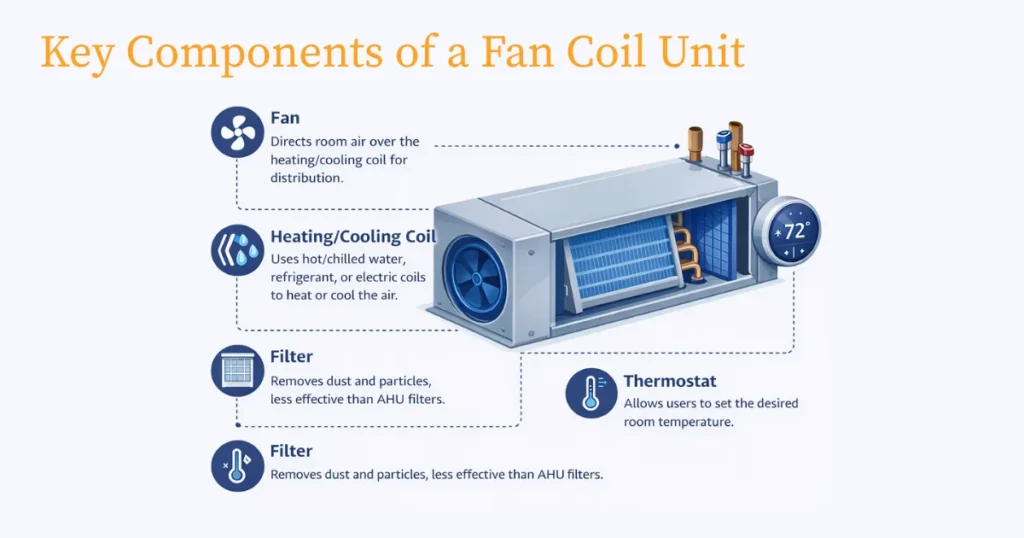

The primary components of Fan Coil Units are as follows:
Fan: It is what directs the sucked room air over the heating or cooling coil, before distributing it back to the room.
Heating/Cooling Coil: The heating or cooling coil in FCUs has different setups, including electrical coils. In some setups, these coils are connected to the central system, which supplies hot or chilled water or refrigerant chemicals.
Filter: The FCU filters remove the dust and microscopic particles, filtering the air; however less effective than AHU filters.
Thermostat: FCUs also include a thermostat so users can set their desired temperature.
FCUs are not system components; they are connected at the end of HVAC systems. The reason is that fan coil units are generally less costly compared to air handling units.
Their work is very minimal; however, they control the complete environment inside the space. Since they are used for individual spaces, they can accommodate varying comfort preferences.
These terminal devices are great in older buildings, where ductwork does not exist. FCUs are often used in buildings where central air distribution is not feasible or cost-effective, such as retrofitting older buildings without existing ductwork.
Here, central air distribution is not possible, and hence FCUs are a practical solution, where minimal pipe work is required.
We have talked about fan coils, their applications, and how they are different from AHUs. Fan coil units are easier to install and maintain compared to air handling units. However, we have yet to discover the different types of FCUs available.

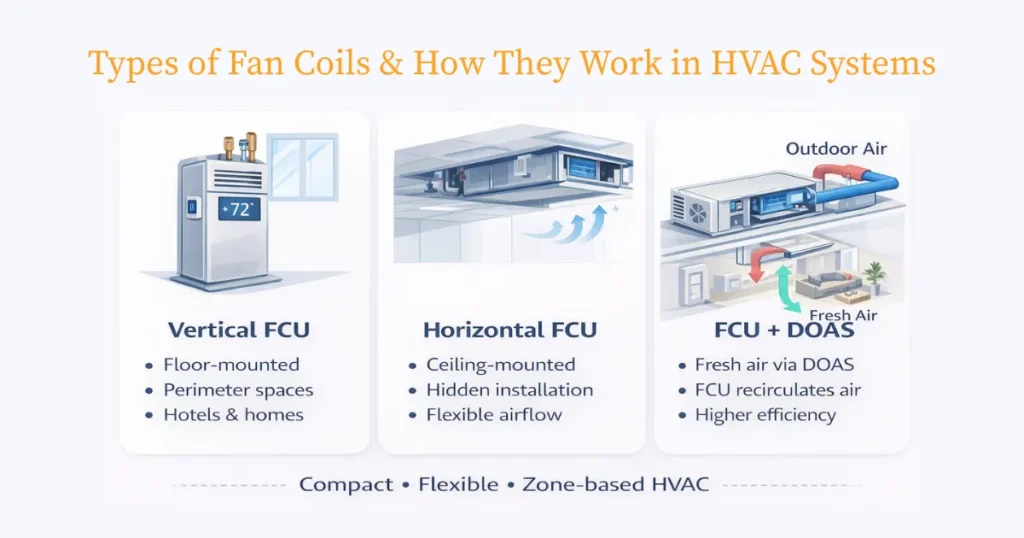

Here are the three types of FCUs:
Vertical fan coils have all their components stacked vertically, where the system can be either two-pipe or four-pipe.
FCUs are commonly used in smaller buildings or individual spaces within larger buildings, such as hotel rooms, apartments, offices, and retail spaces.
These units are mounted on the floor and find extensive use in perimeter zones, under windows, and along the curtain walls in residential and commercial settings.
These are suitable for mounting above the false ceilings, where the fan and coils remain horizontal.
They take the return air from the ceiling plenum, the fan inside passes it through the filter and coil. Finally, the conditioned air comes out via short ducts to diffusers.
Horizontal units do not interfere with interior aesthetics, at the same time delivering flexible air distribution.
Standard FCUs require pairing with a Dedicated Outdoor Air System to meet modern air quality standards due to their lack of fresh-air intake. FCUs, by default, cannot interact with fresh outdoor air. They can only regulate the indoor air.
However, when they are integrated with DOAS, it becomes a full-fledged system. Several organizations apply this strategy to make the installments more cost-effective.
The DOAS system conditions and humidifies outdoor air centrally, while delivering fresh air directly to the desired zones.
The modern approach allows FCU to recirculate the indoor air for optimal temperature.
Organizations can also implement this high-performance strategy, where DOAS is integrated with HVAC. The system becomes efficient by separating ventilation and thermal conditioning.
These units are preferred in modern HVAC systems because of their practical benefits and flexibility. Here is a closer look at their advantages:
The biggest benefit is the ability to provide air conditioning on the zonal level.
Every installed unit has a dedicated thermostat for users to adjust the room temperature themselves. It controls the fan speed and water flow in an FCU to offer a customized environment.
In cooling mode, the fan draws in room air, passes it over a coil filled with chilled water, cooling the air and removing moisture.
On the contrary, in heating mode, the fan passes room air over a coil filled with hot water or an electric heating element to warm the space.
FCUs offer flexible, localized, and energy-efficient heating and cooling, making them suitable for multi-room spaces.
Fan Coil Units offer unique flexibility by working on water piping rather than extensive ductwork.
This reduces the duct sizes significantly and requires less space for vertical shafts. High-rise buildings prefer this because of limited shaft space, and occupant comfort cannot be compromised.
The advantages of FCUs include energy efficiency, independent zone control, quiet operation, and suitability for retrofits in large buildings.
Installation is also similar and requires significantly less coordination efforts with other building utilities.
FCU in HVAC are more cost-effective compared to large AHUs, and they are suitable for mid-size or multi-unit commercial or residential projects.
Technicians can install these in a modular approach, unit by unit, which cuts out work, installation costs, and contributes to energy efficiency.
These systems combine flexibility with space-efficiency and cost-effectiveness, offering enhanced indoor comfort.
FCUs require frequent maintenance for filters, drain pans, and fans to avoid condensation leaks or air quality issues.
Condensation risks can occur if there is a failure in the condensate drainage system of an FCU. This is why regular inspections are potentially needed to keep water damage or mold growth under control.
FCUs can produce operational noise due to the fan motor being located within the occupied space.
Organizations find FCUs as a strategic move to enhance indoor comfort without increasing energy usage. However, these might not be effective across every setup, and some other factors should be considered. Compared to AHUs, FCUs are installed for controlling the indoor air quality in individual spaces. And hence it is suitable for places where occupants require varying indoor temperatures. These do not need heavy maintenance, but should be inspected regularly.
