Amazon Data Center

Location Jakarta, Indonesia

Year Jan 2020- Sept 2020

Key Project Details
share link

Project Area:54745 Sq.m.

view Full Key Project Details
close arrow
Key Project Details
share link

Project Area:54745 Sq.m.

Architect:

Engineer:31

Contractor(S):

Owner:

Trades Covered:Architecture, Structure, Steel, MEPFP

LOD:350 - 500

Software:Revit 2019, Navisworks, Auto CAD, BIM360 Document Management.

Verticals:  Structural Engineering, Concrete Contractors, Electric Contractors, General Contractors, Mechanical & Plumbing Contractors, Rebar / Reinforcement Contractors

Explore BIM Services
Amazon Data Center
Amazon Data Center
Amazon Data Center
Amazon Data Center
Amazon Data Center
Amazon Data Center

Amazon Web Services (AWS) has opened the AWS Asia Pacific (Jakarta) Region, located in Jakarta, Indonesia. This region offers three Availability Zones (AZs) for customers to manage data both onshore and offshore with low latency.

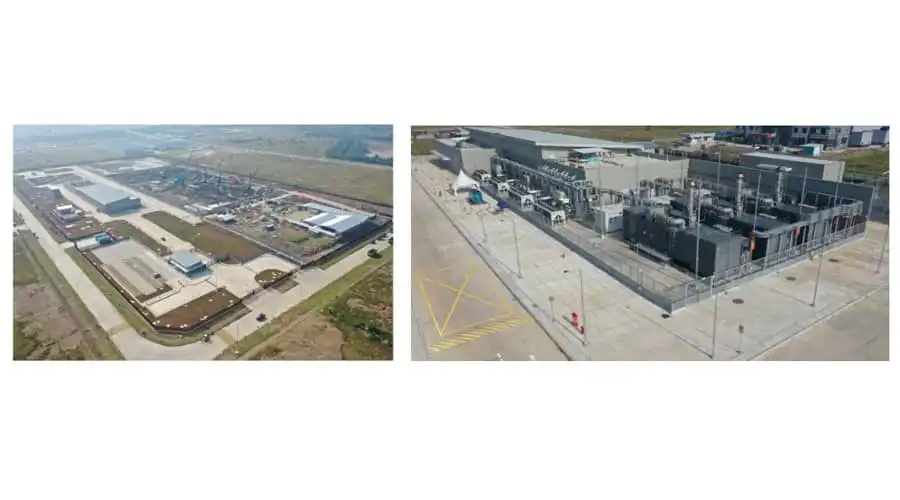

The main data center utilizes a Nova Racking system with 288 data racks and 9 Air Handling Units (AHUs) within the 5,000 square meter Pontoon Building (Phase I). This LEED Platinum-rated facility ensures the highest standards of sustainability and energy efficiency.



Pinnacle’s Scope of Work

• Validation of design models according to client specifications and construction requirements

• Coordination of all building elements and creation of clash reports

• LOD500 modeling of LLE (Long Lead Equipment) for subcontractor visualization and site coordination

• Preparation of builders work drawings for MEP penetration through floors and walls

• Creation of precast wall drawings for MEP penetrations

• Generation of Revit shop drawings for all trades

• Quantity take-off (BOQ) for MEP sub-contractors

Key Project Details

Project Area:54745 Sq.m.

Architect:

Engineer:31

Contractor(s):

Owner:

LOD:350 - 500

Trades Covered:Architecture, Structure, Steel, MEPFP

Software:Revit 2019, Navisworks, Auto CAD, BIM360 Document Management.

Verticals:  Structural Engineering, Concrete Contractors, Electric Contractors, General Contractors, Mechanical & Plumbing Contractors, Rebar / Reinforcement Contractors

Explore BIM Services

Challenges Undertaken by Pinnacle

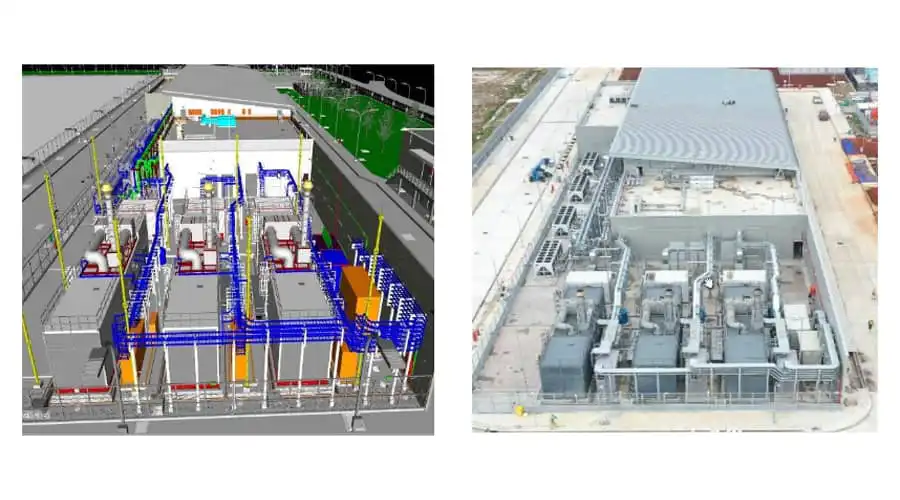

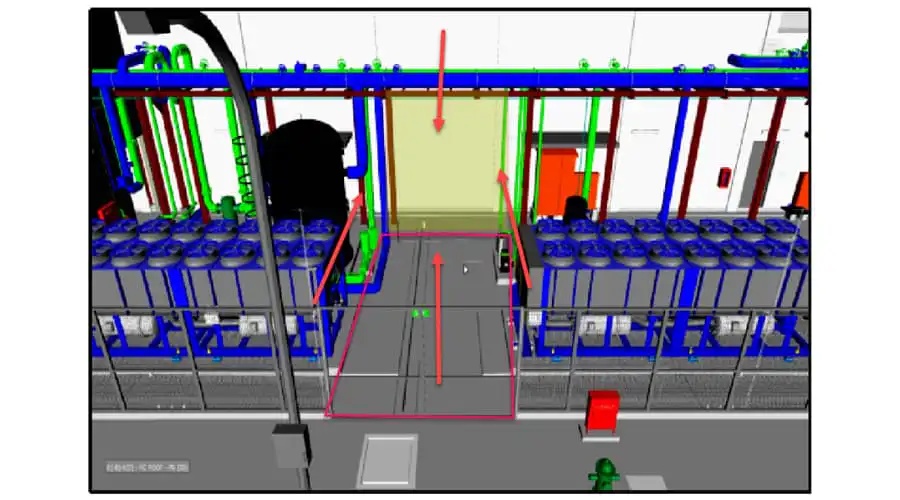

Overcoming Space Constraints for AHU Replacement in Chiller Yard

Chiller pipe supports and plinths were adjusted to create space for AHU replacement in the chiller yard.

Complex Service Coordination Due to Limited Ceiling Space

We proposed solutions for service relocation and re-sizing. This proactive approach enabled us to achieve optimal coordination within a compressed timeframe.

Pinnacle’s Value Addition



By optimizing pipe fitting selection, we reduced and brought down fittings from 284 to 201 in the final installation. This optimization resulted in an estimated cost saving of approximately $5,500.

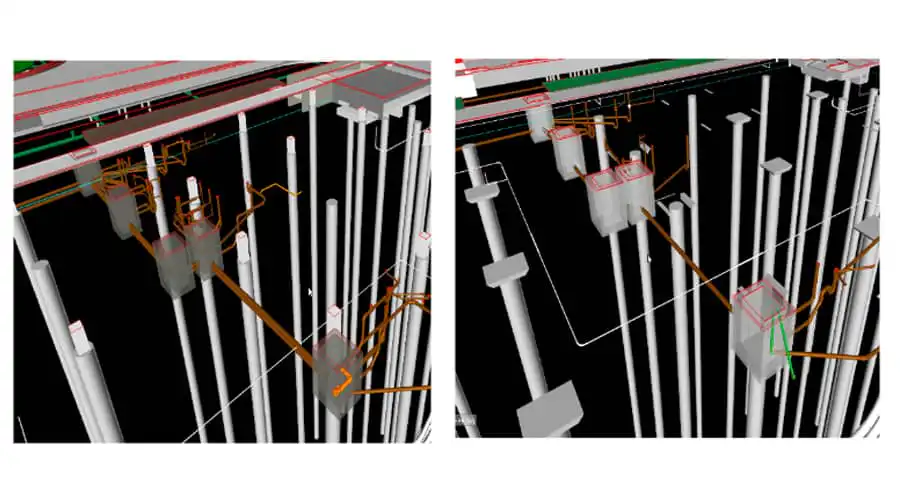

Electrical pits were reduced by 198 in the final installation, further minimizing labor and material costs.
