  • Engineering & Vet Tech East Valley Institute of Technology

Evit East Campus

Location Mesa, Arizona, USA

Year 22nd June 2021 - 29th April 2022

Key Project Details
share link

Project Area:20012 Sq. Ft.

view Full Key Project Details
close arrow
Key Project Details
share link

Project Area:20012 Sq. Ft.

Architect:SPS+ ARCHITECTS, LLP

Engineer:2-3

Contractor(S):McCarthy Building Companies, Inc.

Owner:East Valley Institute of Technology

Trades Covered:All Concrete Reinforcing

LOD:NA

Software:Rebar CAD 2021

Verticals:  Structural Engineering, Concrete Contractors, Electric Contractors, General Contractors, Mechanical & Plumbing Contractors, Rebar / Reinforcement Contractors

Explore BIM Services
Engineering & Vet Tech East Valley Institute of Technology
Engineering & Vet Tech East Valley Institute of Technology

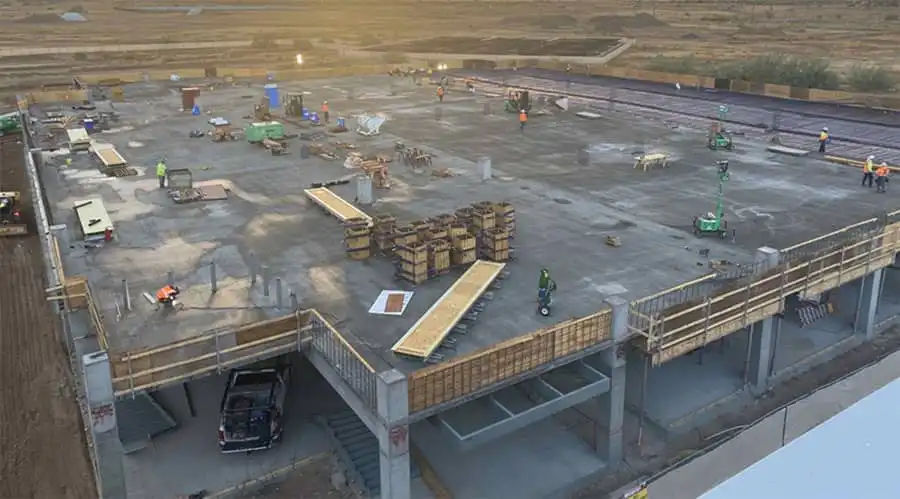

Evit East Campus is an Educational Building project having G+2 Floors located in Mesa, Arizona United States of America. The project area is approximately 20012 sq. ft. The main requirement for this project typically included Reinforcement Detailing and Bar Bending Schedule.



Our team of expert modelers working on the project applied their high-end skills and domain expertise in the concrete reinforcement project to deliver highly accurate and elaborative design for the building. This helped the client get detailed functional input and structural workflow for the construction work to efficiently take control of the building for ongoing monitoring and future expansion.



Scope Of Work:



The work scope of the East Valley Institute of Technology project covered overall building elements of Footing, Foundation Wall, SOG, Pier & Site elements. It further included 2D Rebar Shop Drawing & BBS with the use of Rebar CAD Software version 2021. Nearly 20012 sq ft was under the scope of work.

Key Project Details

Project Area:20012 Sq. Ft.

Architect:SPS+ ARCHITECTS, LLP

Engineer:2-3

Contractor(s):McCarthy Building Companies, Inc.

Owner:East Valley Institute of Technology

LOD:NA

Trades Covered:All Concrete Reinforcing

Software:Rebar CAD 2021

Verticals:  Structural Engineering, Concrete Contractors, Electric Contractors, General Contractors, Mechanical & Plumbing Contractors, Rebar / Reinforcement Contractors

Explore BIM Services

Challenges & Solutions:



Challenge : The project at the educational institution in Arizona USA required a fast-paced job with quick turnaround, however, there were missing information which tended to delay the progress. Also, the detailing was complex due to multiple steps and size changes on the foundation. Also, the pouring sequence was not clear.

Solution : Our team used the best possible assumptions based on past experiences for rebar detailing services, which prevented the delay and helped the client take quick calls on our assumptions. Moreover, looking at the complexity, our team tried to simplify the detailing and arranged the bars in a manner so that there was minimal effect on the pouring sequence change.



Pinnacle's Value Addition:



With our high-end proficiency in providing BIM services in concrete reinforcing and rebar detailing, we offered the extensive bar list based on their compatibility with the fabrication unit. So that it can be directly imported for fabrication without going through any conversion or additional effort, thereby saving a lot of time and cost.
