Facebook Data Center

Location Prineville, USA

Year 2021-2022

Key Project Details
share link

Project Area:1,411,570 sq.ft

view Full Key Project Details
close arrow
Key Project Details
share link

Project Area:1,411,570 sq.ft

Architect:Sheehan Nagle Hartray Architects

Engineer:8 Engineers from Pinnacle

Contractor(S):Concrete Structure

Owner:Facebook

Trades Covered:3D Modeling, Clash Coordination, Constructability Review, Value Engineering, Shop Drawings

LOD:400

Software:Revit 2019

Verticals:  Structural Engineering, Concrete Contractors, Electric Contractors, General Contractors, Mechanical & Plumbing Contractors, Rebar / Reinforcement Contractors

Explore BIM Services
Construct Certainty With Pinnacle Infotech, the global leader in BIM Solutions
Construct Certainty With Pinnacle Infotech, the global leader in BIM Solutions
Construct Certainty With Pinnacle Infotech, the global leader in BIM Solutions
Construct Certainty With Pinnacle Infotech, the global leader in BIM Solutions

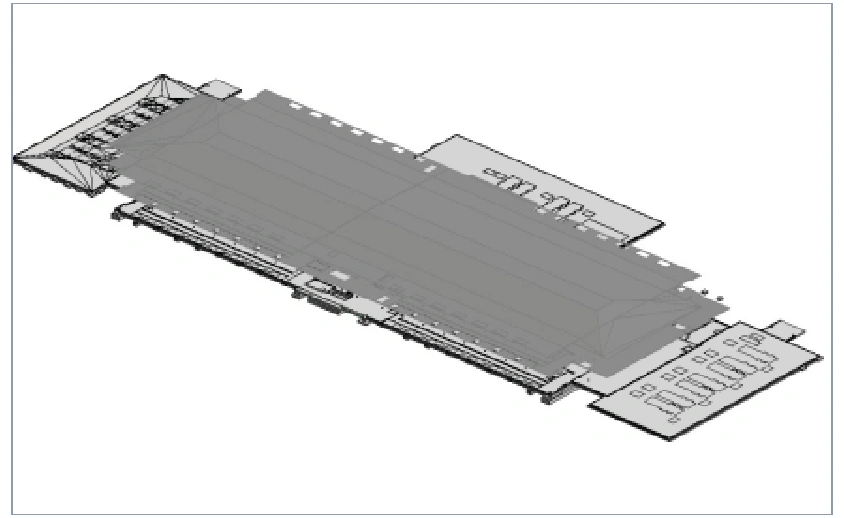

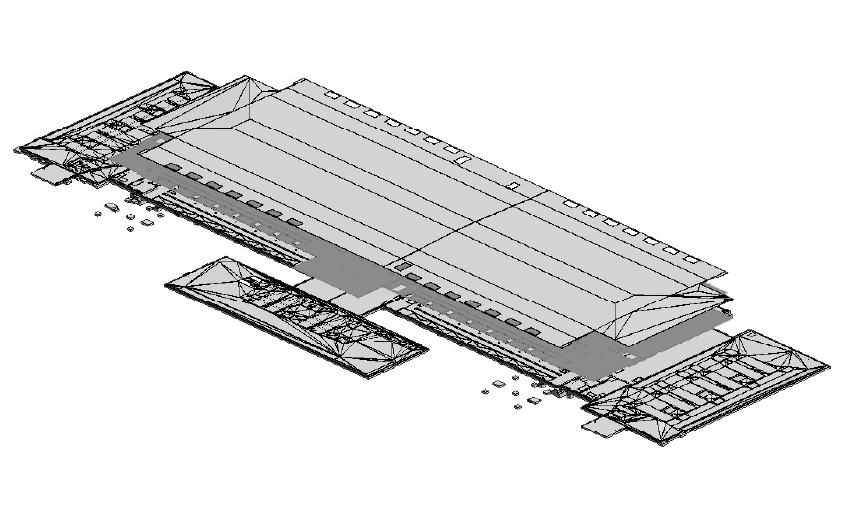

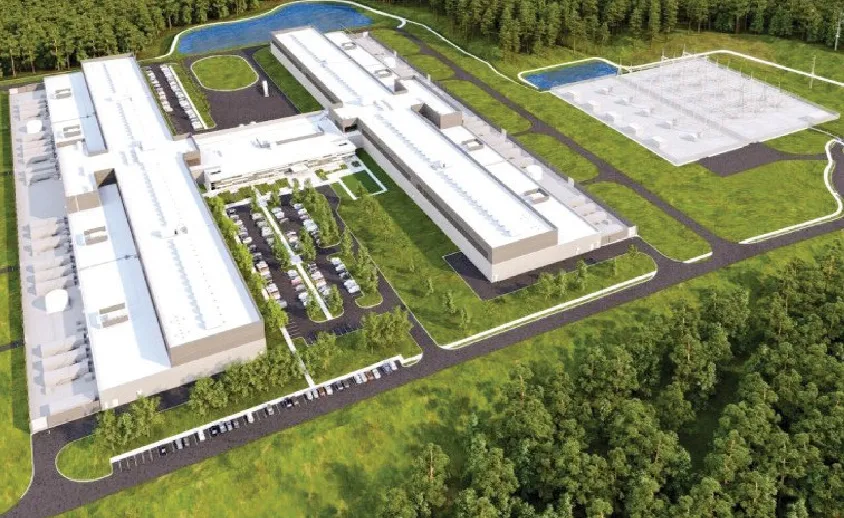

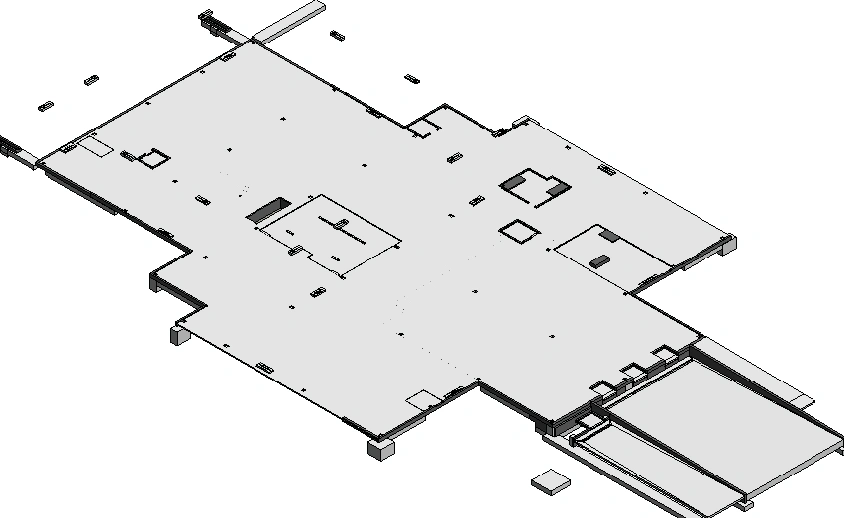

It is Facebook’s Prineville Data Center, located at 735 S.W. Connect Way, Oregon, USA. In this official edifice built in Forest City, North Carolina, Facebook has a private data center under its ownership, which consists of three buildings – CCO5, CCO6 & Admin Building. It is one of the additional data centers built by Facebook in order to expand its capacity,

Key Project Details

Project Area:1,411,570 sq.ft

Architect:Sheehan Nagle Hartray Architects

Engineer:8 Engineers from Pinnacle

Contractor(s):Concrete Structure

Owner:Facebook

LOD:400

Trades Covered:3D Modeling, Clash Coordination, Constructability Review, Value Engineering, Shop Drawings

Software:Revit 2019

Verticals:  Structural Engineering, Concrete Contractors, Electric Contractors, General Contractors, Mechanical & Plumbing Contractors, Rebar / Reinforcement Contractors

Explore BIM Services

Challenges Undertaken by Pinnacle



Issue Solution
Collaboration Among Team Members With the BIM360 model-sharing feature, we collaborated effectively on the cloud server without any disruptions.
Creation Of Families For a Large Project Area We created Revit Families to generate a variety of detailing work, such as slab edges, thickened slabs, and sloped slabs. By creating the families of slab edge and thickened slab in advance, we were able to reduce the time required and efficiently address the challenges.
Shop Drawing Submission Within A Tight Timeframe We developed the shop drawings using the Pence Kelly Template. Additionally, PiVDC add-ins helped expedite the process of creating the shop drawings.

Value Added



  • Pinnacle anticipated, planned, and coordinated every aspect of the project design, detailing, and construction workforce.
  • Identified constructability issues.
  • Detected the number of clashes
  • Avoiding work stoppages, rework, and wastage of time, hence saving material and manpower.
  • Raised over 50 issues in the meetings with 3D snapshots on MISSING DATA, CONFLICTING DATA, CONSTRUCTABILITY & ACCESSIBILITY issues.
  • Developed CIP Units.
  • Resolved 500 total clashes (including 100 critical ones) for plan mismatch, design discrepancies, and aesthetic & coordination issues.



Outcomes



  • More quality output with less effort using Revit.
  • Time and work efficiency both raised for about 40%.
  • Flawless collaboration is seen among stakeholders with reduced errors and improved building performance.
