Any building begins with a vision that is led by the architectural planning at its core. However, without structural design, the building cannot be safe, stable, and systematically constructed. Residential, commercial, and industrial buildings such as homes, office towers, hospitals, are made structurally sound through the structural design process. The process of structural design of buildings helps to ensure that the structure withstands gravitational force, winds, earthquakes, and seismic loads throughout its lifetime. Structural engineering design provides safety, functionality, durability, economy, and adherence to building codes nationally and internationally.
Modern structural design has developed even further due to the availability of innovative technologies such as Building Information Modeling (BIM). With evolved technology, structural design has become a more coordinated, less error-prone process that allows optimizing the use of materials even before construction starts.
This article will guide you through the structural design of buildings across stages.
Table of Contents
Structural design is the engineering process that ensures a building supports different loads placed on it. The design of a building structure involves the process of designing a structure so that it doesn’t fail in terms of stability, functionality, and durability. A functional building structure involves all load-bearing elements, including the foundation, columns, beams, slabs, walls, and roof framing, as well as the connections of these elements such that they work together as one system. Structural design needs to consider all of these building elements, structural components, and various functional factors associated with them. It is actually more than making sure that the building does not fall over itself.
The effectiveness of a structure highly depends on the quality of structural planning. Improper or wrong planning can cause excessive deflections, cracks, differential settlements, premature decay, or even failure. Well-appointed structural planning helps ensure effective transmission of possible loads in load paths from the structure to its foundations. This ensures efficient use of materials and saves on costs. It also helps ensure the safety of users, durability, low maintenance costs, quick turnarounds, and seamless modifications. Sustainability is also becoming a key consideration in the construction industry, where structural planners are now practicing sustainable structural designs and are making use of materials that have less impact on the environment.

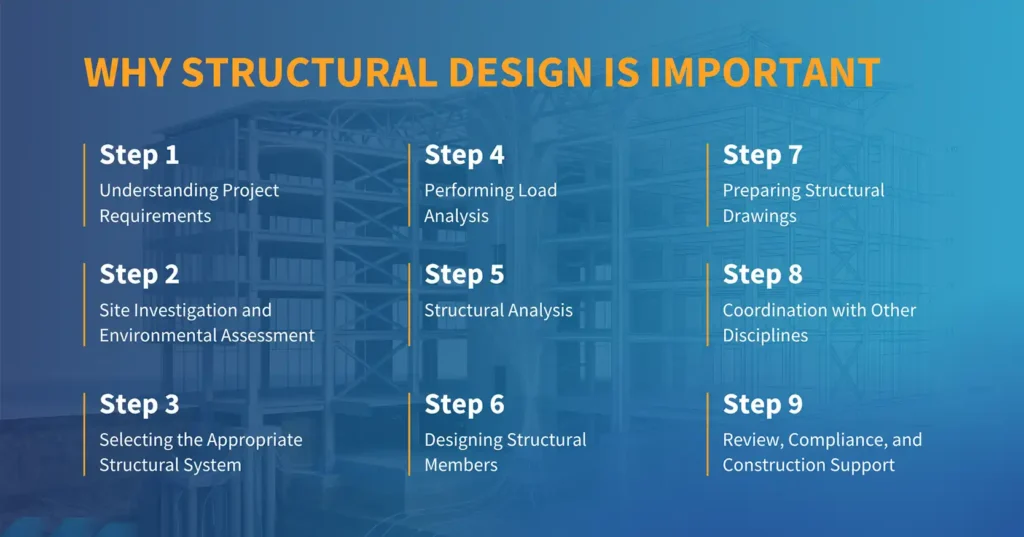

Here is the process with all the key steps to follow to build a foolproof structural design plan and optimally deliver on project requirements.
For every project to succeed, it is imperative to have an understanding of the client’s requirements. It is also important to determine the building’s use during the early stages of the process. At this stage, the designers analyze the building occupancy, its size, functionality, and the need for expansion in the future. Besides, they work on defining budget limitations and then develop the concept design. Also, during this stage, the architectural drawing reveals different types of information on room layout, elevations, floor plans, ceiling height, staircases, and elevator cores, among others. Engineers consider the available regulations and site limitations to come up with the best system design solution for the project.
Before starting the calculations, engineers conduct geotechnical studies to gain an insight into the soil characteristics below the proposed structure. Soil testing will identify the bearing capacity, level of the water table, settlement behavior, and the type of foundation needed. Moreover, the structural engineer will also assess the critical environmental loads. This involves any threats of natural hazards such as earthquakes, floods, frost heave, and weathering. This will help engineers determine the environmental loads that may affect the structure.
Now once the site investigation group is aware of the project requirements as well as the kind of site where the building needs to be erected, engineers will select a suitable structural system out of the available ones for the construction of the building. There will be a lot of considerations here, including the height of the building, span requirements, building use, the budget for construction, and the architectural design. Reinforced concrete structures continue to be the popular option for most commercial and residential structures. This is owing to their durability and fire resistance. Engineers usually use steel structural frames in high-rise buildings, industrial facilities, and large-span structures.
The most important process in the designing of structures is the process of load analysis. Teams calculate and analyze loads on the structures through all stages. Here, dead loads are the loads created due to the weight of the building material in the structure. Alternately, the live loads are the loads resulting from objects that occupy the structure. There are also gravity loads in the vertical direction and lateral loads in case of earthquakes and winds.
After establishing the loads, the next step is for the engineers to carry out the structural analysis of the structure in order to see how it will behave under various loads. With modern software such as ETABS, SAP2000, STAAD.Pro and Robot Structural Analysis, engineers are able to precisely predict structural behavior. Complicated structural analysis cases involve finite element analysis in order to model stress, deformation, and response of non-standard structures. In this process, engineers determine the internal forces, reactions, deflections and bending moment of all the structural elements.
With the findings from the structural analysis, engineers work on different structural elements. These structures include foundations, beams, slabs, columns, shear walls, load-bearing walls, bracing, and roof structures. All these structures are designed by engineers to resist the loads and meet safety, serviceability, and strength requirements. This is where engineers design these structures. These largely depend on the anticipated loading and construction considerations. In this process, all the structural elements are detailed carefully to ensure efficient fabrication and construction.
After the completion of engineering computations, the design team makes all the required structural drawings and construction drawings for contractors. The drawings involve foundation plans, framing plans, detailing of reinforcements, beam and column schedules, slab reinforcement, steel joints, section and construction notes. The accuracy of these plans is very important because contractors use them for building applications based on the engineer’s vision.
Structural design is never done alone. The success of any project involves constant interaction between architects, mechanical engineers, electrical engineers, plumbers, and contractors. One of the most significant benefits of BIM is that it helps detect conflicts prior to construction. A large amount of time is spent by engineers on the coordination of mechanical systems, electrical conduits, and plumbing systems. This is crucial for avoiding plumbing conflicts, beam penetration issues, and structural integrity and clearance gaps at length.
Before the beginning of the construction process, there is an inspection of the designed plan for its quality. The designing team is also responsible for validating the design plan with respect to the construction code rules. In case of sophisticated building designs and buildings in earthquake-sensitive zones, the team conducts reviews independently. During the construction process, the structural design engineers participate in construction administration, reviewing drawings, helping the contractors, conducting site inspections, validating design modifications, and establishing conformity between the design and the built structure.
Also Read: What is Structural Steel Detailing for Industrial Construction

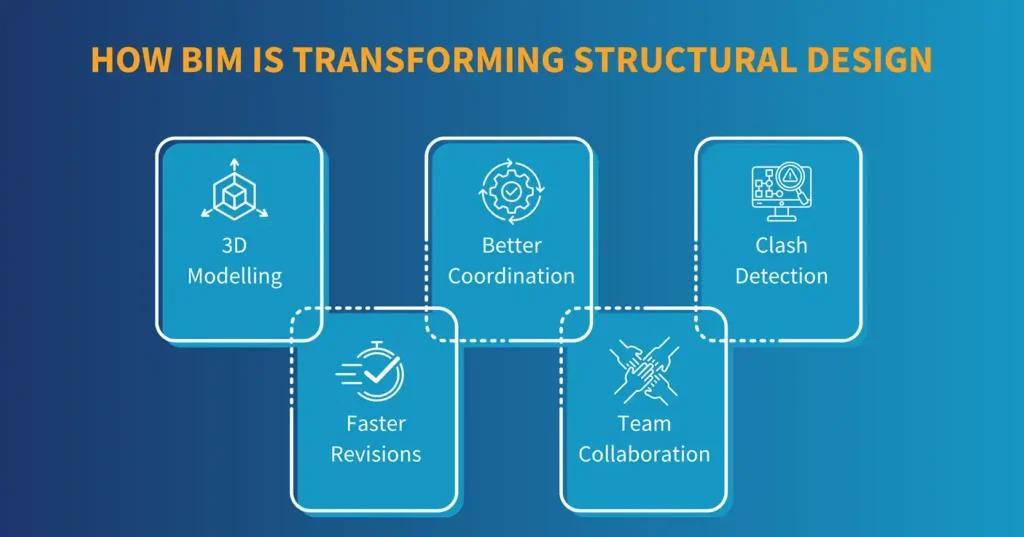

BIM has been at the forefront of changing how structural engineering design processes function. BIM provides a complete framework bringing different disciplines, including MEP, architectural, and structural, together to coordinate throughout the construction lifecycle. BIM has gone beyond two-dimensional design limitations to allow digital construction teams to create 3D models that enhance visualization, improve coordination, optimize clash detection, and facilitate quick modification. In addition, it also helps improve communication between different stakeholders involved in the construction project.
Due to the advancements made in technology, the current design of structures utilizes computer software which assists in increasing accuracy and automating the process. Structural engineers are able to analyze, do load combinations, and make structural designs with ease as they interact with different departments in the designing process. Most of these software applications are able to perform finite element analysis on structures.
Some of the most popular software for structural design include:
Autodesk Revit Structure – BIM structural modeling.
ETABS – Multistory building analysis and design.
STAAD.Pro – Design of various types of structures, including steel, concrete, and timber.
SAFE – Foundation, footings, and slab design.
Tekla Structures – Modeling and detailing of steel structures and precast elements.
Robot Structural Analysis – Advanced analysis, simulations, and code compliance checks.

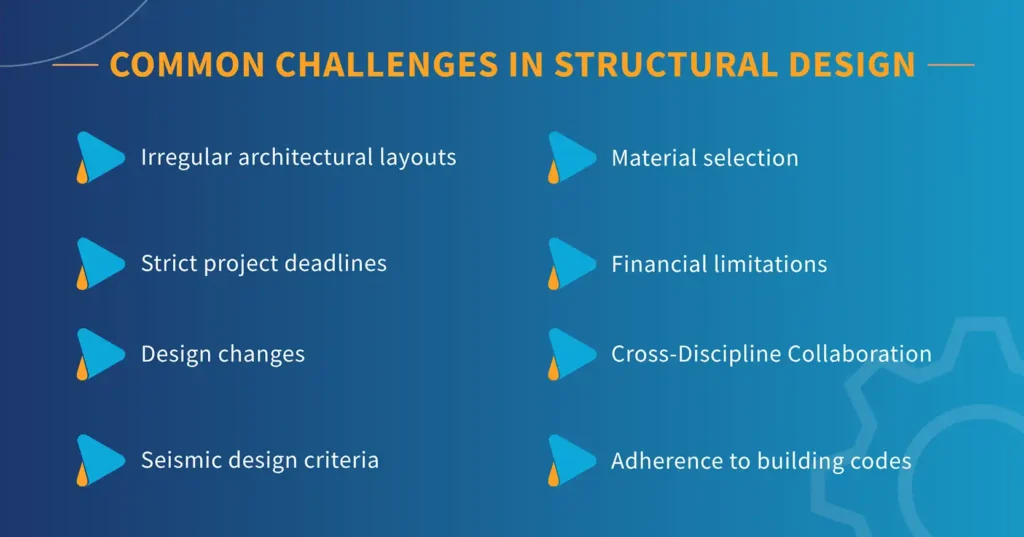

In spite of the latest technologies available today, there are some challenges faced by structural engineers, such as:
The latest BIM practices, structural design software, and integrated project delivery approach assist in dealing with many of these problems.

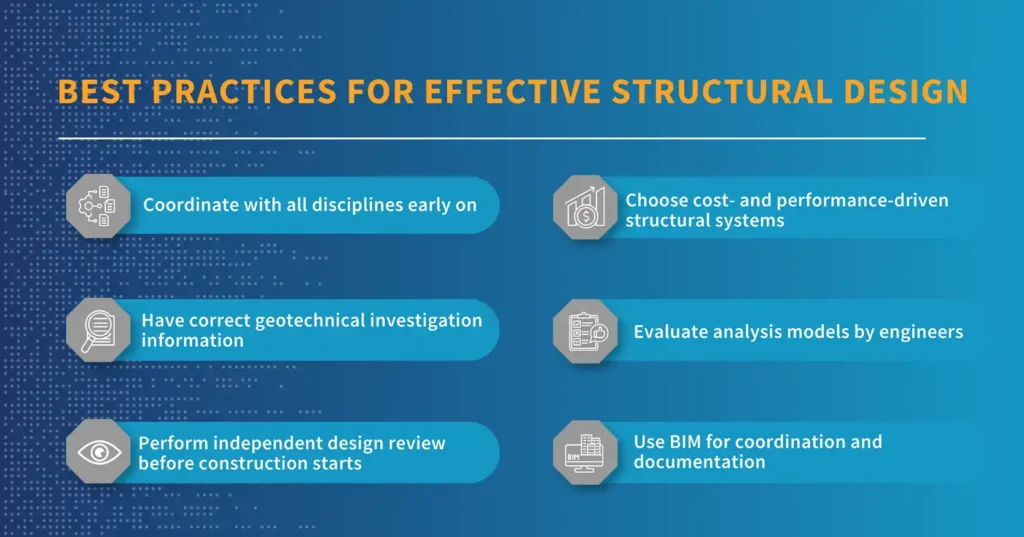

Structural projects that follow these best practices usually prove to be successful:
Early coordination between architects, structural, MEP, and construction groups helps to avoid disagreements and redesigns, thereby improving the whole process of project development.
Correct information about soil investigation allows choosing the right type of foundations and reduces risks related to settlement and other dangers.
Independent design reviews help to identify calculation mistakes and compliance gaps, reducing project risks.
Choose optimal structural systems that will ensure a good balance of material use, costs of construction, and structural performance.
Check software analysis results with the help of engineers and identify incorrect assumptions, modeling mistakes and unrealistic behavior of structures.
BIM allows for better coordination of all parties and early identification of clashes, improves documentation, and increases the accuracy of work.
Designing of structures is not just about the calculation of beam sizes and providing for reinforcement. Structural engineering is a well-designed and systematic process of turning architectural ideas into safe and durable buildings. Starting from understanding the requirements of the project and performing load analysis up till the design of structural elements, every aspect affects the longevity of the building.
With the rising complexity and size of projects, the process of collaboration is being revolutionized through BIM. Companies that possess both sound engineering knowledge and advanced design tools lead with a competitive edge.
