Structural Failure Analysis: Types, Common Causes, and Process

Structural failure analysis is an analysis of why the structure failed to function as required. All failures are traced back to their causes for rectification. Engineers employ structural failure analysis to rectify such structural fails and avoid future occurrences. Structural failures can range from small hairline cracks to the collapse of an entire building. Sometimes, small signs of damage may show bigger issues of failure in the structure. One cracked beam may be an indication of overloading or poor detailing, which eventually results in the cracking becoming dangerous.

The article explores various forms of structural failures including their causes, possible signs, and how to conduct a structural failure investigation to detect their causes. It is useful to owners, contractors, and facility managers to detect any structural failures and minimize costs of repairs.

Types of Structural Failure

Engineers can categorize structural failures by their failure modes. The failure mode is the manner in which the member or structure collapses. Each failure mode indicates a specific reason for the failure.

Shear failure happens when the force acting shearing on the member is greater than the strength of the beam or wall. Diagonal cracks may develop near the support. Steel beams may also suffer shear failure.

Flexural failure happens first. In this case, the bending stress exceeds the strength. The reinforcing steel then yields. Concrete breaks due to compression. It causes sagging and cracking of the member at its midspan.

Punching shear failure occurs in concrete slabs at column connections. A column drives out a plug of concrete from the slab. It happens suddenly and has little warning before failure. Engineers treat this brittle failure with caution.

Progressive collapse starts with failure of one beam. The failed member transfers its load to other beams. Other members fail if they cannot take the loading. This happened in the Twin Towers in the USA in 2001.

Cyclic loading causes fatigue. Cyclic loads like those from wind, traffic, or earthquakes result in crack development gradually.

Foundation failure causes the final type of structural failure, which happens when the soil cannot sustain the building. Differential settlement leads to tilted walls and floors.

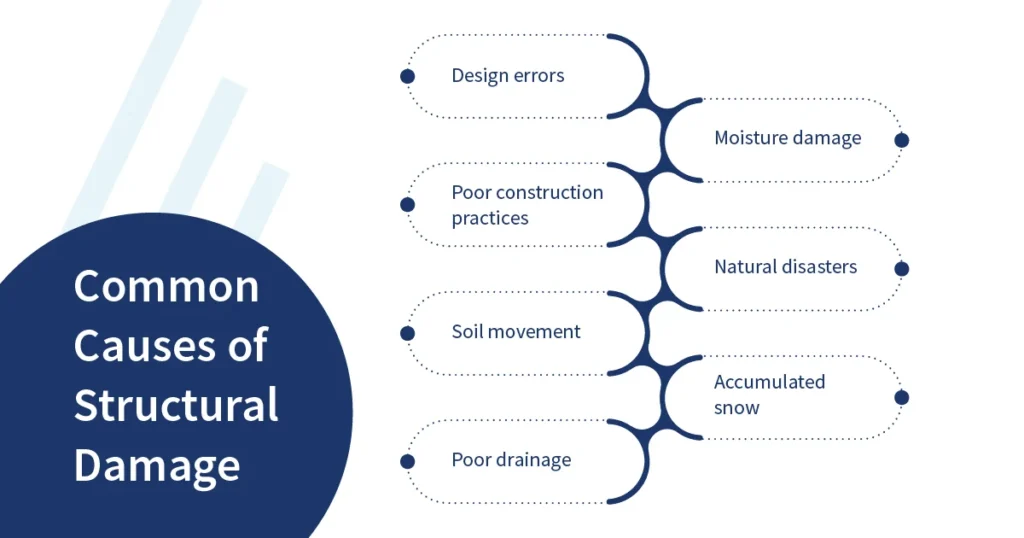

Common Causes of Structural Damage

A handful of root causes explain most structural problems. Design and construction defects are certainly amongst the common ones. Engineers must also consider environmental impacts.

Design defects occur when loads are calculated inaccurately or connections are not detailed properly. A beam designed with insufficient strength can crack during normal operation. Similarly, construction defects occur when construction workers miss reinforcing rods or use too much water for pouring concrete.

Soil movement and poor drainage affect the foundation. Expansive soil tends to swell when wet and shrink when dry. In addition, poor drainage means that water accumulates at the footings. This causes the soil to lose its ability to bear weight. In this case, foundation movement results in the tilting of the walls and cracking of slabs.

Moisture affects wood members and reinforcing steel. Moisture that gets into cracks in the concrete affects the steel reinforcement present in the concrete. The expansion of rust further damages the concrete.

Disasters bring about unexpected loads. Earthquakes, floods, high wind, and hurricanes place loads on structures beyond design limits. The accumulation of snow places loads on the roof and causes severe damage and collapses.

Multiple causes often combine. However, a minor design deviation or gap can grow dangerous after prolonged moisture exposure.

Structural Failure Analysis Process

Structural failure analysis follows a set of phases, and teams carry them out in sequence. Most teams that neglect a particular phase fail to get to the bottom of things.

1. Initially, the scope of work has to be defined by specifying the problem to solve—for example, is the building safe for occupation?
2. Next comes gathering documents such as plans, specifications, calculations, inspection reports, and maintenance records.
3. Then, surveying the building to map cracks, deflections, water infiltration, and shifted structural elements.
4. Testing and analysis by sampling and coring concrete and steel, and measuring displacements.
5. Analyzing the structure by creating its model and checking the structural capacity against applied loads.
6. Next, determining the failure mechanism by correlating the pattern to a known mechanism.
7. Establishing the root cause by distinguishing cause from symptom.
8. Making recommendations for repairing the structure, both temporarily and permanently, as well as any occupancy restrictions.
9. And finally, checking the effectiveness of the proposed solution.

Teams must communicate the findings clearly. The conclusions in the report must include the mode of failure, the cause of failure, evidence, and the action recommended. Besides, the owner of the building, insurers, and building authorities depend on this report. Engineers must therefore specify the limitations of their conclusions since other variables can affect the conclusion.

Timelines differ immensely depending on the complexity of the structure. Cracking of simple structures may take a few days to assess. Collapses take months of investigation. However, engaging early saves time since evidence will be gathered promptly.

There are several team members who contribute to every stage of the process. The structural engineer is responsible for the assessment process. The contractor offers construction details of the building, while materials testing labs supply test results. Facility managers offer a maintenance history of the building. Thus, coordination of all these ensures proper scheduling of the investigation.

It guarantees safety and cost-effectiveness throughout the process. At the same time, it offers legal proof to the owner.

Warning Signs of Structural Problems

Symptoms will appear well before a failure happens. Homeowners and building managers must be aware of such signs. Hairline cracks in plaster or concrete are usual. Most hairline cracks are aesthetic. But structural cracks larger than a quarter inch or expanding cracks require professional inspection.

Diagonal cracks above doors and windows signify settlement. Sagging floors are an indication of excess loads or weakening of support beams. Uneven floors also signify shifting of the foundation. Likewise, leaning and bowing of walls suggest soil pressures or insufficient bracing. External walls and retaining walls require special consideration.

Look for wet soil and sagging joists in the crawl space. Also observe any stuck doors or windows that do not close. Thus, these symptoms will signify shifting of the building’s structure. The lower levels will exhibit such signs first because they are the ones carrying the most loads.

Report these signs to a qualified professional to avoid major problems. Finally, document these symptoms along with the corresponding dates and photographs.

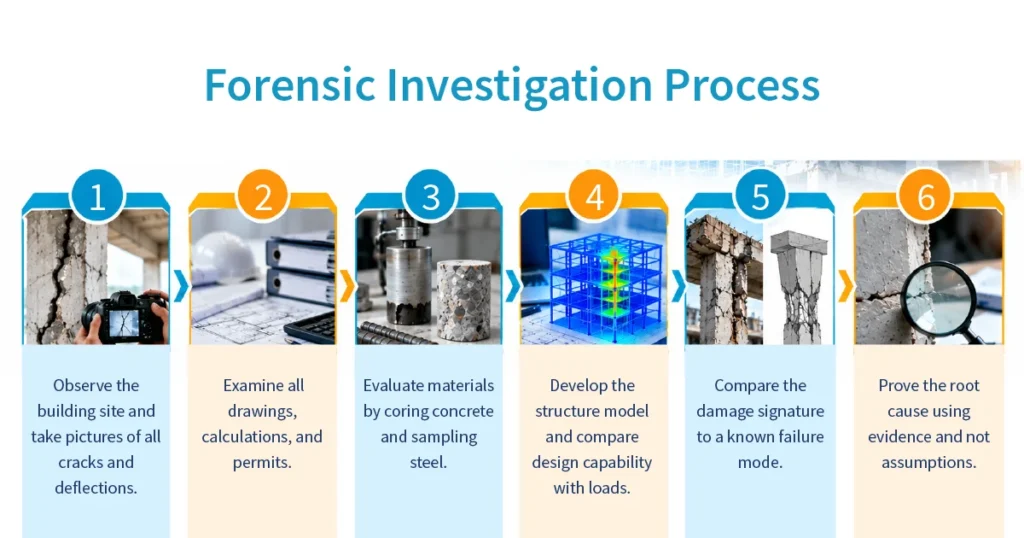

Forensic Investigation Process

Forensic investigations use a repetitive process. A forensic investigator progresses from observation to root cause determination. Each stage reduces the possibilities for the answer.

1. Observe the building site and take pictures of all cracks and deflections.
2. Examine all drawings, calculations, and permits.
3. Evaluate materials by coring concrete and sampling steel.
4. Develop the structure model and compare design capability with loads.
5. Compare the damage signature to a known failure mode.
6. Prove the root cause using evidence and not assumptions.

The following table provides some of the data sources and their uses.

Moreover, monitoring provides time-based data. Crack monitoring and settlement sensors provide time series of movements over several weeks. This determines whether the situation is static or dynamic.

Illustrative Case Study: Sagging Floors on the Fifth Floor

The following case study is hypothetical rather than a real-life one. An office building five stories high has problems with sagging floors on the fifth floor. The inhabitants complain about irregular floors and cracks around the perimeter columns. The owner hires a structural engineer. First of all, he takes a walk around the site. The engineer documents all cracks with photographs, while a laser level documents the elevations.

Concrete cores are taken from the floor. Since the strength of the cores meets the specified requirement, the concrete is good. The GPR survey shows a smaller amount of reinforcement bars at the surface in comparison with the drawings. Snow records also show an unusually heavy winter. Accumulated snow adds a certain amount of load to the upper floors.

The engineer performs a punching shear analysis on all columns. The analysis indicates that the model shows shear greater than the design capacity at one of the connections due to snow and live loads.

The underlying problem occurs due to faulty design coupled with poor construction methods. Design had more top steel as compared to what was actually put in place. The effect of this was that the connection did not have sufficient capacity as intended by the engineer.

The engineer instructed the crew to install temporary shoring beneath the bay. Next, the owner limits access to the fifth floor. The contractor then installs shear reinforcement at all connections. The engineer monitors deflection every month for six months.

Overall, the repairs took eight weeks. A registered professional engineer reviewed the structural drawings. This proved to be very expensive; it cost several times more than what would have been paid for proper detailing of the structure. Early detection prevented damage. Otherwise, ignored sagging floors could have led to severe failures and progressive collapses. However, the owner now provides for regular structural monitoring.

Software and Tools for Failure Analysis

Structural engineers utilize various software programs for their investigation. These programs cater to different phases of the investigation process. Below is a tabular presentation of popular software choices.

Engineers must calibrate these models with field data. If not, then the results will mislead the investigation process. This is because using the wrong concrete strength provides an incorrect capacity evaluation. Ultimately, the investigation combines results from the software with field data.

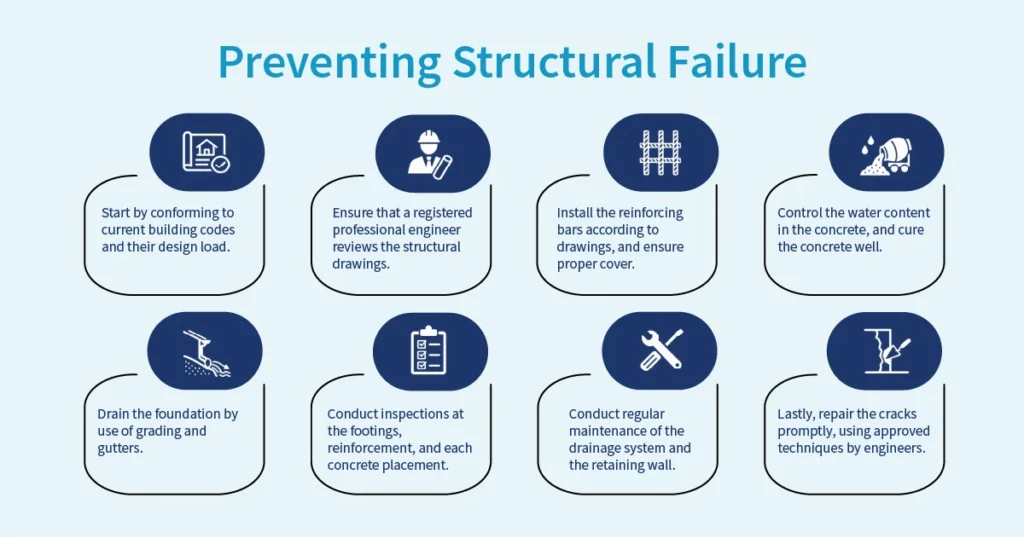

Preventing Structural Failure

In the end, preventing damage is cheaper than repairing it. It begins with good design practices, which conform to applicable building codes.

1. Start by conforming to current building codes and their design load.
2. Ensure that a registered professional engineer reviews the structural drawings.
3. Install the reinforcing bars according to drawings, and ensure proper cover.
4. Control the water content in the concrete, and cure the concrete well.
5. Drain the foundation by use of grading and gutters.
6. Conduct inspections at the footings, reinforcement, and each concrete placement.
7. Conduct regular maintenance of the drainage system and the retaining wall.
8. Lastly, repair the cracks promptly, using approved techniques by engineers.

Furthermore, the owner will find it beneficial to have a maintenance plan. Conduct annual inspections of the building. Maintain a record of cracks, moisture incidents, and repairs.

FAQs

What is structural failure analysis?

Structural failure analysis is a method to find the reason why a structure fails to function. This involves collecting information, testing materials and loads, then finding the root cause.

What is the difference between failure mode and root cause?

The failure mode indicates how a structure fails, for instance by shear and punching shear failure. The root cause explains the reason for failure. For instance, missing top reinforcement can lead to punching shear failure.

What is meant by structural integrity in structural failure analysis?

Structural integrity is a structure’s ability to withstand its intended load without fracture, deformation, or fatigue. Engineers assess it to find why a structure fails. Fracture is sudden breaking, deformation is permanent bending, and fatigue is repeated-load cracking. Engineers protect integrity through sound design, quality construction, and regular inspection.

Which software can be used for structural failure analysis?

The software that can be used for structural failure analysis include ETABS, SAP2000, RAM Concept, Abaqus and PLAXIS. Different software serves different failure mode problems. Hence, engineers select software based on the failure mode.

Which codes and standards govern structural failure analysis?

Engineers rely on the International Building Code, which adopts ACI 318 for concrete design. ASCE 41 guides seismic evaluation and retrofit of existing buildings. Forensic teams also study NIST’s World Trade Center reports to understand how one failure spreads through a structure. Local amendments may add requirements, so confirm them with the building department.

Under what circumstances should an owner contact a structural engineer?

The owner should contact an engineer in case of widening cracks, sloping floors, or bulging walls. Also, immediate contact is needed when doors or windows no longer close after any movement.
