What is the difference between scan to BIM and CAD to BIM?

The construction industry has come to a stage where most projects embrace digital methodologies such as Scan to BIM and CAD to BIM.

Organizations across the globe are showing heavy interest in paperless workflows, automation, and AI integration in the AEC industry.

Amongst this, are these both technologies that form the basis of digital construction workflows. Scan to BIM and CAD to BIM are used at different stages in a project.

These BIM services serve different purposes across various industries, helping professionals achieve clarity and visualize better. Before we get into their differences, let’s start with understanding digital construction with a few basics.

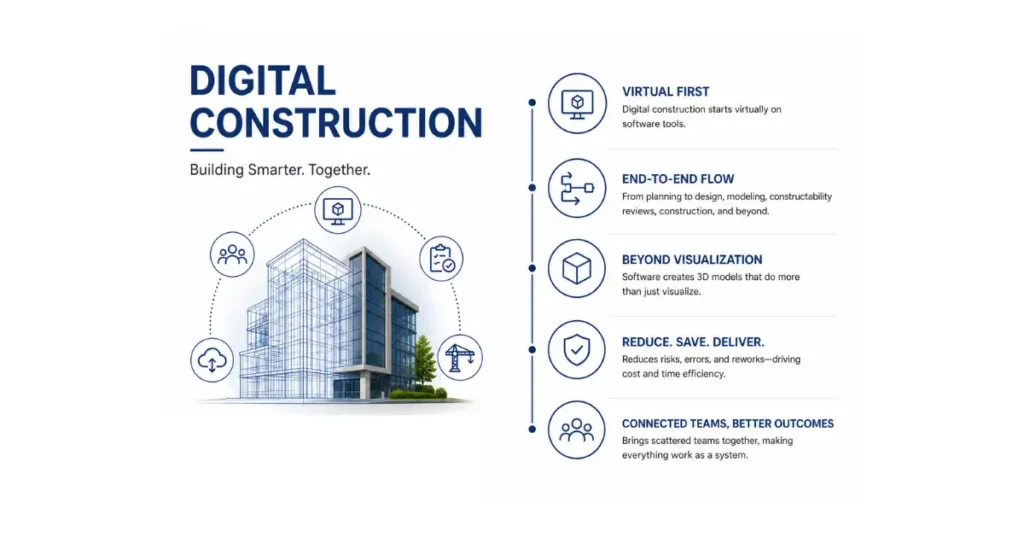

Introduction to Digital Construction

Digital construction is the approach to building, where everything is done virtually first on software tools.

It starts with the planning stage, and gradually flows into designing, modeling, constructability reviews, construction, and much more.

Engineering firms use software to virtually create 3D models of a structure. While it is obvious to think that it is for better visualization, digital construction is much more.

It is a way to reduce risks, errors, and reworks, thereby contributing to cost and time efficiency, which was not possible with traditional methods.

The process brings scattered teams together, making everything work as a system. Scan to BIM and CAD to BIM are also part of that process.

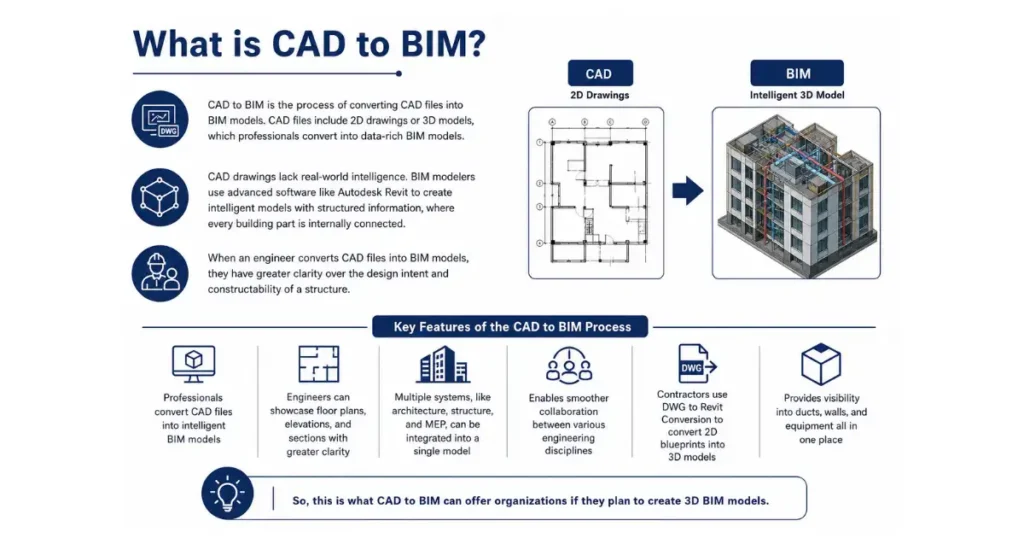

What is CAD to BIM

CAD to BIM is the process of converting CAD files into BIM models.

CAD files either include 2D drawings or 3D models, which professionals convert into data-rich BIM models.

This is done because CAD drawings lack real-world intelligence. For example, a road plan is shown using lines, and drainage is shown as symbols.

BIM modelers use advanced software like Autodesk Revit to create intelligent models. This model holds structured information, and every building part is internally connected.

When an engineer converts CAD files into BIM models, they have greater clarity over the design intent and constructability of a structure.

Key features of the CAD to BIM process:

• Professionals convert CAD files into intelligent BIM models
• Engineers can showcase floor plans, elevations, and sections with greater clarity
• Multiple systems, like architecture, structure, and MEP, can be integrated into a single model
• Enables smoother collaboration between various engineering disciplines

Usually, contractors use DWG to Revit Conversion to convert 2D blueprints into 3D models. This gives them visibility into ducts, walls, and equipment all in one place.

So, this is what CAD to BIM can offer organizations if they plan to create 3D BIM models.

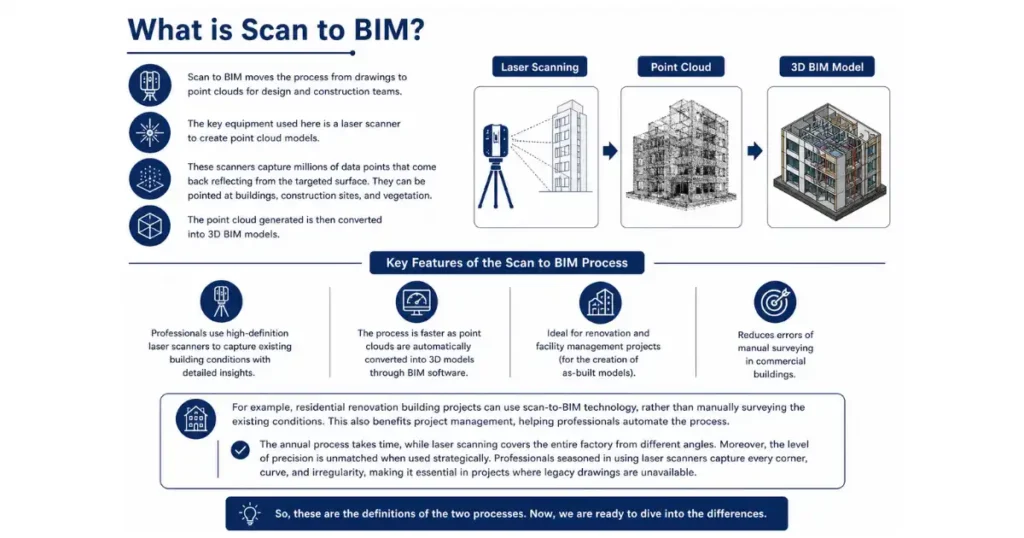

What is Scan to BIM

Scan to BIM moves the process from drawings to point clouds for design and construction teams.

The key equipment used here is a laser scanner to create point cloud models.

These scanners capture millions of data points that come back reflecting from the targeted surface. They can be pointed at buildings, construction sites, and vegetation.

The point cloud generated is then converted into 3D BIM models.

Key Features of the Scan to BIM process:

• Professionals use high-definition laser scanners to capture existing building conditions with detailed insights.
• The process is faster as point clouds are automatically converted into 3D models through BIM software.
• Ideal for renovation and facility management projects (for the creation of as-built models).
• Reduces errors of manual surveying in commercial buildings.

For example, residential renovation building projects can use scan-to-BIM technology, rather than manually surveying the existing conditions. This also benefits project management, helping professionals automate the process.

The annual process takes time, while laser scanning covers the entire factory from different angles. Moreover, the level of precision is unmatched when used strategically. Professionals seasoned in using laser scanners capture every corner, curve, and irregularity, making it essential in projects where legacy drawings are unavailable.

So, these are the definitions of the two processes. Now, we are ready to dive into the differences.

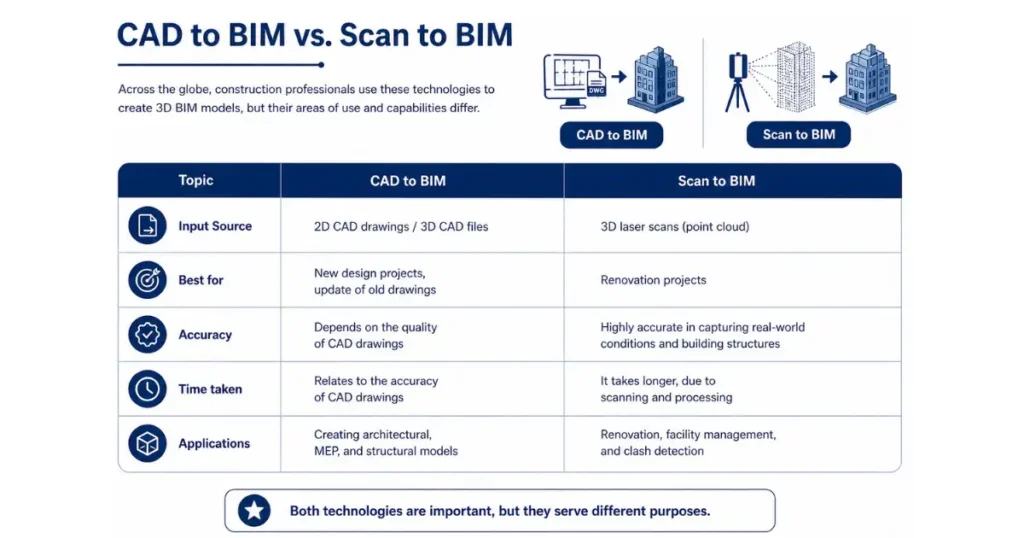

CAD to BIM and Scan to BIM Differences

Across the globe, seasoned construction professionals use the tech to create 3D BIM models, but their areas of use and capabilities differ.

Both technologies are important, but they serve different purposes.

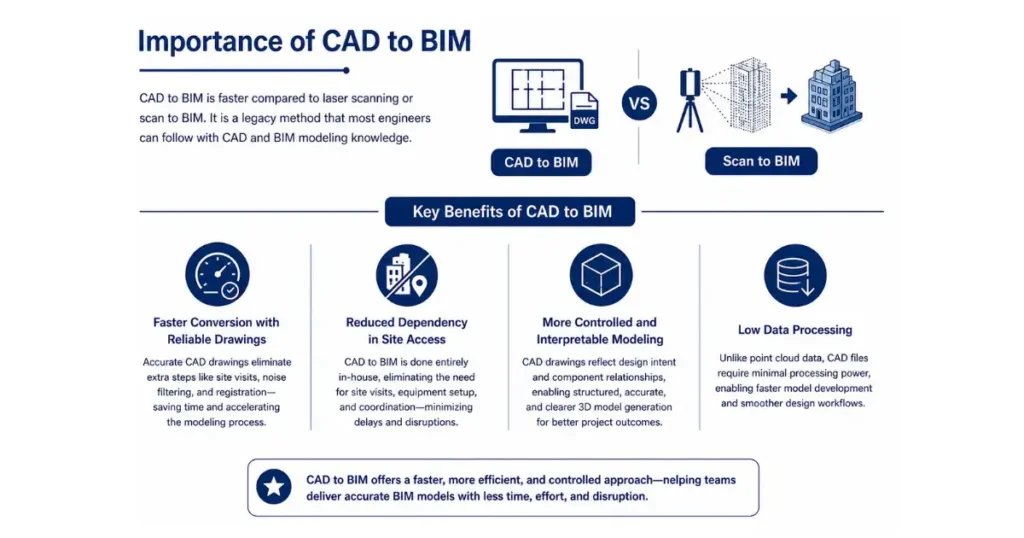

Importance of CAD to BIM

CAD to BIM is faster compared to laser scanning or scan to BIM. For CAD users, it has been a legacy method; professionals have been practicing to transfer to BIM workflows. It is the most suitable approach that almost every engineer can follow with knowledge of CAD and BIM modeling.

Here are its benefits:

• Faster conversion with reliable drawings: In the process of converting legacy drawings into 3D models. It eliminates the additional steps required in scan to BIM, such as site visits, noise filtering, and registration. Instead, if the as-built CAD documentation is accurate and reliable, it consumes significantly less time and accelerates the modeling process.
• Reduced Dependency in Site Access: While laser scanning inherently requires site visits and setting up of cameras, CAD to BIM is completely done in-house. Further, coordination at the construction phase with ground teams also consumes a significant amount of time. Hence, the CAD to BIM process also eliminates ongoing operation disruptions caused by such activities.
• More Controlled and Interpretable Modeling: With laser scanning, the design intent is not truly interpreted. On CAD drawings created through manual drafting, where design intent and component relationships are clearly visible, laser scanning shows just what exists. CAD to BIM eliminates this bottleneck, providing a structured design idea. This leads to clearer model generation with defined geometry required in contemporary BIM projects.
• Low Data Processing: Between scan to BIM and CAD to BIM, the latter takes much more processing power to handle heavy point cloud data. However, the CAD models avoid this entirely, helping organizations achieve faster model development cycles and the design phase.

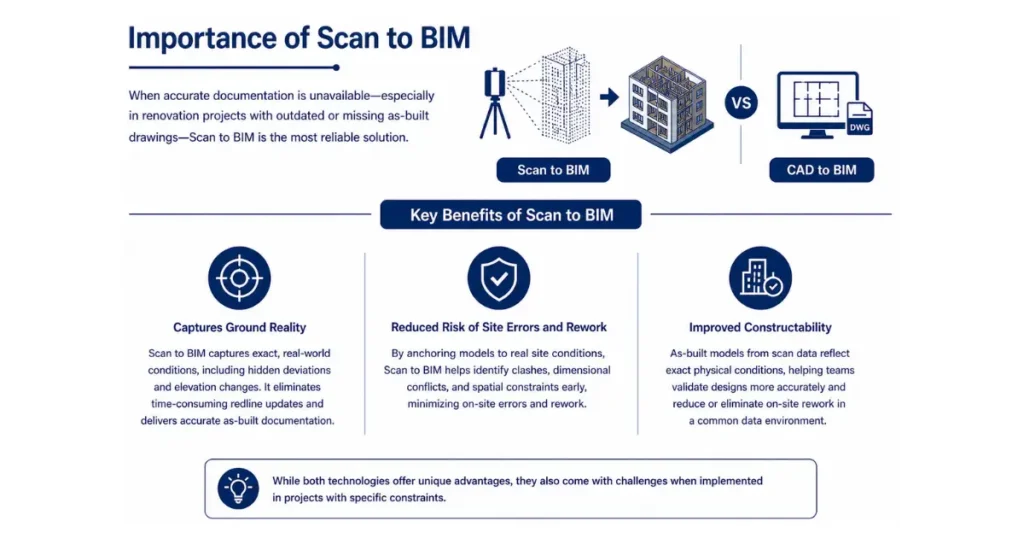

Importance of Scan to BIM

This process becomes the savior when appropriate documentation is not available. It happens in most of the renovation cases, where as-built CAD documentations are not updated. In such cases, scan to BIM is the one and only approach that professionals choose.

Here are its benefits:

• Captures Ground Reality: Over the years of operation, buildings undergo modifications. Traditional CAD programs fail to reflect these changes required for accurate as-built modeling. Updating these drawings with redline markups requires an intensive to-and-fro process between the contractor and modeling organization. Hence, scan to BIM is the most logical approach here, which saves time and resources. It captures the exact, realistic dimensions of the building, where hidden deviations and documented elevation changes become visible, leading to detailed documentation.
• Reduced Risk of Site Errors and Rework: Scan to BIM enables models to anchor with actual site conditions. Hence, on-site issues like dimensional conflicts and spatial constraints are eliminated in the model itself before construction begins. Also, when site conditions are reflected thoroughly in the model, clash detection is possible in the early design process.
• Improved Constructability: The as-built model prepared from scan to BIM data reflects the exact physical conditions for any construction project. This makes it easy for teams to validate design more accurately, aiming to reduce and even eliminate on-site reworks in a common data environment.

With these benefits also come the challenges of implementing both technologies on projects with specific constraints.

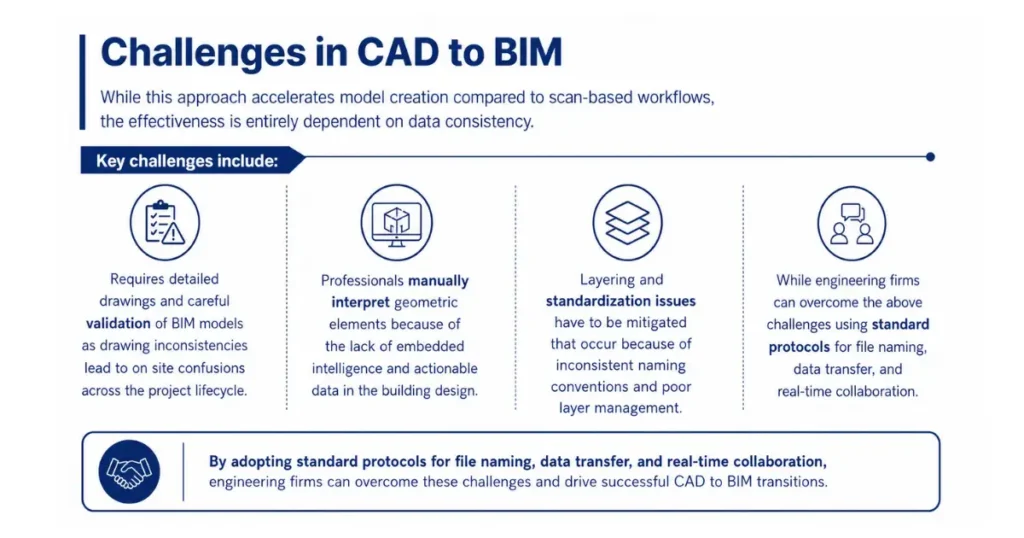

Challenges in CAD to BIM

While this approach accelerates model creation compared to scan-based workflows, the effectiveness is entirely dependent on data consistency.

Key challenges include:

• Requires detailed drawings and careful validation of BIM models as drawing inconsistencies lead to on site confusions across the project lifecycle.
• Professionals manually interpret geometric elements because of the lack of embedded intelligence and actionable data in the building design.
• Layering and standardization issues have to be mitigated that occur because of inconsistent naming conventions and poor layer management.

While engineering firms can overcome the above challenges using standard protocols for file naming, data transfer, and real-time collaboration.

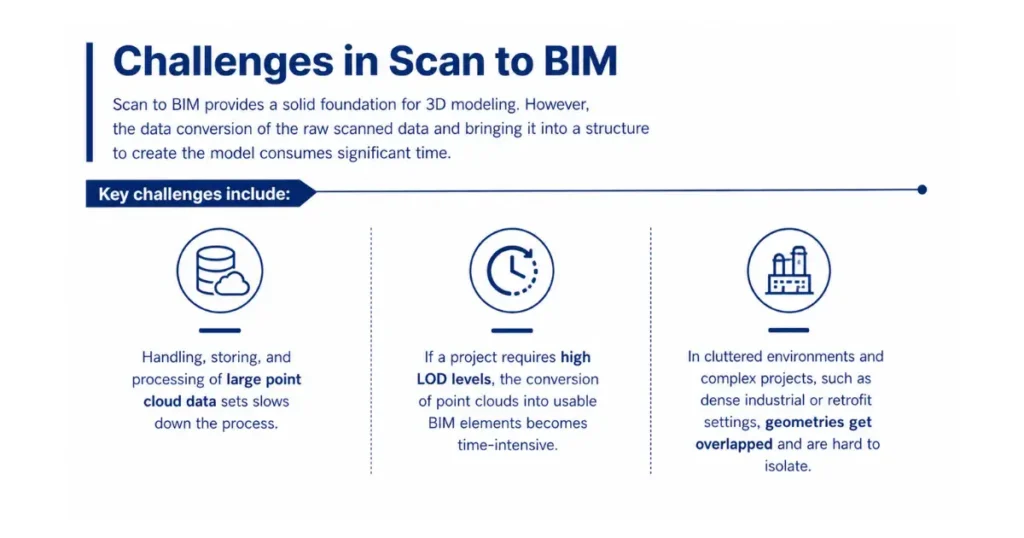

Challenges in Scan to BIM

Scan to BIM provides a solid foundation for 3D modeling. However, the data conversion of the raw scanned data and bringing it into a structure to create the model consumes significant time.

Key challenges include:

• While scan to BIM offers accurate modeling scopes, the handling, storing, and processing of large point cloud data sets slows down the process.
• If a project requires high LOD levels, the conversion of point clouds into usable BIM elements becomes time-intensive.
• In a cluttered environment and complex projects, such as dense industrial or retrofit settings, geometries get overlapped and become hard to isolate.

To overcome these challenges, organizations need to have seasoned BIM modelers in such projects. They should have the required expertise to handle large projects. Further, high-end hardware and software resources are also essential.

Final Thoughts

Both Scan to BIM and CAD to BIM deliver good ROI when implemented strategically. They serve different purposes based on the project requirements. While scan to BIM is costlier than CAD to BIM, it gives a more solid foundation for clash detection and coordination. However, in projects with tight budgets, CAD conversion is the preferred option for construction teams.
