Turning real-world objects into digital files has always been a useful technology for the construction industry.
We know about laser 3d scanning or LiDAR technology, used to create digital point clouds of a building or terrain.
The point clouds together form a detailed framework of a structure or landscape.
Photogrammetry is widely used in surveying, archaeology, engineering, visual effects, and more.
This structure is then converted into 3D models through modeling software.
There are other approaches as well, where, instead of point cloud data, images of the object are used.
This is what the fundamental approach behind photogrammetry lies.

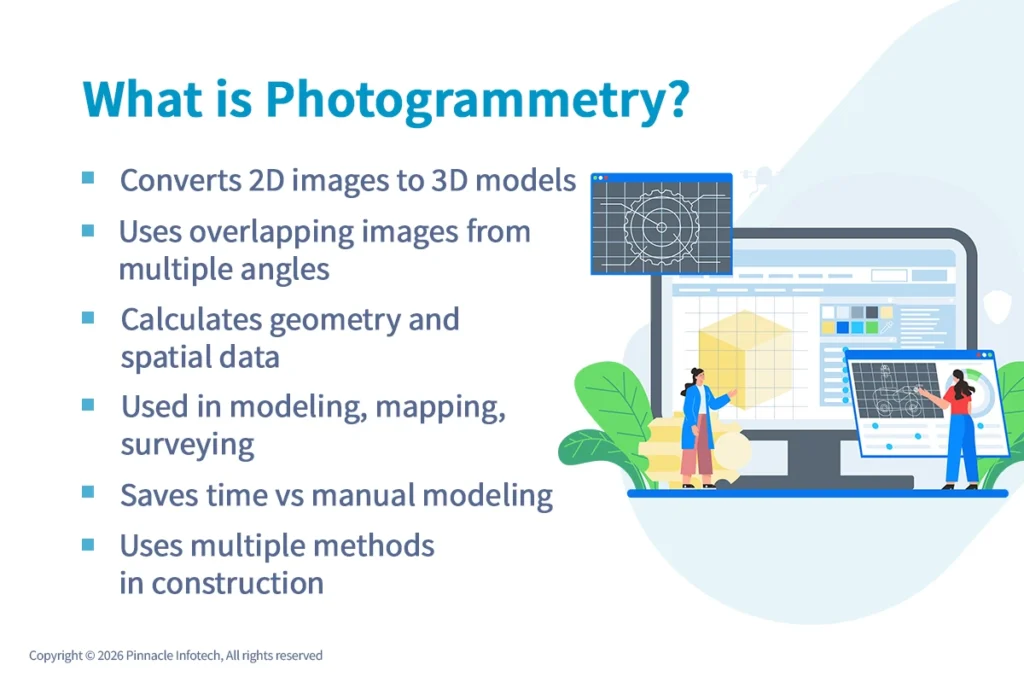

It is the process through which 2D images of an object are converted into a detailed 3D mesh and then into models.
Multiple overlapping images of the object or a terrain are taken ingeniously from different angles and combined in photogrammetry software.
The software analyzes and calculates the spatial positions, dimensions, and geometry of objects for accurate alignment. The technology is applicable to creating 3D models, mapping/surveying, and geometry.
Photogrammetry often integrates high-resolution hardware with sophisticated computer vision algorithms.
Design architects and engineers use these methods to save time, as creating 3D models from scratch takes up a significant amount of resources.
Hence, using photogrammetry software, they can easily turn high-quality 2D images into 3D representations.

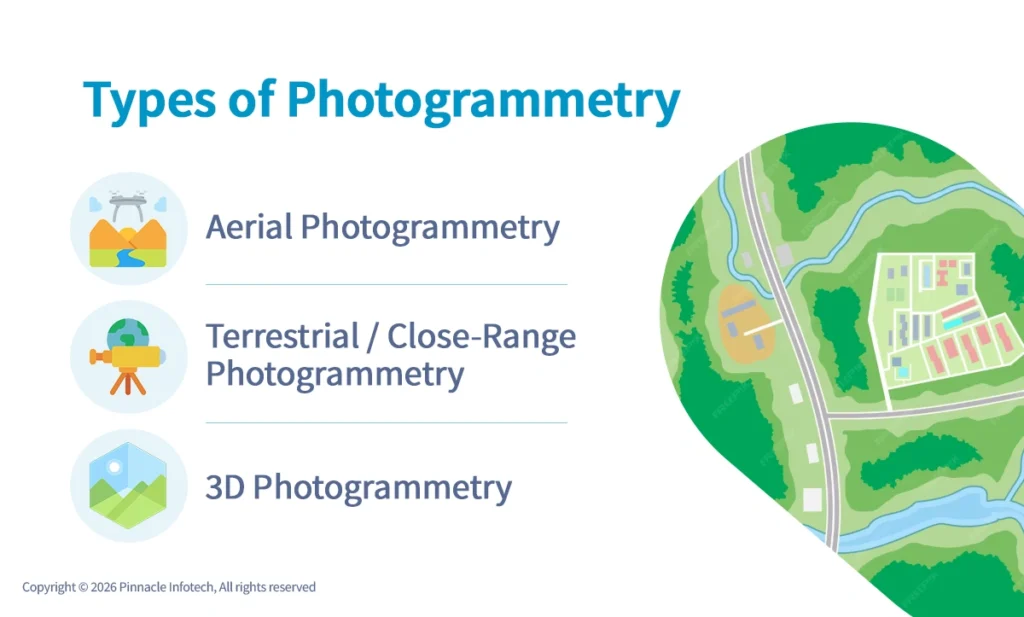

Now, there are different kinds of photogrammetry processes; however, a combination of a few of those methods is used in construction.
In construction, engineers use a combination of aerial capture, close-range documentation, and 3D reconstruction techniques for intelligent project delivery. Digital Single-Lens Reflex (DSLR) cameras, mirrorless cameras, and high-quality smartphone cameras are commonly used for photogrammetry.
This type of photogrammetry uses drones to map large construction sites and the earth's surface.
Construction professionals use this in site surveys, topography, earthwork tracking, and progress monitoring. Specialized cameras with calibrated lenses are used for high-precision photogrammetry.
This method has been in widespread use, as it offers fast coverage, enables regular updates, and does not create any disruption in the site work.
In large infrastructure projects, this process fits perfectly into the pre-construction planning and site monitoring.
This process focuses on capturing images using handheld or tripod-mounted cameras.
Compared to the aerial process, here professionals take images that capture detailed ground features.
Aerial photogrammetry provides a comprehensive view of the site. The close-range one provides far more accurate details, and hence is used for facade capture, structural elements, and interior documentation.
It shows the as-built conditions of the structure. Hence, it is widely used for quality assurance, retrofit projects, where existing building conditions drive the renovations downstream, and in facade engineering.
Terrestrial/Close-Range photogrammetry uses handheld or tripod-mounted cameras for detailed imaging of small objects or scenes.
This is the final process where the captured overlapping images are used to generate 3D models.
3D photogrammetry becomes valuable when contractors require specialized reality capture of spatial data, 3D modeling of existing buildings or terrain, and point cloud generation.
This conversion stage is the backbone of photogrammetry in construction. Since digital construction techniques have allowed users to work on 3D models rather than 2D drawings.
It also helps heavily in digital twin creation, which is foundational for modern building maintenance and operations.

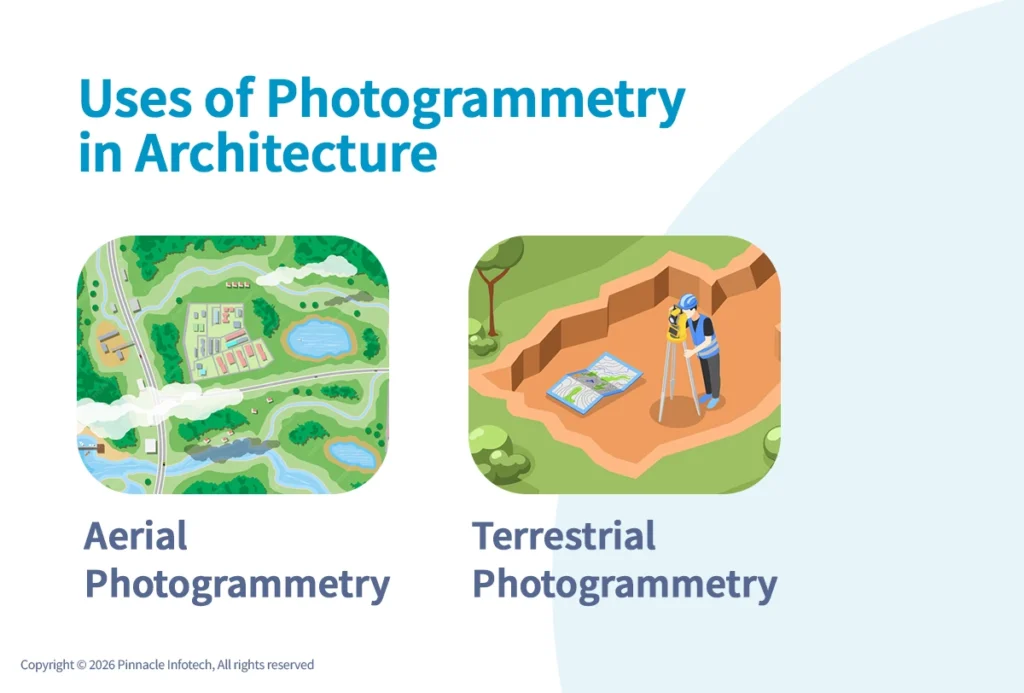

Now, let’s look at the uses of Photogrammetry in detail in construction.
Design architects deliberately use the photogrammetry process, considering the project's scope in the first place.
Depending on the required level of detail, they choose between aerial and terrestrial or close-range photogrammetry.
While the process is very effective in having a comprehensive view of the site or building, it lacks in detail.
Aerial photogrammetry is a crucial tool for data collection in remote or hard-to-reach locations, making it valuable in environmental monitoring and disaster response.
This makes it unreliable for capturing intricate architectural details required to survey large topographical sites.
And, as projects grow in complexity, surveys would detail 3D models of vast terrains. So, aerial photographs are often combined with ground-based laser scanning to get the best outcomes.
It is a hybrid approach that is common in, for example, skyscraper construction, which are high-risk projects. Here, this approach increases the accuracy levels of the federated 3D models and 2D shop drawings.
Terrestrial photogrammetry takes longer because the process uses handheld tripod-mounted cameras.
Professionals take inch-level details of a terrain or building, capturing intricate details at a ground level. The process is suitable for generating photorealistic 3D meshes (the primary requirement for retrofit projects), which gives architects visibility into building interiors, architectural details, and specific objects.
For elevations and interior wall orthophotos, this terrestrial photogrammetry provides high-resolution outcomes.
Close-range photogrammetry is ideal for capturing detailed 3D information from subjects near the camera, such as archaeological artifacts.

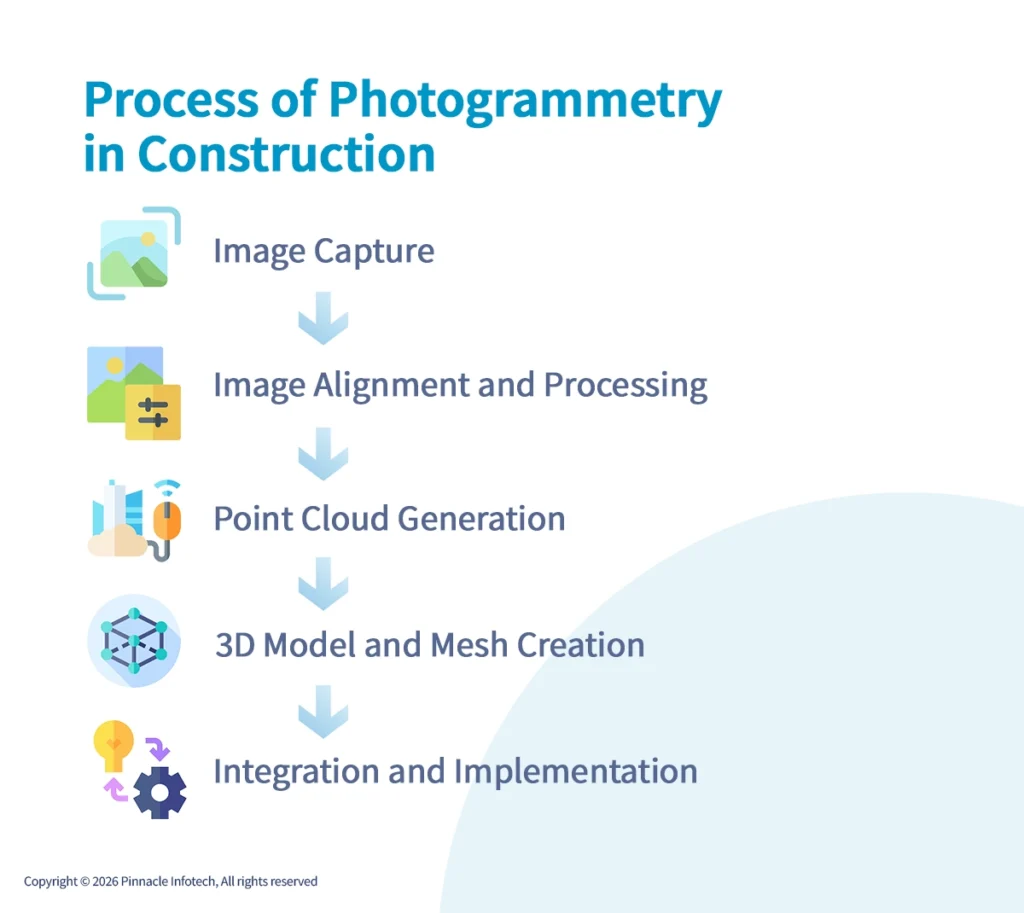

Photogrammetry in construction is used deftly, following a structured process which starts from data acquisition to implementation.
While it may look that photogrammetry is just taking multiple photos from different angles, and aligning them to create comprehensive views. However, in the construction industry, professionals convert imagery into accurate and measurable digital data that drives major decisions downstream.
If data acquisition sounded like marketing terminology above, here data is captured in the form of images from different points. Here, camera calibration is necessary to ensure accurate 3D reconstruction in photogrammetry.
In modern AECO projects, professionals combine both aerial and terrestrial methods, i.e., they use drones, handheld cameras, and even mobile devices. The cameras take multiple overlapping individual images to get a complete coverage of the object. Deleting blurry images before processing can enhance the quality of the final 3D model.
Here, specialized personnel execute this process, as the pictures need to be consistent, maintaining specific angles. Only that will provide accurate output, whether it is of a large infrastructure or building facade.
The multiple images taken are now faded to specialized software, for example, Agisoft Metashape and Pix4D.
The software now identifies common points across all the images and aligns them to form the 3D geometry of the object. The better the alignment, the output will have much more accurate details.
The image alignment software generates a dense point cloud structure.
The system combines millions of data points to intricately represent every single detail of the object. The point could be the basis of the digital replica, on which all the tasks downstream will depend.
It replicates the real-world conditions, which enables professionals to make informed decisions that reduce rework and enhance efficiency of the construction process.
Using software applications, engineers convert the point cloud structure into a 3D mesh or surface model.
When millions of points connect to form a continuous geometry, it further enhances the high-resolution of textures mapped from original images. Photogrammetry is often more accessible and cost-effective than 3D scanning, as it can be done with a standard camera or smartphone.
This gives a photorealistic and dimensionally accurate representation of the architecture, structure, or interior of buildings. The most valuable feature of this process is that the model generated is a parametric one, even for small objects.
It provides precise surface measurements, volumetric analysis, and geometry extraction. The model, hence, allows clash detection, design validation, and tolerance analysis at this stage.
Now, the process gets to the last stage, where professionals integrate the processed outputs: point clouds, meshes, and textured models into Digital construction platforms like Autodesk Revit and clash detection tools like Navisworks represent this data for actionable insights.
The new design intent needs to be aligned with the existing real-world conditions before implementation. Becoming an active part of the project workflow, the model allows teams to perform an as-built vs. as-designed comparison.
With this approach, designers are able to identify deviations, misalignments, or missing coordination at an early stage.
Photogrammetry is truly valuable when all the steps above are executed in symphony. It gives actionable data, which can be used to make decisions that guide the design and coordination process further. In modern infrastructure construction, photogrammetry goes beyond capturing images and instead functions as a data-driven decision engine.
Now let’s look at the benefits of photogrammetry in construction.
At this point, we can say that photogrammetry is a perfect fit for retrofit projects. However, there are some core benefits of using this process. Here are those:
Photogrammetry enables professionals to create 3D models faster and more accurately. Combined with cloud-based services from premier providers, like Autodesk, engineers get to access a series of collaborative tools.
Everything gets processed remotely, and a cloud-based approach provides scalability. Also, as design reviews get more interactive with virtual reality and augmented reality, photogrammetry forms the basis of it.
This results in improved client satisfaction and smoother project flow, while maintaining the desired codes and standards.
As we mentioned earlier, when aerial and terrestrial photogrammetry are combined, it improves decision-making in city planning, agriculture, and land management. Photogrammetry improves decision-making in urban planning by enabling accurate, detailed mapping of terrain and structures.
For example, in the case of urban/city planning, the software enables accurate and detailed mapping of the complete terrain. This gives engineers a profound understanding, helping them divide the land into distinct areas.
They can assess the development and sustainability factors of infrastructure for every area of that land, helping the formation of smarter cities.
In the case of agricultural lands, the process gets to another level, where it facilitates a wide range of critical analysis, such as crop health, soil conditions, and land topography. It enables precision crop planting, growing, maintenance, and harvesting by providing the above dataset.
While terrestrial or ground-based photogrammetry is useful, in some cases it fails to catch up.
In remote or hard-to-reach areas, aerial photogrammetry is used to collect critical data for analysis and modeling.
Often, vast and inaccessible terrains are captured by installing high-performance cameras on drones or aircraft. This gives a bird’s-eye view for comprehensive mapping and analysis, which is required for 3D modeling and spatial mapping.
This is used in areas where the landscape is extremely uneven, dense forests, or disaster-affected areas.
Despite the type of photogrammetry you use, the most defining factor is the software application used for processing. While there are many in the market, here are the top 10 for you to choose from.
The software you use executes the most critical step in the whole process. After you have taken high-resolution pictures, covering every angle possible, it is the software that will intelligently identify the overlaying points and create an accurate 3D geometry of the real-world object. The most common software suites for photogrammetry include RealityCapture, Agisoft Metashape, PIX4D, and AliceVision Meshroom.
So, let’s start with
This is a professional-grade advanced software built for a range of industries that use photogrammetry. In construction, professionals use it to generate highly precise 3D models and digital elevation models from 2D images. It works on datasets generated by drones, cameras, and point-cloud scanners. The software is also a preferred choice for firms working on large infrastructure projects where it processes large datasets to generate dense point clouds, 3D meshes, and detailed terrain texture maps.
Pros
Cons
Pricing
One-time License: Standard Edition requires $169
Professional edition requires $3,370
This product from Autodesk is a benchmark solution for the AECO industry. It allows designers to craft high-quality 3D models from images of real-world objects.
Further, the branding of Autodesk gives you the credibility of using industry-grade software to convert aerial photography.
Autodesk ReCap is a reality capture software that allows users to create accurate 3D models and access advanced photogrammetry features.
In mega infrastructure projects, often multiple firms work together on various aspects of a project with multidisciplinary teams.
Here, Autodesk, being a big player in the industry, is used by most organizations, such as Revit, Navisworks, etc. Here, if you use ReCap Pro, you get the benefit of seamless collaboration, data consistency, and uninterrupted workflows.
The pricing comes according to Autodesk’s standard format, that are:
Annual: $405/user
Monthly: $50/user
Flex: $300/100 tokens (also required with the annual plan to access additional features)
Reality Capture is a paid photogrammetry software that claims to be ten times faster than other solutions and supports various file formats.
From point clouds or captured images, this software accurately reconstructs them into 3D models, textured meshes, orthophotos, and point cloud photographs.
The tool finds wide use in cultural heritage preservation, where intricate details are required to capture the existing conditions and plan the project accordingly.
The most interesting fact is that after Epic Games acquired this in 2023, they made it completely free for all users, including commercial use. This gives small scale firms the leverage to use an industry-grade software without directly investing in it.
However, insistent requirements are required for high-end hardware and servers to process the data.
This free software is also a leading one, in the market with its standout feature: An Interactive rayCloud environment, which is useful for 3D point cloud editing and precise tie-point measurement.
It converts overlapping images into accurate 2D orthomosaics for interiors and 3D models. The software is ideal for geospatial analysis, as it supports sensors and workflows, including nadir, oblique, and multispectral imagery.
Using it, organizations can directly perform quality checks on the digital form, without switching the platform, with its in-built quality control tools.
Ground Control Points (GCPs) provide known GPS coordinates used in photogrammetry to achieve accurate scaling.
This Windows-based software, developed by 3Dflow, is known for being an all-in-one solution.
The software supports aerial, close-range, and laser scanning, and features an intuitive Project Wizard. 3DF Zephyr offers a free version designed for beginners, providing essential 3D reconstruction tools.
This makes it user-friendly for beginners, and simultaneously provides advanced tools for experts. It also supports multi-GPU processing, which is essential for high accuracy in large projects. IT also seamlessly handles inputs from the vast majority of camera types, including video files and reliable measurements.
There is a free version of this software, which supports processing up to 50 images, making it suitable for small-scale projects.
Free version: 50 images max
Lite Version: 199 Euros
Monthly Version: 250 Euros
Pro Version: Euro 4200
All the above plans, except the monthly one, are based on perpetual licenses.
Developed by AliceVision, this is a free and open-source free photogrammetry software for reconstructing 3D models.It is capable of generating a final model from unstructured photos, with the help of its Structure-from-Motion (SfM) and Multi-View Stereo (MVS) pipelines.
The node-based graphical interface allows professionals to customize various workflows, including feature extraction, depth map computation, meshing, and texturing.
So, this was a list of sorted software, both free, paid, and perpetual license-based. Many large-scale firms also use two or more of these software in combination for better productivity and output.
As projects grow in complexity and scale, photogrammetry becomes a critical process. Particularly in retrofit projects, this is a fundamental approach that guides the complete project plan downstream. Further, in standard construction projects, geospatial analysis and surveying are critical for starting the project. With modern digital construction technology, the photogrammetry process will become more fluid and accurate.
