March 20, 2026
The industry usually defines a skyscraper building by its height.
For a long time, we have believed that height is the most defining factor of the world's tallest buildings.
But many are not aware of where all of this began, right?
So, the concept of skyscrapers began with the construction of the world's first tall building, the Home Insurance Building in Chicago.
However, as times move by, and concerns rise for more usability per square foot of land, skyscraper design is getting redefined.
Most existing skyscrapers, whether the Burj Khalifa or One World Trade Center, have much of their upper heights that are not habitable.
Professionals have increased their architectural height using a steel spire, and not floors.
And this scenario is changing at a snowballing rate across the AECO industry globally. The Council on Tall Buildings and Urban Habitat (CTBUH) standardizes all the criteria for tall buildings to be skyscrapers.
So, there is no perfect definition of what skyscrapers actually are.
But let’s understand what makes a building a skyscraper, and how it is classified into different types, and when it is considered a tall building?
So, we need to understand that tall buildings are not called skyscrapers.
It is sort of subjective to the region in which the building is actually situated. For example, a 10-storey building, which might be the tallest one in a town, will certainly get lost if put into the middle of Hong Kong or New York City.
Skyscrapers may host offices, hotels, residential spaces, and retail spaces. Most modern sources define skyscrapers as being at least 100 metres (330 ft) or 150 metres (490 ft) in height.
With modern engineering pushing boundaries further, the Petronas Twin Towers in Kuala Lumpur redefined structural height and innovation.
This brings us to the question of what it truly takes for a building to qualify as a skyscraper building?
True skyscrapers are those that stand without any external support or tension cables, and the term was originally applied to buildings of 10 to 20 stories.
They must be self -supporting, the habitable space for the building must occupy 50% of the building's total height, and true skyscrapers must rise to a minimum height of 150 metres (492 feet).
Hence, despite being the tallest tower in the world (634 meters), the Tokyo Skytree in Japan is not considered a “skyscraper”. The Canton tower in Guangzhou, China, is a twisted, lattice-like structure measuring 604 meters in height, but it does not qualify as a skyscraper.
The CTBUH specifies that a skyscraper must be above 150 meters tall, and at least 50% of its height should be habitable.
However, this exclusive criterion is changing with evolving engineering and construction techniques.
With modern digital construction technologies, engineering and construction are getting more precise and accurate. The range of risks associated with construction and post it, are now predictable.
Clash detection has become more fluid and accurate, while enhanced multi-disciplinary collaboration leads to proactive resolutions.

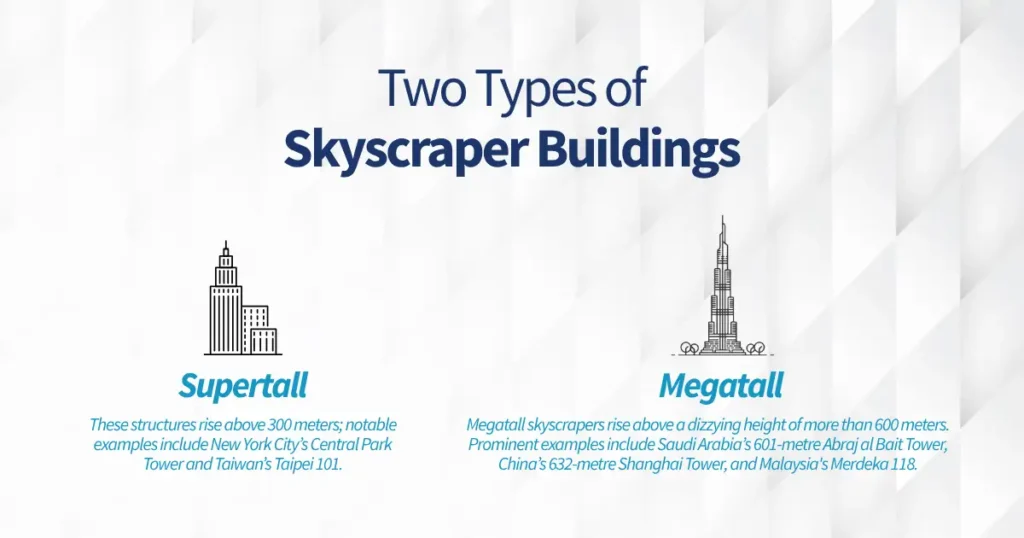

Amidst this changing landscape, the CTBUH created two additional categories:
Supertall: These structures rise above 300 meters; notable examples include New York City's Central Park Tower and Taiwan's Taipei 101.
Megatall: Megatall skyscrapers rise above a dizzying height of more than 600 meters. Prominent examples include Saudi Arabia’s 601-metre Abraj al Bait Tower, China’s 632-metre Shanghai Tower, and Malaysia's Merdeka 118.
Another type of skyscraper that is common are Art Deco Skyscrapers, such as the Chrysler Building and the Empire State Building.
Constructing these gigantic structures requires distinguished engineering principles and components of precision.
The modern world demands the maximum use of real estate in every square foot. Hence, skyscrapers are increasingly becoming the choice of infrastructure worldwide.

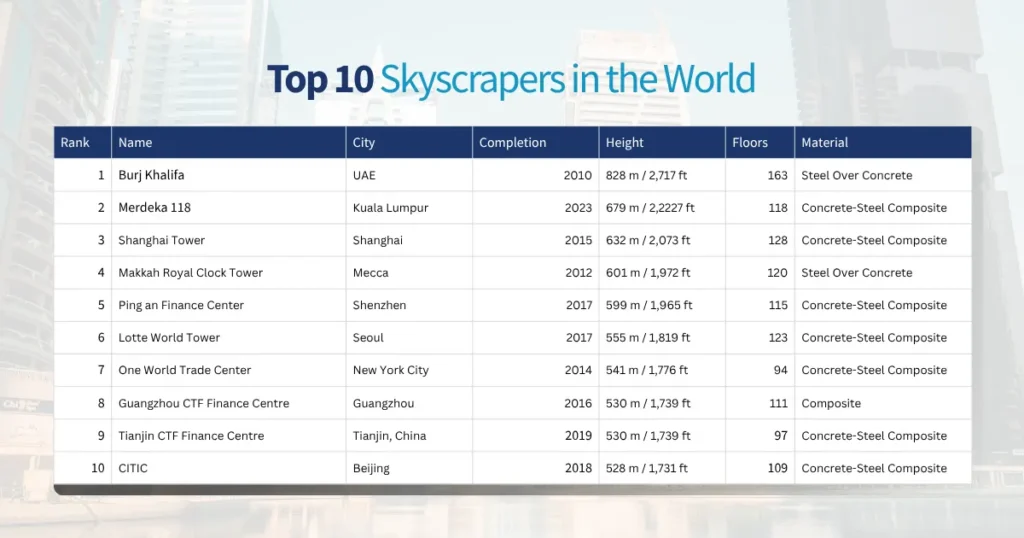

There are already a good number of skyscrapers; here is a list of the top 10.

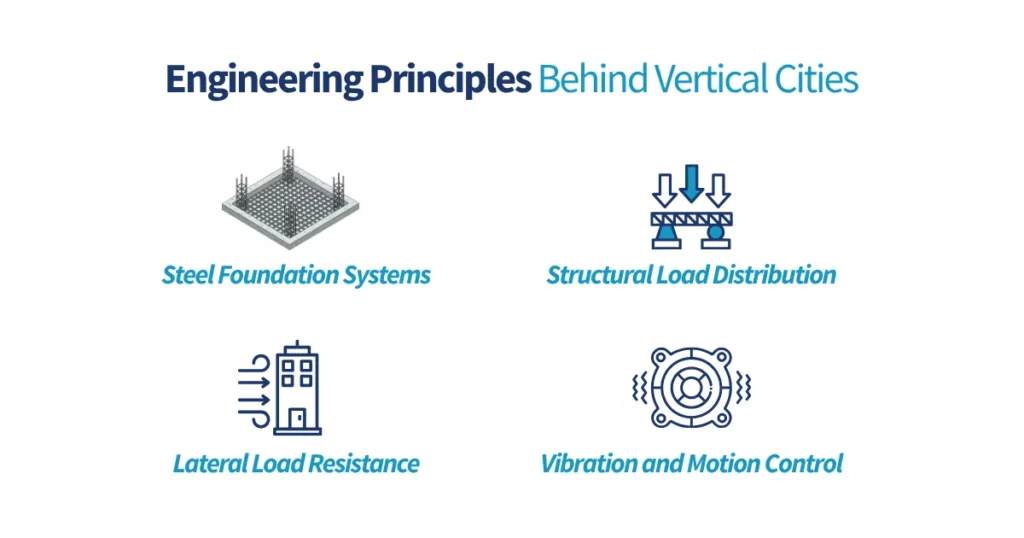

So, now let's look at the key components and engineering principles to understand how skyscraper buildings stand so tall.
During the early 80s and 90s, early skyscrapers used wood and concrete for load distribution.
However, with the advent of all-steel foundation construction techniques, steel beams replaced concrete in the steel skeleton. This keeps the building upwards with dizzying heights, and is the most appropriate option, revolutionizing modern skyscraper construction. One notable example is the construction of the Willis Tower in Chicago, which introduced the bundled tube system, a core structural system for high-supertall skyscrapers.
One of the fundamental principles of construction itself, this is highly critical in the case of skyscrapers.
Without accurate and safe load distribution, the structure becomes prone to collapse during man-made or natural emergencies. Every skyscraper we see today stands on precise calculations conducted by engineers for efficient load distribution of structural loads.
The load distribution is done through a structural framework designed with interconnected columns, beams, and core structures. These components take on the vertical forces such as the building's weight, occupancy loads, and equipment loads, evenly distributing those throughout the structure and finally transferring to the ground.
This is the most fundamental foundation of skyscrapers, without which we would have never seen one ever.
As the height increases, so do the forces exerted by winds, which brings us to understanding the lateral load resistance of a skyscraper building.
Along with the increase in wind pressure, seismic loads also have a greater impact at heights.
In modern skyscraper construction, in order to reduce the wind-induced vibrations, engineers use advanced structural systems.
Such structural systems include:
At extreme heights, the most challenging part is finding the correct balance of wind engineering and aerodynamics.
For example, the Burj Khalifa has a buttressed core structural system that enables its immense height.
The basis of this structural system forms a hexagonal core, surrounded by three large wings or buttresses. The core is made with reinforced concrete shear walls that resist the intense torsion or twisting force exerted by other structural units.
Modern skyscrapers often have a tubular structure designed to resist wind, seismic, and other lateral loads. For example, the Shanghai Tower features a spiraling, double-skin facade that significantly reduces wind loads and energy use.
The wings are placed at approximately 120 degrees to cut off the lateral winds and also distribute the load efficiently with the Y-shaped floor plan.
While, winds exert pressure, they also cause vibrations or swayings which need to be addressed to ensure structural integrity and occupant comfort.
When buildings rise to extraordinary heights, wind pressures increase dramatically.
Even with structural intelligency, high-rise buildings are susceptible to wind-induced motion and vibrations.
Extreme gusts of wind, when they hit the building’s surface, cause subtle swaying movements. These moments are even perceptible to the occupants, but are not long-lasting.
In cases of prolonged oscillations, people inside the building can feel discomfort, and the structural performance of mechanical systems is affected.
Vibration and motion control systems help here to stabilize the building by countering the motion of the building.
For a supertall skyscraper such as the Taipei 101 in Taiwan, the Tuned Mass Damper technique is widely used. It works on a weight-based stabilization, where a massive mass is suspended near the top of the building inside the structure.
In the case of the Taipei 101, the 660-ton weight spherical pendulum oscillates in the opposite direction of the building’s sway. This stabilizes the building during strong winds and seismic activity.
While mass dampers, liquid dampers, and pendulum systems are the traditional processes still widely used, smart systems are also making their entry. Here, active control mechanisms use sensors and actuators that dynamically adjust to varying weather conditions.
As we discussed earlier, true skyscrapers are those that have at least 50% of their height habitable. But, it is a wonder how these buildings accommodate thousands of occupants with comfort at such dizzying heights.
Conventional elevator systems work perfectly with low or mid-rise buildings.
But skyscrapers have hundreds of floors, where highly advanced transportation systems are required to move people efficiently.
So, this critical engineering challenge starts with strategic elevator zoning. Engineers divide high-rise buildings into vertical zones, with each zone having specific elevator groups.
This approach reduces the number of stops during a single upward or downward journey.
Another strategic approach is the placement of sky lobbies. It is like an internal transportation hub that serves as a resting point before occupants enter elevators that serve specific floors.
High-speed express elevators are used in the first place to transfer a greater number of occupants, and then divide them into specific zone-based elevators.
A cutting-edge innovation is also making its way into skyscraper building construction.
This type of system uses two elevators positioned vertically, one on top of the other.
These are high-end elevators, also called elevator cars, and they usually serve alternating floors.
It allows more passengers to be transported at a time by dividing them into even and odd floors. This type of system also allows for optimized building space and clearances, all while contributing to the efficiency of the system.
As more developments rise and cities grow larger, checking the carbon footprint emissions is a must. Skyscraper buildings use a significant amount of energy to remain optimally operational and support high-speed vertical transportation.
These buildings are resource-heavy, and the use of advanced methodologies to improve energy efficiency and reduce resource consumption is critical to sustainable building performance.
In modern skyscrapers, high-performance facade systems act as the primary interface between indoor and outdoor temperature conditions.
It balances the entry of natural light and heat, so indoor temperatures remain optimal for the space to be habitable. High-performance facade systems come in multiple variations, from double-glazed/triple-glazed glass panels to low-emissivity coatings and double-skin facade systems.
Engineers strategically use different facade options at different building spaces, after analyzing the sunlight effects at different angles.
Coupled with the unique design of these systems to allow natural daylight to enter, but minimize solar gain. This makes these systems a primary component for energy-efficient skyscrapers.
At such dizzying heights, the climate behaves differently compared to low or mid-rise buildings.
Hence, heating, ventilation, and air-conditioning need to be strategized and implemented skillfully. Because of their extensive height, multiple floors have varying environmental conditions, and hence, HVAC systems should be adaptive.
Advanced computerized maintenance management systems help a lot here by monitoring real-time occupancy and environmental data in real-time.
These smart building management systems, when integrated with advanced features such as variable air volume systems, energy recovery ventilators, and chilled beam technology, adjust cooling and ventilation by optimizing energy usage.

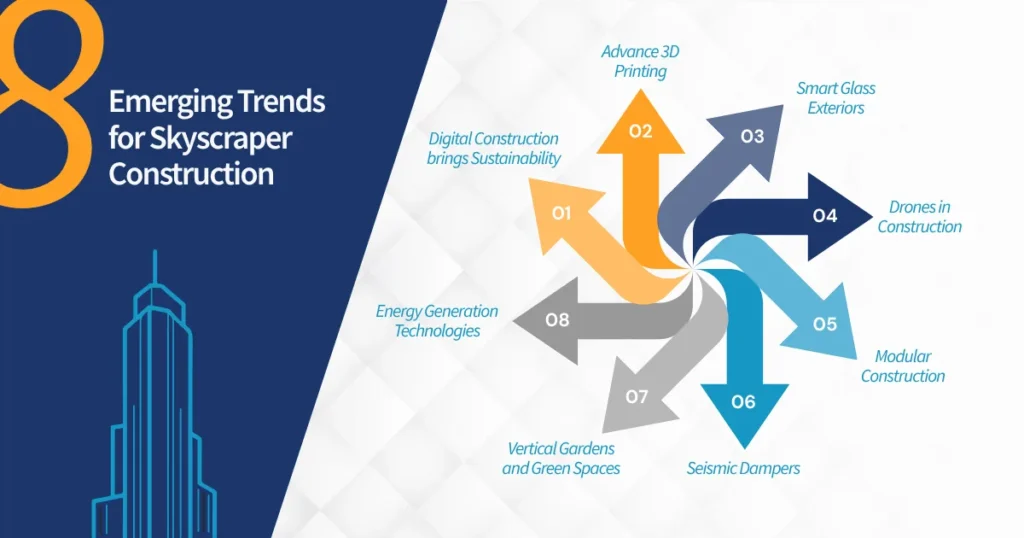

So, with these being the key elements of skyscraper construction, let’s take a look at the 10 most contemporary technologies in skyscraper construction.
With BIM software tools and technologies, digital construction is now the new standard.
Digital construction techniques allow engineers and architects to leverage creativity while crafting buildings. This digital approach allows them to perform multiple design iterations simultaneously.
Engineers use features such as daylight simulation, wind pressure and temperature simulation, geographical weather history, and current climate projections.
These features introduce advanced capabilities to modern building design and construction. Digital construction will allow designers and architects to make intelligent decisions regarding sustainability.
This type of construction allows engineers to install sustainable elements in modern skyscrapers, such as vertical gardens, which act as natural air filters, and also provide a breathtaking view of cascading greenery-covered skyscrapers.
3D printing is not only redefining conventional construction, but also skyscraper building construction.
Since skyscraper building construction is becoming extremely complicated, this technology allows critical elements of the building to be designed with precision and speed.
Construction through 3D printing also reduces material wastage, since specialized robotic hands use precise material quantities at each stage.
For walls and structural elements, this technology supports on-site concrete printing. This reduces construction time, waste generation, and also enhances efficiency in complex skyscraper construction.
This revolutionary technology transforms the way building exteriors are designed.
Smart glasses are a facade with the ability to change their opacity, controlling light and heat transmission. The technology has already been implemented in sunglasses and riding helmet products.
Entering the construction realm, smart glasses become the core contributor to optimized HVAC performance, and at the same time, they offer dynamic aesthetic possibilities.
The glass automatically adjusts its tint, reducing or increasing the flow of glare and heat.
Also, curtain walls are non-load-bearing exterior coverings, often made of glass, that hang on the steel frame of a skyscraper.
The noticeable fact is that curtain walls have been there since the late 90s. The Petronas Towers feature a high-performance curtain wall facade, made of glass and stainless steel. For these tall buildings, the Council on Tall Buildings and Urban Habitat refers to the concept of architectural top. This is used to measure height from ground level to the highest architectural element of that structure.
Photovoltaic cells can also be incorporated in these glasses, turning them into sustainable power generators.
Smart glasses not only reduce building energy consumption but also contribute to clean energy generation, helping buildings achieve recognized net-zero certifications.
Constructing skyscrapers is not the end of the task, even when there are vibration control systems, intelligent facade systems, and smart building management systems installed.
These monster big buildings require specialized surveillance with drones to ensure monitoring progress and safety compliance.
An aerial view provides invaluable data for better decision-making in skyscraper construction. These drones are also equipped with LiDAR technology for creating detailed 3D maps of construction sites.
Drones are also used for the delivery of pre-constructed elements to hard-to-reach areas of high-rise buildings.
Through this approach, specific parts of a building or structure are constructed off-site.
The constructed elements, also called modules, are then brought together at the site for installation.
This process of constructing specific components outside the site area is called prefabrication. Since modular construction has become mainstream, owners or contractors can find specialized prefabricators.
These off-site prefabrication companies use intelligent software and automated construction techniques. This helps them create modular components that are so precise that they can be directly installed on-site.
While constructing skyscraper buildings, this method helps in the construction of the upper floors. Prefabricated components can be installed directly on a steel frame at those higher levels, without the need for high-risk construction.
Seismic dampers are used to combat the intense vibrations from earthquakes.
They are used in buildings and bridges where they absorb and dissipate kinetic energy in the ground motions.
Seismic energies tend to disrupt the structural formation of these buildings, enhancing safety during the operational phase in urban areas.
However, there are specific areas where these seismic dampers are installed. They are installed between floors, allowing the building to sway very slightly so that rigidity does not affect it in the opposite direction.
Modern skyscraper buildings are now designed with integrated natural elements.
These are called vertical gardens, an innovative way to increase vegetation without wasting flat space.
Vertical gardens have proven to be more effective in improving air quality, reducing heat, and offering aesthetic value to the building.
Modern skyscrapers use technologies that engineers strategically integrate to transform them into powerhouses.Photovoltaic glass, wind turbines, and hydropower technologies stay connected with large power storage, where the harnessed energy from renewable sources is stored.
So, these are the most effective emerging trends in skyscraper building construction.
As buildings rise to more dizzying heights, the integration of construction technologies becomes critical. These help predict on-site risks early in the design stages, take more informed structural decisions, and embed sustainability elements. The use of modular construction, motion control sensors, and systems TMD makes skyscraper building construction safer and more resilient to various climatic conditions.
