May 2, 2025
The planning of a construction project starts right off the bat with project owners or general contractors submitting proposals with a Takt plan (a type of construction planning). Project managers, general contractors, and BIM managers/specialists have deep expertise in project planning and scheduling.
These are the guys responsible for preparing cost-effective plans and accurate scheduling for faster project acquisitions, approvals, and permissions.
The contractors that get selected the most for projects are the ones who have started working on the project even before they have it, according to Founder and COO, of Elevate Construction IST, Jason Schroeder.
What he is emphasizing is to dig deep into the construction project that you are going to submit a proposal for. This deep analysis brings forth potential gaps in the project where you can add your unique value proposition and secure the project.
So, what exactly is construction planning? And where does it add value, becoming one of the key ingredients of a successful construction project?
Construction planning is the preparation of essential documents that define the resources, activities, and communication protocols required to manage and execute a construction project.
What we often consider as the planning stage is just the surface of what goes truly in. Planning starts with defining the project’s scope and then gradually goes into the obvious aspects, such as activities, resources, material quantities, and timeline.
In this blog, we cover all the areas included in construction planning, from its fundamentals, different types, best software applications, and planning techniques to how BIM is used in construction planning.
To understand more about this deceptively simple process, let’s start with the fundamentals.

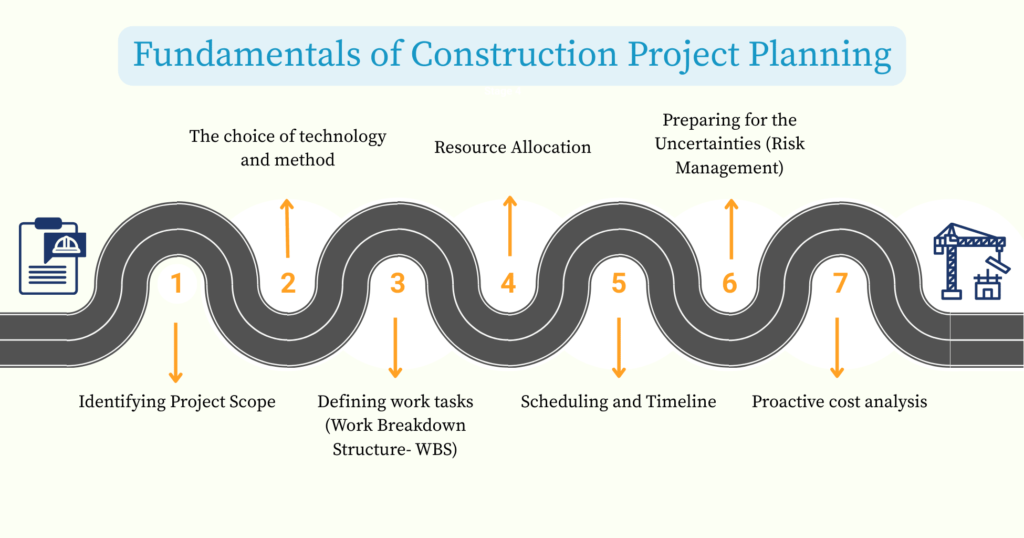

The planning of a construction project is very fundamental but at the same time, quite challenging. Project managers consider various factors before they come up with a good construction plan, which becomes the basis of the project budget and schedule.
Construction planning involves:
Before construction planners start to draft a plan, identifying the work scope and project goals is a must. The step provides clarity to the stakeholders regarding the various disciplines and works involved in the project, such as architecture, MEP installations, structural & civil engineering, etc. Construction management teams prepare the scope of work in alignment with stakeholder expectations and feasibility studies. The document serves as a ‘single source of truth’ throughout the project lifecycle and breaks down what falls in and outside the project’s scope of work.
Construction projects are large-scale operations involving various things. In terms of choosing the technology and construction methods, project planners decide on the following things:
While project managers or construction planners define project tasks in the scope of work, it remains at a surface level. In this step, they further create sub-activities under each domain. These activities are then assigned to specific teams who will be responsible for executing that particular area of the projects.
For example, under architectural work, construction planners assign sub-activities like conceptual designing, architectural drawings, BIM coordination, and permit approval processes to specific teams.
A fact is that there are still no computer-aided systems for defining the tasks. While there are tools available for the simulation of the entire process, the process of defining and assigning activities and sub-activities continues to rely on the judgment and experience of the project manager or construction planner.
Resource allocation and management take a long drive and require a structured approach. There are different facets to look over while allocating resources and finally aiming for efficient resource usage and maximum cost-efficiency. The process starts with documentation work, which includes material take-off, labor, material and equipment cost estimates, and the creation of a budget. Following the completion of these steps, resource acquisition and project execution starts, with active cost monitoring to keep the project under budget.
By this time, project managers have defined the tasks, acquired resources, and set the project budget. Now, it is important to schedule the tasks and events and define the necessary resources and teams responsible for specific tasks. The construction schedule process follows several steps, including clear communication with subcontractors to prioritize tasks, add durations, and allocate resources across the project. When the timeline is set, 3D visualizers create animations to represent the project timeline dynamically.
Unexpected situations are bound to occur in construction projects because of their complexity and colossality. The high-risk environment also poses significant risks for the on-site workers. Hence, risk assessment and preparation of risk management strategy is a fundamental part of construction planning. Beyond physical risks, there are also financial risks, such as funding shortages, environmental risks, and legal or contractual risks, which also need effective strategies for mitigation.
The successful execution of a project is critically tied to effective cost control. Modern construction professionals use specialized software to conduct detailed cost analyses. Now, the effective implementation of the above points is also necessary for optimizing costs. For example, intelligent resource allocation, proper scheduling, and proactive risk management are necessary for cost-effective project executions.
The burgeoning advancements in the construction industry facilitate effective project planning. Project managers or construction planners use ingenious solutions to plan and manage construction projects.
Now that we are aware of the core fundamentals of construction planning let’s take a look at the different techniques that professionals use.
With the increasing complexity of modern construction projects, more layers of intricacies add to the construction planning process. More than 50% of construction project owners globally and 61% in the US experienced a minimum of one underperforming project. This signifies the rising concern for robust planning strategies and effective execution frameworks that would curb various inefficiencies.

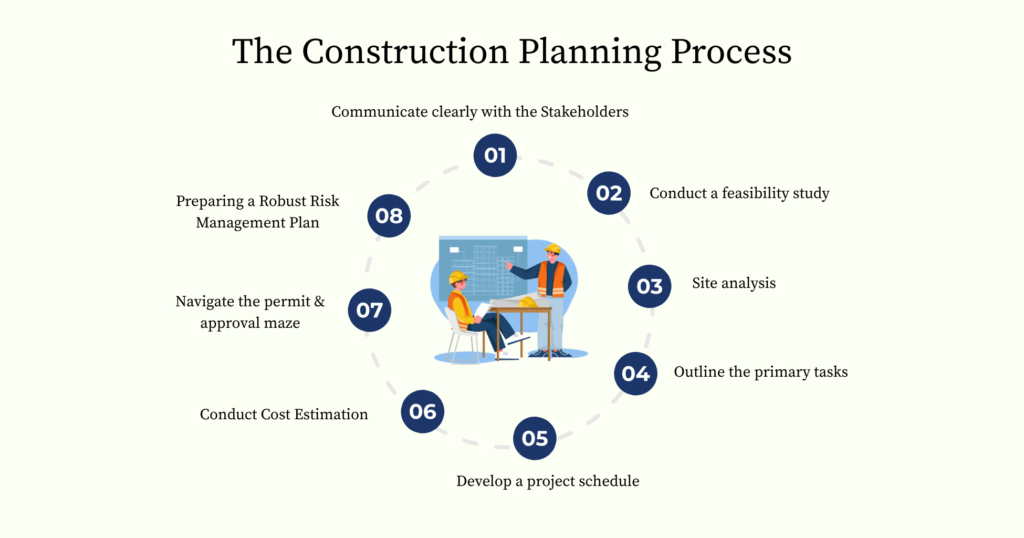

In order to master construction planning and management, digging deep into a project is a must. There is no ‘one size fits all’ solution in the construction industry, as every project is unique and has its set of challenges. Now, let’s have a look at the steps involved in this process.
Even before starting to plan the project, project managers need to sit with the stakeholders to understand the project requirements and the client’s expectations. The meeting aims to place all stakeholders on the same page with a strong and clear understanding of the project goals and outcomes.
Next, a detailed assessment of the project objectives will be conducted to determine its feasibility. A feasibility study will help find out how practical the project plan is and its success rate.
A site analysis is a critical step that helps in understanding the construction location. Various factors like site characteristics, access, and environmental considerations need to be checked before hand. This will minimize the possiblity of major erros in the project plan.
The next step is to find and note down the primary tasks of the project. These are the same set of tasks that are already present in a project’s scope of work. Work Breakdown Structure (WBS) tools can be used to break the primary tasks into their respective sub-tasks. There are multiple WBS tools that work great for project planning, such as Primavera P6, Microsoft Project, SmartDraw, etc.
By now, the project managers have structured the primary tasks along with the sub-activities under each task. A sound project schedule is needed the most at this time, that will detail each point in the project. It serves as a comprehensive guide mentioning the duration of which task will continue, the teams responsible, and the type and number of equipment required. There are several methods for project scheduling, with these three having the most frequent use:
Critical Path Method (CPM): Developed in the late 1950s, this method still serves as one of the most reliable methods for project scheduling. Project managers or construction planners list out the tasks under the project scope as per their dependencies. For example, (If task 2 completion depends upon the successful execution of task 1, then the order will be task 1 and then task 2.
Last Planner System (LPS): Lean Construction Institute created this method, one that is more advanced than CPM. The reason is, that this provides detailed insights for tweaks and tune-ups in the current project schedule.
The process starts with developing a master plan, further breaking that down into several phases. Now, construction planners focus on the tasks to be done in the next couple of weeks. This further shrinks down the complexity of the master plan and lets planners dig deep into potential gaps that may cause details and even find ways to fix them beforehand.
Additionally, a weekly plan is also prepared to enlighten stakeholders on the tasks that could be actually done in a week. The method does not promote guessing or overpromising. Planners keep track of the daily work done and stress the areas where something went wrong, and there is a scope for improvement for the upcoming weeks or construction phases.
Program Evaluation and Review Technique: Initially, the US Navy developed this technique for the complex Polaris missile project in the 1950s. Later, it gained recognition in the construction industry because of the three-tier time estimation it offers. The method starts with listing all the tasks then figuring out the order.
Planners consider the time required for each task and then come up with time estimations based on three scenarios:
They put these values into a formula to calculate the average time expected for the project. Additionally, to show the project timeline and task dependencies clearly, network diagrams are also used.
The cost estimation process is one of the most important aspects of construction planning. The financial side of construction should always be under the control of the project managers and coordinators to ensure there are no budget overruns or underbudgeting.
The estimation process is very detailed, consisting of several other sub-tasks. These include material take-offs, quantity take-offs, preparing Bills of quantities (BOQ) & Bills of materials (BOMs), preparing for overhead and indirect costs, etc.
These estimations include the quantity and price of everything required for the project, from raw materials and equipment to labor, travel, tax, and other over-the-project lifecycle appearing costs.
No construction work can start without being compliant with the local codes and regulations. Once task division, estimation, and scheduling are done ensure that “‘permit set drawings” are reviewed and ready for approval seeking process. For a full-fledged construction project, each of the trade involved, such as plumbing, electrical, mechanical, or landscaping, require a separate permit.
Construction projects always throw unexpected situations unraveling perfectly laid plans of project managers in real-time. There are a variety of risks involved, such as financial risks, poor resource management, legal risks, site hazards ,improper equipment, and more.
Project planners need to conduct risk assessments to cover multiple areas of the project. On identifying the potential risks, it is time to prioritize them based on their likelihood of occurrence and impact on the project.
Next, is to develop risk mitigation strategies through plan changes, safety measures, and active monitoring of site conditions.
With these, we covered all the important steps required to develop an effective construction plan. To advance these processes and perform them more ingeniously, engineering and construction firms worldwide have adopted the use of BIM for construction project management.

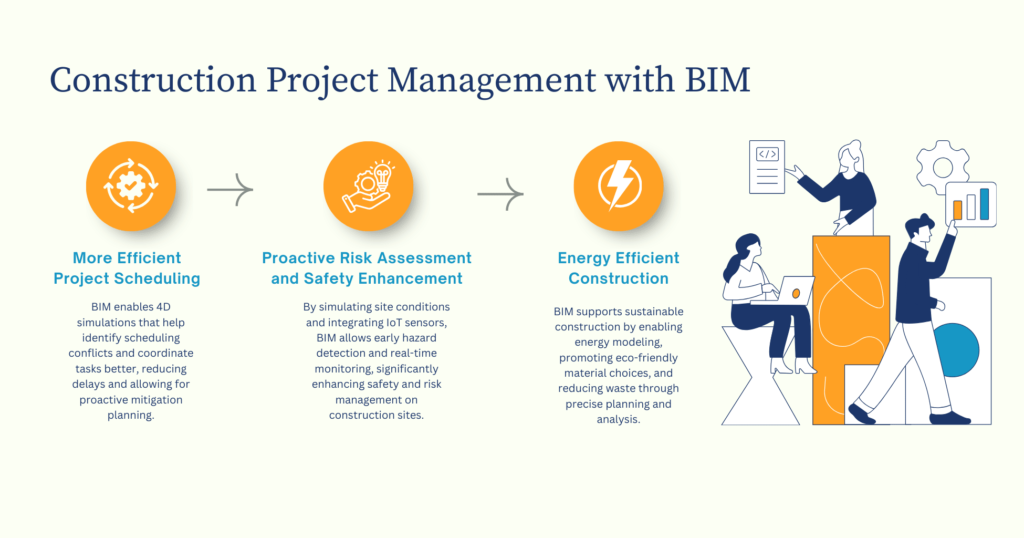

Let’s now delve deep into how integrating BIM reshapes construction management.
BIM, a technology that has already revolutionized the construction industry, significantly improves project management as well. Engineering and construction firms using BIM software applications hold high-impact advantages in some key project management areas, facilitating smooth project execution.
BIM helps in:
With the integration of time-based data in the 3D models, a new dimension of BIM evolves which is 4D. Through 4D simulations of a construction project schedule, Virtual Design and Construction (VDC) professionals identify potential bottlenecks before the construction begins. Additionally, better task coordination between various disciplines helps avoid downtimes. Constructions can even simulate various scenarios to prepare mitigation plans for unforeseen risks.
Recent data published in the European Union (EU) global accident report revealed that the construction industry is a high-risk environment. Falls from height or being hit by metallic or falling objects can cause fatal accidents.
On January 18, 2024, two workers in France lost their lives due to a wall collapse on the construction site. February 21, 2024, a crane accident on the site killed two and injured several construction workers. Such incidents are ever-present at construction sites, and hence, risk management should always take precedence.
The integration of BIM advances the risk assessment process site condition simulations, helping detect hazards early and implement adequate safety measures. IoT sensors add a new layer of innovation, where BIM managers can monitor site conditions in real-time allowing for proactive risk management and safety enhancement.
There is a burgeoning need in the construction sector for sustainable structures and construction processes. The construction industry accounts for 30% of the total solid global waste. Hence, there is a pressing need for methodologies that generate less waste and structures that are more environmentally friendly.
Construction and engineering firms adapting the use of BIM can be ahead in the race to achieve high sustainability standards. Higher dimensions of BIM to help design energy-efficient buildings. Professionals can create energy models to analyze harmful gaseous emissions from buildings. They can further go for sustainable material selection and waste reduction during construction.

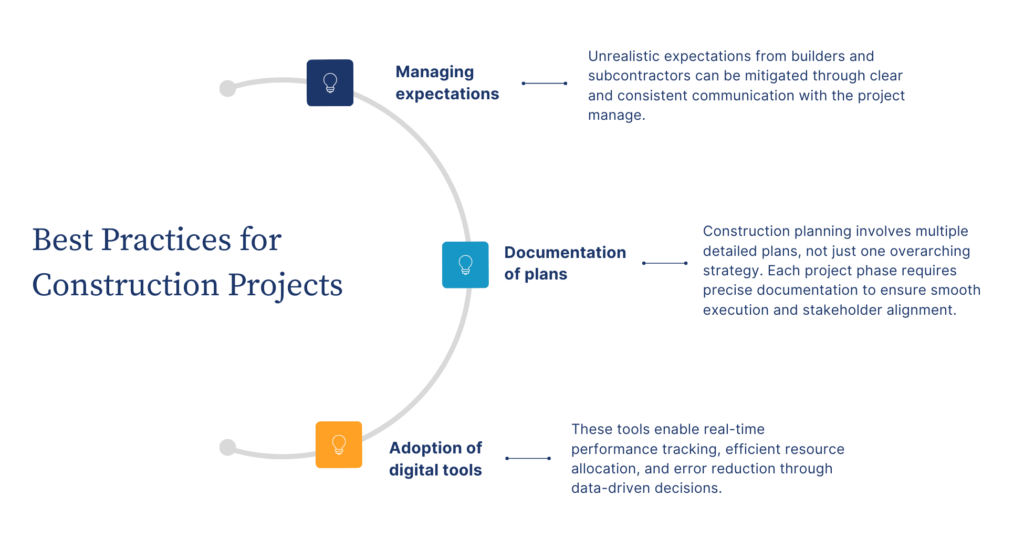

As we cover the fundamentals of construction planning, the steps in it, different techniques, and how BIM enhances planning and management, we are ready to know the best practices.
These practices will enhance the project management capability of a construction project manager.
Expectations from the builder, sub-contractors, and subcontractors often become unrealistic. There should be clear communication between the project manager and other project stakeholders. Before planning a construction, project managers should clearly define the project goals and scope of work.
By now, the realization must come that construction planning is not a single plan but a set of plans clubbed together. Each phase of the project planning needs accurate documentation for a successful project outcome.
With proper documentation, project managers can avoid conflicts with stakeholders over the project's progress. When everything remains documented, managing the tasks during the actual construction becomes swift.
Companies in the North American and Asia Pacific region have witnessed a 25% rise in productivity leveraging construction management software, as per the latest data from Gitnux, an independent market research platform.
Another data from this market research platform reveals that 87% of construction firms secured positive ROI using project management tools.
It is a clear indication that digital tools have a growing impact on construction project plan and management. These tools allow managers to make data-driven decisions, monitor project performance, and track resources more efficiently without human errors.
Before you look anywhere else for the best construction project management tools, here is a list for you.
Project managers widely accept the use of digital tools in project management. Enhanced collaboration, advanced data analysis, tracking project progress, cost optimization, and many other features make these tools a mandate for construction projects.
Here is a list of some of the best tools:
Andolasoft developed OrangeScrum as a solution to managing their growing number of projects. The tool is suitable for mid-sized construction firms with features like tracking, invoicing and task dependencies.
Users can get real-time insights on the project’s resources and construction team. Project managers can effectively communicate operational updates and instructions to teams on the job site with the ‘Slack integration’ feature.
The software comes with three pricing plans: Community (Free), Cloud (user-based pricing), and Enterprise (custom quote).
Procore Technologies developed Procore in 2002 with the aim of connecting construction professionals on a global platform. The cloud-based construction management software has gained over 23 million users across 150 countries.
Key features of this software include project tracking, field collaboration, and mobile access for direct coordination from the job site in the construction process.
Procore Technologies does not have the pricing of this tool available publicly. Alternatively, they offer custom quotes when you contact their sales executives.
Co-founders Nathan Gilmore and John Correlli developed started developing TeamGnatt in late 2009. The software became public in 2010, with 14 years in the market, providing top-notch project management solutions.
It has earned widespread praise for its classic Gantt chart interface, which makes scheduling very straightforward for complex project timelines. Project managers can drag and drop the horizontal bars on the Gantt chart to adjust timelines, schedule and assign tasks, track dependencies, and monitor progress.
Further, it impressively aligns the field teams and office staff with real-time updates, document sharing, and comment threads.The software holds 4.8/5 stars on G2 and 4.6/5 on Capterra and is a favorite of small and mid-sized construction firms.
Primavera V6 by Oracle is a staple for enterprise-scale project management. The software excels in Critical Path Method (CPM), resource and cost management. Professionals from the infrastructure, oil and gas, and government sectors use this software for its capabilities in handling complex projects with precision.
Among its likes in the industry, Primavera holds the ground as a benchmark for its risk management capabilities. Features like, ‘Risk registers’, users can log risks and link them to tasks defined within the schedule.
Through simulations of different scenarios, users can conduct quantitative risk analysis and develop proactive risk mitigation strategies. Primavera V6 stands as the most prominent choice for high-stake construction projects.
As the global construction industry maintains an upward trajectory, efficient project planning and management remain pivotal. The Middle East and the United States see a rise in construction activities, with big real estate players making strategic investments in commercial projects.
South Asia’s construction market is growing remarkably, and India anchors this ongoing transformation. The country’s government makes significant investments in infrastructure projects, propelling India toward becoming the third-largest construction market by 2025, reveals data from Research and Markets.
Pinnacle Infotech stands as the backbone of this momentum with its pioneering Building Information Modeling (BIM), Engineering design, and Digital construction solutions.
Key players are adopting AI-driven applications and the Internet of Things (IoT) for better project planning and management. However, only trained and experienced construction project managers can leverage the full potential of these tools.
Hence, construction firms need to invest in technology and training programs to remain competitive in this high-growth arena.
