Understanding COBIE Data: Streamline Constructions & Enhance Facility Management

Facility management and the construction industry have undergone massive transformations in the modern age. What began as manual record-keeping has now evolved into connected databases, common data environments, shared spreadsheets, and more. Crucially, COBie (Construction Operations Building Information Exchange) plays a vital role in this rapid transformation.

While it was originally developed to streamline facility management, COBie data now plays a pivotal role in structuring construction workflows. Integrating BIM and Digital Twin, COBie ensures that stakeholders can access relevant information across all stages in a construction project.

Studies show that adopting structured data management systems have significantly reduced operational inefficiencies and lowered maintenance costs.

The gradual shift from static, traditional record-keeping methods to connected and smart systems of data collection and exchange is not an upgrade but rather a necessity for the modern age. As construction projects continue to grow in terms of complexity, organizations that welcome intelligent and efficient data management systems like COBie gain a significant competitive edge.

This blog aims to detail COBie, the challenges in its implementation, its benefits, and the future of asset management.

Understanding COBie Data

COBie, a vital tool for construction and facility management, allows for a seamless transition from traditional building information documents to a highly collaborative computation-aided environment. Originally developed by multiple US public agencies, it has become the standardized data exchange format to improve the handover process from the construction phase to building or facility owner-operators.

What Is COBie?

COBie stands for Construction Operations Building Information Exchange. It is an internationally standardized non-proprietary data format. It is used for publishing a subset of building information models specifically focused on delivering asset data. Essentially, COBie serves as a framework for organizing and delivering crucial asset management data in building projects. However, it is important to note that COBie data differs from geometric information in construction projects.

COBie follows a vastly different approach from the conventional, manual documentation processes. The development and implementation of the COBie data format has successfully improved the handover process for AECO professionals, from construction professionals to facility or building owner-operators.

Adding value to project lifecycles, COBie deliverables specify the required data fields and tables necessary for project handovers. Moreover, these COBie specifications underscore the importance of detailed documentation for updating and managing assets through each stage of construction. For example, post-completion, this standardized format for data-sharing translates effectively into successful facility management processes with accurate and detailed information.

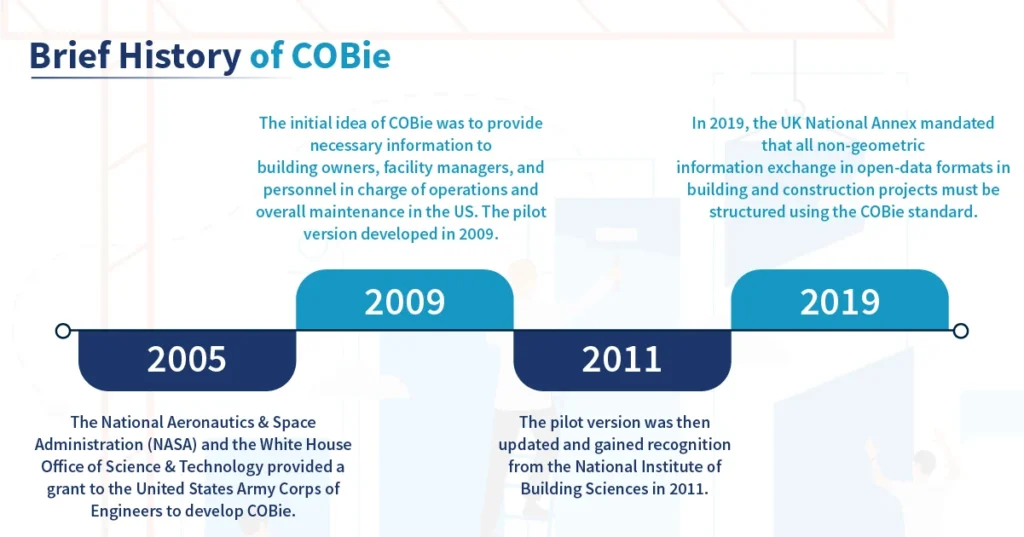

Brief History of COBie

In 2005, the National Aeronautics & Space Administration (NASA) and the White House Office of Science & Technology provided a grant to the United States Army Corps of Engineers to develop COBie. At their construction engineering research laboratory facility, William East from the US Army Corps then ideated and created COBie, a set of international standards for data and classification.

The initial idea of COBie was to provide necessary information to building owners, facility managers, and personnel in charge of operations and overall maintenance in the US. The pilot version developed in 2009 was then updated and gained recognition from the National Institute of Building Sciences in 2011. Over time, it transcended the borders and became the acceptable format of construction data consolidation globally.

For example, in 2019, the UK National Annex mandated that all non-geometric information exchange in open-data formats in building and construction projects must be structured using the COBie standard.

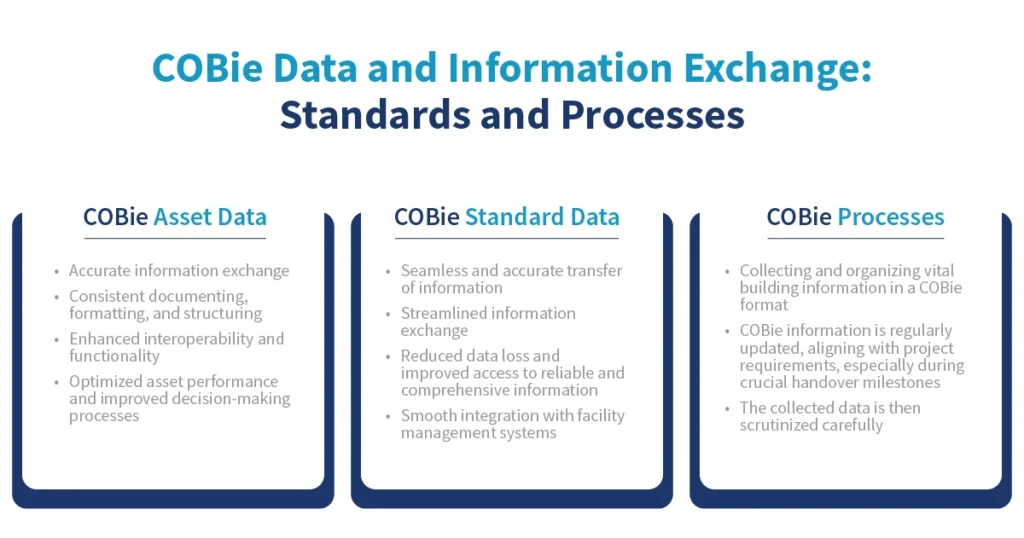

COBie Data and Information Exchange: Standards and Processes

COBie organizes and structures building information in a way that leads to improved efficiency, effective asset management, and reduced expenses. This structured data format delivers crucial information about a building or facility's assets, components, and systems throughout its lifecycle.

COBie Asset Data

Enabling the publication of a subset of BIM that is specifically focused on delivering asset data, COBie ensures that all essential data regarding a project is available in a single format for seamless information exchange. The COBie spreadsheet delineates all the data fields and tables required for a successful project handover.

This further emphasizes the process of detailing responsibilities among key stakeholders in the project team to update and manage COBie deliverables efficiently.

Why this is important:

• Accurate information exchange of digital information regarding a project's systems, assets, and components.
• Consistent documenting, formatting, and structuring of all asset-related data in a particular project.
• Enhanced interoperability and functionality within asset management tools for better collaboration between project stakeholders.
• Optimized asset performance and improved decision-making processes through the entire construction phase.

COBie Standard Data

Aiming to reduce the manual data entry processes for building and facility managers, the COBie standard provides a performance-based specification for key information regarding facility assets. Corresponding this, a COBie spreadsheet is specific to a facility and contains detailed information such as asset management software, equipment data, space organization, and more.

Why this is important:

• Seamless and accurate transfer of information, from construction to facility management.
• Streamlined information exchange and data handover process with a standardized format for organization and presentation.
• Reduced data loss and improved access to reliable and comprehensive information, as and when required.
• Smooth integration with facility management systems for enhanced import and usage of data.

COBie Processes

The COBie deliverable process follows a standardized set of critical steps, including data collection, data validation, and data submission. Collecting and collating all design and construction-related data in COBie tables, a COBie worksheet serves as the central document for information exchange during each stage of construction.

• The process begins at the primary stages of a construction project when architects, engineers, and contractors begin collecting and organizing vital building information in a COBie format.
• During the construction process, it is imperative that COBie information is regularly updated, aligning with project requirements, especially during crucial handover milestones.
• The collected data is then scrutinized carefully to ensure accuracy and completeness for each COBie specification as detailed on the COBie spreadsheet.

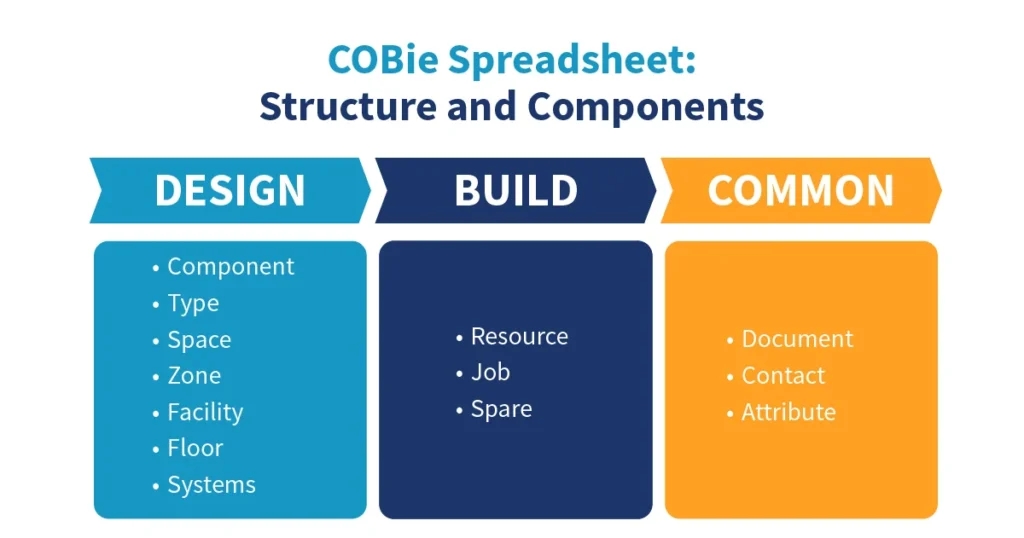

COBie Spreadsheet: Structure and Components

The COBie format of data capture and classification enables flexible and seamless information exchange through its structured data delivery formats. A typical COBie spreadsheet consists of rows and columns containing specific fields. These fields offer flexibility and ease of access to designers, contractors, and facility managers.

Integrating with different tools, software, systems, and processes with ease, the COBie spreadsheet consists of three primary segments: Design, Build, and Common.

Design

Component:

A crucial part of asset management, this includes the specifications on managing and maintaining each component in a facility. COBie requirements from specifiers, designers, suppliers, and contactors include serial number, installation date, and related product data for equipment in a facility.

Type:

All the entries in a COBie spreadsheet are defined by their type. Each of them detail the owner, manufacturer, material, model number, maintenance period, warranty information, history of service requests, replacement cost etc.

Space:

For rooms inside a building or outdoor spaces like a parking lot or walkway, the COBie specifications include information regarding equipment attached with that specific space. These are usually accessed for regular operations and maintenance reasons.

Zone:

Serving specific, pre-determined purposes, zones in a COBie spreadsheet refer to spaces grouped together in a facility. Each zone may contain one or more spaces inside and are usually used after the handover process.

Facility:

Signifying buildings or sections of infrastructure, facilities in a COBie spreadsheet are defined according to the EIR (Employer Information Requirements), the BEP (BIM Execution Plan), or the contract.

Floor:

For project teams accessing and handling the COBie sheet during the construction phase, a floor refers to a single floor while each floor may hold multiple spaces.

Systems:

Data delineated under this segment refer to the functioning of equipment systems as independent entities, irrespective of defined interdependencies with zones or spaces.

Build

Resource:

The COBie data set detailing resources contains information about the materials, tools, software, and training courses required.

Job:

The job sheet records information on facility management tasks assigned to the numerous objects in a building or facility.

Spare:

The spare sheet details the records of the units of an asset that can be replaced onsite at a facility.

Common

Document:

Sometimes, a COBie spreadsheet may be complemented with external files by the project teams and facility managers or owners. This segment in a COBie file lists those indispensable external files.

Contact:

The contact segment in a COBie file comprises lists of relevant and necessary contact information, company details, and the various roles within an organization.

Attribute:

Not a mandatory COBie worksheet, the attribute segment stores information and data regarding every property concerning each component and type.

COBie Data: Challenges in Implementation

While considered as a foundational tool for information exchange, implementing COBie comes with a few challenges, especially for mega-projects. Managing large construction operations requires handling large amounts of secondary information. The following are some of the obstacles professionals in the AECO sector must overcome when implementing COBie.

• Inconsistencies in data storage: In the design and construction phases when data is stored on a local drive, inconsistencies can lead to difficulties in finding relevant information.
• Solution: Adhering strictly to systematic naming conventions and definitions of data types in COBie.
• Information overload: As building systems become more complex, especially in the case of huge inventories in mega-projects, it may become increasingly difficult to manage ceaseless documentation processes.
• Solution: Maintaining consistent data storage facilities throughout the project, making data accessible to every stakeholder.
• Inaccurate data: Incomplete or incorrect data for components and elements pose numerous problems during the design, construction, and handover process.
• Solution: Defining clear performance specification formats for each data type for accurate data entries.
• Inconsistent data interpretation: Challenges also exist in capturing, interpreting, and querying data within the COBie spreadsheet, especially when there is data overload.
• Solution: Careful considerations and standardized formats need to be implemented when capturing data for improved interpretation.

COBie Data: Benefits of Implementation

Standardizing equipment schedules, product data, asset information, and more, COBie streamlines construction operations in multiple ways. The following are the benefits of implementing COBie for building and construction projects.

• Efficient data organization: Firstly, the biggest benefit of using the COBie format is undoubtedly the structured capturing of essential data using a standardized framework. The specific building information required for each category is thus consistent and complete in nature.
• Reduced data loss: In general, the COBie documentation process mitigates the risk of data loss due to incompatible formats or manual data entry, ensuring accurate capture of relevant information.
• Precise data assembly: COBie, used chiefly to deliver information to stakeholders during and after the construction process, ensures that data collection, validation, organization, formatting and documentation follow a specific, standardized process.
• Streamlined digital handover: Unlike traditional handover processes involving multiple documents and paper stacks, COBie enables a seamless handover process between different stakeholders. Its digital dataset includes operating instructions, equipment surveys, spatial relationships, and all other relevant information.
• Ease of data management: The COBie format is structured, follows a standardized process, and is easy to use. This enables quick and accurate management of data such as RFIs, building permits, safety licenses, serial number, and more.
• Optimized operations: Furthermore, COBie data contains extensive digital information about building components including maintenance schedules, serial number, warranty dates, spare parts, etc. for enhanced information exchange processes. This further streamlines operations for buildings and facilities.
• Enhanced interoperability: From design schedules to components and systems, COBie spreadsheets store data from each stage of construction, enabling interoperability between disciplines and stakeholders.
• Effective sustainability efforts: Moreover, concise and clear COBie specification for product and material data ensures that the facilities remain energy efficient, keeping track of materials and systems for an extended lifecycle.

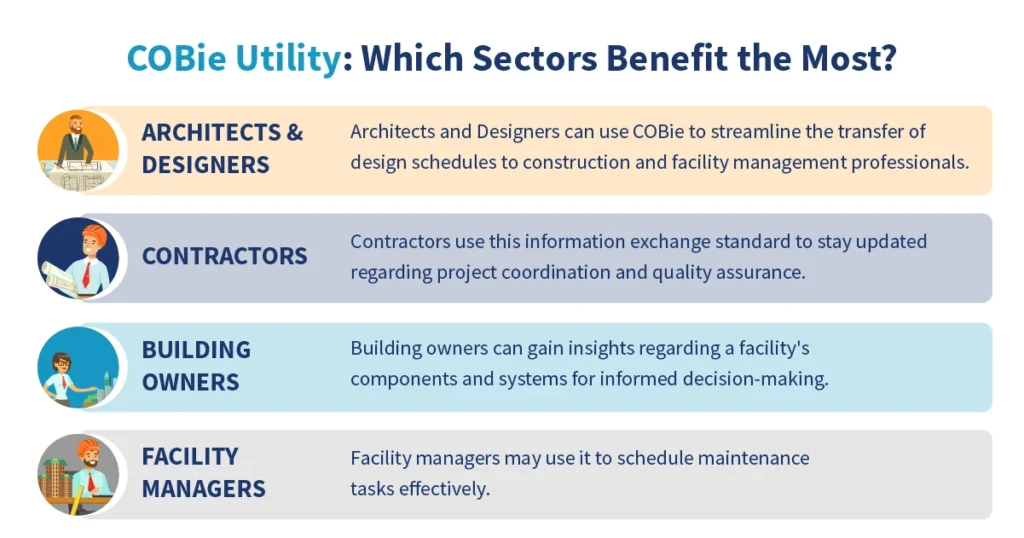

COBie Utility: Which Sectors Benefit the Most?

COBie captures and organizes vital data in a structured format, enabling facility managers to access critical data regarding a building or facility right from the beginning. It is particularly beneficial for complex, large-scale projects, such as airports and hospitals, where it is crucial to manage extensive data sets.

The asset data recorded using the digital format of a COBie worksheet is beneficial whenever a handover occurs, including the following instances:

• At the end of construction phase of a new building or facility
• At the end of a renovation project
• Whenever an existing building or facility goes through a change in ownership or management

COBie enriches projects that have multiple stakeholders with long-term maintenance requirements. The clear and consistent information exchange with COBie enables large-scale projects to benefit from a structured approach for enhanced levels of efficiency and coordination, especially when managing multiple spaces.

For example, architects and designers can use COBie to streamline the transfer of design schedules to construction and facility management professionals. Similarly, contractors use this information exchange standard to stay updated regarding project coordination and quality assurance.

In the post-handover phase, building owners can gain insights regarding a facility's components and systems for informed decision-making whereas facility managers may use it to schedule maintenance tasks effectively.

COBie Data Metrics: Quality Control and Validation Checks

The accuracy, consistency, completeness, and reliability of all the data fields in a COBie sheet require thorough verification and multiple checks as they are paramount for successful implementation of the COBie format during the construction and post-construction phase.

Crucial methods employed in the detailed quality check process include data validation, data cleansing, and data normalization.

Data Validation, Cleansing, and Normalization: Why They Are Important

• Crucial in maintaining COBie data quality.
• Ensures that required standards and specifications are met across the board.
• Identifies and removes inconsistencies from data, ensuring the digital format is reliable and trustworthy.
• Facilitates consistent and accurate formatting of data for seamless data exchange between different systems.
• Validates each COBie specification against external sources like CAD drawings, BIM models etc.

Vital Data Quality Metrics and Their Relevance in a COBie Spreadsheet

Data Accuracy:

Data accuracy ensures that all the entries in a COBie spreadsheet accurately represents real-world entities, trusted references, or occurrences.

• Relevance: Verify that a facility or building's materials, elements, and all other information are accurately described and linked.
• Example in a COBie file: Checking the respective material type, dimensions, and location of a wall, door or the installation date of a building asset.

Data Consistency:

Data consistency ensures that data in a COBie spreadsheet is uniform across all systems and databases.

• Relevance: Examine the COBie spreadsheet carefully for standardized naming conventions, data formats, and data types for a facility or building's elements and attributes.
• Example in a COBie file: Providing the same units of measurement (e.g., meters, centimeters etc.) for all dimensions and using consistent material names.

Data Completeness:

Data completeness makes sure that all necessary data is accessible and present in the COBie spreadsheet.

• Relevance: Verify that specific and relevant codes for each object are clearly mentioned. such as material, manufacturer, and dimensions.
• Example in a COBie file: Checking that every window has its height, width, and material data populated.

Data Uniqueness:

Data uniqueness ensures that each recorded value or object is correctly identified and accessible in the COBie spreadsheet via relevant codes.

• Relevance: Prevent duplication and overlaps by verifying that each building or construction object or element has a unique identifier.
• Example in a COBie file: Ensuring that each door has a unique ID, preventing the same door being included in the spreadsheet multiple times.

Data Validity:

Data validity ensures that all the entries in a COBie spreadsheet conforms to the defined business rules and permissible criteria.

• Relevance: Verify that all recorded data values fall within the expected range or format for each data attribute.
• Example in a COBie file: Ensuring that a room name is in correct format or that wall thickness has a valid value for the chosen building material.

Methods of Quality Checks in the COBie Format

• Data validation software: Using tools and software that can check and verify data according to predefined rules and criteria, flagging inconsistencies and errors.
• Data profiling and analysis: Examining the data to understand its attributes, pointing out anomalies, and identifying potential data quality issues.
• Data governance policies: Implementing data standardization policies to control data access and ensuring quality standards are followed across all data fields.
• Manual checks: Manually reviewing the COBie sheet to identify issues, especially beneficial for smaller projects.

COBie Data & Industry Foundation Class: How Are They Different?

The Industry Foundation Class (IFC) is a broader, coherent data delivery model that enables interoperability and data exchange between different software and project stakeholders. It contains detailed and precise information regarding architectural, building, and construction industry data.

COBie is a subset of the IFC, defining crucial and precise building information necessary for seamless operations and management of a facility.

While both are structured and standardized formats of building information exchange, they differ in a number of vital areas as follows.

	IFC	COBie
Definition	A comprehensive, open-data schema	A Model View Definition (MVD) of IFC
Purpose	Describes architectural, building, and construction data	Details coherent information exchange relevant to facility and building managers
Scope	Captures a wide range of information including geometry, properties, and relationship of building elements	Captures non-graphic data including asset information, maintenance logs and schedules, and contact details
Structure	A structured data model defining classes such as 'wall' and ' door' and their attributes	A spreadsheet containing detailed information on building assets such as floors, spaces and zones
Example	Defines physical components of a building, manufactured products, abstract structural analysis models, energy analysis models, cost breakdowns and more	Defines necessary information and collated data required for seamless building information exchange between construction team and facility management team

Essentially, COBie data is a subset of IFC. It uses a specific set of IFC classes and attributes to provide focused and consolidated data indispensable to facility managers. IFC, on the other hand, is a much broader and general data model for building and construction information.

Applications and Usage of COBie

The COBie spreadsheet allows space for numerous data requirements, serving as a cross-functional document across all operative disciplines in each construction phase.

COBie for Designers

For design teams, COBie serves as a meticulously formatted design repository. It consolidates crucial data regarding building materials, component specifications, and performance metrics. Using COBie, architects, engineers, and members of the design teams can achieve:

• Enhanced design precision: Comprehensive data validation guarantees adherence to stringent regulatory and sustainability mandates.
• Interdisciplinary coordination: The collaborative nature of a COBie spreadsheet ensures that operative disciplines deliver information crucial for cohesive project execution.
• Reduced design redundancy: Systematically organized asset data minimizes errors and rework in the design framework by leveraging its precision and contextualities.

COBie for Contractors

For the project team, COBie facilitates the detailed compilation of streamlined as-built documentation. Throughout the construction lifecycle, COBie specifications empower contractors to carefully document installation protocols, as-built conditions, and equipment specifications, enabling them to:

• Real-time construction monitoring: With key information accurately listed, a well-maintained and extensive record of installed components ensures accurate project tracking through each construction phase.
• Seamless project turnover: The comprehensively structured documentation process allows a smooth data delivery process to facility managers at the construction project completion stage.
• Fortified quality assurance protocols: The well-formatted COBie worksheets guarantee strict adherence to the stipulated project specifications and regulatory mandates.

COBie for Facility Managers

For facility managers, the COBie format aids in implementing a robust and efficient asset-tracking protocol. On completion of a project, COBie data seamlessly merges with facility management system software. This grants maintenance teams access to crucial asset data. This, in turn, empowers a facility manager to achieve operational advantages, such as:

• Optimized maintenance execution: The structured COBie file format ensures timely execution of servicing and repair tasks, reducing downtime and increasing asset longevity.
• All-around asset lifecycle management: The COBie spreadsheet enables proactive strategic planning by implementing rigorous monitoring of equipment performance and depreciation.
• Strategic space management: The COBie deliverables provide facility managers with the data required to drive layout efficiency and sustainability with smart space management strategies.

COBie and BIM: Differences and Integration

While the building information model or BIM focuses on the entire lifecycle of a facility, COBie data focuses more on the key operational information required for effective facility management. COBie provides a structured compilation of data on assets, maintenance schedules, manufacturer details, and more for enhanced facility management capabilities. All the data requirements of COBie can be extracted from the BIM model during each stage of a construction project - design, construction, and handover.

AECO professionals such as a construction contractor, project manager, supplier, designer, architect, structural engineer, building owners, and facility managers benefit from the overlapping areas of functionality between BIM and COBie.

How they differ and can be integrated for maximized output from construction operations through the entire project lifecycle are as follows.

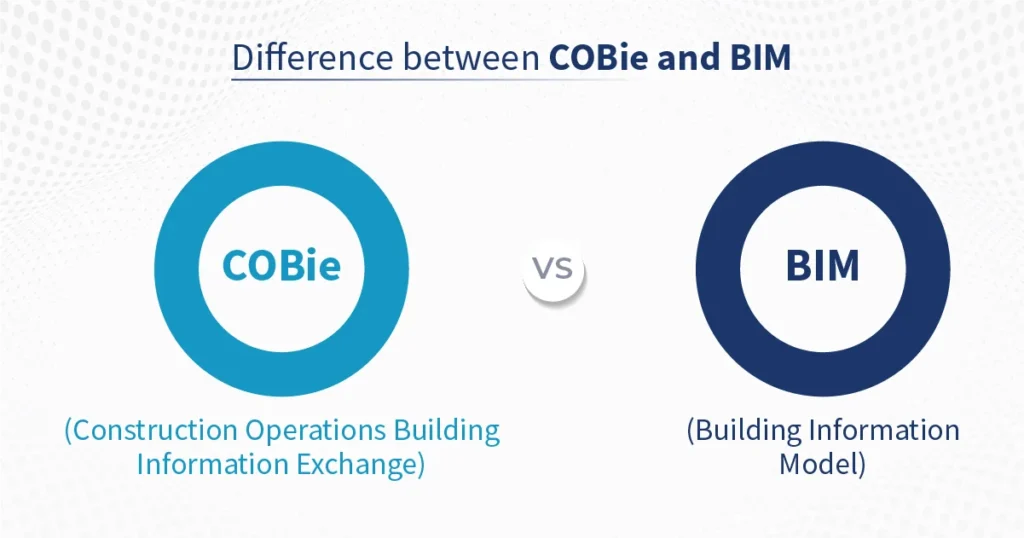

Difference between COBie and BIM

	BIM (Building Information Model)	COBie (Construction Operations Building Information Exchange)
Definition	It is the holistic digital representation of a building or facility	It is the structured data format following predetermined criteria extracted from the BIM
Purpose	A process to create and manage digital representations of physical and functional attributes and components of a building	A standard for delivering asset data of a facility or building, especially useful for facility managers
Focus	Entire project lifecycle: design, construction, operations, demolition/ renovation	Essentially focused on handover and operational phases
Data Type	Both graphical (3D) and non-graphical (data requirements of model elements)	Non-graphical and structured data (such as maintenance schedules, warranties, equipment surveys)
Format	Wide variety of file formats such as .dwg, .rvt. ifc, etc.	Delivered in a COBie worksheet format (.xlsx) or IFC files
Relationship	BIM models contain the necessary data that can be extracted and delivered using the COBie format	A subset of BIM data to enable seamless information exchange for facility management and operations
Vital Information	Material properties, geometric information, and spatial relationships between components and assets	Maintenance schedules, equipment details, information on assets, warranty information, and more
Examples of Use	Primarily used for design coordination, clash detection and coordination, construction planning, and visualization	Primarily used for asset tracking, facility management, maintenance planning, and more

The Benefits of Integrating BIM and COBie

• The COBie data format containing crucial asset information regarding maintenance schedules and equipment warranties can be extracted with ease from BIM models.
• Integrating data from BIM models into a detailed COBie spreadsheet facilitates seamless planning for preventative maintenance, lowering operational costs significantly.
• An integrated BIM and COBie data format creates a common data environment, allowing architects, contractors, engineers, and facility managers to streamline collaborative tasks.
• The geometric information from BIM along with the non-geometric information from COBie together provides an accurate and comprehensive data framework, reducing errors and project delays.
• Creating a central repository of crucial data by integrating BIM and COBie provides a robust foundation for informed decision-making across the board. This aids in enhancing project outcomes and overall building efficiency.

COBie and Facility Management: Key Challenges and Their Solutions

From traditional paper stacks and data scattered across multiple spreadsheets, traditional building information documentation processes pose a plethora of challenges for facility managers.

Understanding the Challenges

Facility managers face numerous challenges while operating and maintaining buildings prior to adopting COBie specifications in their respective workflows.

Tedious Data Entry:

The manual data entry process is laborious and prone to human errors. Leading to inaccuracies and lack of information, this causes operational inefficiencies in the building and facility management process.

Data Fragmentation:

Construction data scattered across various spreadsheets and software platforms lead to high levels of inconsistencies. This obstructs the workflow of facility managers due to data organization lacking cohesion.

Lack of Contextual Information:

The dearth of contextual information regarding building components and systems complicate the process of managing a facility. This hampers the informed decision-making process for building and facility managers.

Incompatible Data Issues:

Traditional data delivery and organization processes may lead to substantial data loss. As construction operations usually involve a variety of software, tools, and formats, this hinders the process of data integration, especially in the case of multiple facilities' management.

Complex Transitions:

The data handover process from construction to operational management phase is complex. Traditional data structuring and formatting processes incur huge data losses in the transitory stage, creating hurdles and operational delays.

Access and Collaboration Issues:

Facility managers require complete access to accurate and updated information at all times. Contrarily, unorganized data access and collaboration levels hinder communication between key stakeholders in a project.

The digital format of a COBie sheet, filled with COBie requirements and accurate information regarding a facility aids in overcoming the aforementioned challenges successfully.

Providing Solutions with COBie

The transition from the construction stage to the facility management stage post-handover is complicated and involves multiple factors. Hence, generating COBie data for a facility or building enables an ease of transition at this vital stage.

Effective Data Management and Accessibility:

• Standardized and comprehensive data: To generate COBie data, an organized process ensures all necessary information regarding maintenance, repairs, and planning is available for facility managers.
• Precise data assembly: The standardized framework of a COBie data set defines the specific information required for each component, element, and asset of the building or facility.
• Ease of data retrieval: Facility managers have easy access to all the required information, saving substantial time and effort.
• Reduced errors in data entry: Using a structured data format, COBie data entry bypasses manual processes and brings down associated errors.

Optimized Collaboration and Communication:

• Minimized data loss: Replacing manual transcription methods, accurate COBie data documentation in a digital format ensures that there is no data loss regarding asset information.
• Seamless Data Handover: For construction handover documents, the data delivery process becomes effortless with the use of a digital format as opposed to traditional paper documents and manuals.
• Ease of access and interoperability: COBie data can be seamlessly integrated with asset management software to create a consolidated operations and management manual for facility owners.
• Enhanced coordination: A facility manager and a maintenance head, for example, can work using the same data set using a COBie worksheet, enhancing coordination between vital stakeholders.

Reduced Costs, Improved Efficiency:

• Reduced downtime: COBie specifications optimize maintenance schedules and prevent equipment failures. This aids in decreasing downtime and improving operational efficiency of a building.
• Informed decision-making: A COBie spreadsheet contains detailed and accurate data, allowing facility managers to make important decisions regarding maintenance, repairs, and upgrades.
• Elevated asset management: COBie data aids in improving asset processes by offering a detailed view of building assets and their maintenance logs.
• Optimal energy usage: The COBie data format captures data regarding a building's energy usage, assisting facility managers to optimize usage and reduce costs.

Upgraded Compliance and Reporting:

• Seamless reporting: The COBie data format enables easier report generations. Operations management at buildings and facilities use them for internal audits.
• Data validation: Accurate, complete, and consistent COBie data ensures that all information is validated regularly, crucial for compliance and reporting processes.

Streamlined Operations and Lifecycle Management:

Reduced operational disruptions: Consistent and current COBie data consists of multiple components, including equipment surveys. These align with the interests of the facility owner and aid in streamlining operations and management tasks.
Improved sustainability practices: Supporting sustainable building practices, COBie data provides information on energy efficiency levels, materials, and systems. That, in turn, optimizes the building lifecycle.

Looking Ahead: The Future of COBie in the AECO Industry

As smart building technologies advance, so does the requirement for the COBie framework to integrate and manage information. It ensures access to organized building information for consistent and coherent integration of real-time IoT data. This enables COBie to support predictive maintenance, energy management, and facility optimization systems that can adapt according to changing requirements and conditions.

What began as a robust framework for record-keeping developed at a construction engineering research laboratory has evolved into something more significant. The significance of COBie in providing accurate and comprehensive records of building information is thus undeniable.

With the adoption of smart building technologies in the days ahead, the significance of a vital framework in managing and enhancing facility performance and construction operations continues to grow as well. Improving interoperability, COBie is set to become an invaluable tool for intelligent building and facility management, especially when it comes to the implementation of state-of-the-art maintenance strategies.

Also Read:
