Every time you see a system with smooth operations and efficient workflows, there’s a strong security mechanism and backup process working relentlessly behind it. Such is the situation with modern buildings that need high-power systems and foolproof operational prevention and damage control processes against electrical failures and emergencies. This is where the electrical circuit breaker comes in. An electrical circuit breaker acts as a device that protects building wiring and equipment from heavy overloads and dangerous overcurrents. The circuit breaker device is essentially the switch that automatically turns off in case of excessive power supply or emergencies. Engineers design electrical circuit breakers to automatically respond to unregulated power distribution, uncontrolled current flow, and ground faults, protecting building systems from outages and damage.
In the modern industrial context, an electrical circuit breaker is an integral part of a built facility. Having a circuit breaker is even more important in buildings that operate round-the-clock on heavy machinery and heavy material resources. Electricians can install this device for various electrical load situations, marked as low-voltage circuit breakers, medium-voltage circuit breakers, and high-voltage circuit breakers. The automatic safety device interrupts excessive current flow through a controlled tripping mechanism. This helps the system disconnect power when it detects an electrical fault.
Table of Contents

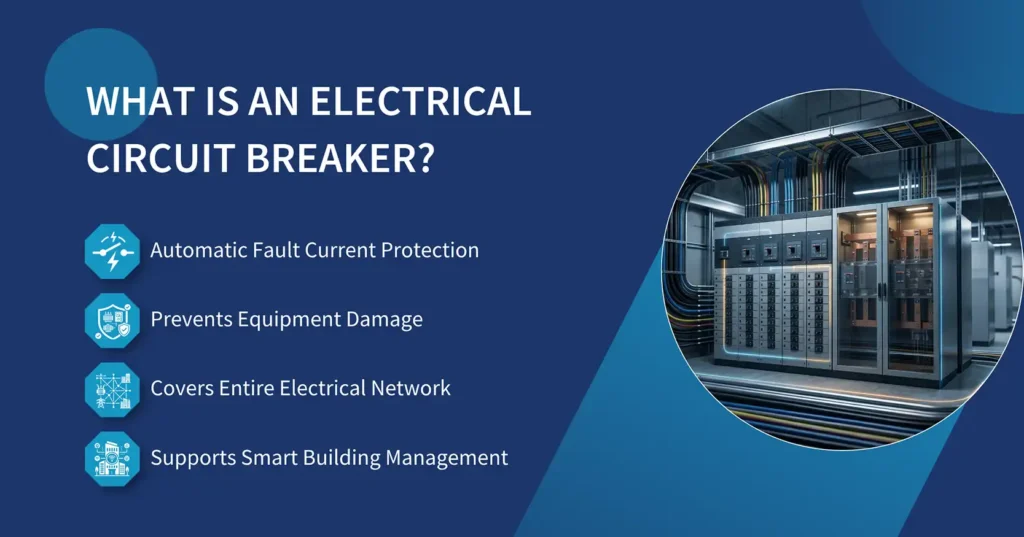

A circuit breaker in its most basic definition is a kind of electrical switch which acts automatically on high electrical currents flowing through the circuit to break the electrical circuit from any possible losses or damages. The device constantly checks for the current and breaks the electrical circuit when it surpasses the safe working current level. This way, the circuit breaker protects the system from overheating, equipment breakdowns, or electrical damage.
Circuit breakers run through the building electrical distribution network. Thus, the circuit is able to cover all parts of the electrical system in a building, thus preventing the destruction of any part without causing widespread blackouts. They help building owners from incurring costly losses. Electricians install circuit breakers depending on the use to power outlets, HVAC system, and fire protection systems.
Over time, circuit breakers have developed to be more than just protective devices. Most of the modernized types of circuit breaker systems have various features such as digital monitoring, communication ability, remote control, energy metering, and predictive maintenance. In most cases, engineers use these systems for building management systems to provide real-time data. Modern-day circuit breakers have become an integral part of the smart building management systems.

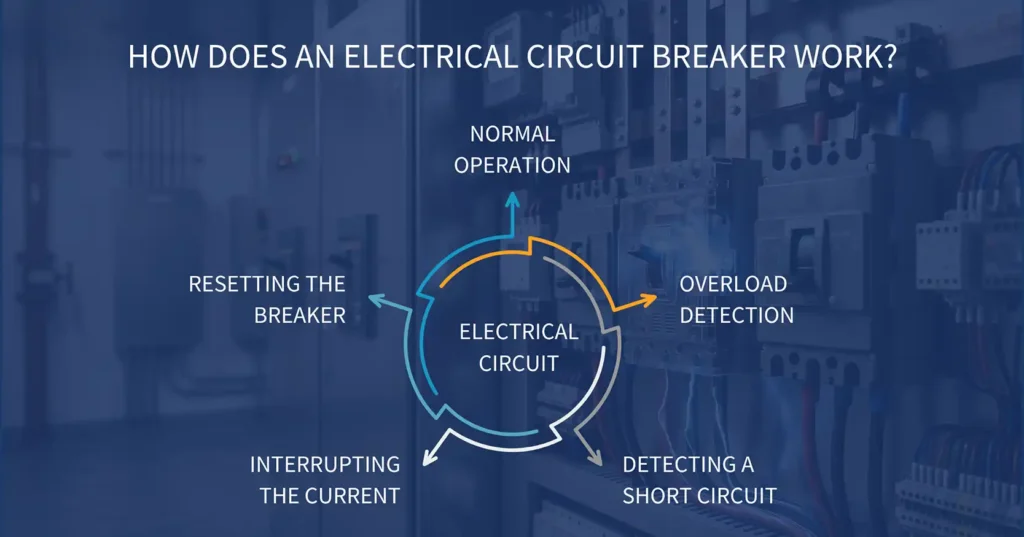

Although there are different designs for circuit breaker panels, breaker boxes, arc extinguishers, and trip units, they follow the same fundamental principle when it comes to operation. All circuit-breaking systems detect abnormal electrical conditions and flow interruptions to avoid electrical damage.
During normal operation, the current will flow through the breaker’s contacts. In this case, the breaker keeps the contacts closed to allow electricity to reach the equipment without any problems. The breaker will constantly control the current flowing through the circuit.
An overload occurs when electrical equipment consumes more current than the circuit design allows. For most household the breaker identifies overload faults through a thermal mechanism. There is a strip of two metals that heats up and bends due to the excessive electrical current. Once it attains the maximum level, it trips the circuit breaker.
A short circuit is a phenomenon that occurs where there is a high rush of current, which may be caused by poor insulating conditions, improper handling of appliances, wiring problems, or touching live conductors. Most circuit breakers sense the problem through the use of an electromagnetic trip system. There is a creation of a magnetic field for short circuit protection. This acts on the trip system and separates the contacts quickly.
A circuit breaker trip causes the separation of the breaker’s contacts, resulting in electrical arcing. For the circuit to be interrupted safely, the following methods can be employed by the circuit breaker depending on its voltage level and purpose: air, vacuum, oil, SF₆ gas, or arc chutes.
Users normally reset circuit breakers after use instead of replacing them. After technicians identify and repair the fault, they can reset the circuit breaker and restore power. This makes circuit breakers cost-effective and efficient for future use in buildings.

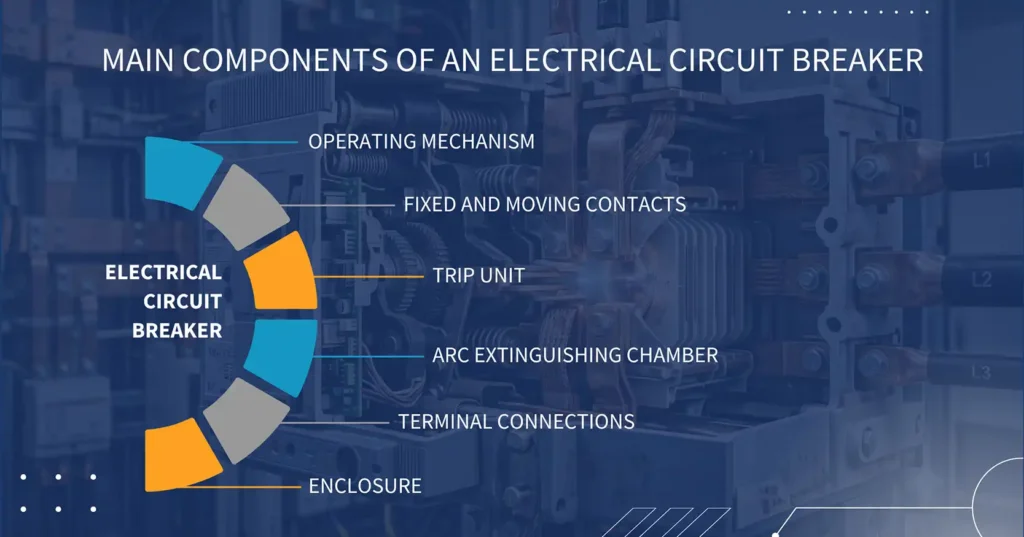

While there may be different types of circuit breakers in terms of their sizes and design complexities, they all have some fundamental components that help them protect the electricity effectively.
This component is responsible for controlling the opening and closing of the contacts of the breaker. This component holds mechanical energy, which quickly opens the breaker’s contacts on the detection of a fault.
This equipment conducts electricity when the circuit breaker remains on. The components will move away from one another very fast in case of tripping. The material used here is special because of the ability to separate and connect under heavy electrical loads.
The trip unit controls the electrical load to determine whether the circuit breaker needs to trip or not. There can be a thermal trip unit, a magnetic one, a thermal-magnetic one, an electronic trip unit, and also a microprocessor one.
The separating contacts create an electrical arc. This chamber helps in cooling and interrupting the arc before it causes damage to the circuit breaker. The breaker type determines which arc-extinguishing method it uses.
The electrical terminals link the input and output wires and create a stable electrical connection. If technicians tighten and fit the connections properly, they will offer little resistance, thereby preventing overheating, lowering energy loss, and maintaining an efficient flow of current.
The enclosure shields the internal parts from dust, moisture, accidental contacts, and any other forms of environmental damage. Enclosures in industrial breakers tend to be very robust for the working conditions, whereas residential breakers are smaller.
Also Read: What is Electrical Load Calculation? How It Influences Building Design?

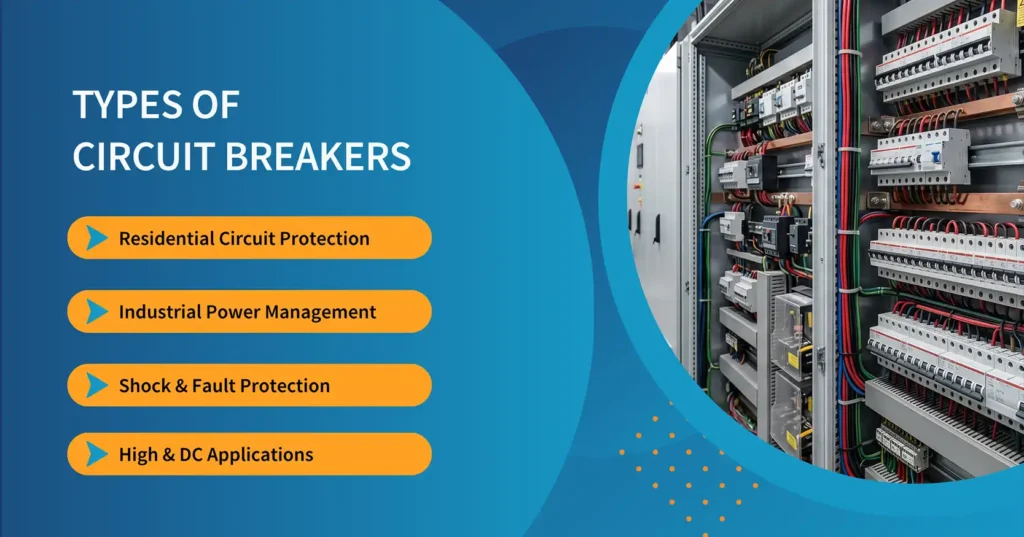

Electrical circuit breakers come in various types and forms to serve different industrial requirements and operational utilities.
The following sections describe different types of circuit breakers and their applications.
Single-Pole Breakers are one of the common breaker types. These breakers manage 120V circuits and are typically for residential use.
Molded Case Circuit Breakers (MCCBs) are another popular breaker type. Industries use these breakers to manage higher-current applications.
Industrial facilities commonly use Double-Pole Breakers. These breakers handle 240V circuits for heavy-duty appliances.
Type C Breakers trip at 5-10 times the rated current for commercial applications. These provide a higher threshold for nuisance tripping caused by moderate power surges.
GFCI or Ground Fault Circuit Interrupter Breakers protect from electric shock in wet conditions. Since they sense any imbalance that is present, the power supply stops immediately to prevent electric shocks.
The High-Voltage Circuit Breaker can interrupt a current of 765 kV. The High Voltage Circuit breaker is capable of handling fault currents that range from 25 kA to 63 kA.
Facilities with low power requirements use Miniature Circuit Breakers. The low energy needs would be less than 100 amps of current and below 1000V voltage.
DC Circuit Breakers are specifically for direct current systems. These use specialized magnetic arc chutes to extinguish electric arcs as the circuits open.

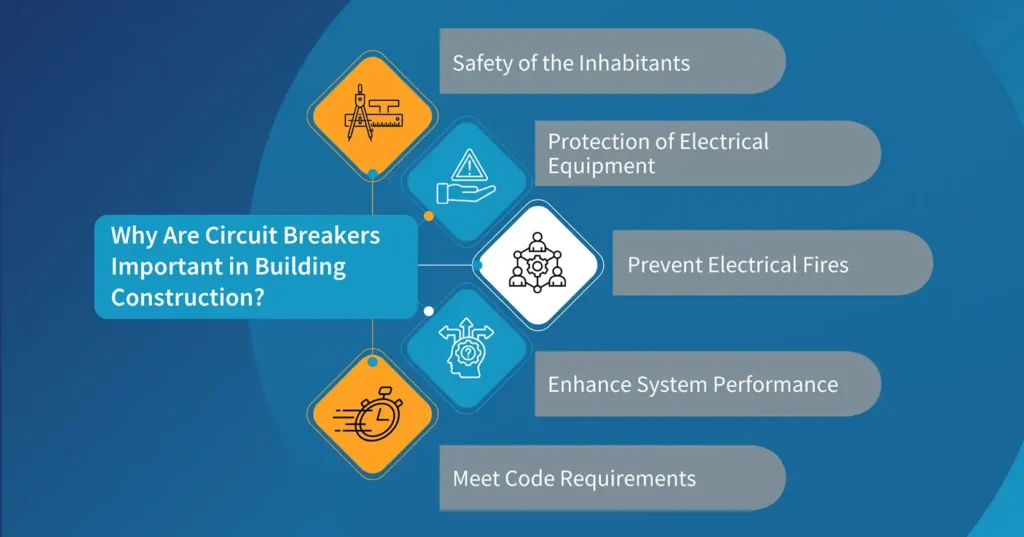

Circuit breakers ensure the safe and reliable performance of an electrical installation of any building and their role goes far beyond disconnecting faulty circuits.
Circuit breakers minimize the chances of getting an electric shock, having an electrical fire or breaking electrical equipment by disconnecting faulty circuits.
Expensive and sensitive electrical equipment like HVAC systems, elevators, computers, medical devices, and industrial machinery are vulnerable to electricity faults.
Electrical overload and fault currents generate a lot of heat, which may cause ignition of the surroundings. Circuit breakers prevent dangerous heating conditions.
Instead of powering off the whole building when there is a fault current, circuit breakers disconnect faulty circuits only.
Modern electrical installation needs to satisfy the national and international standards of electrical construction. The selection of appropriate circuit breakers can help achieve code compliance.
The selection of a circuit breaker depends on different operational and technical factors. The most common and imposing ones are furnished below:

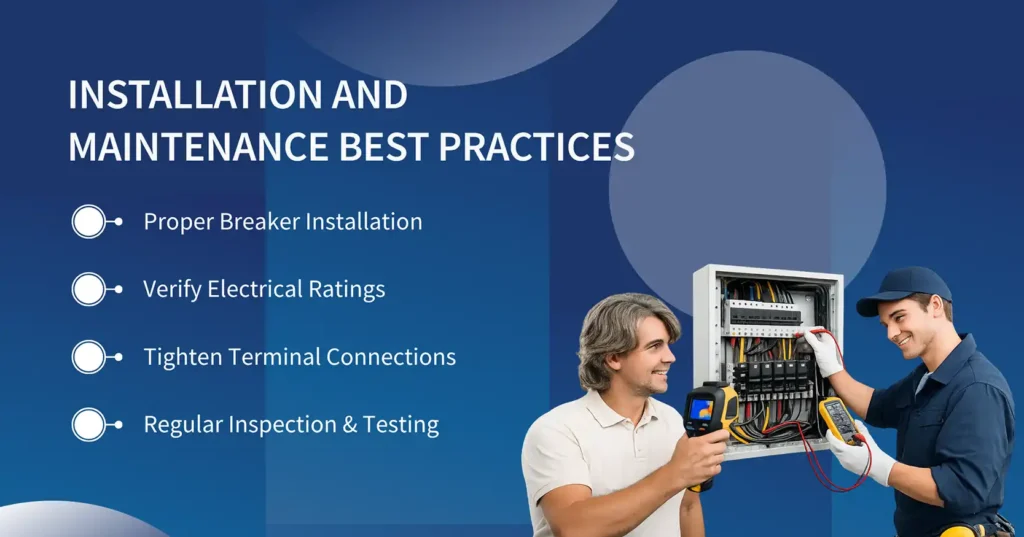

Proper installation and regular maintenance ensure effective circuit breaker protection. Otherwise, improper installation, loose connections, or lack of maintenance will affect the breaker’s performance and cause electrical failures, equipment damage and even danger to life and property. Adhering to the best practices in the electrical industry ensures reliable functioning throughout the service period of the breaker.
The installation and maintenance practices include:
An effective preventive maintenance program will ensure reliability of the electrical system, minimize downtime, extend equipment life, and help achieve electrical safety standards compliance.
Modern buildings feature intelligent electrical protection systems in addition to traditional electrical protection systems. The intelligent circuit breakers can monitor energy usage, fault detection, maintenance activities, and even connect to building management system and Internet of Things systems.
This intelligent system allows for real-time monitoring and predictive maintenance and enables efficient energy usage and minimal downtime.
Electrical circuit breakers are among the most important and process-critical safety devices for a building of any type and size. They not only protect people, material, and resources from fire hazards and damage but also keep environments service compliant by meeting safety standards. Circuit breakers work differently for different built environments, as they offer different capacities of protective devices for different electrical circuits and distribution systems. These devices may include everything from compact MCBs used in homes to high-capacity ACBs and VCBs used in industrial facilities. Proper selection, installation, and maintenance with the help of professionals ensure reliable operation, improved energy management, and enhanced safety, meeting necessary process compliance. As with time, buildings get more connected and smarter electrical circuit breakers will have an ever-more immersive role to play in delivering reliable and safer electrical systems.
The circuit breaker prevents any damage to the equipment as well as protects from fire accidents in case of overloads and short circuits in the electrical circuits by automatically breaking the circuit.
In case of overcurrent flow, a fuse melts and needs to be replaced again. A circuit breaker trips on the occurrence of a fault and technicians can normally reset it after rectifying the fault.
The Miniature Circuit Breaker (MCB) is the most commonly used circuit breaker in houses. MCB protects electrical circuits from overloads and short circuits. It automatically disconnects the electrical supply when there are any faults in the circuits.
MCB is a circuit breaker which is used for protecting the electrical circuits from overload and short circuits where RCCB (Residual Current Circuit Breaker) detects the earth leakage current. This will cut off the electrical supply to the electrical circuits in order to prevent any accidents from happening. Electricians use both breakers together to ensure electrical safety.
There is a need for testing the functionality of the circuit breakers periodically. There is a need to conduct visual inspections of the circuit breakers at certain time intervals in order to check the functionality of the circuit breakers.
Smart circuit breakers offer remote monitoring, energy tracking, predictive maintenance, and fault diagnostics. This makes them especially valuable for commercial buildings, industrial facilities, and smart building applications.
The reasons for circuit breaker tripping include overload, short-circuits, ground-faults, malfunctioning appliances or equipment, and damaged wiring among others. It is always important not to ignore this tripping since there might be an underlying problem that needs to be sorted out by a professional electrician.
The selection of the appropriate circuit breaker involves several aspects such as voltage ratings, current rating, interrupting capacity, nature of load, number of poles, and ambient conditions. The engineers have to consider compliance with electrical codes when selecting the circuit breakers for buildings.
It is possible to reset the circuit breaker as soon as technicians rectify the fault that caused the trip. Circuit breakers are different from fuses where one needs to replace them every time they are used.
