January 27, 2025
Floor flatness and levelness are critical parameters in building construction as they significantly affect the quality and usability of the structure. Both of these factors play an integral role in the success of so many construction projects, from a residential home to an industrial warehouse. Uneven floors can lead to problems such as improper installation of equipment, difficulty in laying flooring materials, and safety hazards. This blog post explains what floor flatness and levelness are, why they matter, how they are measured, and how they affect concrete floor construction.
Floor flatness is the smoothness of a concrete floor surface and floor levelness is how close the floor is to its intended elevation across a specified area. For residential, commercial, and industrial buildings all types of construction need floor flatness and levelness. As an example, in narrow aisle warehouses, super flat floors are a must to allow smooth movement of vehicles and machines. Many projects require both a flat floor and a level floor. Whether you are building up slab construction or elevated slabs, the precision in flatness and levelness is what makes the final outcome.
Having a level floor guarantees that occupants or machines can work safely and efficiently without any problems associated with elevation differences. A flat floor decreases the probability of surface irregularities causing problems such as equipment installation issues or uneven wear and tear of flooring materials.
In industries where it is common to place concrete, like warehouses or factories, a flat and level surface is not an option. Depending on the use of the building, concrete contractors are often faced with the responsibility of making sure that concrete floor flatness and floor levelness meet the specified standards. For the projects where specialized equipment is involved having flat and even floors is an absolute necessity.

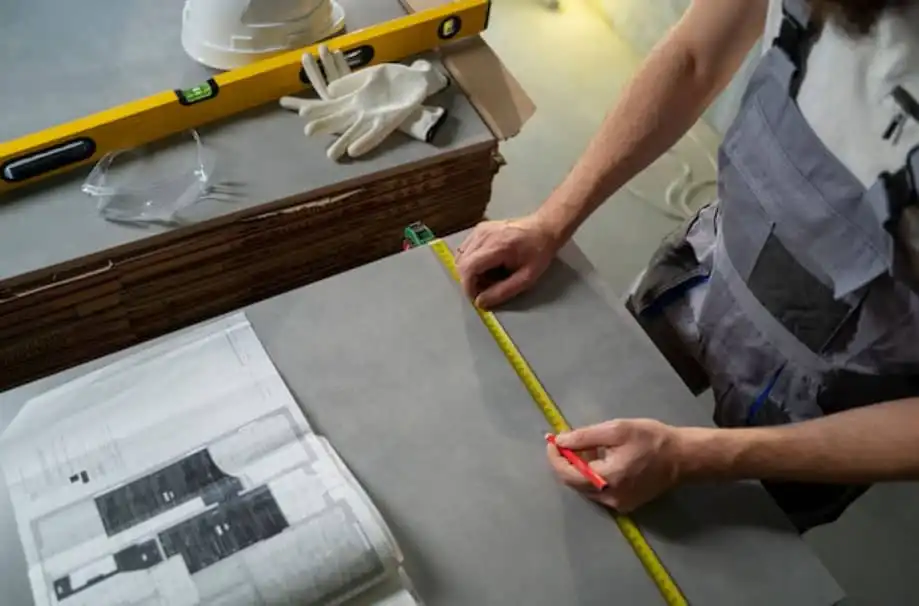

Accurate measurement of floor levelness and flatness is essential for successful slab construction. The f number system is a standardized way to measure the floor flatness and levelness achieved by contractors around the world. This system creates f numbers which help in quantifying how flat or level a concrete slab is.
The f number system is an accepted standard test method for determining the flatness and levelness of concrete floors. Two primary measurements are used: ff and fl numbers. The ff number is used to determine flatness and the fl number is used to determine levelness. With the help of these values one can get the overall quality score of a floor surface.
To take an example, in narrow aisle warehouses which require high-precision designs, higher ff and fl numbers mean that the floor is more suitable for the installation of automated systems or high-rise storage racks.
On each project a minimum local value and an overall value are determined for the flatness and levelness of the concrete floor. These values make sure that the floor meets the required standards all over and not only in some places. Whether a particular section of the floor complies with the project's specifications is dependent on the minimum local values.

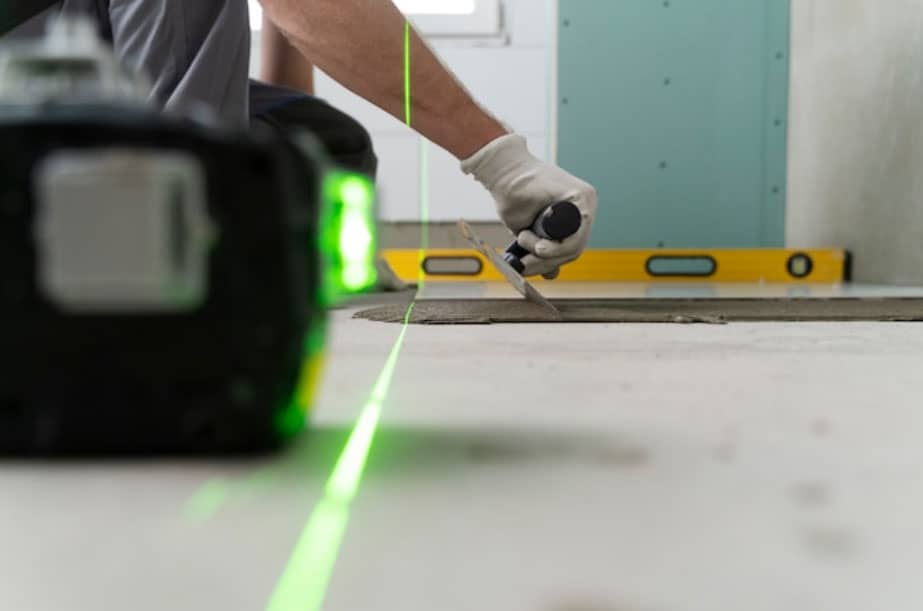

Today, floor flatness and levelness are measured using a modern technique called laser scanning. In the practice of using laser scanning, the device emits laser beams across the concrete floor surface to capture high resolution data points. Such points are then analyzed to determine flatness requirements and deviations in floor levelness. This method stands high on accuracy and is quite fast. It also provides a 3D visual of the concrete slab that is needed for complex projects such as elevated slabs or industrial slab construction.
The straightedge method of measuring floor flatness is still a common method, especially in smaller projects. Using this method contractors can manually inspect for dips or rises greater than acceptable tolerance levels by placing a straightedge on the concrete floor. While it is less precise than laser scanning, this is a simple and inexpensive method of assessing basic flatness and levelness without high tech equipment. It is often combined with other methods for a fast check.
Digital levels measure the elevation differences across the floor surface using sensors and digital readouts. These provide an automatic measurement for floors that can be stored for further analysis, unlike manual tools. In particular, they are best suited for checking floor levelness and flatness specifications over small and large areas. This method is easy to implement on-site. It also provides quick feedback and therefore provides better results when concrete is being constructed.
Elevation maps are made by measuring a series of elevation differences across a concrete slab. This map shows the variation of the concrete floor from the intended slope or height. Typically, elevation mapping is used for large surfaces such as narrow aisle warehouses, or factories where level floors are important. It makes it possible to comply with the flatness requirement and to detect areas that require correction before completion of the factory or warehouse floor.
In recent construction, data from laser scans, digital levels, and manual measurements are collected from a number of sources and analyzed through specialized software. With the ff and fl number tracking process, contractors can monitor the project and determine whether floor flatness and levelness will meet project requirements. This is an excellent method for use in large, complex builds where achieving consistent quality throughout the concrete floor is critical.
Also Read : The Importance of Detailed Architectural Drawings in Modern Construction

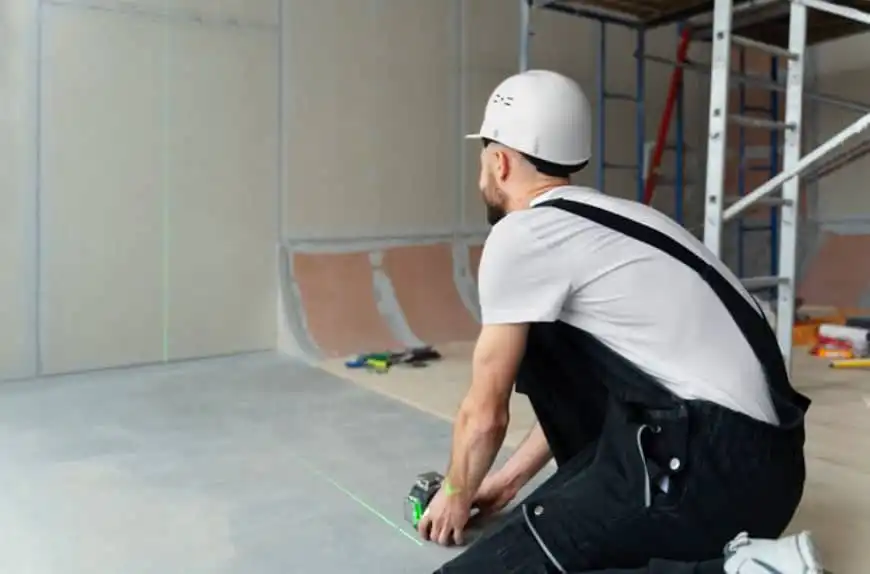

Several issues can affect the flatness and levelness of a floor, leading to problems during the slab construction process:
In modern construction, architectural BIM services are becoming important in quality assurance regarding floor flatness and levelness. Architectural design teams can visualize and simulate the performance of the concrete floor prior to its construction using Building Information Modeling (BIM). It enables the contractor to plan better and avoid problems in the actual construction stage.
BIM models can simulate the response of concrete floors and predict what might become an elevation difference, a surface irregularity, or a curing process problem. Designers and contractors can integrate f number and l number specifications within the BIM model to ensure that the final structure satisfies all requirements for flatness and levelness.
Proper planning and execution will ensure perfectly flat and more level floors. The following points help ensure successful outcomes:
Precise floor flatness and levelness are necessary for the long-term durability, functioning, and safety of a structure. The quality of the concrete floor matters because everything from equipment performance to occupant comfort depends on it. The proper flatness and levelness guarantee that floors are up to standard for smooth and even surfaces, avoiding problems such as cracks, uneven wear, or operational inefficiencies.
