In commercial and industrial setups, fire mishaps can occur due to several causes. HVAC fire dampers are a system that works passively to prevent the spread of fire.They reduce risks, injuries, and damages through Passive Fire Protection Systems (PFP). The concept behind the working of these is compartmentalization to prevent fire.
Dampers are set up by MEP fire protection engineers in HVAC and building architecture systems to isolate burning areas from other unaffected areas.
The failure of dampers to operate correctly can lead to tragic situations during a fire, allowing smoke and fire to spread.

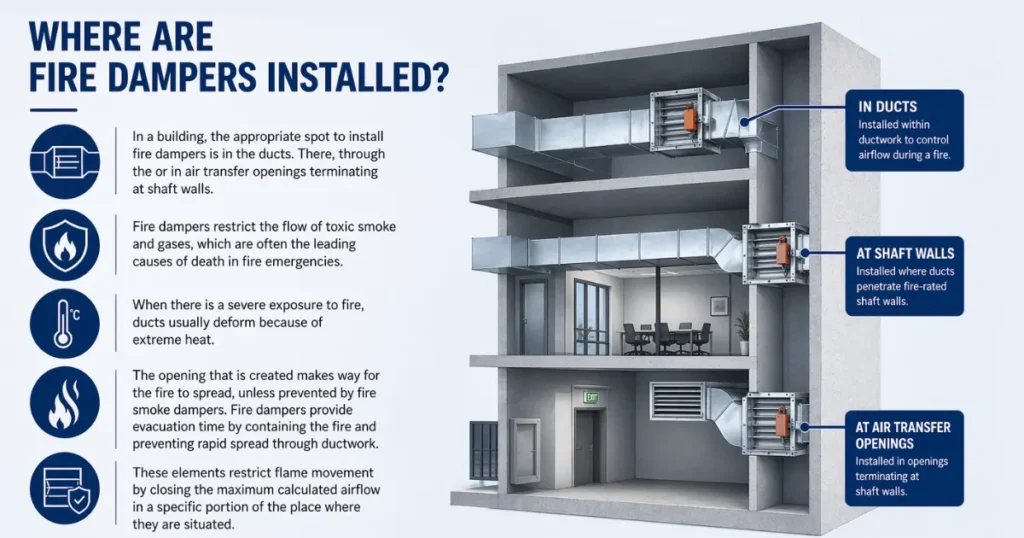

In a building, the appropriate spot to install fire dampers is in the ducts. There, through the or in air transfer openings terminating at shaft walls.
Fire dampers restrict the flow of toxic smoke and gases, which are often the leading causes of death in fire emergencies.When there is a severe exposure to fire, ducts usually deform because of extreme heat.
The opening that is created makes way for the fire to spread, unless prevented by fire smoke dampers. Fire dampers provide evacuation time by containing the fire and preventing rapid spread through ductwork.
These elements restrict flame movement by closing the maximum calculated airflow in a specific portion of the place where they are situated.

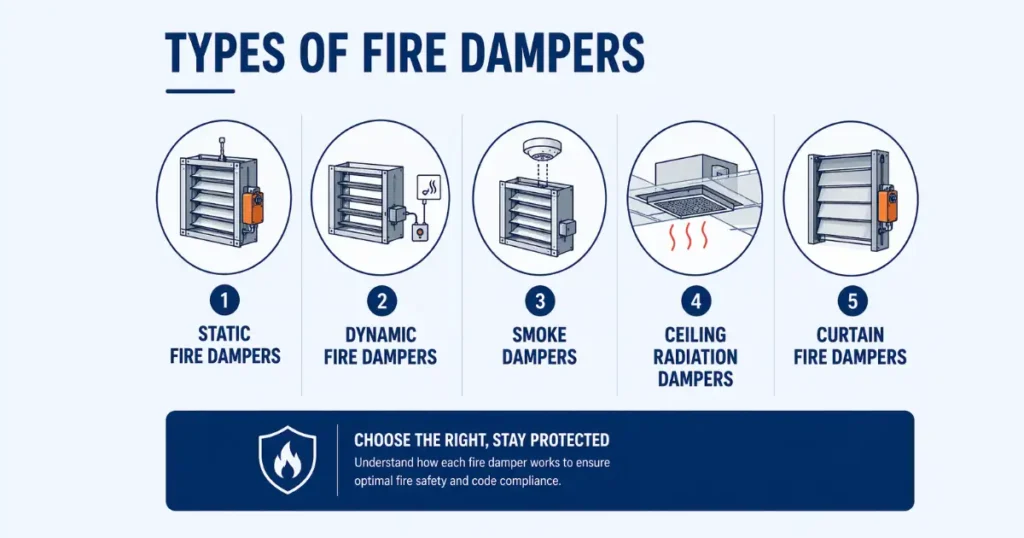

Now, there are different types of fire dampers, and knowing them will help justify their installation ROI.
The purpose of these is to stop fire from spreading through the duct system, but not smoke.
These are installed in walls and floors where ducts pass. A fusible link is there, which melts when the temperature reaches a high level due to fire outbreaks and closes automatically.
The damper shuts, and it obstructs the fire from reaching other compartments, functioning like typical static systems.
Dynamic fire dampers are designed for systems to continue airflow even during fire incidents.
These are used in modern HVAC systems integrated with smoke management systems. In situations where the air flow is not shut, it keeps moving to push out smoke or keep the escape routes clear. This ensures that occupants move with greater visibility through evacuation routes.
Dynamic fire dampers are tested to withstand airflow resistance and work as a fire barrier.
Smoke dampers control the flow of smoke during fire incidents.
Because smoke spreads faster than the fire inside, it blocks visibility in corridors, staircases, and escape routes, hindering safe evacuation.
Smoke dampers do not rely on temperatures to activate; instead, they are connected to smoke detectors and control systems.
Ceilings have diffusers through which heat can escape by radiation. During fire incidents, this radiation poses a threat to occupants' ability to move safely to escape routes.
Ceiling radiation dampers are installed in ceiling assemblies. They prevent the heat from radiating, forming a fire-resistant floor.
These devices work effectively to stop heat radiation, hence they are a critical component to get high fire ratings.
These fire dampers are installed in almost every modern structure across the world.
They work just like a falling curtain, with their stacked interlocking blades. In an open condition, these blades are folded or stacked as fire doors. Typically installed in vertical ducts, wall penetrations or air conditioning. Fusible links are there to activate them during high temperatures.
When there are critical space constraints, it has seen widespread use because of its simple gravity-based operation.
So, these were the most commonly used fire dampers across sectors. Now, to choose the right set of fire dampers, organizations need to understand how these work.

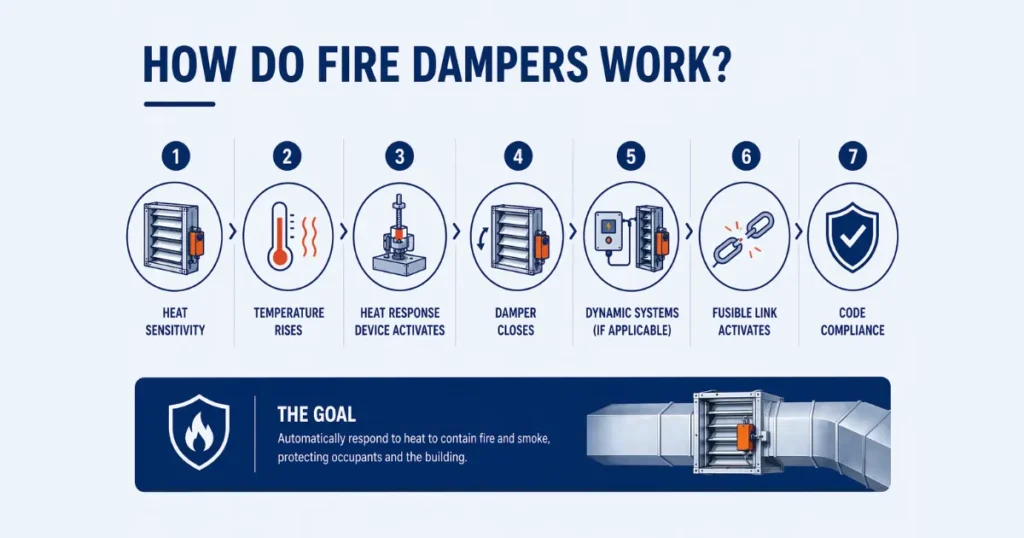

Fire dampers work on the simple concept of heat sensitivity. Every type has a temperature limit set, which is an established trip set point.
When temperatures rise to this mark, there is a heat response device inside it.
Without fail, it triggers the damper blades to close, which stops the fire, heat, or smoke from spreading into adjacent areas.
Some dynamic systems also have electric or pneumatic actuators that act as modulating control systems. For example, in industrial plants, these manipulate the flow of air or gas through ducts.
These work on the signal of the heat response device, which cuts a fusible link when activated. The fuse has to be reinstalled after the situation is under control for them to work again.
The activation threshold we are talking about varies across sectors. For example, in industrial areas, the devices have fuses with a higher melting point at the closure.

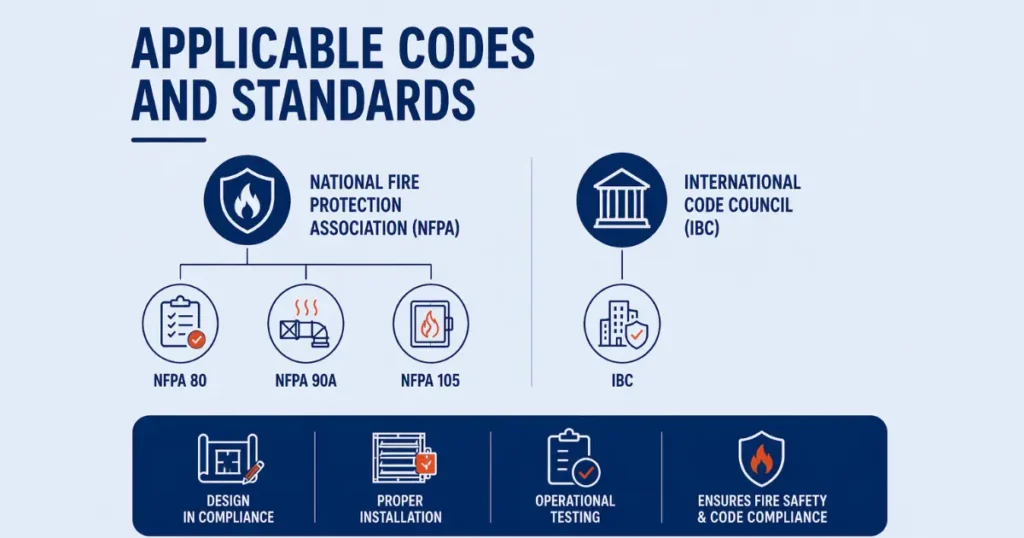

Now, as we know, every country has fire safety codes and standards, and these need to be followed while designing the buildings.
These rules ensure that buildings are safe for occupants and equipped with prominent escape routes.
The codes and standards are a set of documents issued by recognized authorities. These are responsible for maintaining fire-related safety at specific places. With modern digital construction technologies, professionals design fire-safety installations in compliance with these documents.
The National Fire Protection Standards (NFPA): These are the most widely followed fire standards. These include NFPA 80, NFPA 90A, and NFPA 105, which focus on different aspects of a building related to fire safety. For example, the NFPA 80 ensures installation, inspection, testing, and maintenance of fire dampers. The NFPA 90A ensures that HVAC systems are equipped with dampers, so fire and smoke do not spread through the air distribution system. Proper installation and maintenance of fire and smoke dampers are critical to ensure they function correctly during a fire emergency.
International Code Council (IBC): These codes specify the areas where fire dampers must be installed in buildings. The IBC is a universal regulatory framework that links all other standards. Hence, fire-resistance ratings from here are very credible in modern construction. Proper installation and maintenance of dampers is crucial to prevent the spread of fire, smoke, and toxic gases through buildings.4
Now, these technical rules actually translate into design during the installation of fire dampers. However, the transition process heavily determines how high the fire-resistance rating of the building is. An operational test must be completed after a damper has been installed to ensure it is fully functional and closes completely without obstructions.

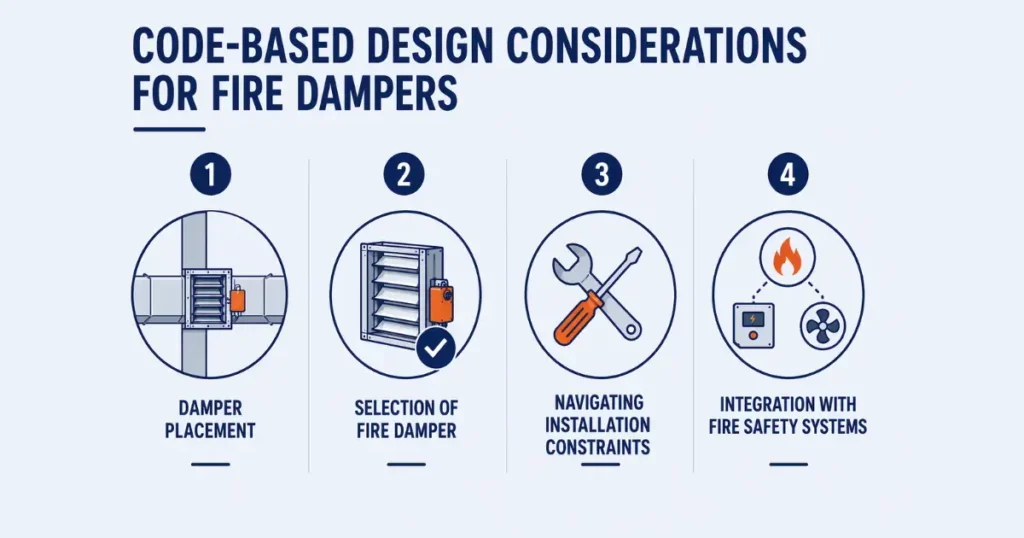

The real value of all these frameworks is realized when organizations apply them appropriately during design.
As HVAC and mechanical systems are installed in a highly complex setup, often fire-rated barriers get compromised during an extreme combination fire event.
So, wherever this happens, fire dampers should be installed. Here, the key locations include:
These areas are prone to spreading fire between compartments, and maintaining high fire ratings.
Even after designers identify the right places, the most critical step comes after that. This is the installation of the right type of fire dampers.
Having discussed the different types of dampers, the key decision factor is whether there will be airflow or not in the ductwork. Hence, static dampers are optimal in places where airflow needs to be shut down.
Dynamic dampers are designed to close against flowing air, where fans continue to operate. These are part of more advanced fire and smoke control strategies.
Organizations can systematically audit their HVAC plans to determine the best-suited systems for each area.
Professionals might achieve precise installation layouts for fire dampers. But still, on-site execution faces challenges, which need to be addressed carefully.
While installing fire dampers, organizations must avoid these three types of constraints:
Many organizations consider installing fire dampers to be equal to safety compliance. This leads them to fail in achieving an intelligent fire safety and ventilation system.
Instead of working in silos, fire dampers should be linked with fire alarm systems and aligned with HVAC shutdown sequences.
The end goal of an effective and compliant fire safety system should be to ensure that everything works in conjunction.
Fire safety systems are now easier to coordinate with structural and MEP systems. Digital tools and high-end simulations make this possible. However, real-world execution still includes challenges in maintaining access for repairs and maintenance. The real value of fire safety systems comes when organizations think beyond compliance and focus on performance when constructed.
