Location Stephenson, Virginia, USA
Year 2026
Project Area:960 Sqft
Architect:Virginia Residential Construction, LLC
Engineer:Alliance Structural Engineers
Contractor(S):Virginia Residential Construction, LLC
Owner:Van Metre Homes
Trades Covered:Architecture
LOD:350
Software:AutoCAD Architecture, Revit 2026, ACC, Bluebeam, Twinmotion, Adobe Acrobat, SketchUp
Verticals: Structural Engineering, Concrete Contractors, Electric Contractors, General Contractors, Mechanical & Plumbing Contractors, Rebar / Reinforcement Contractors

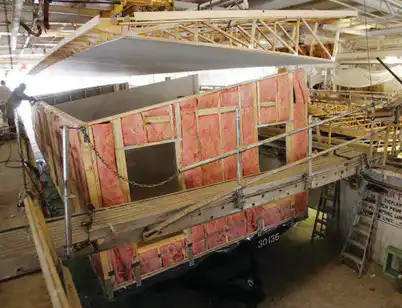

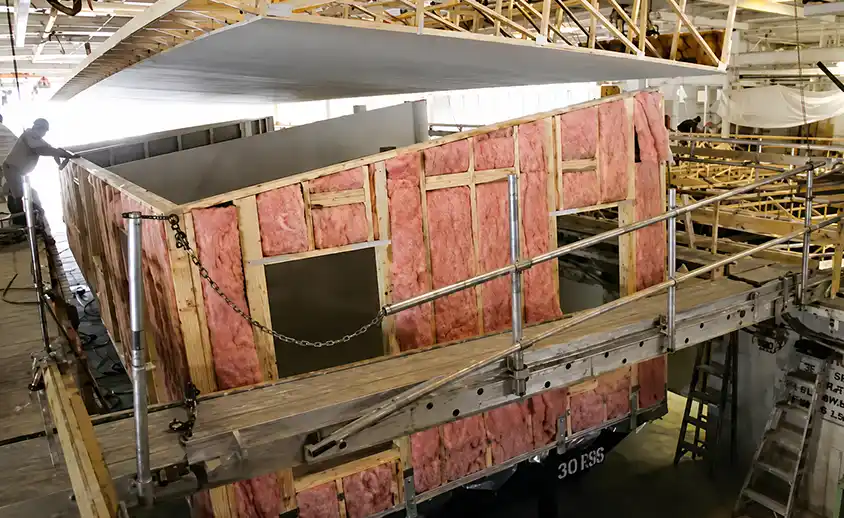

Van Metre Homes is advancing the future of residential construction through innovative factory-framed townhomes and single-family homes, including the Teagan townhomes at Snowden Bridge in Stephenson, VA. Built using precision-crafted factory components and assembled on site in a shortened timeframe, these homes combine efficiency, sustainability, and modern design.
Located minutes from Winchester and set within the scenic Shenandoah Valley, Snowden Bridge offers thoughtfully designed townhomes with open-concept layouts, smart technology, energy-efficient features, and access to community amenities.
Pinnacle supported Van Metre by providing end-to-end architectural BIM services, including DD, CD, permit and addendum sets, and marketing deliverables—helping ensure seamless execution from design through onsite construction.
Contractor(s):Virginia Residential Construction, LLC
Challenge: Inconsistencies between plans and elevations in the AutoCAD files received from the client caused delays in directly executing the work in Revit.
Solution: Conducted detailed cross-checks and clarifications before modeling, ensuring corrected and aligned inputs were used for accurate Revit model development.
Challenge: Absence of standardized Revit practices from the client side led to multiple family revisions and repeated family creation.
Solution: Refined and standardized Revit families during the modeling process, helping establish consistent Revit standards to support smoother execution and future scalability.
Challenge: Coordinating simultaneously with multiple consultants was complex, particularly due to the structural frame being developed in a factory environment.
Solution: Streamlined coordination through structured workflows and clear communication for the architectural project for Townhomes, enabling timely alignment across disciplines and minimizing impact on delivery schedules.
Added value by leveraging Bluebeam with structured color coding to streamline coordination with consultants, improving clarity, reducing turnaround time, and maintaining smooth project workflows.
Enhanced project outcomes by refining AutoCAD inputs during conversion to Revit and standardizing Revit families, helping establish consistent architectural modeling standards that support efficient execution and scalability in future projects.
Contributed to project success by identifying conceptual design gaps or inconsistencies early and coordinating with multiple stakeholders including architects and engineers, to resolve them, minimizing rework, reducing risk, and improving overall design quality.
