There have been some major changes in the field of design and engineering in recent decades. As opposed to traditional drafting boards, now we have advanced software solutions that allow designers to see how their concepts can look and then change them before putting them into practice. CAD and 3D modeling are just two different terms for the same process and are often used interchangeably. However, while being very close concepts, they are different from one another. Knowing the difference between CAD vs. 3D modeling is critical for architects, engineers, manufacturers, and product designers, as well as owners who need to select the best solution for their needs.
In this article, we will discuss CAD vs. 3D modeling technologies, their principles of work, key differences and applications.
Table of Contents
CAD or Computer Aided Design enables creating, editing, analysis, and optimization of technical designs using CAD software. The automation of previously manual tasks has transformed computer-aided design in product design and other engineering disciplines.
Unlike normal drawing software, computer-aided design enables users to develop engineering models that have proper geometry among other information.
Today’s CAD systems are utilized in various industries, such as
Another advantage of CAD that comes along with the process of designing a product is maintaining the design intent. This means any change in one feature of the design automatically results in changes in the other features too.
Designers refer to the practice of generating 3D digital models of real objects or ideas as 3D modeling. These models have details regarding the dimensions, like height, width, and depth, of an object. This helps in making realistic product images possible that resemble real-world objects.
Unlike engineering-oriented CAD, designers use 3D modeling software for various tasks, such as:
The 3D model may be purely visual or have some engineering information, depending on the application software.
Some applications emphasize building visual objects only, whereas others build an engineering model for manufacturing.

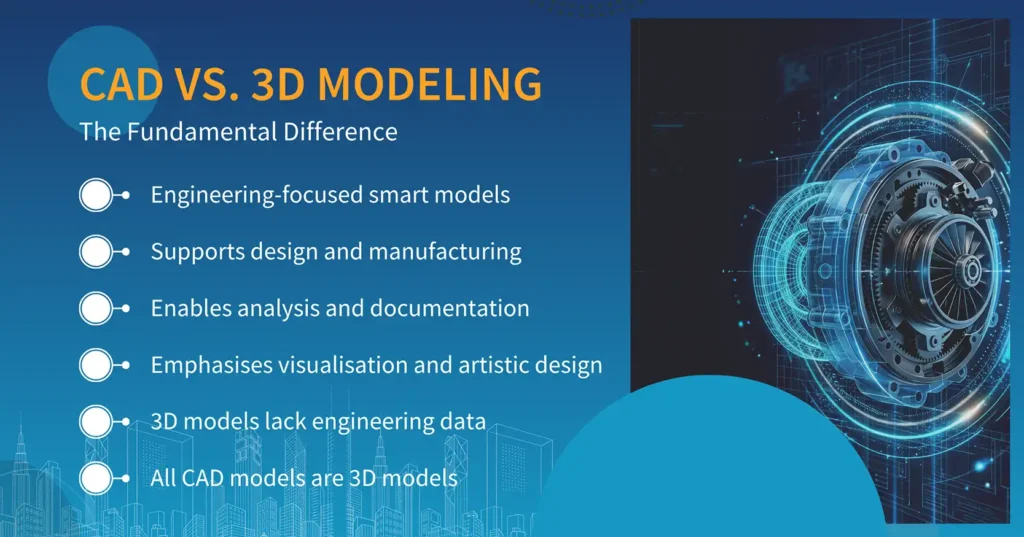

CAD as a system operates with the help of smart engineering models that provide an integrated environment to help with collaborative design, manufacturing, analysis, and documentation, allowing users to create a functional prototype for a final product, equipment, or building. On the other hand, a 3D model can provide a detailed interpretation of the real world conditions through visual conceptualizing. It emphasizes artistic design and texture rather than engineering aspects.
Computer-aided design system makes use of intelligent engineering models in order to carry out the designing, manufacturing, analysis and documentation. On the contrary, 3D modeling uses 3D visualization models which do not necessarily incorporate engineering data. All 3D CAD models are 3D models, but not all 3D models are CAD models. For a real-world example, a designer working on a character for a video game works with 3D modeling. An engineer working on an engine part works with CAD.

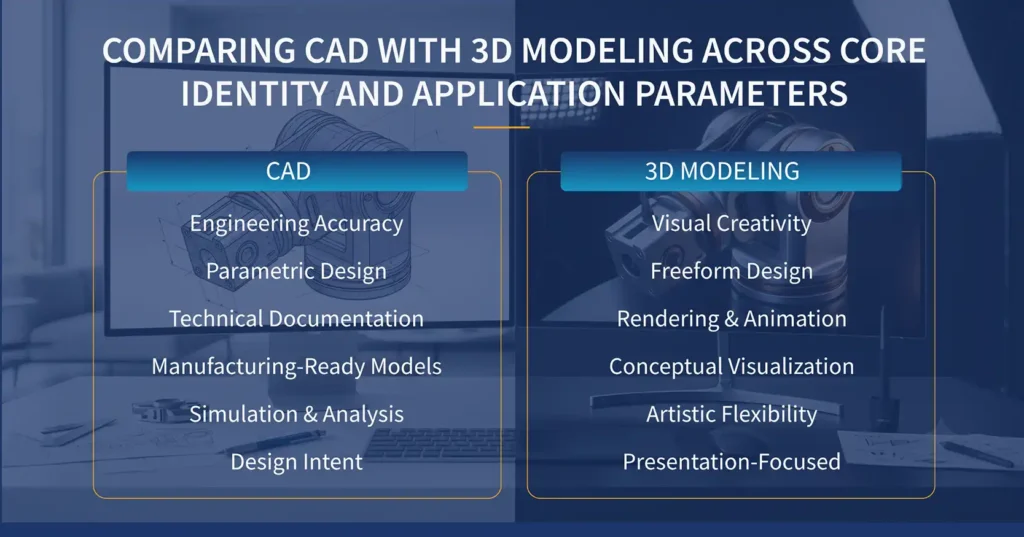

Let’s find out how both CAD and 3D modeling differ from each other in various professional disciplines.
CAD is heavily used by mechanical engineers for designing components of machinery. Exact measurements of tolerances are done, and all parts are simulated in the computer. This process is done to ensure that every single part performs perfectly well before going into the manufacturing phase.
But besides CAD, mechanical engineers also use 3D modeling for making realistic product renders.
Product designers usually start working from sketches and proceed further using freeform 3D modeling. Once the concept is finalized, designers convert it into CAD and add the required engineering details and manufacturing information.
In this way, they manage to balance between creativity and manufacturability.
An industrial designer often starts with 3D modeling to explore novel shapes and aesthetic solutions. They then use CAD to engineer the product for production.
Architects make use of CAD software to create accurate drawings, plans, and elevations, drafting construction documents, and making visualizations of the building structures. It is very significant that architects make use of 3D modeling for producing stunning visuals and simulations.
3D modeling allows interior designers to visualize furniture placement, lighting, materials, and color schemes. With the help of such technology, one can see a realistic picture of the room before construction begins. CAD ensures precision by creating drawings for all the millwork, cabinetry, and other elements which require precision.
Each technology offers unique capabilities, and understanding their limitations helps you choose the right one for the task.

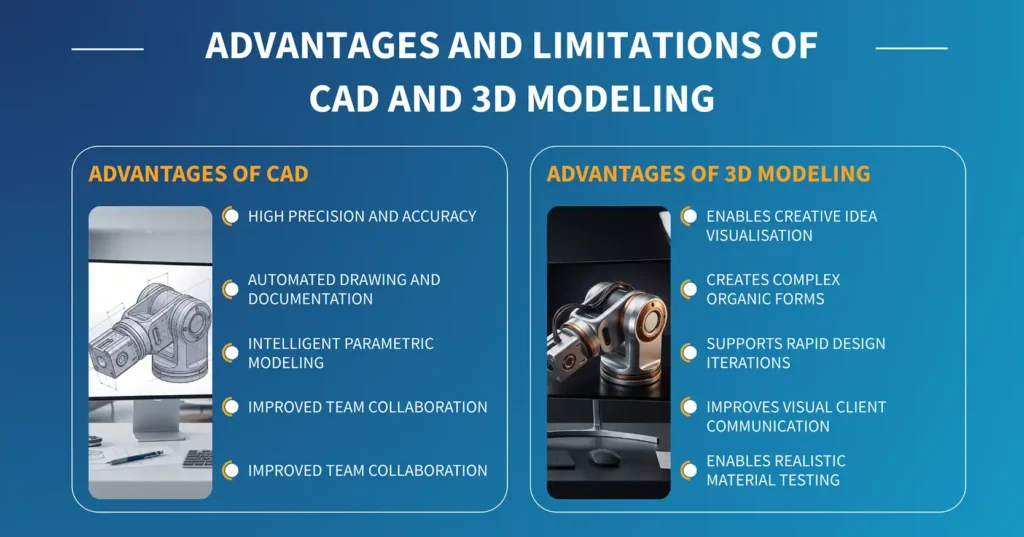

CAD has become the engineering and manufacturing standard by delivering accurate, consistent, and efficient results.
Some of the most prominent advantages of CAD include:
Great levels of precision with accuracy in dimensions and engineering tolerances.
Automation of the drawing and documentation process.
Parametric intelligent modeling to keep the design intentions alive and make changes easier.
Enhanced data management and collaboration between engineering teams.
However, there are some disadvantages to CAD as well. Users need specialized training to master the process, which can prove inflexible for artistic purposes. Although one can create complex organic forms, they will still be much easier to create through 3D modeling software.
Also Read: Redline Drawings and CAD Drafting: Cost Insights for Smarter Budgeting
3D modeling excels in creativity, visualization, and rapid ideation. It makes it possible for designers to convert any idea into a tangible design immediately. Cloud collaboration tools enable teams to collaborate on digital models from anywhere.
Some of the benefits of 3D modeling include:
Capability to generate complex and organic forms.
Quick iterations on various design ideas.
Improved client communication using visual storytelling.
Good help in architecture design, interior design, gaming, movies, and product visualization.
Easy testing of textures, lighting, colors, and materials.
3D modeling becomes less effective when projects require engineering precision. Visualization-based models do not have manufacturing intelligence, accurate dimensions, geometrical constraints, and engineering information. This means engineers must remodel many ideas in CAD drafting before manufacturing.

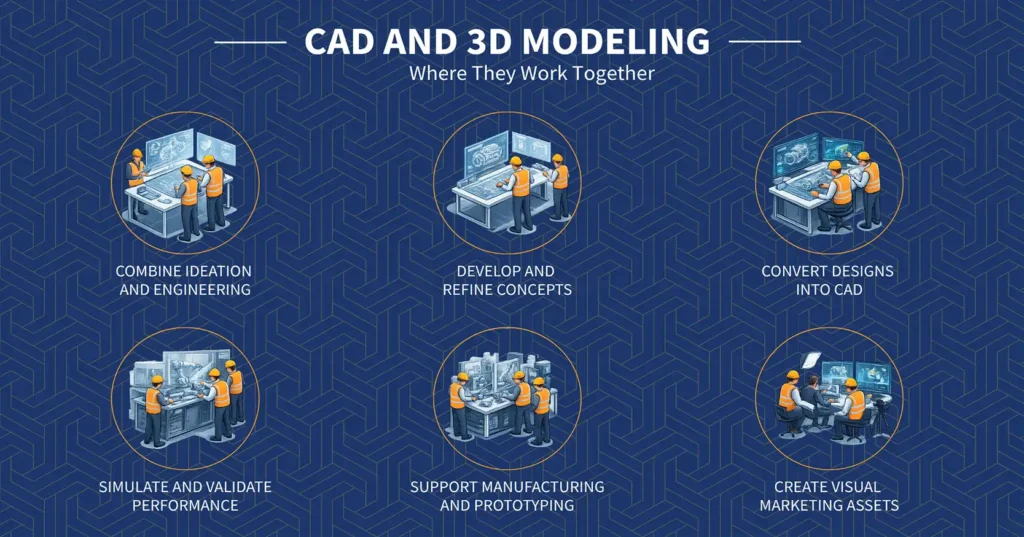

Though CAD and 3D modeling are viewed separately, their joint application is quite common nowadays in the process of modern product development. Thus, a combination of these two technologies provides organizations with the opportunity to achieve a complete workflow from idea generation and engineering to manufacturing and marketing of new products.
The typical design process could go as follows:
Concept sketching → 3D modeling → CAD development → simulation and validation → rapid prototyping → manufacturing → product visualization and marketing
At the initial stage of this process, 3D modeling technology is used to create a series of alternative designs for consideration of form and proportion and the assessment of various aesthetic possibilities.
After the design approval, the engineering department takes over and converts the chosen model into a 3D CAD system. It gives the possibility to make a design model that contains detailed information about dimensions, materials, tolerances, and assemblies.
Engineers can then test the CAD model through simulations to assess product performance under realistic conditions. Engineers can use the same model to generate technical drawings, bills of material, and manufacturing information.
It is worth noting that this process does not end here. Teams can export CAD models again to visualization software in order to generate photorealistic images, animations, and interactive presentations aimed at clients, investors, and advertising campaigns. Collaboration between CAD and 3D modeling helps companies achieve integration of precise engineering with visual communication.
Instead of substituting each other, these technologies have become complementary tools useful in different stages of one design process.
The line between CAD and 3D modeling is increasingly blurring as modern software combines features from both. The latest design systems are able to include functions previously available only to one of the categories.
Artificial intelligence is transforming modern design. It enables designers to automate repetitive tasks and improve their designs with intelligent recommendations. It also generates optimized designs that consider engineering limitations.
Cloud collaboration tools are revolutionizing interactions with digital models. They enable designers, engineers, manufacturers, and customers to collaborate on projects remotely.
With regard to this, today’s software solutions such as Autodesk Fusion integrate different functions including CAD, simulation, manufacturing and visualization in one software. Using different software solutions helps reduce the time wasted in changing from one software to another when designing the products.
Another trend worth mentioning is the introduction of Model Based Definition (MBD). This technology involves embedding information about engineering aspects (dimensions, tolerances, materials, and geometrical dimensioning) in a 3D digital model rather than using technical drawings.
Progress made in real-time rendering, VR, AR, and digital twin technologies is also contributing to closer integration of engineering and visualization fields. With time, digital models will not only look like actual products but will also allow simulating their operation over the entire lifecycle.
CAD and 3D modeling both indicate distinct techniques that are not rivalrous in any way but complementary. While CAD focuses on precision and engineering, 3D modeling emphasizes creativity and visual representation. CAD gives an opportunity to engineers to create precise models and drawings, whereas 3D modeling mainly serves the purpose of visual idea presentation.
However, when combined, these two methods prove to be highly effective. A concept can start with 3D modeling and become a basis for further development and refinement using CAD. Such an approach is efficient in terms of cooperation, minimizing design mistakes, and optimizing the turnaround time.With the continuous development of technologies, it is useful to have knowledge of what these technologies are good for.
Not always. Although 3D CAD applications make it possible to build three-dimensional models, all 3D models are not built by means of CAD. There are many 3D modeling applications specifically aimed at visualization or animation that lack CAD functions like assembly modeling or manufacturing documentation.
You should go with CAD application if your project needs accurate dimensions, engineering validation, mechanical design or manufacturing documentation. On the other hand, if you want to visualize something or explore different concepts and designs, 3D modeling would suit you better.
Yes. designers and engineers use CAD and 3D modeling applications together to create a perfect design flow. Often designers start with 3D modeling to visualize a concept or an idea, and only after it is finalized, they move on to create a CAD model of the design. Finally, designers visualize the CAD model using visualization software.
Modern CAD software enhances the product design process by helping engineers to build intelligent digital models, automate repetitive procedures, produce technical drawings, and run simulations before starting any kind of manufacturing.
The majority of CAD software applications allow for multiple modeling methods, such as solid modeling, surface modeling, direct modeling, and parametric modeling. The first category makes it possible to construct models of solids that have certain volumes. Designers use surface modeling to create more complex forms. The first one allows changing geometries quickly, while the second preserves the design intent.
These technologies are applicable in many industries, such as mechanical engineering, architecture, industrial design, interior design, automotive industry, aerospace engineering, healthcare sector, consumer goods manufacturing, etc. Engineers mainly apply the former in engineering work, while 3D modeling is more beneficial for designers.
Most 3D CAD software applications come with built-in simulation tools to assess product performance in real-life situations. Engineers have the ability to conduct various simulations such as stress analysis, motion simulation, and thermal analysis among others to ensure product performance through digital modeling before its manufacture.
CAD software supports many file formats, such as DWG, DXF, STEP, IGES, STL, Parasolid, and file formats that belong to particular programs. Such formats allow for better cooperation between different CAD tools and devices related to the manufacturing process.
While selecting the appropriate CAD software, you should take several things into account, such as support for parametric and assembly modeling, manufacturing simulation, collaboration and compatibility with the preferred file formats. Programs like Autodesk Fusion support product design and manufacturing, making them a suitable choice.
